SKU: FGTR

Simpson FGTR Face-Mount Girder Tiedown Retrofit - Powder coated

Simpson FGTR Face-Mount Girder Tiedown Retrofit - Powder coated!

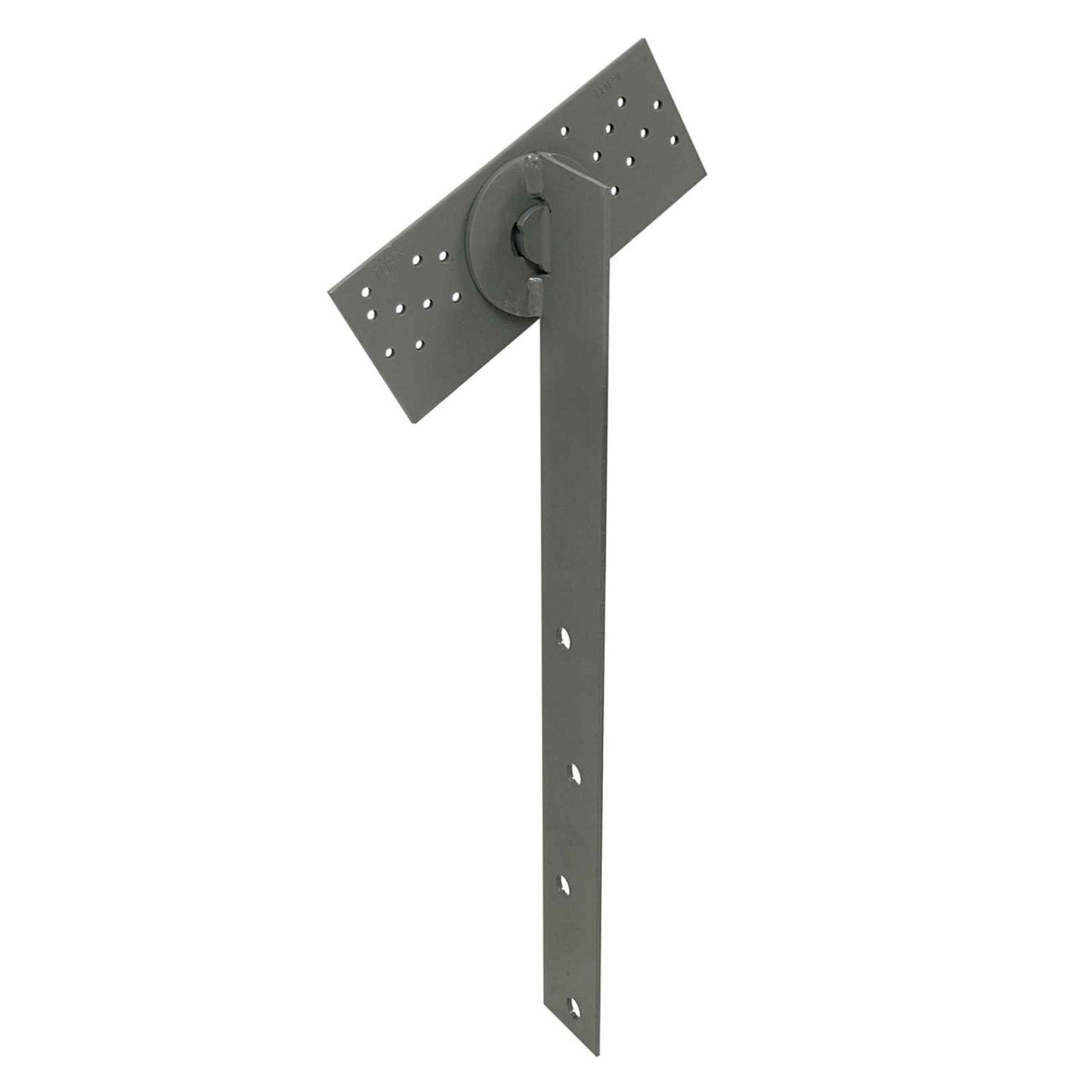

  • Simpson FGTR Face-Mount Girder Tiedown Retrofit

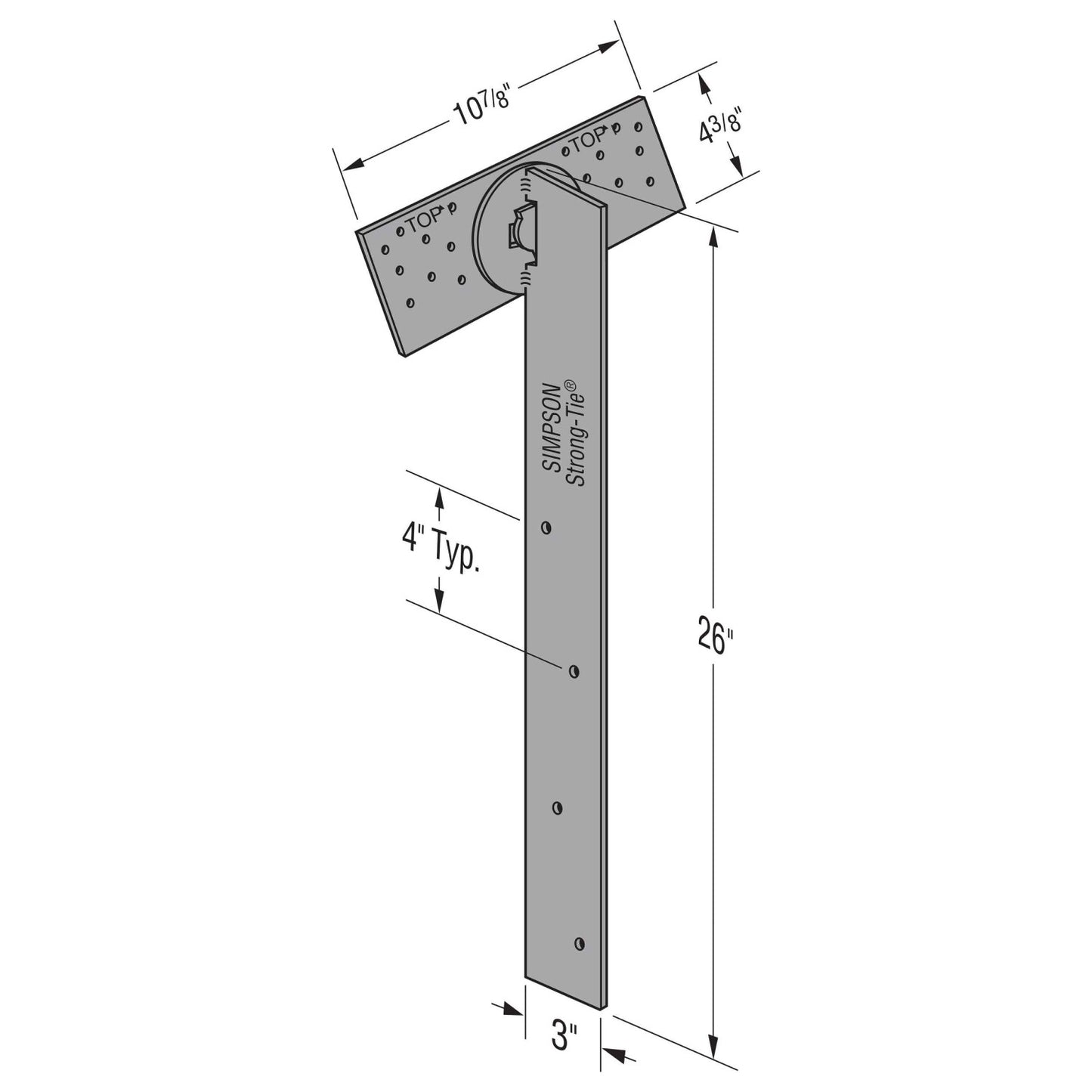

  • Simpson FGTR Face-Mount Girder Tiedown Retrofit - Illustration
1 2

Continue Browsing

FGTR Face Mount Girder Tiedown
SKU: FGTR

Simpson FGTR Face-Mount Girder Tiedown Retrofit - Powder coated

$140.25

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 12 when you add 2 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Powder Coated
Description

The FGTR is a high-load girder tiedown for new or retrofit masonry applications. This face-mount girder tiedown is a non-pitch-specific girder tiedown that offers high uplift capacity. The FGTR can be installed in a single application or in pairs.

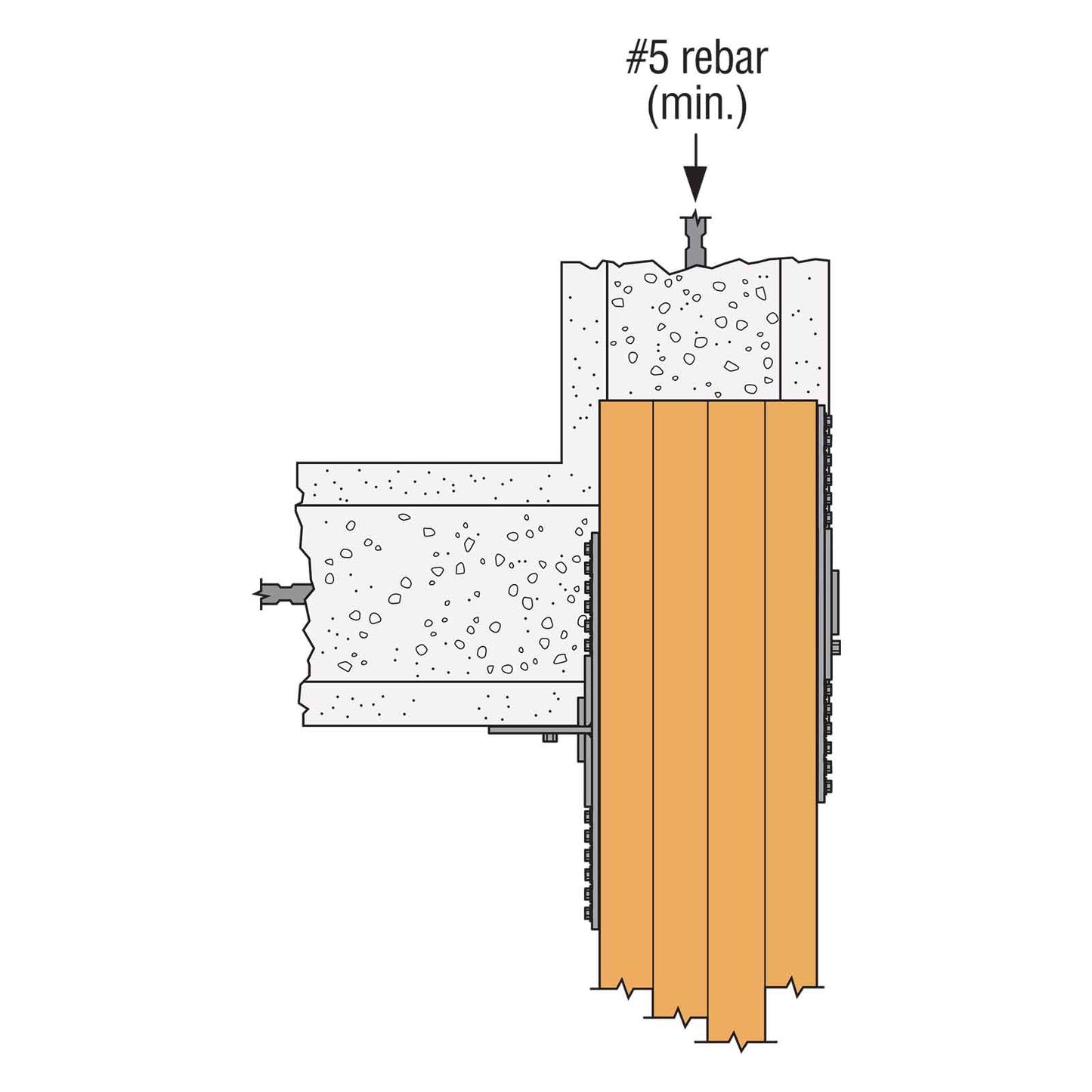

  • The FGTRHL/FGTRHR is designed for corner hip applications.
  • Use all specified fasteners; Strong-Drive® SDS Heavy-Duty Connector screws included.
  • Products shall be installed such that non-stainless Titen HD anchors are not exposed to the exterior environment.
  • Load rated to resist high-wind forces
  • Screw holes are configured to allow for double installation on a two-ply (minimum) truss

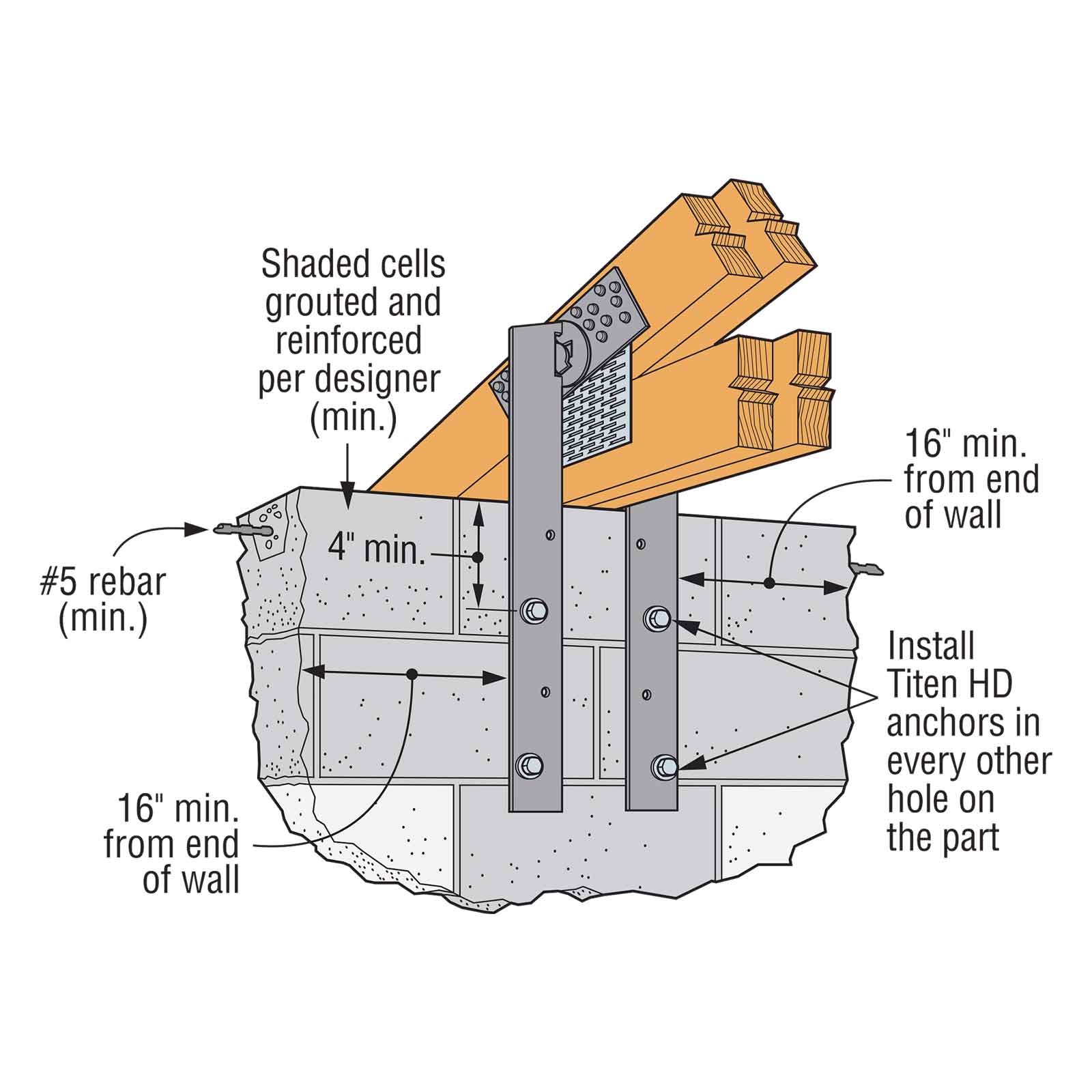

  • To achieve the loads listed in the load table, the product shall be attached to a grouted and reinforced block wall or a reinforced concrete wall designed by others to transfer the high concentrated uplift loads to the foundation.
  • The product can be installed in a single application or in pairs to achieve a higher uplift capacity.
  • Can be installed on roof pitches from 0/12 to 8/12 or on a bottom chord designed to transfer the loads.
  • Only two of the four holes provided on each strap are required to be filled to achieve the published loads. The first 1/2" x 5" Titen HD® heavy-duty screw anchor (THD) shall be installed a minimum of 4" from the top of the wall. Anchors shall not be installed in adjacent holes.

California Residents: WARNING

More
View full details

Continue Browsing

FGTR Face Mount Girder Tiedown

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
