Simpson GLS7-9X Glulam Saddle Hanger

Simpson GLS7-9X Glulam Saddle Hanger

Call for Price
Call to Order
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


The GLS is designed to accommodate high allowable loads for timber and glulam beams. This glulam hanger features a saddle design that eliminates the need for back-to-back hanger installation, while the Funnel Flange feature allows for easy installation of beams. The GLS installs with heavy N54 ring-shank nails specifically created for glulam or heavy timber.

Hot-dip galvanized (HDG) available, please let us know when placing your order.

Key Features

  • N54 ring-shank nails included
  • A cost-effective alternative to using two hangers
  • Not acceptable for nailer applications


  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
  • Flatten edge of header to match top-flange radius.
  • Bevel-cut the carried beam for skewed hangers.
  • For hangers exceeding the joist height by more than 1/2", allowable load is 50% of the table load.
  • May be used for weld-on applications. Minimum required weld is a 1/4" x 2 1/2" fillet weld at each end of the top flange; see General Instructions for the Installer, note k, for weld information. Weld-on applications produce maximum loads listed. For uplift loads, refer to technical bulletin Top-Flange Hangers Welded to Structural Steel Members (T-C-WELDUPLFT).
  • N54A nails are included. N54A nails should only be used with solid sawn, timber or glulam headers. When installing on structural composite lumber, use 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screw in lieu of the N54A nails.
  • Loads shown are per side.

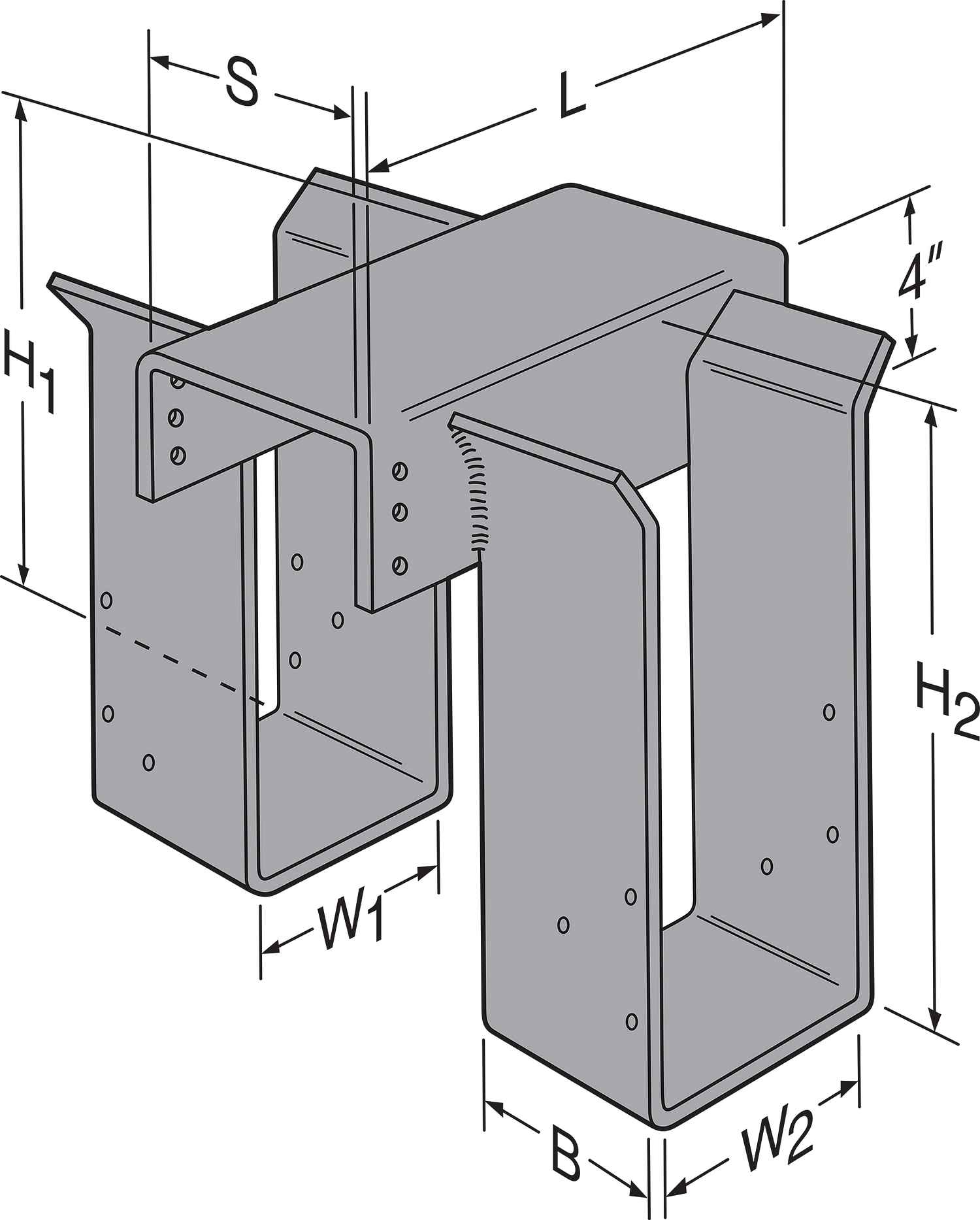

  • To order, specify H1, H2, W1, W2 and S dimensions (see illustration).

California Residents: WARNING


Fasteners required: N54 ring-shank nails (included)
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
