description
The Simpson Strong-Tie GT Gazebo Tie series adds strength and rigidity to three-, six- and eight-sided gazebo connections. The high quality and innovative design tightly secures rafters to the gazebo, which makes the structure safe and strong. The fastener system negates the possibility of the gazebo being blown over by high winds.

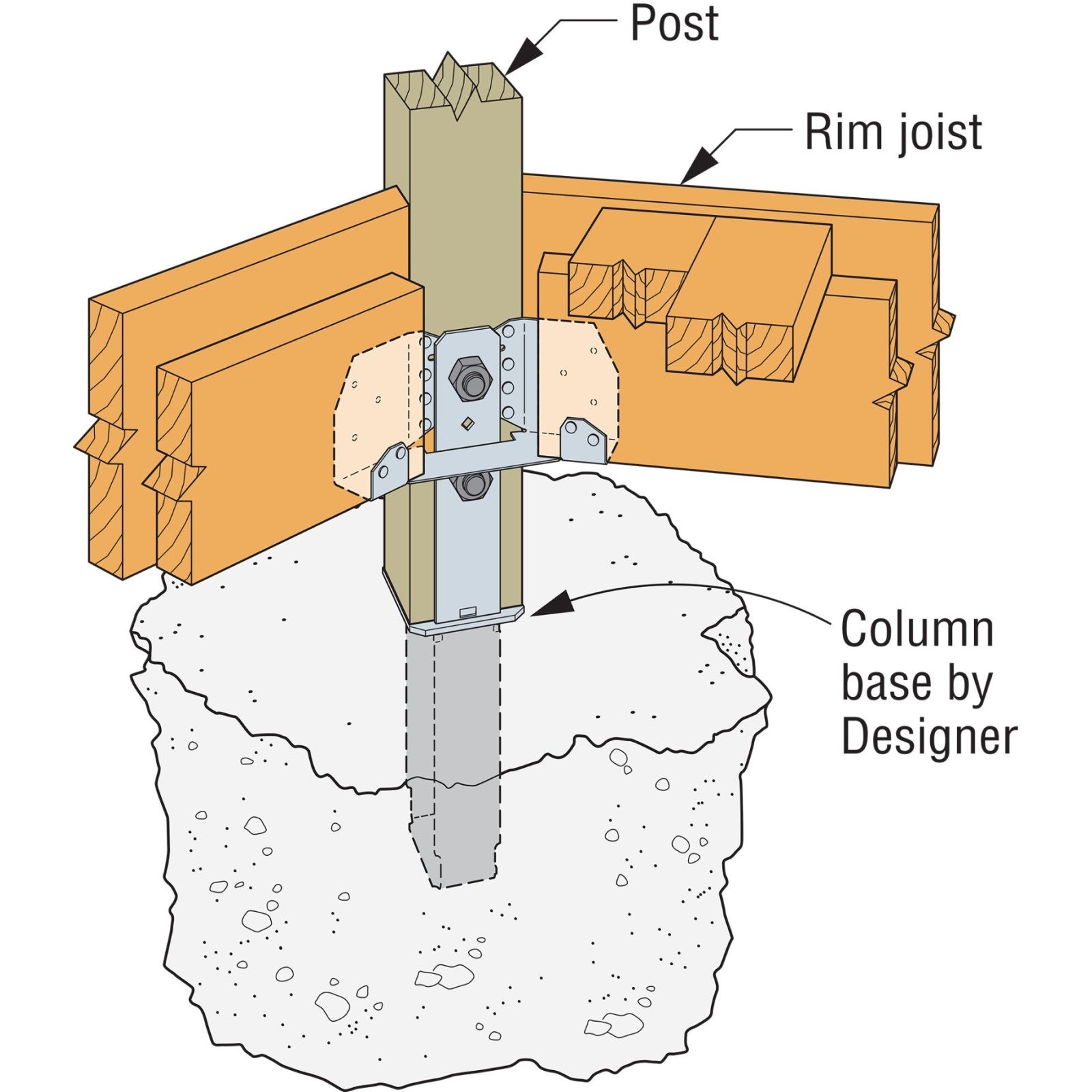

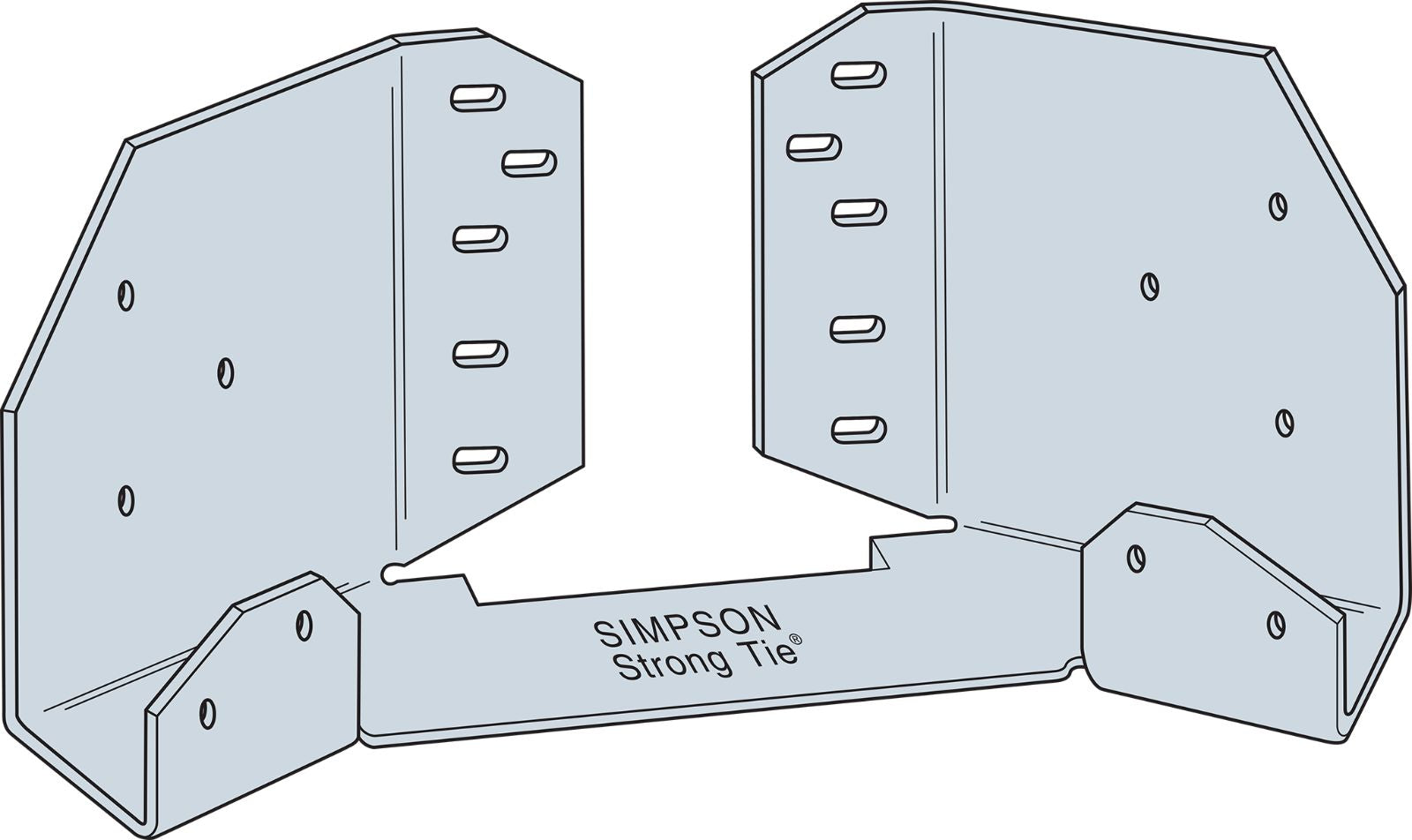

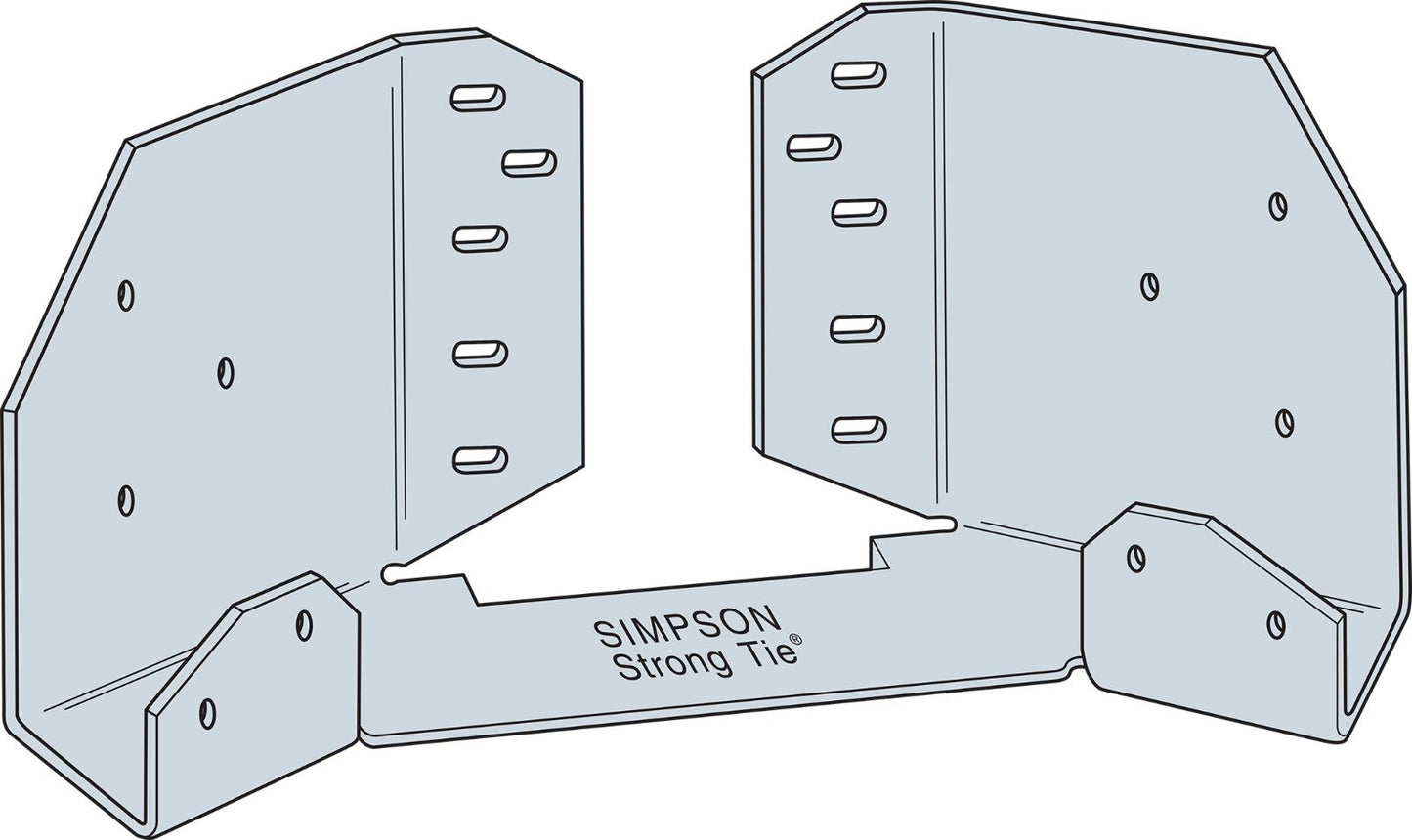

GTFZ — connects bottom 2x rim joists to post in six-sided gazebo. Allows installation over post base for adjustable height of rim joists.
Installation:- Use all specified fasteners; see General Notes
- Minimum 2x6 rafter size
California Residents: WARNING
The Simpson Strong-Tie GT Gazebo Tie series adds strength and rigidity to three-, six- and eight-sided gazebo connections. The high quality and innova...
The Simpson Strong-Tie GT Gazebo Tie series adds strength and rigidity to three-, six- and eight-sided gazebo connections. The high quality and innovative design tightly secures rafters to the gazebo, which makes the structure safe and strong. The fastener system negates the possibility of the gazebo being blown over by high winds.
GTFZ — connects bottom 2x rim joists to post in six-sided gazebo. Allows installation over post base for adjustable height of rim joists.
Installation:- Use all specified fasteners; see General Notes
- Minimum 2x6 rafter size
California Residents: WARNING
specifications
finish spec:
ZMAX
manufacturer name:
Simpson Strong-Tie
fasteners required:
Rafter/Rim Joist - (10) 0.148" x 1-1/2" Nails OR (10) SD9112 Screws
Top Plate/Post - (10) 0.162" x 3-1/2" Nails OR (10) SD10212 Screws
Top Plate/Post - (10) 0.162" x 3-1/2" Nails OR (10) SD10212 Screws
for treated lumber:
yes
material:
Carbon Steel
thickness:
16 Gauge
Product Spec Sheet:
