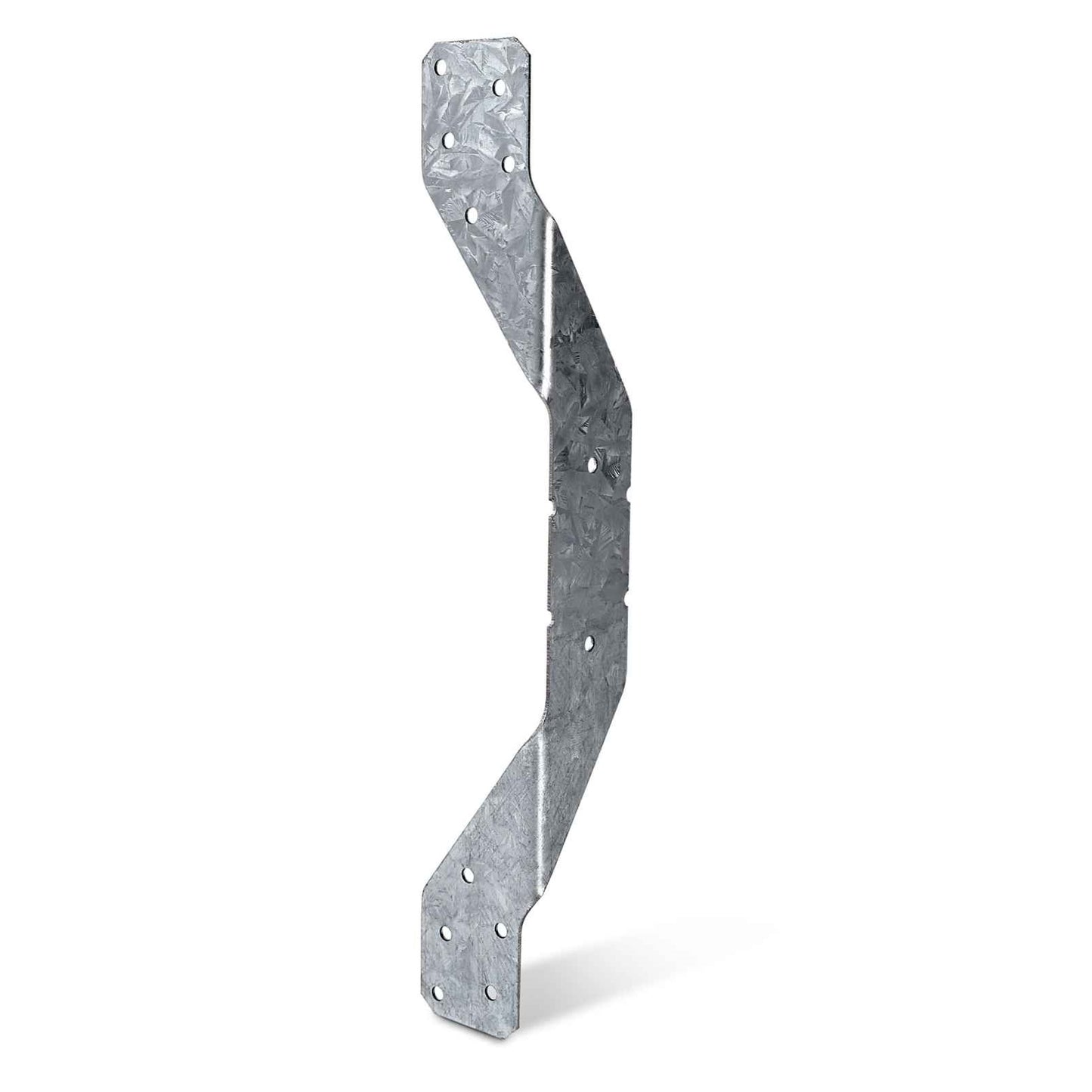

Simpson H2AZ Hurricane Tie - Zmax Finish
Simpson H2AZ Hurricane Tie - Zmax Finish
Description:
Description:

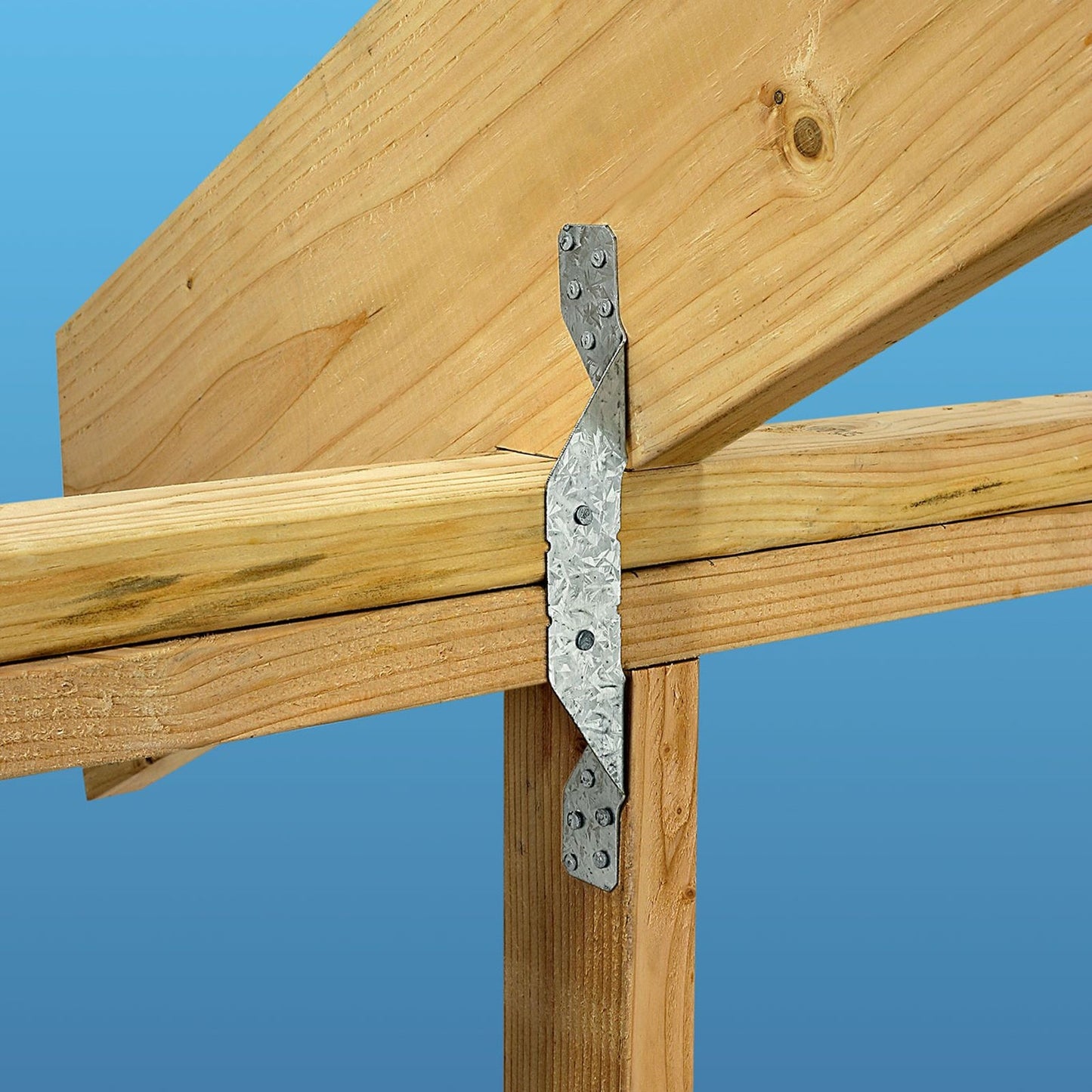

Simpson Strong-Tie H series of hurricane ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie H2AZ Hurricane Tie features a Zmax finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Hurricane ties do not replace solid blocking.
- When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

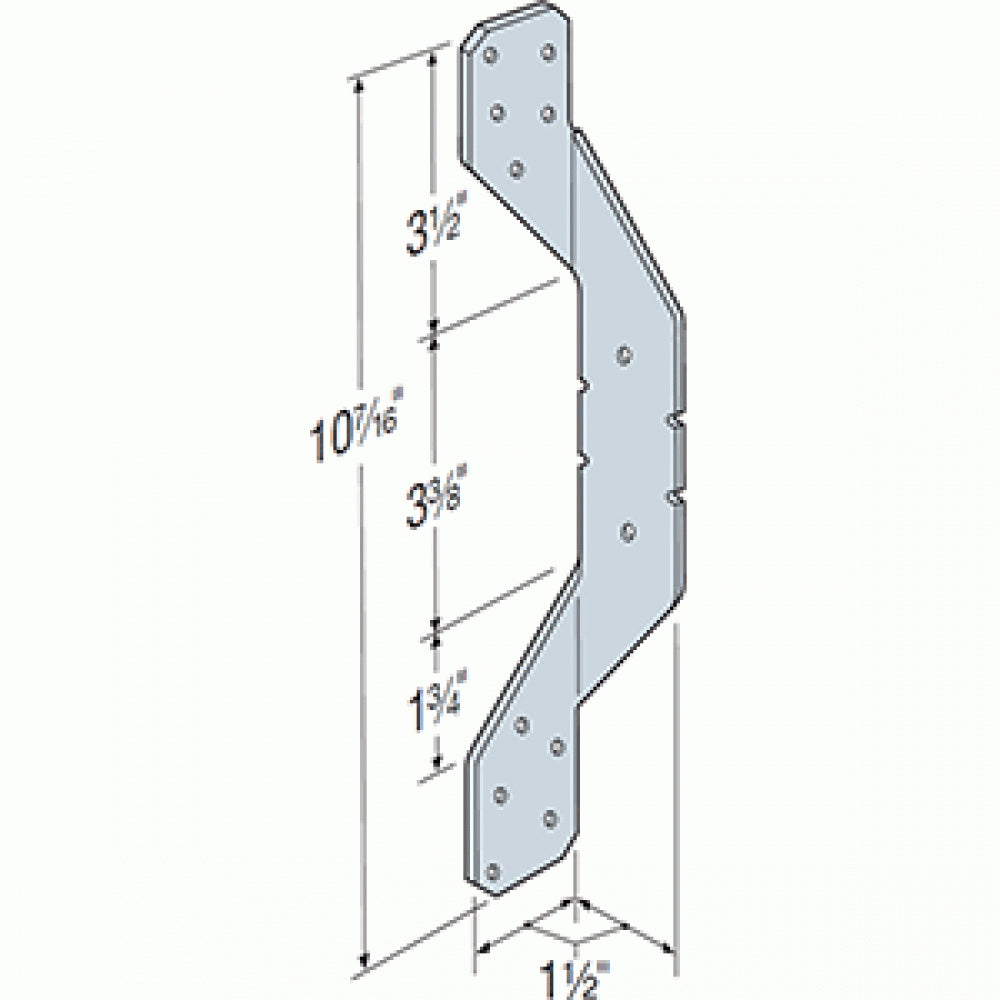

Fasteners required: To Rafters/Truss - (5) 0.131" x 1-1/2" Nails Top Plates - (2) 0.131" x 1-1/2" Nails To Studs - (5) 0.131" x 1-1/2" Nails
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Hurricane ties do not replace solid blocking.
- When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.
