Simpson H8Z Hurricane Tie - Zmax Finish

Simpson H8Z Hurricane Tie - Zmax Finish

Regular price $1.31
Sale price $1.31 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 4 hours 10 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

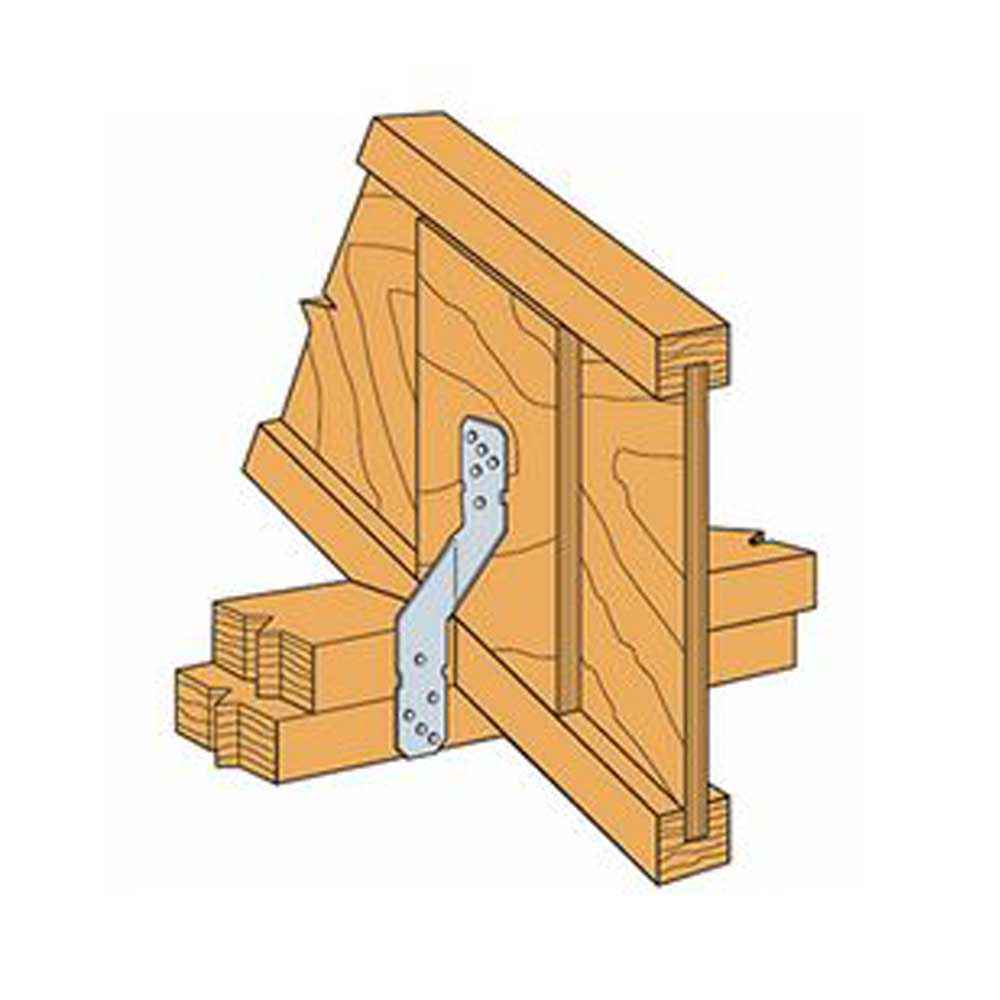

Simpson Strong-Tie H series of hurricane ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie H8Z Hurricane Tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Hurricane ties do not replace solid blocking.
  • When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Fasteners required: To Rafters/Truss - (5) 0.148" x 1-1/2" Nails Top Plates - (5) 0.148" x 1-1/2" Nails
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Hurricane ties do not replace solid blocking.
-When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.
-H10A optional nailing to connect shear blocking, use 8d nails. Slots allow maximum field bending up to a pitch of 6:12, use H10A sloped loads for field bent installation.
