SKU: HC4C3TA5.37-5

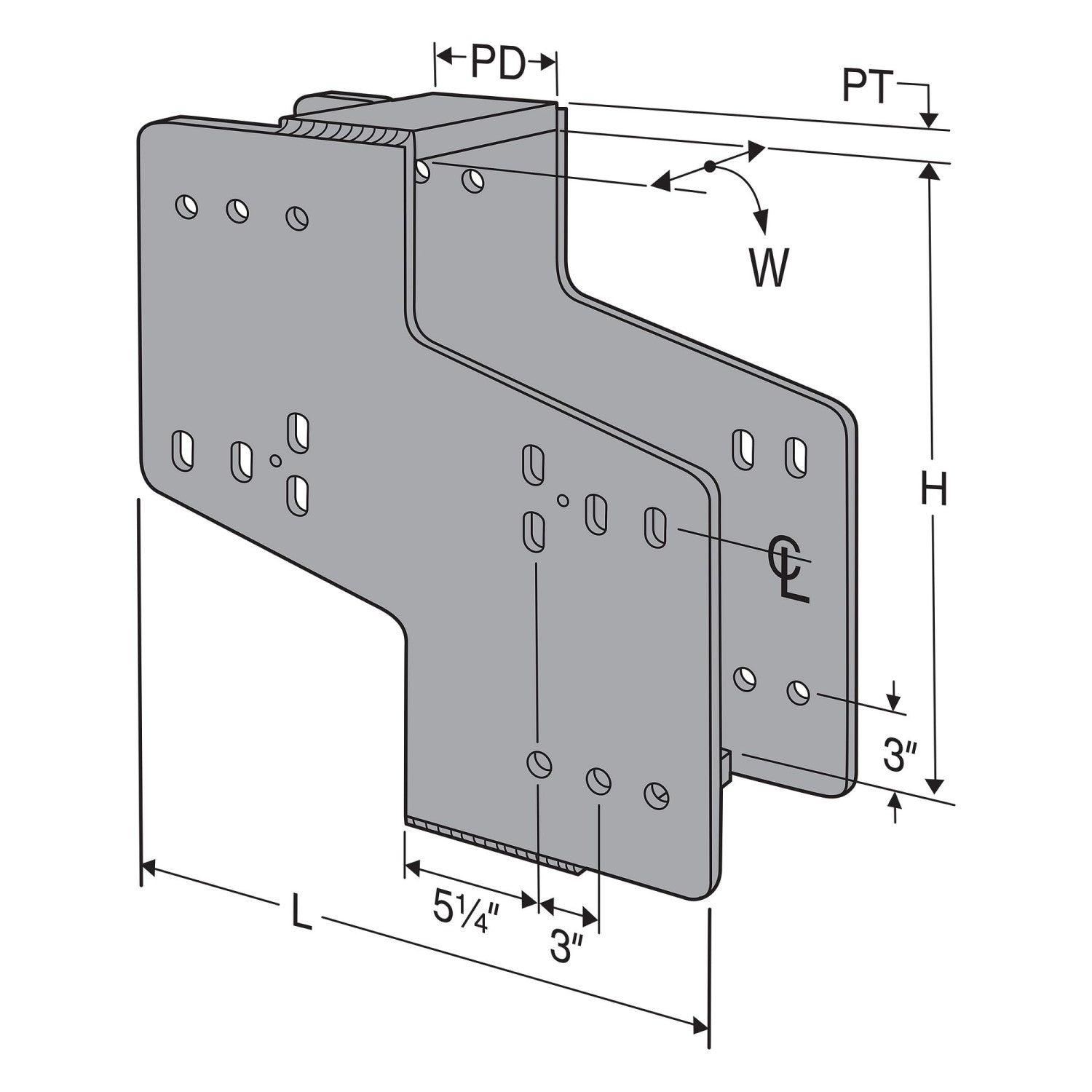

Simpson HC4C3TA5.37-5 Hinge Connector

Simpson HC4C3TA5.37-5 Hinge Connector!

  • Simpson HC4C3TA Hinge Connector

Continue Browsing

HCA Hinge Connectors
SKU: HC4C3TA5.37-5

Simpson HC4C3TA5.37-5 Hinge Connector

Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 25-1/2"
Fasteners required: Use all specified fasteners; see General Notes
Manufacturer name: Simpson Strong-Tie Company Inc
Thickness: Side plates — 7 gauge
Description
  • This item is custom and made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product.

Hinge connectors are designed to transfer loads between two beams aligned end-to-end through a combination of bearing plates, side plates and bolts. In addition to supporting vertical loads, hinge connectors can also be specified with additional slotted bolt holes to resist horizontal loads as part of a continuous load path. They can also be ordered to accommodate dapping or notching on the top of the beam.

  • Side plates: 7 gauge; top and bottom plates: see PT dimensions in Allowable Download table

Installation

  • Use all specified fasteners; see General Notes
  • Bolt holes shall be a minimum of 1/32" and a maximum of 1/16" larger than the bolt diameter (per 2015/2018 NDS 12.1.3.2)
  • The model size (suffix) column in the Allowable Download table gives the basic HCA model with two rotation bolts
  • Contact Simpson Strong-Tie for heights greater than 60"
  • Position 3/4"-diameter bolts in slots away from bearing seat to allow for wood shrinkage
  • The Horizontal Load table gives other bolt options.
