Simpson HGLBA Heavy Glulam Beam Seat, Gray Paint

Simpson HGLBA Heavy Glulam Beam Seat, Gray Paint

Call for Price
Call to Order
Ships in 1-3 business days.

Description:

  • This item is custom, made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

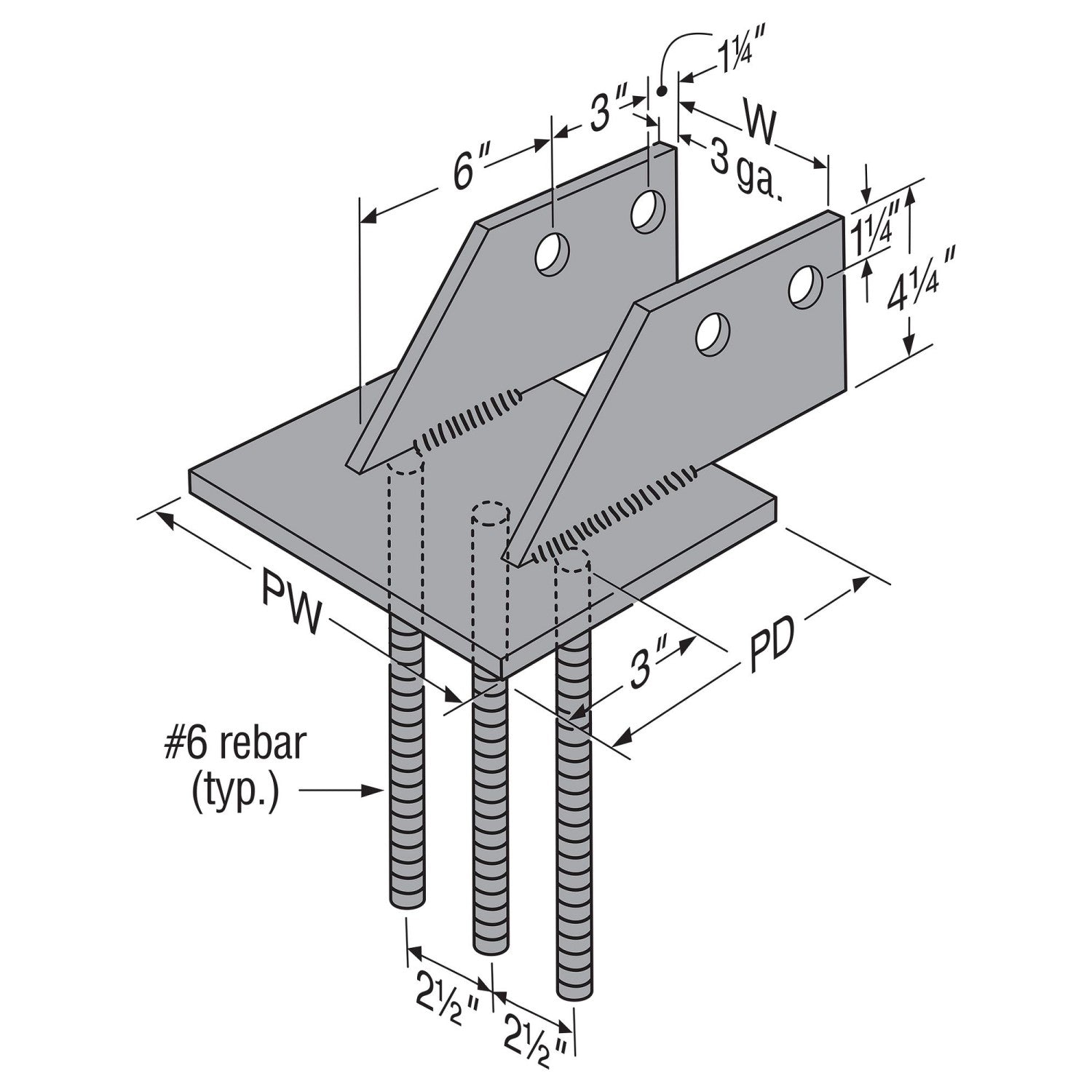

The Simpson HGLB Heavy Glulam Beam Seat is designed to support and connect glulam, sawn lumber or engineered wood beams to structural concrete or concrete masonry unit (CMU) pilasters. The rectangular, steel-plate seat features two vertical plates that secure the beam with bolts and has three #6 by 12"-long rebar for placement in forms before concrete is poured. This heavy glulam beam seat provides necessary bearing and lateral holding capacity at structural walls.

  • Designed for cast-in-place applications.
  • Provides additional bearing for heavy beam connections.
  • Steel plate provides barrier for wood from masonry.
  • Specify if two-bolt GLB model is desired.
  • Use all specified fasteners.

California Residents: WARNING

Specifications:


Fasteners required: (2) 3/4" Diameter Bolts
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
