Shop more HGLT/HGLTV Heavy Duty I-Joist & SCL Hangers
SKU: HGLT3

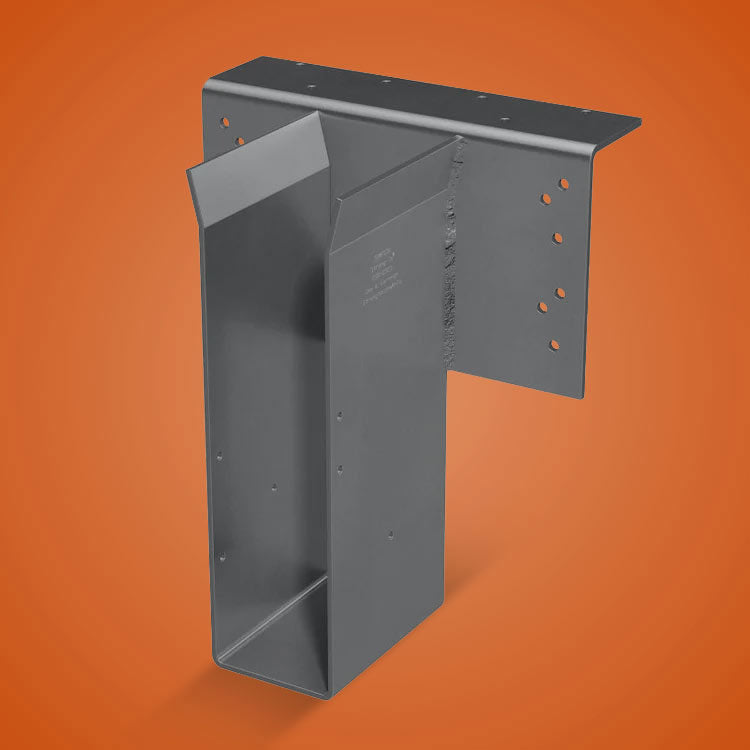

Simpson HGLT3 Heavy Glulam Top-Flange Hanger

Simpson HGLT3 Heavy Glulam Top-Flange Hanger

Call for Price
Call to Order
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

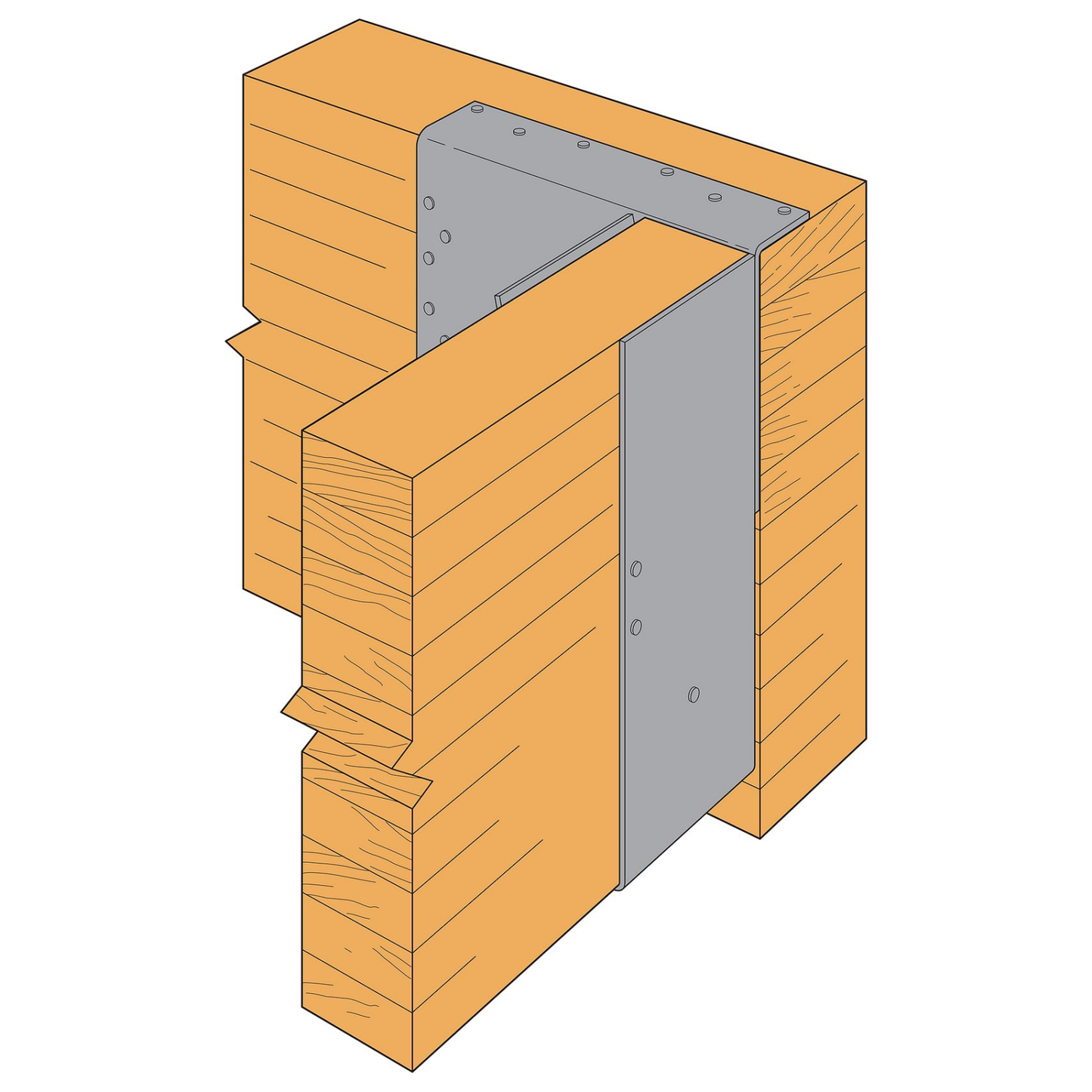

The HGLT is designed to accommodate typical structural requirements for glulam beams. The Funnel Flange™ feature of this top-flange hanger allows for easy installation of beams and installs with heavy N54 ring-shank nails specifically created for glulam or heavy timber. Hot-dip galvanized is available; please specify when contacting us.

Installation:

  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • 3 ga. top flange; 7 ga. stirrup.
  • Flatten edge of header to match top-flange radius.
  • Bevel-cut the carried beam for skewed hangers.
  • May be used for weld-on applications. Minimum required weld is a 1/4" x 2 1/2" fillet weld at each end of the top flange; see General Instructions for the Installer, note k, for weld information. Weld-on applications produce maximum loads listed.
  • N54A nails are included. N54A nails should only be used with solid sawn, timber or glulam headers. When installing on structural composite lumber, use 1/4" × 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screw instead of the N54A nails. Consider HGLTV as an alternative when used with SCL.
  • For hangers exceeding the joist height by more than 1/2", allowable load is 50% of the table load.
  • Not acceptable for nailer applications.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.


California Residents: WARNING

Specifications:


Fasteners required: N54 ring-shank nails (included)
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
-3 ga. top flange; 7 ga. stirrup.
-Flatten edge of header to match top-flange radius.
-Bevel-cut the carried beam for skewed hangers.
-May be used for weld-on applications. Minimum required weld is a 1/4" x 2 1/2" fillet weld at each end of the top flange; see General Instructions for the Installer, note k, for weld information. Weld-on applications produce maximum loads listed.
-N54A nails are included. N54A nails should only be used with solid sawn, timber or glulam headers. When installing on structural composite lumber, use 1/4" × 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screw in lieu of the N54A nails. Consider HGLTV as an alternative when used with SCL.
-For hangers exceeding the joist height by more than 1/2", allowable load is 50% of the table load.
-Not acceptable for nailer applications.
