Simpson HGLTV5.516X 5-1/4" x16" Top Flange I-Joist Hanger, Custom Non-Returnable
Simpson HGLTV5.516X 5-1/4" x16" Top Flange I-Joist Hanger, Custom Non-Returnable!
Specifications
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

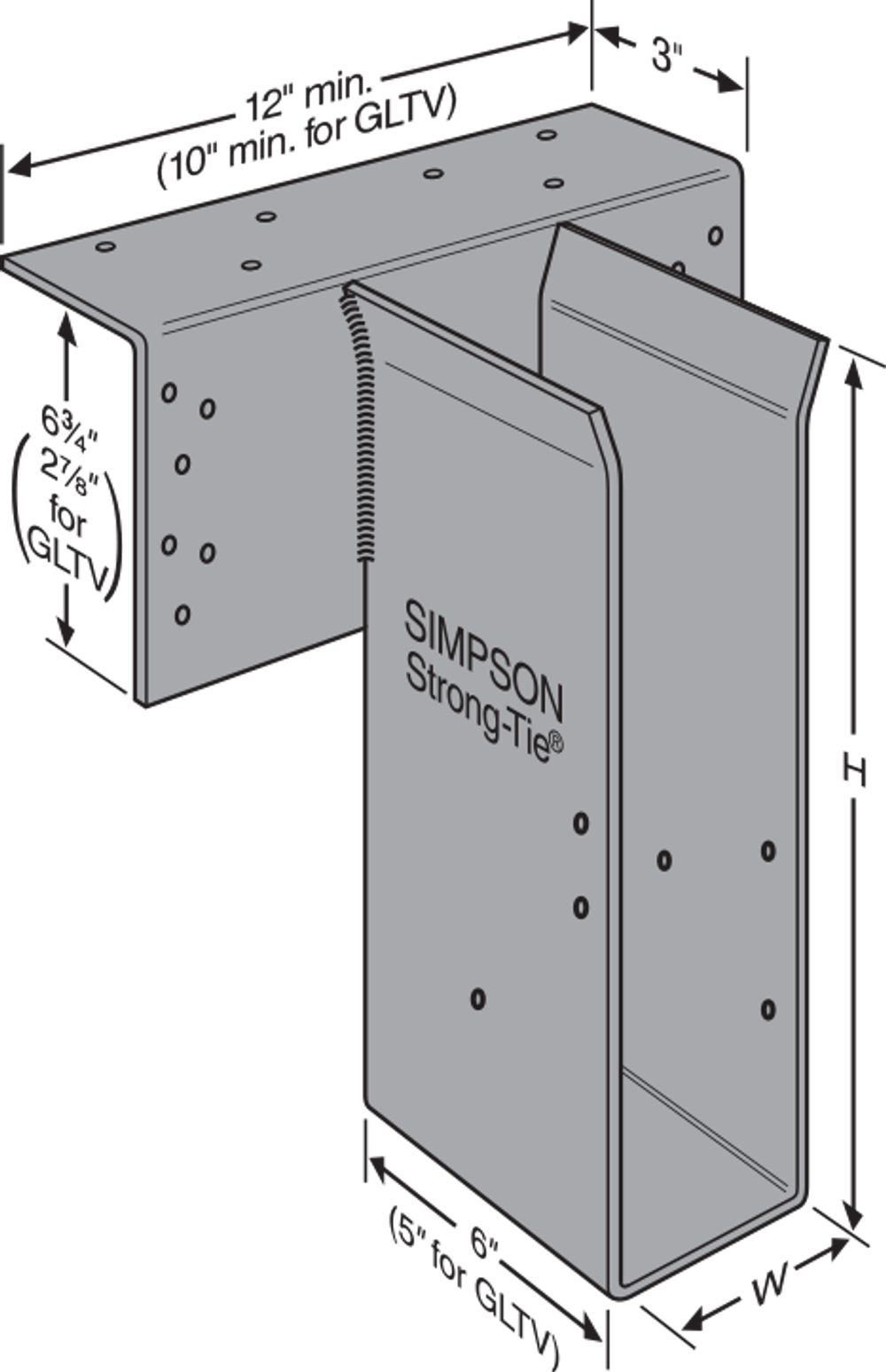

The Simpson Strong-Tie HGLTV Heavy Top-Flange Hanger is engineered for high-load applications involving structural composite lumber (SCL). Its design and specialized features ensure reliable performance in demanding construction projects.
Key Features:

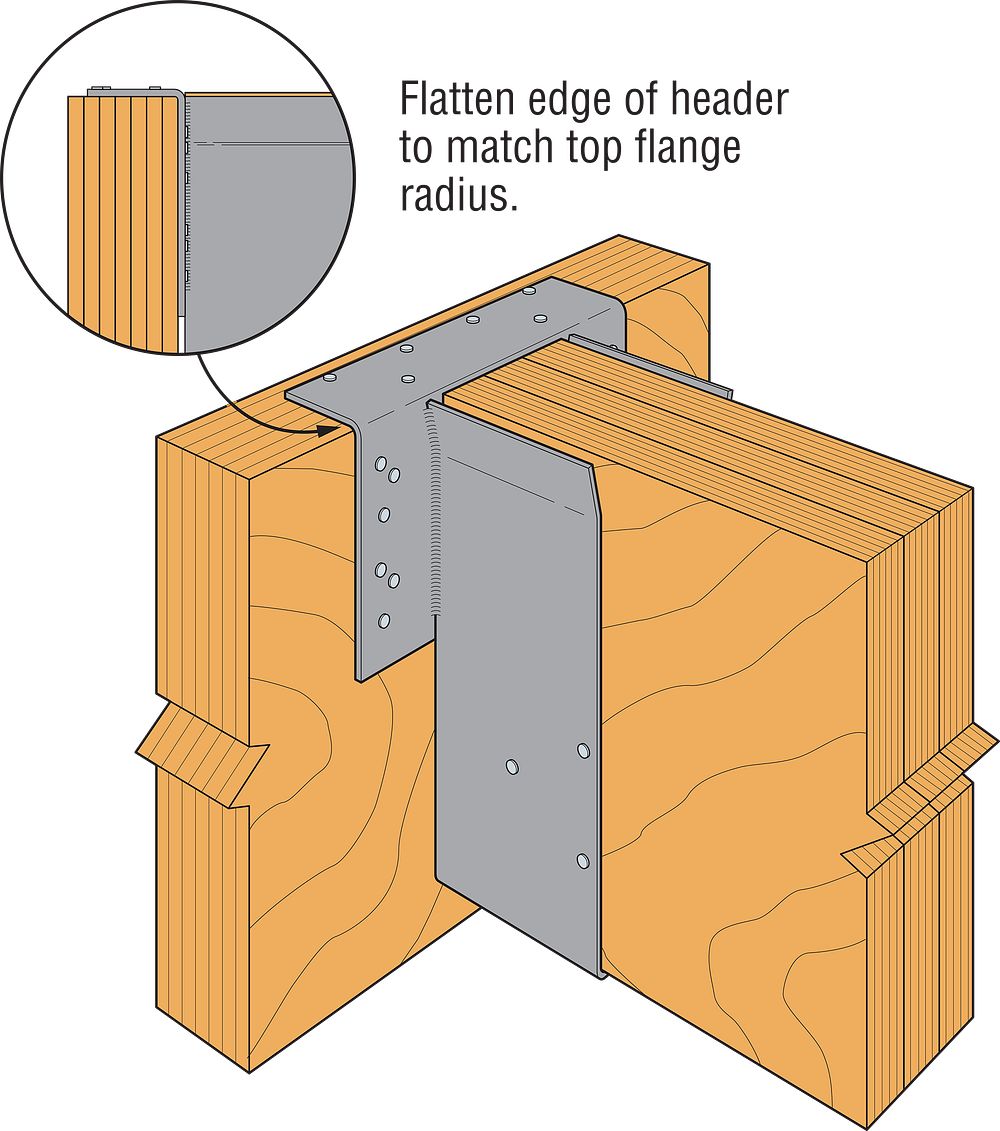

- Funnel Flange Design: Facilitates easy and accurate beam placement during installation.
- Material: Constructed with a 3-gauge top flange and a 7-gauge stirrup, providing exceptional strength and durability.
- Finish: Standard Simpson Strong-Tie gray paint; hot-dip galvanized (HDG) coating available upon request for enhanced corrosion resistance.
Customization Options:
- Skewed and Sloped Seats: Seats may be skewed up to a maximum of 50° and/or sloped up to 45° to accommodate various design requirements. When the seat is sloped, the maximum allowable load is 9,165 lb.; when skewed, it is 7,980 lb.
- Top Flange Modifications: The top flange may be sloped down to the left or right up to 30° or offset left or right for placement at the end of a header. Load reductions apply based on the degree of modification.
Looking for something different? See the rest of our Simpson HGLTV Top-Flange Hangers for Engineered Lumber (SCL).
-
