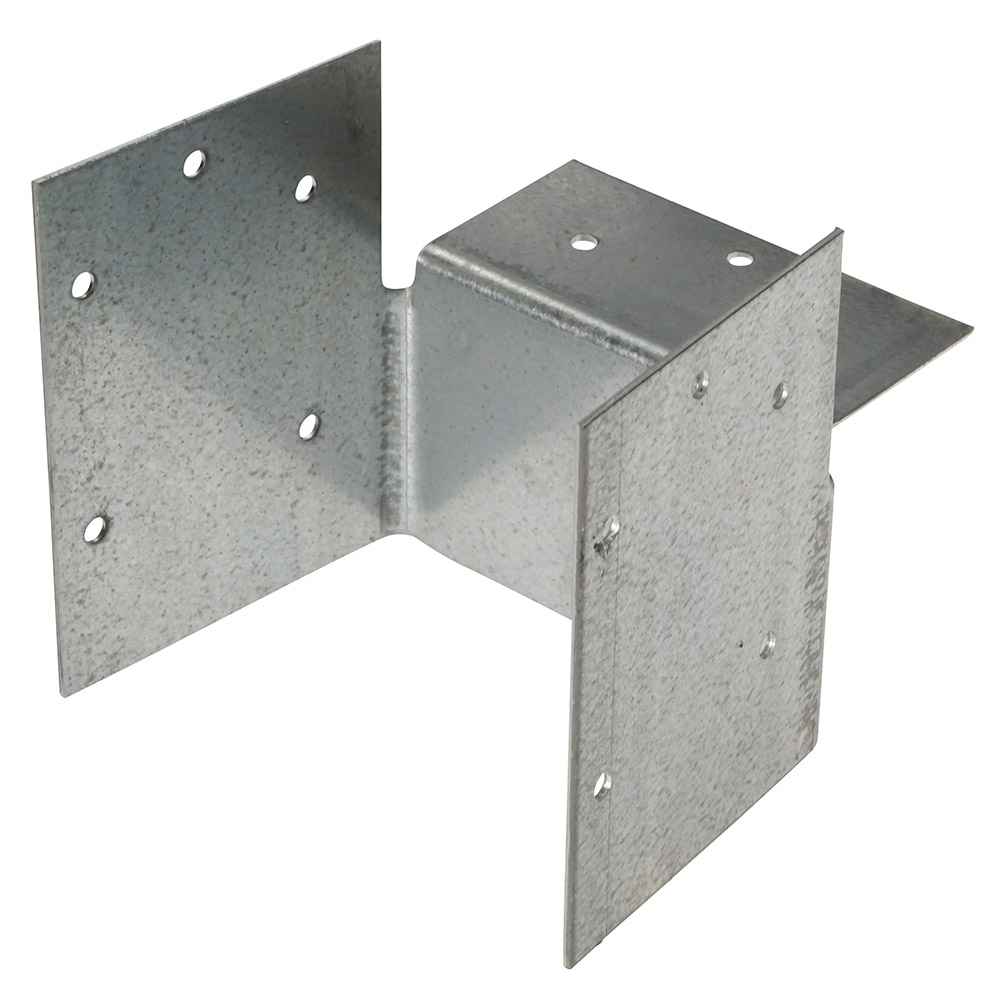

The HH4 Header Hanger from Simpson Strong-Tie is a face-mount hanger specifically designed to support 4x nominal lumber headers in wood-framed structures. Built for strength and ease of installation, this hanger delivers reliable performance in both residential and commercial applications.

Key Features:

• Face-Mount Design: Enables quick, secure installation onto supporting wood members
• High Load Capacity: Designed to handle substantial structural loads with confidence
• Heavy-Duty Steel: Made from high-quality steel for long-lasting durability

Applications:

• Wood-framed construction requiring 4x header support

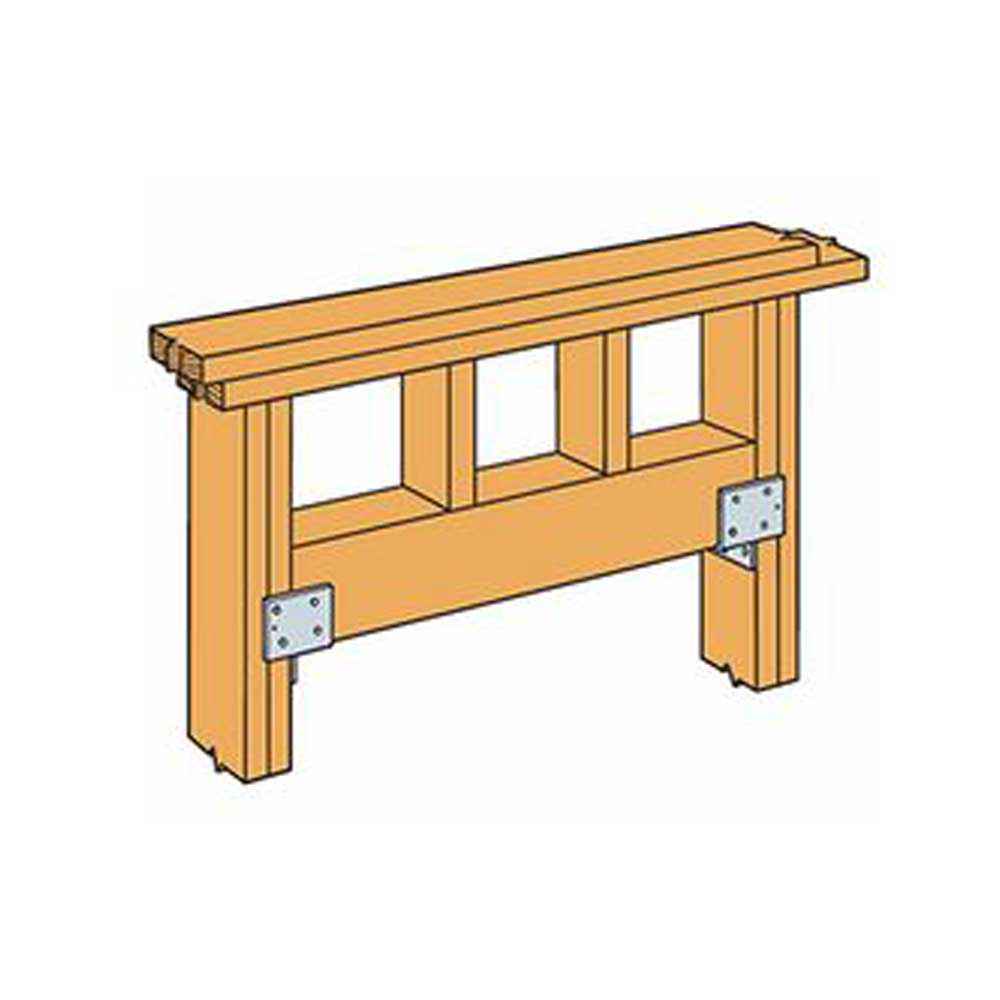

• Door and window openings in residential or light commercial framing
• General framing applications where consistent load-bearing support is critical

Installation Overview:

1. Preparation: Verify dimensions and alignment of header and support members.
2. Positioning: Align the HH4 hanger to the supporting member per your plans.
3. Fastening: Attach using the specified nails or screws per manufacturer guidelines.
4. Header Placement: Insert the 4x header fully into the hanger pocket.
5. Final Check: Confirm the header is seated properly and all fasteners are secure.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
