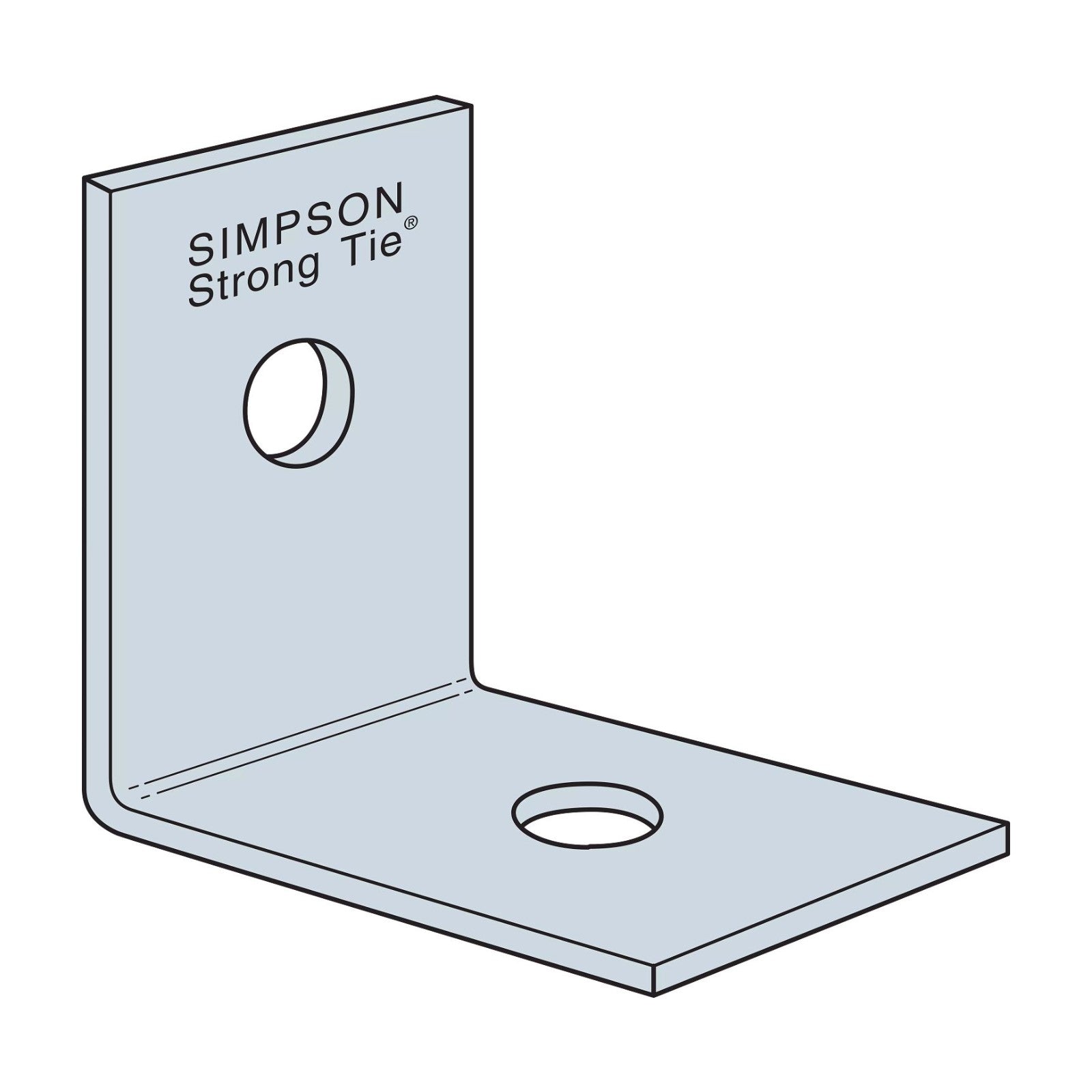

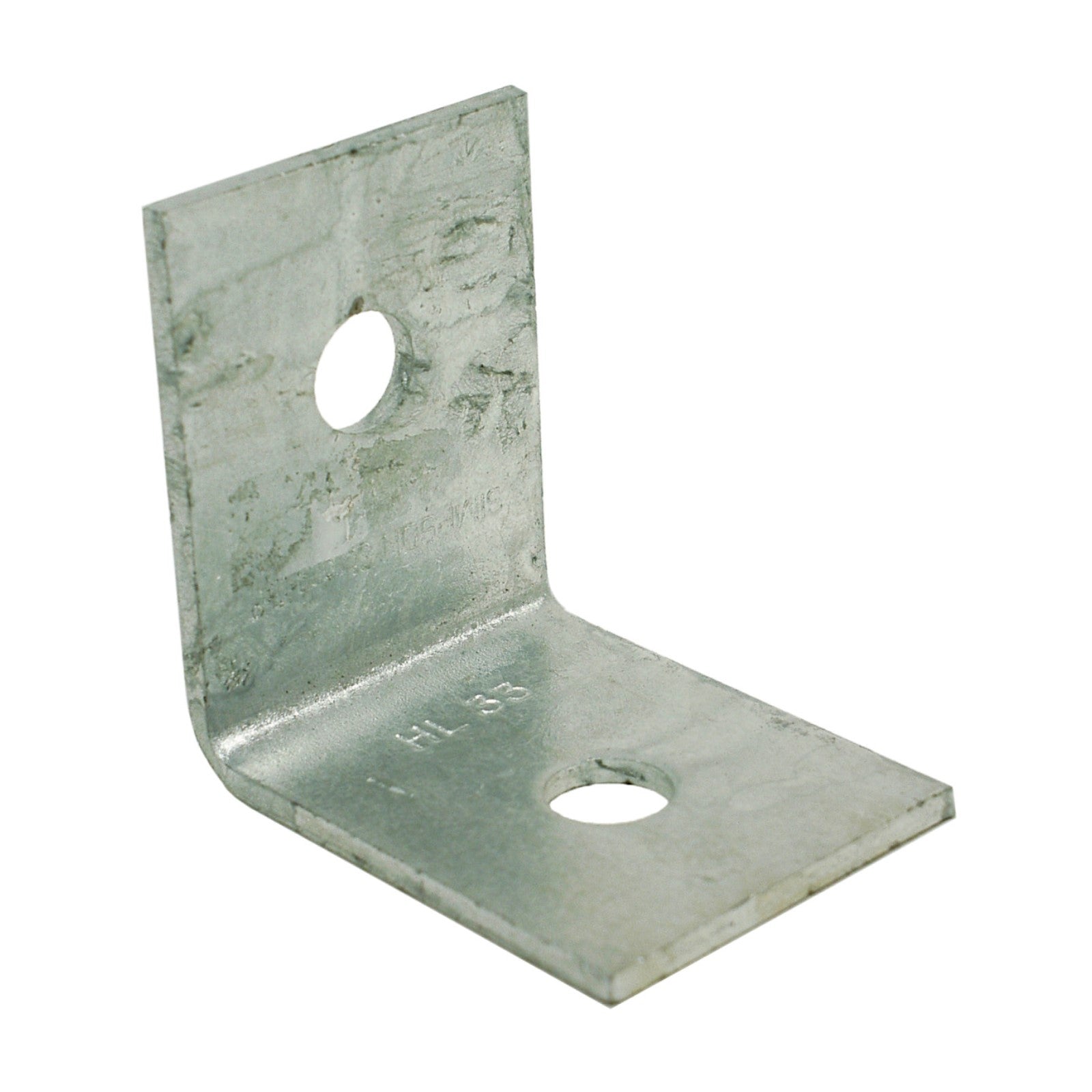

Simpson Strong-Tie HL33HDG 3x3 L-Shaped Heavy Framing Angle Bracket - Hot Dip Galvanized
Finish
Widths
Lengths
Description
Description
The Simpson Strong-Tie HL L-Shaped Heavy Framing Angle is engineered to deliver high-capacity performance in demanding structural connections. Designed for use in wood-to-wood and wood-to-concrete applications, the HL angle provides reliable resistance to lateral and uplift forces in a variety of framing conditions. Its heavy-gauge steel construction and versatile configuration make it a dependable solution for reinforcing beam-to-post, joist-to-beam, and other right-angle connections in residential and commercial construction.
Available in multiple sizes and configurations, the HL angle accommodates a range of load requirements and project needs. Whether reinforcing structural framing or strengthening critical connections, this heavy-duty angle is built to perform under pressure.
Key Features
- Heavy-Gauge Steel Construction: Manufactured from thick steel for enhanced strength and load capacity.
- High Load Ratings: Designed to resist both lateral and uplift forces in structural framing applications.
- Versatile Configuration: L-shaped design allows for installation in a wide range of wood-to-wood and wood-to-concrete connections.
- Multiple Size Options: Available in various lengths and configurations to meet different structural demands.
- Corrosion-Resistant Finish Options: Select models are available with protective coatings suitable for interior or exterior use.
- Code-Recognized Performance: Tested and evaluated for structural reliability when installed with specified fasteners.
Applications

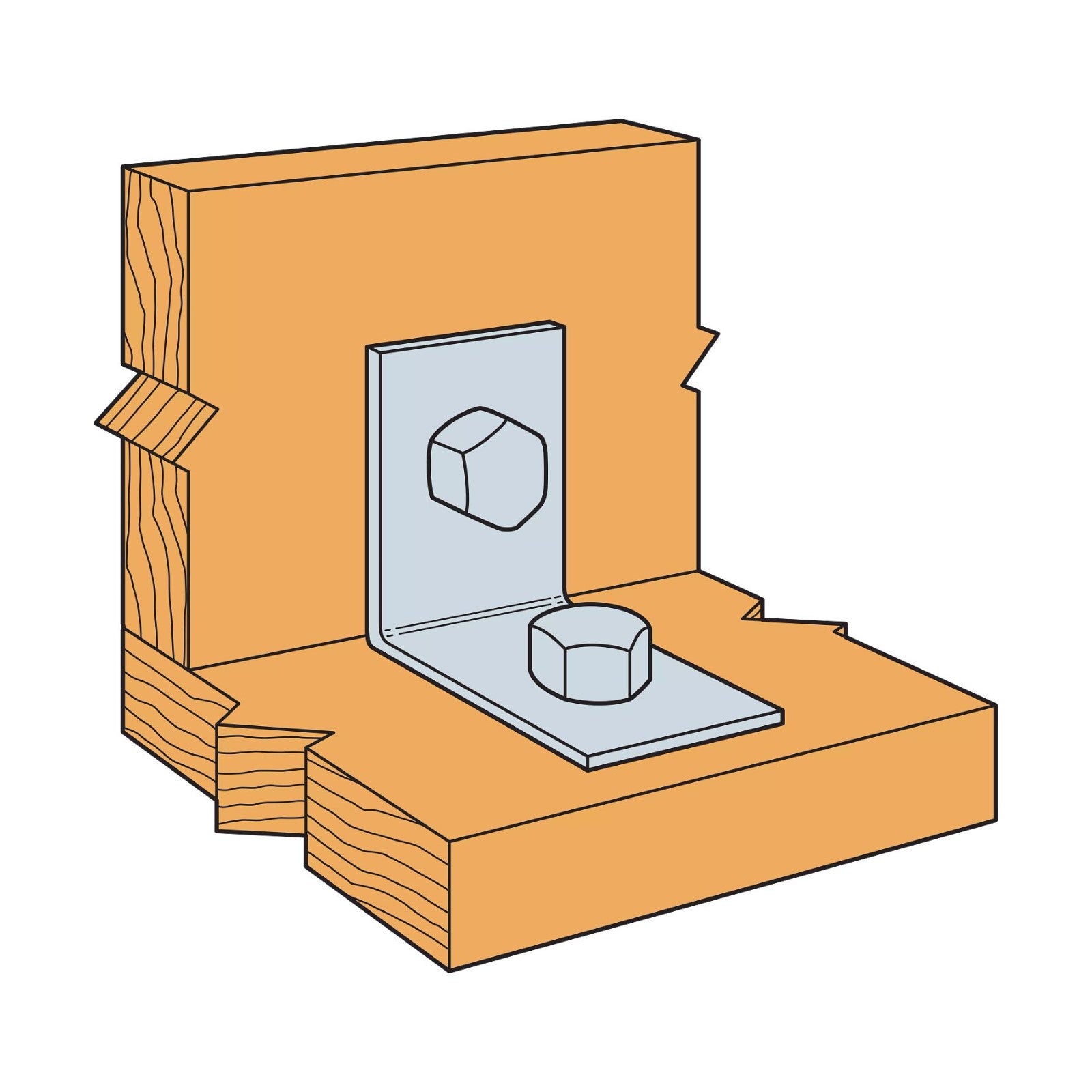

- Beam-to-post connections
- Joist-to-beam reinforcement
- Post-to-beam reinforcement
- Structural framing repairs and retrofits
- Wood-to-concrete connections
- Heavy-duty corner bracing
Ideal for decks, pergolas, residential framing, and light commercial construction where added structural strength is required.
Installation
Install the HL angle using the specified fasteners and fill all required nail or bolt holes to achieve published load values. Proper fastener type, quantity, and installation method are critical to performance. Ensure tight, flush installation against framing members and follow applicable building codes and Simpson Strong-Tie installation guidelines for best results.
For exterior or treated lumber applications, select appropriate corrosion-resistant models and compatible fasteners.
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Continue browsing
-
Choose the Right Angle Bracket for Your Load Requirements
Different angle brackets and framing angles are designed to handle varying levels of shear, uplift, and lateral forces. Choosing the proper load-rated angle bracket or corner brace helps ensure a code-compliant connection in structural framing.
-
Find the Right Size and Connection Type for Framing An
Framing angles and metal angle brackets are available in a variety of sizes, shapes, and hole patterns to fit specific wood framing connections. The correct angle hardware ensures proper alignment between joists, studs, beams, and plates.
-
Select the Right Finish for Your Angle Bracket Environment
Where the angle bracket or corner brace will be installed plays a major role in selecting the proper finish. Interior projects may only require standard galvanized angle brackets, while exterior or treated lumber applications may require higher corrosion protection.
