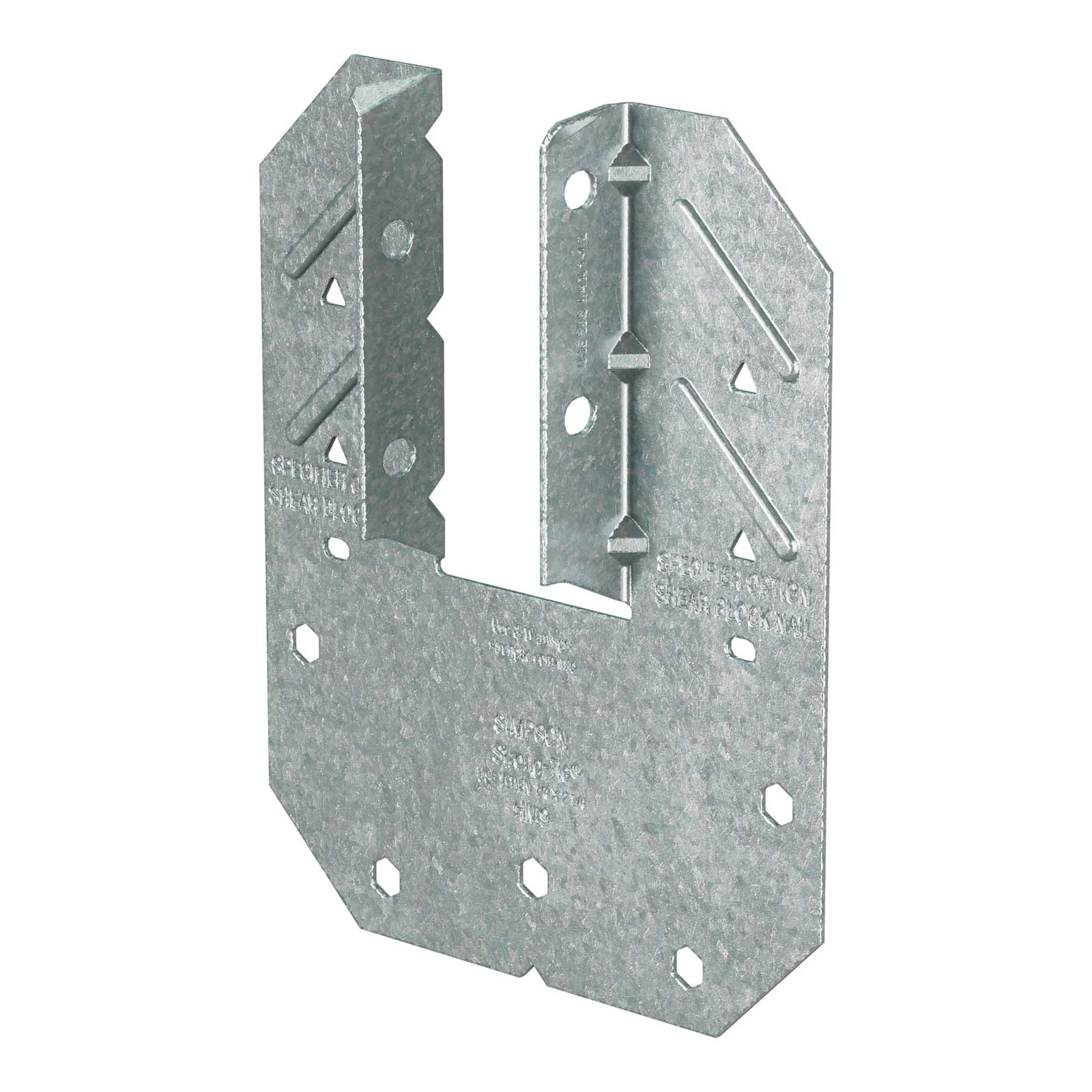

Simpson HM9 Hurricane Tie, Pkg 20 - G90 Galvanized
Simpson HM9 Hurricane Tie, Pkg 20 - G90 Galvanized!
Continue Browsing
H/TSP Seismic & Hurricane Ties
Specifications

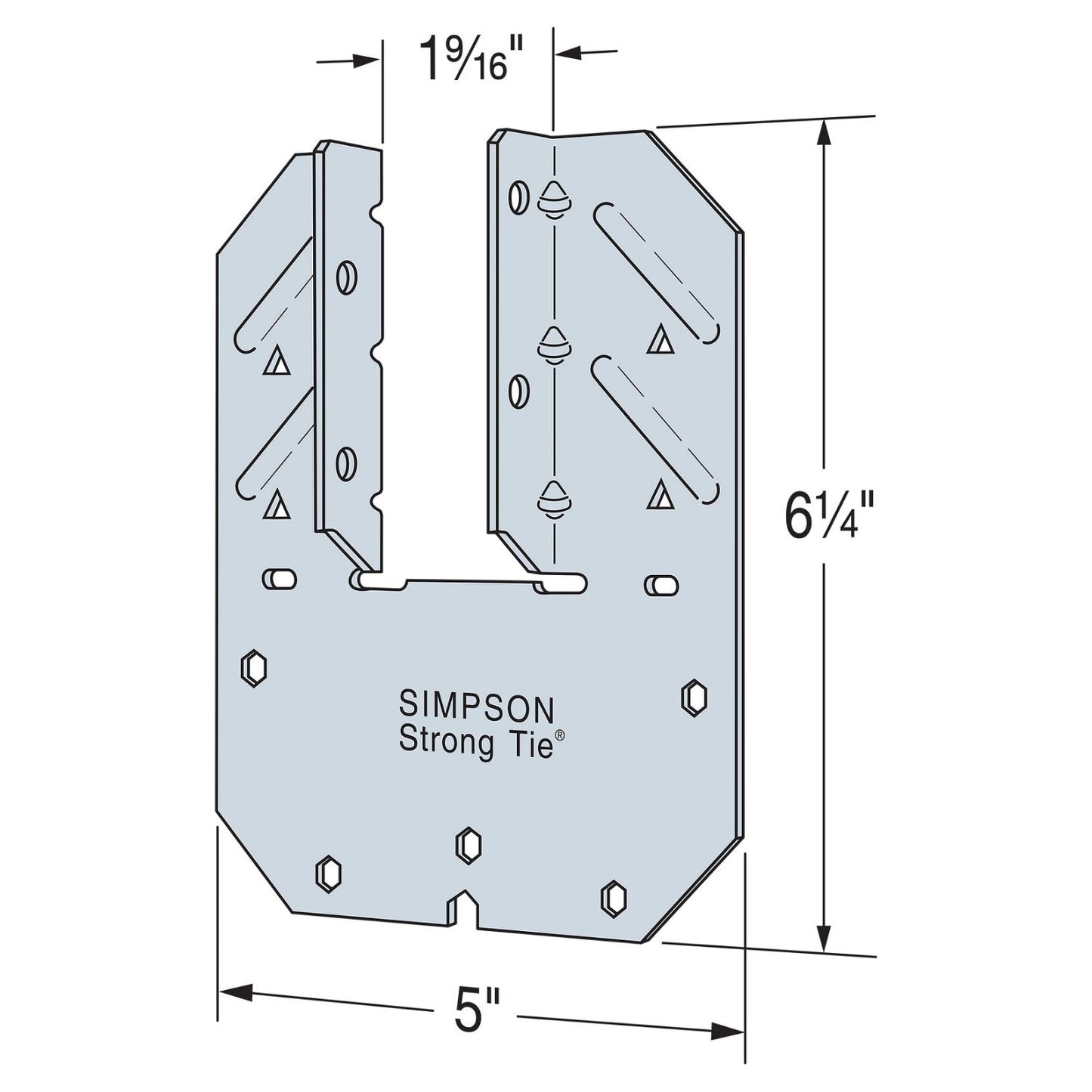

The HM9 holds the rafter or truss on both sides for higher uplift applications with concrete or masonry walls. The optional nailing connects roof blocking to the top plate with slots that allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking. These U-shaped hurricane ties provide faster installation than using two single-sided straps.
Key Features
- Provides a connection between the truss or rafter and the wall of the structure that helps resist wind and seismic forces
- Provides high uplift and lateral capacity

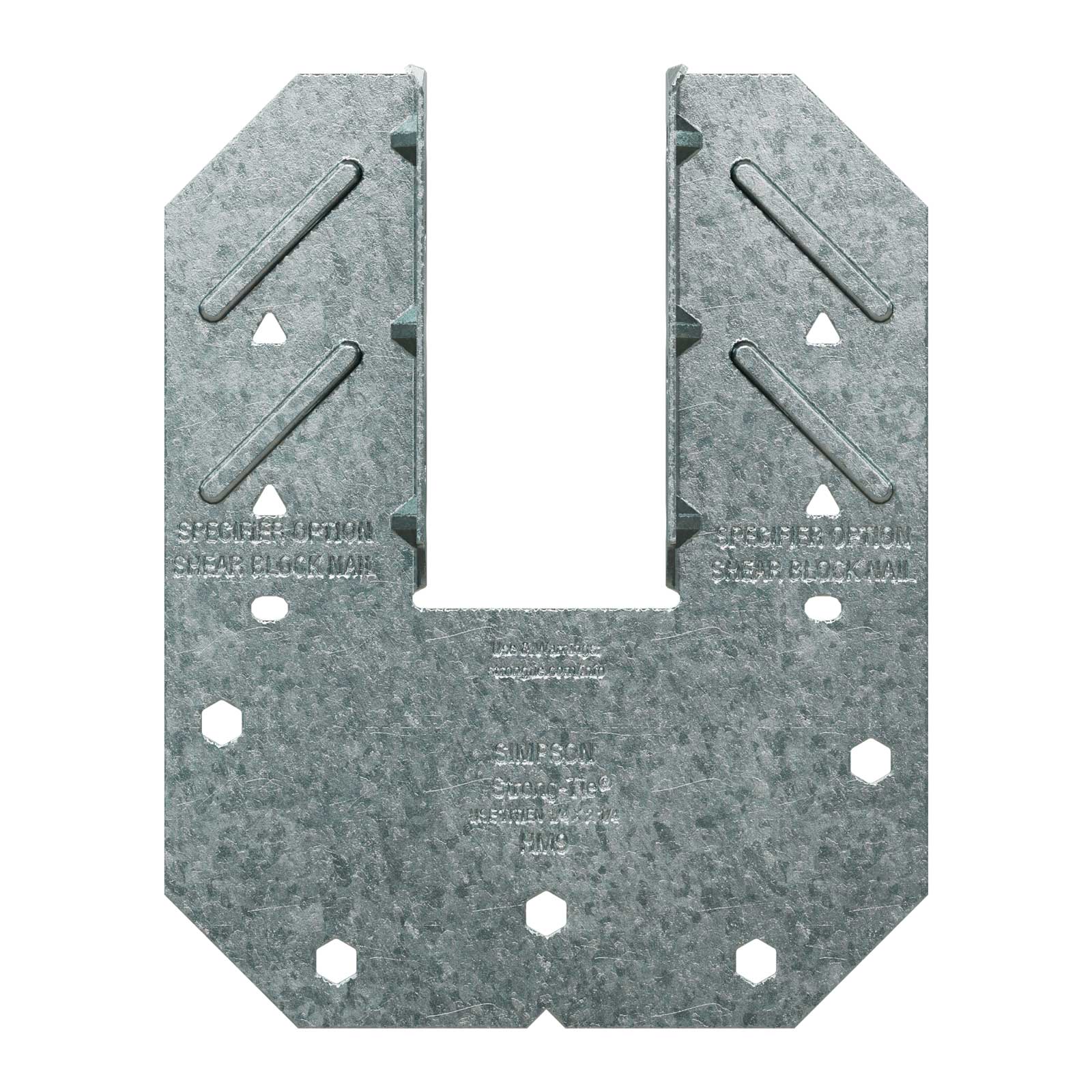

- The embossments add stiffness in crucial areas for improved performance
- Connectors attached using Strong-Drive® SDS Heavy-Duty Connector screws and hex-head Titen Turbo™ screws
- Products shall be installed such that the Titen Turbo screws and Titen HD® screw anchors are not exposed to the exterior environment

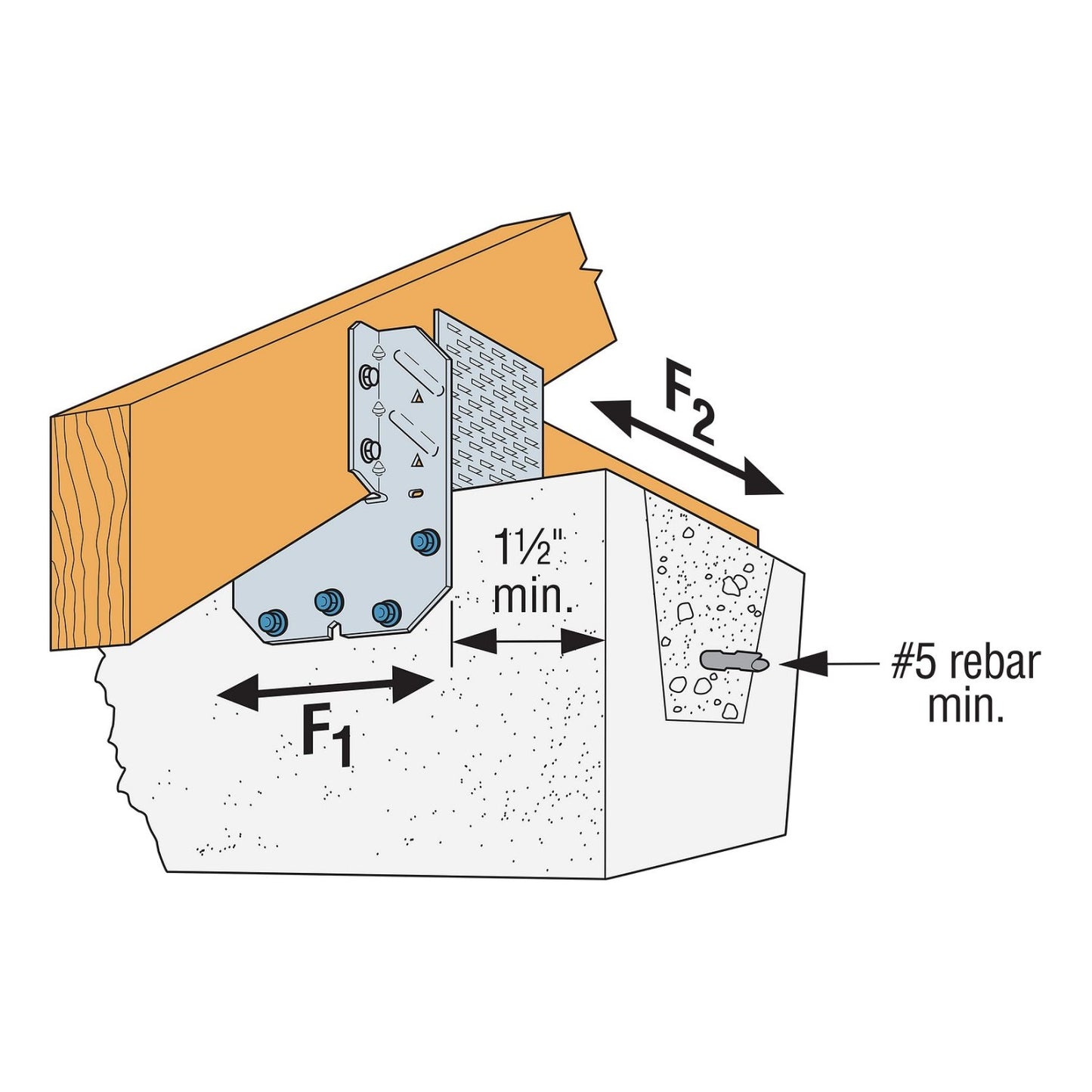

- Attach to grouted concrete block with a minimum one #5 rebar horizontal in the course
- Hurricane ties do not replace solid blocking
- Use all specified fasteners.
California Residents: WARNING
