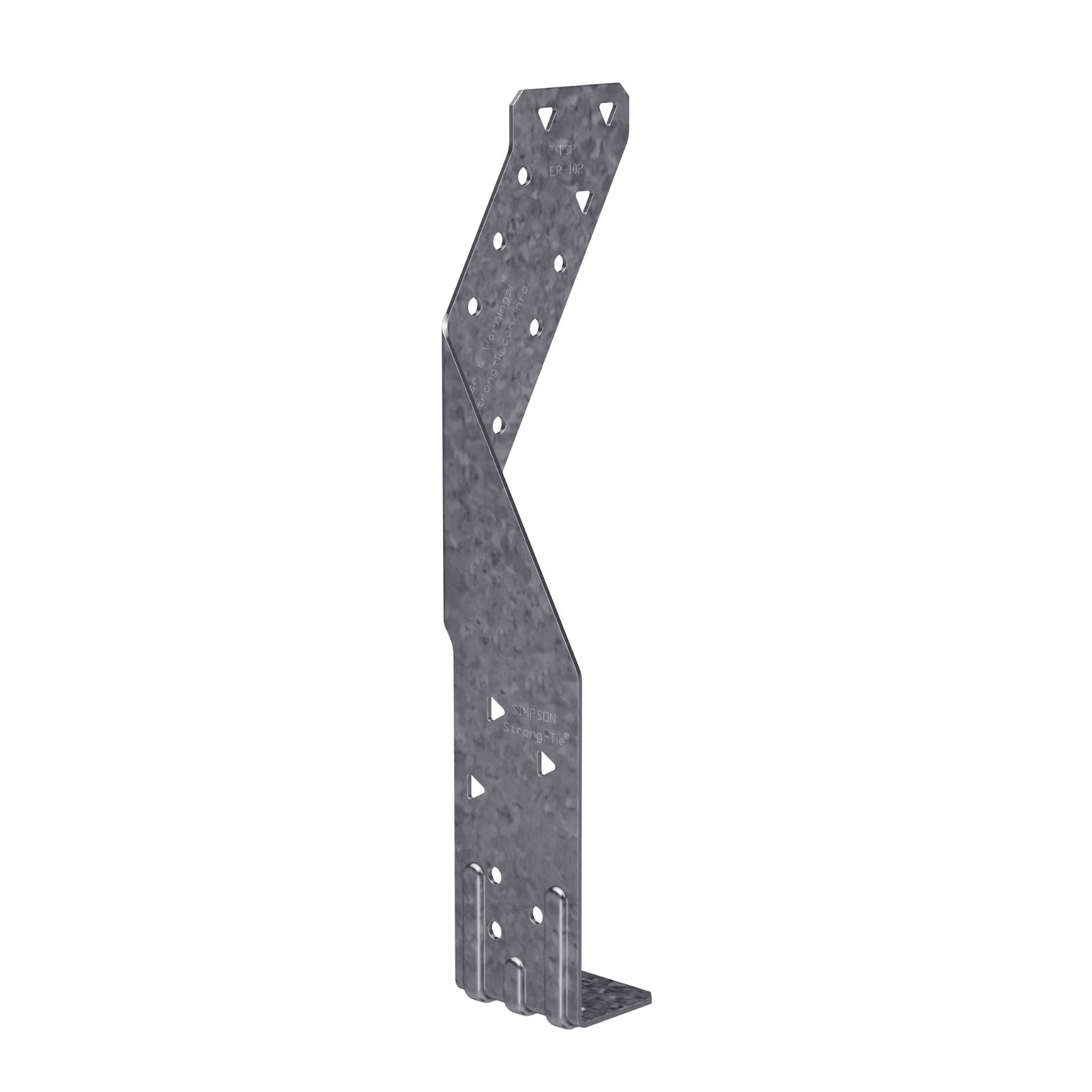

Simpson TSP Stud Plate Tie - G90 Galvanized

SKU: TSP
$0.98

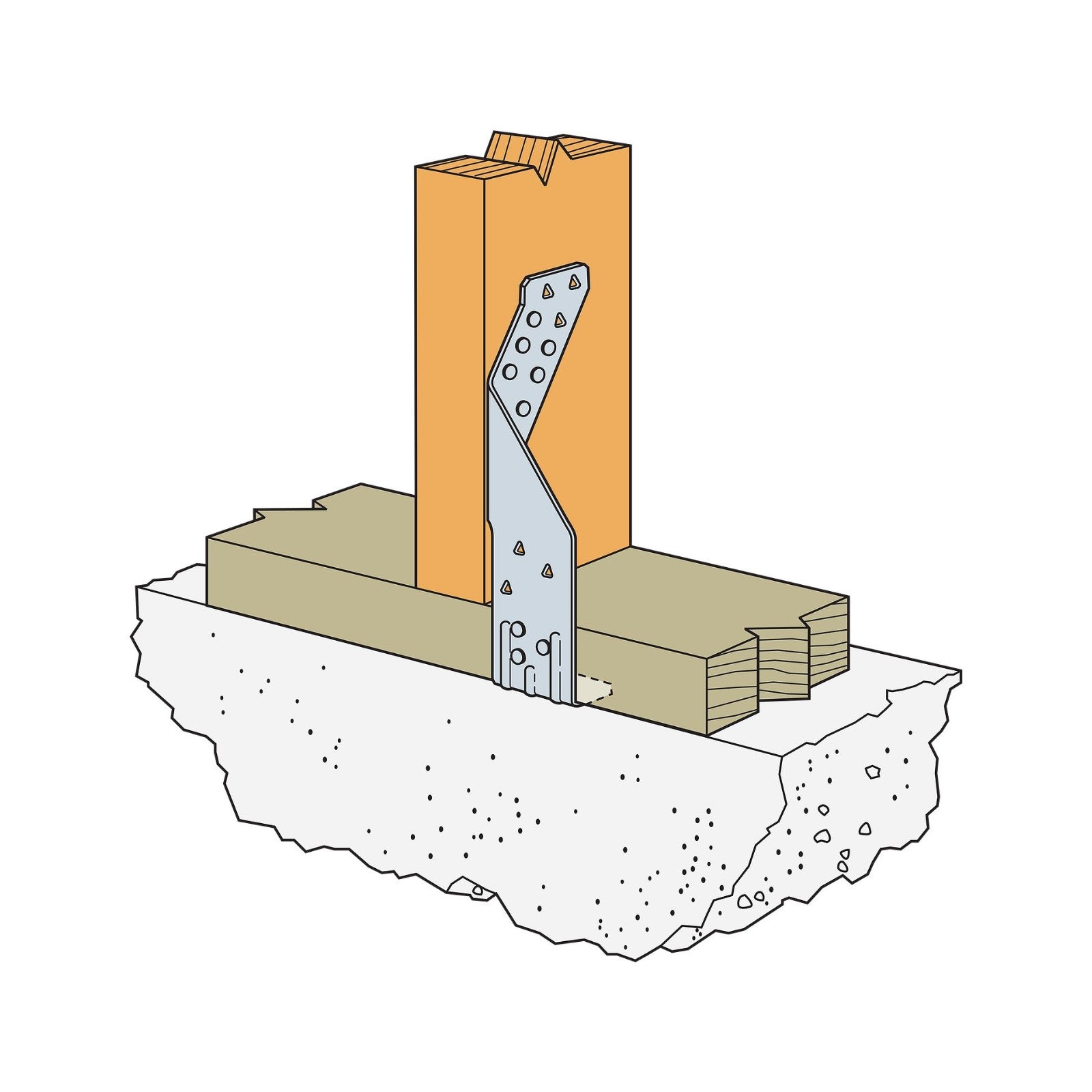

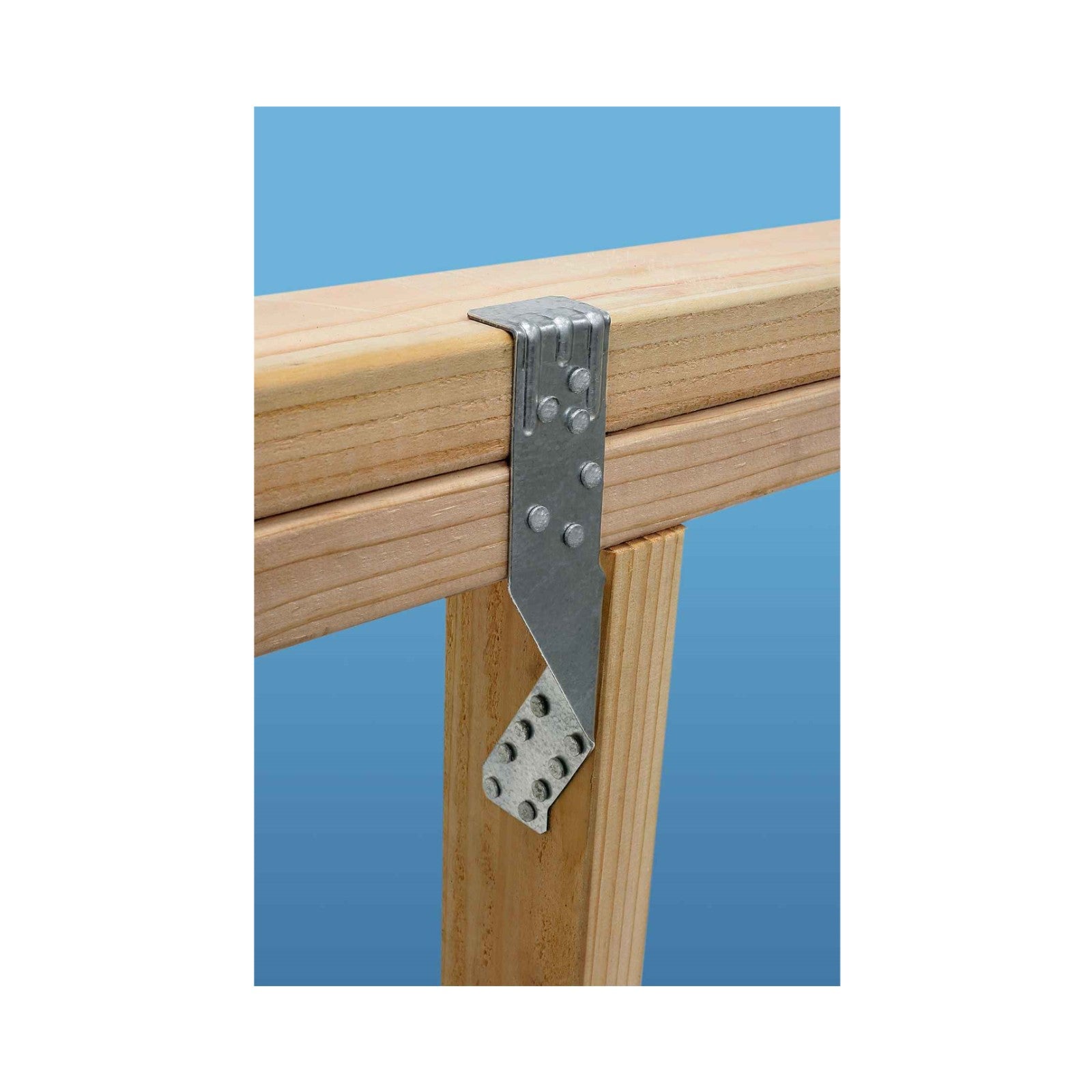

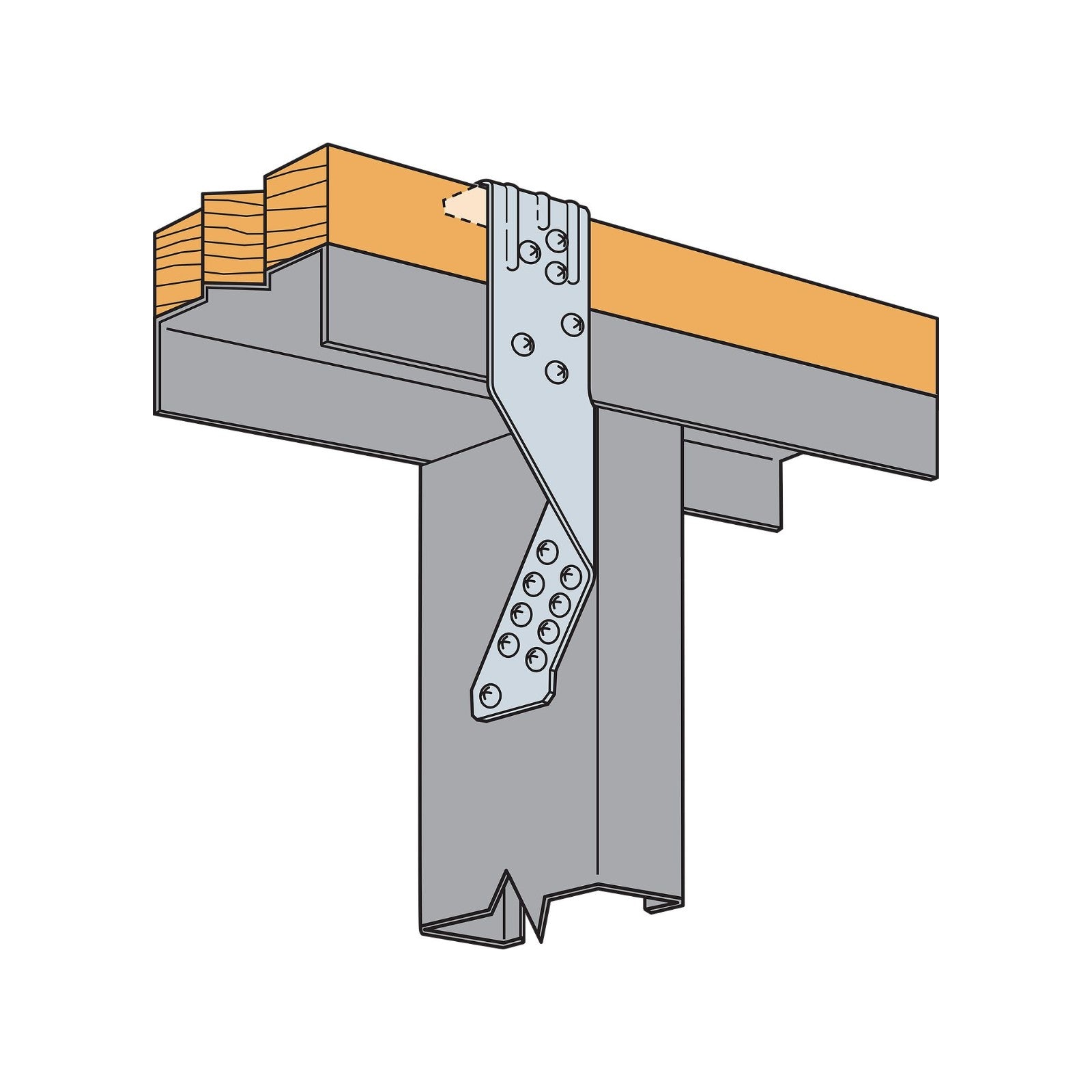

Simpson Strong-Tie TSP series of stud plate ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie TSP features a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:

  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Hurricane ties do not replace solid blocking.

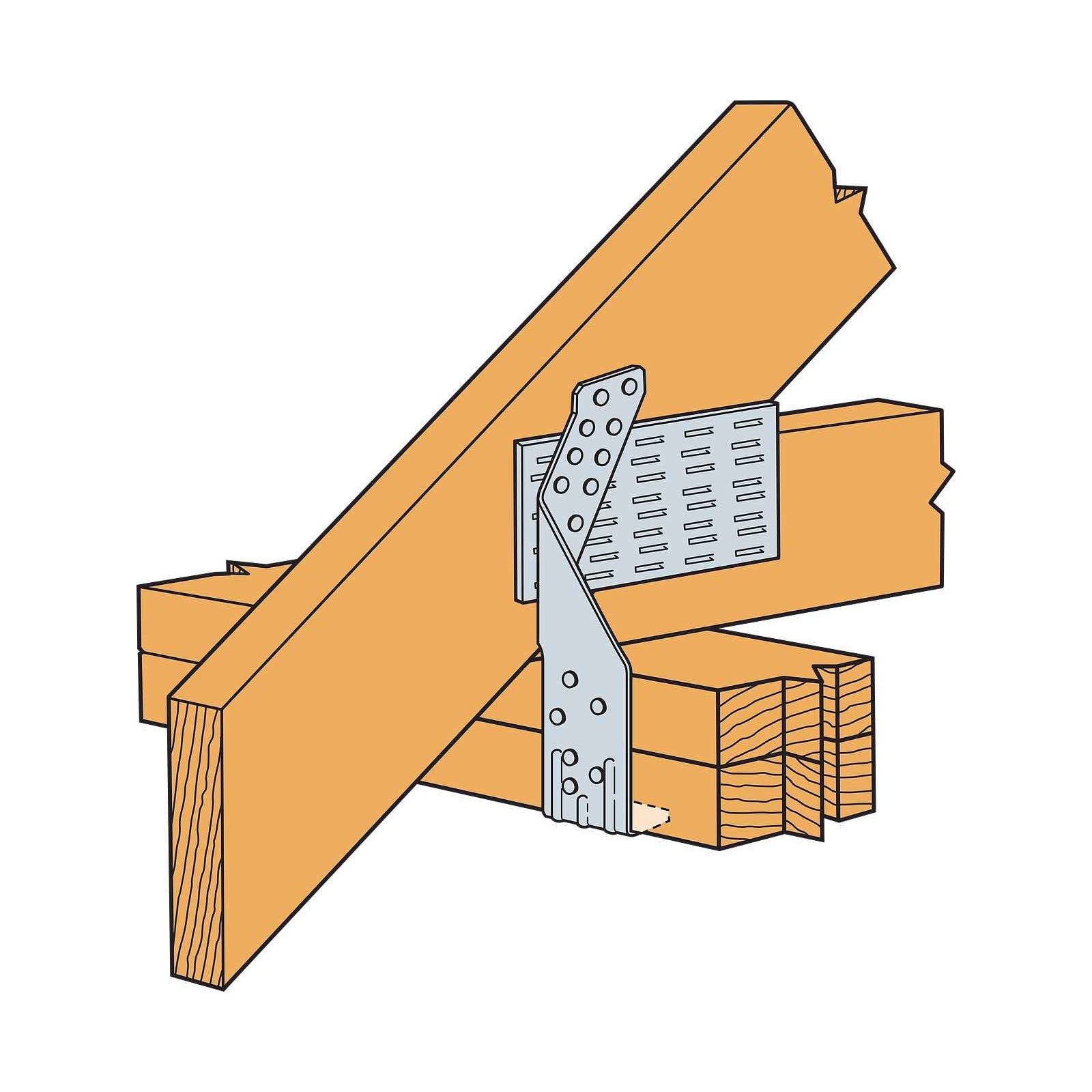

  • When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie TSP series of stud plate ties provide a positive connection between truss/rafter and the wall of the structure to resist wind an...

Read More

Simpson Strong-Tie TSP series of stud plate ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie TSP features a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:

  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Hurricane ties do not replace solid blocking.
  • When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
To Rafters/Truss - (9) 0.148" x 1-1/2" Nails

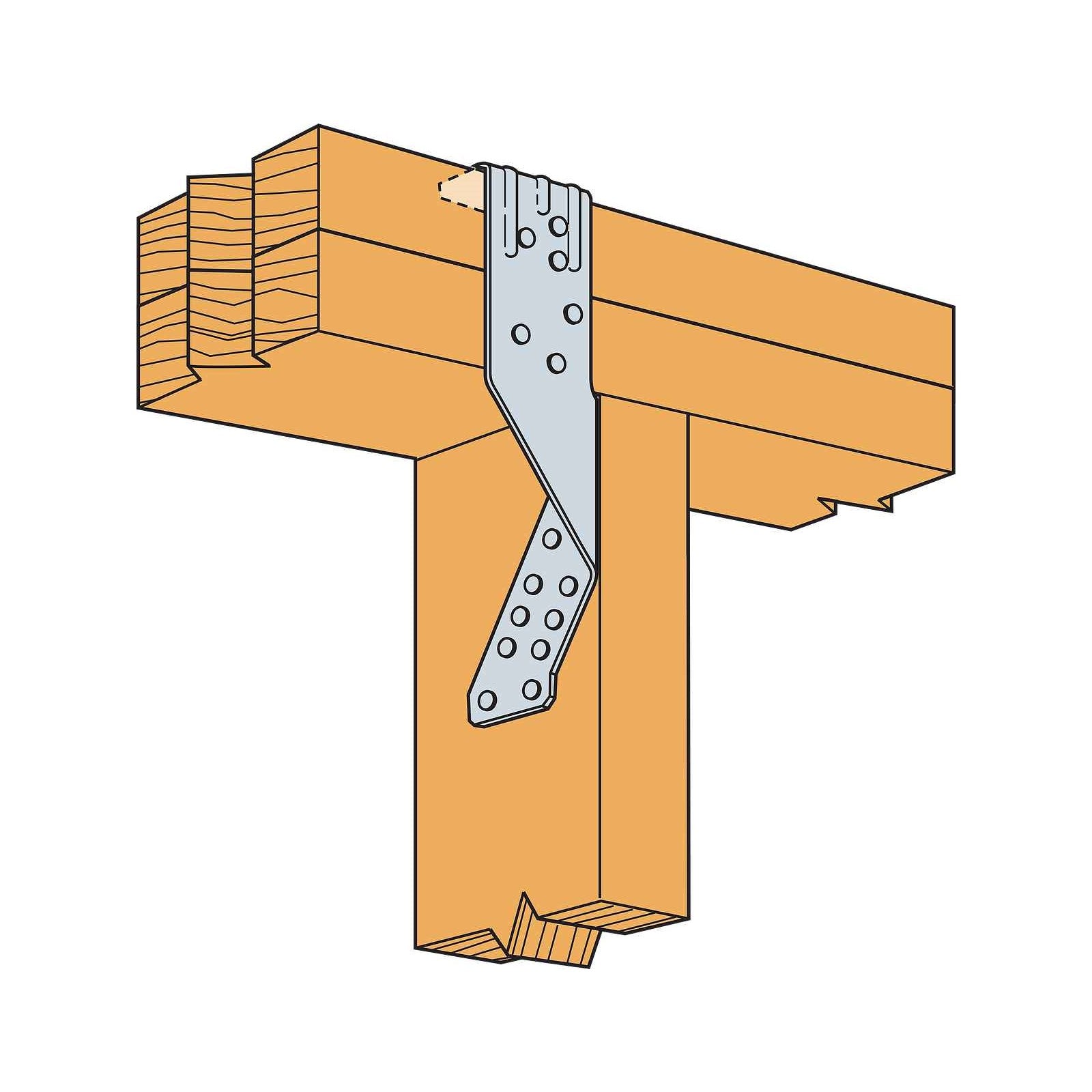

Top Plates - (6) 0.148" x 1-1/2" Nails OR (6) 0.148" x 3" Nails

for treated lumber:
no

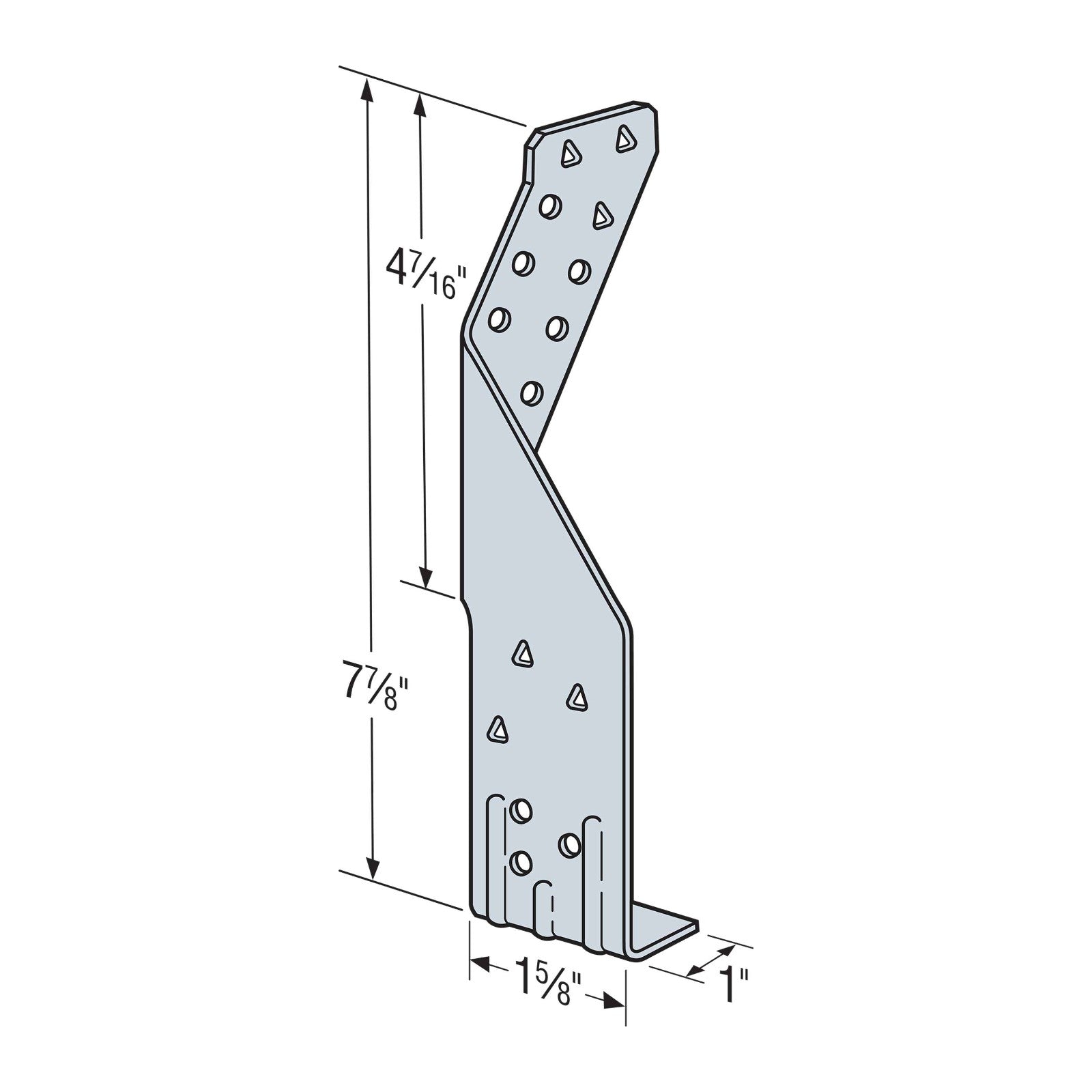

thickness:
16 Gauge
