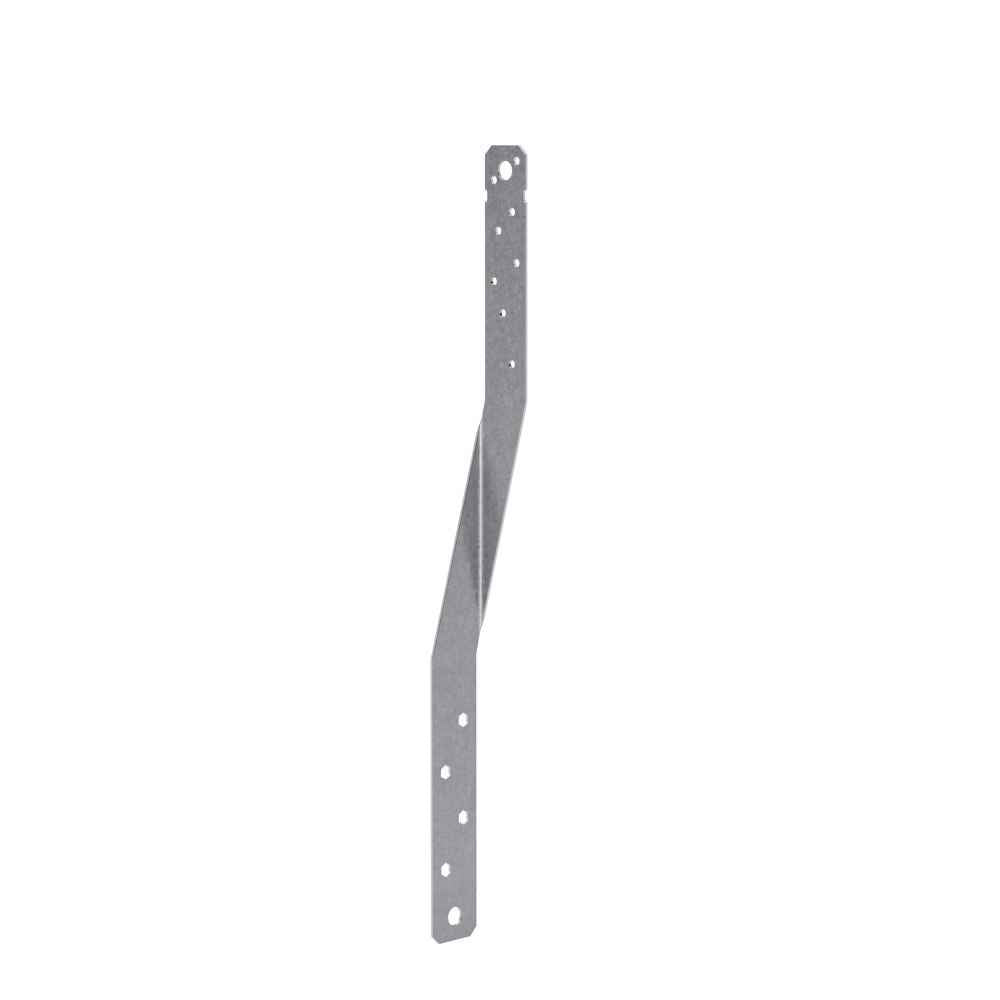

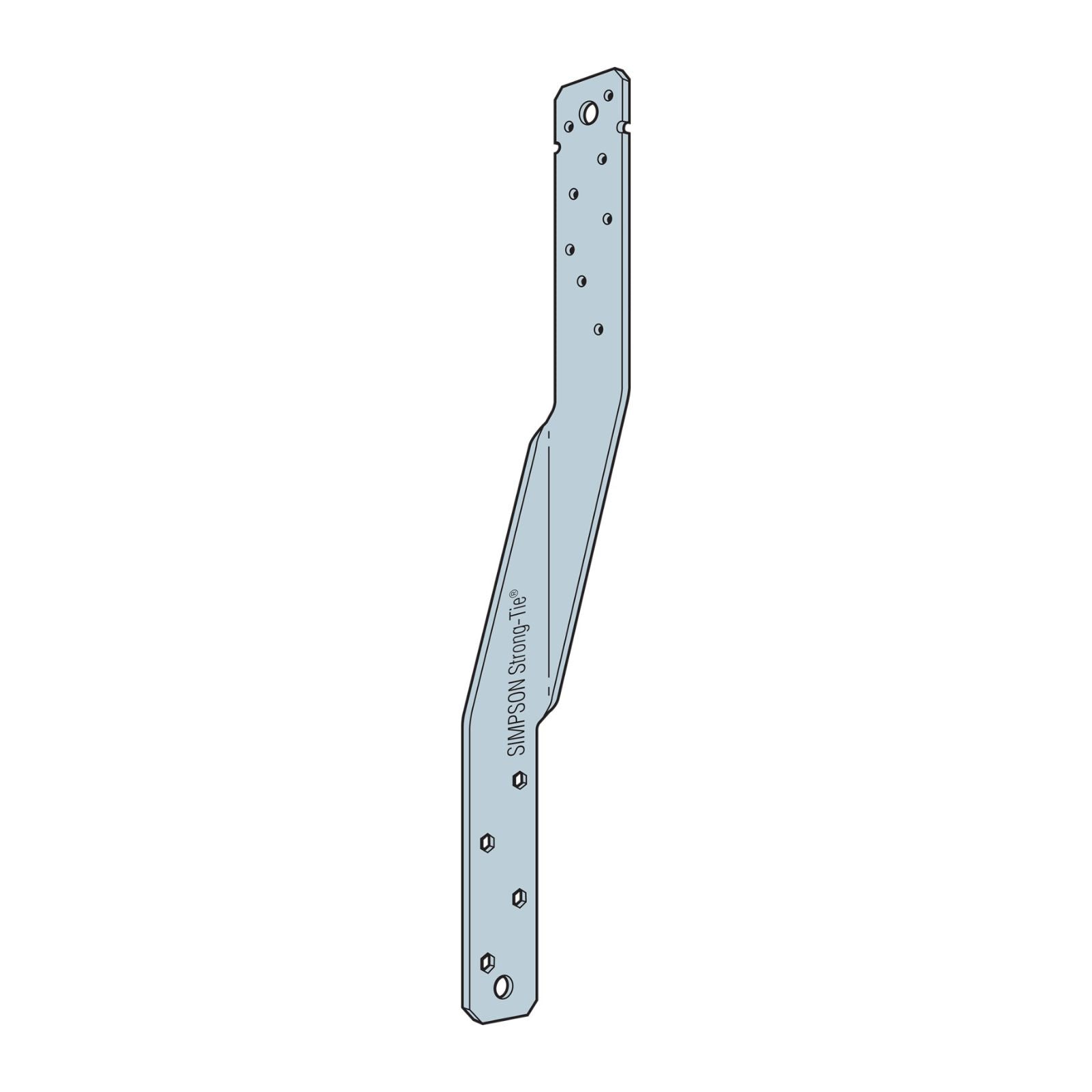

Simpson HTSM16 16" Heavy Masonry Twist Strap - Galvanized
Simpson HTSM16 16" Heavy Masonry Twist Strap - Galvanized!
Simpson HTSM16 16" Heavy Masonry Twist Strap - Galvanized
Specifications
Simpson Strong-Tie HTSM Heavy Twist Straps for Masonry provide high-strength truss-to-masonry connections for roof framing applications. Designed to resist both uplift and lateral forces, these masonry twist straps are load rated for installation on grout-filled concrete masonry units and concrete. The HTSM series does not need to be wrapped over the truss to achieve allowable loads, helping simplify installation while maintaining dependable structural performance.
Key Features
- High-Strength Connection: Designed for truss-to-masonry applications.
- Uplift and Lateral Resistance: Helps resist both uplift and lateral forces at roof framing connections.
- Masonry and Concrete Rated: Load rated for grout-filled CMU and concrete installations.
- No Wrap Required: Strap does not need to be wrapped over the truss to achieve allowable loads.
- Field-Bendable: Can be field bent once to a 45° angle.
- Durable Steel Construction: Made from 14-gauge steel for dependable performance.
- Galvanized Finish: G90 galvanized finish provides corrosion resistance.
- Multiple Length Options: Available in different lengths to suit project needs.
Applications
- Truss-to-masonry connections
- Roof truss tiedown applications
- Masonry wall construction
- Grout-filled CMU applications
- Concrete applications
- Uplift and lateral load resistance at roof framing connections
Installation
Install the HTSM strap using all specified fasteners according to Simpson Strong-Tie requirements. HTSM straps install with hex-head Titen Turbo concrete and masonry screws and should be installed so the Titen Turbo screws are not exposed to the exterior environment. The minimum edge distance for Titen Turbo screws is 1-1/2". Always follow Simpson Strong-Tie load tables, fastener schedules, and installation requirements for the selected HTSM model.
California Residents: WARNING
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson HTSM16 16" Heavy Masonry Twist Strap - Galvanized
My Cart:
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson HTSM16 16" Heavy Masonry Twist Strap - Galvanized
My Cart:
-
Reinforced Load Transfer
Twist straps help transfer tension loads across framing connections, adding strength where structural members meet. Their engineered design reinforces critical joints and helps improve overall stability. Ideal for light-gauge steel construction applications.
-
Flexible Connection Design
Designed to bend and install around corners, twist straps create strong connections where standard framing connectors may not fit. Their versatile design makes them useful for a variety of structural reinforcement applications.
-
Strengthen Framing Systems
Twist straps provide additional reinforcement throughout roof, wall, and floor framing assemblies. Trusted by builders and contractors, they help create stronger load paths and support code-compliant construction. Ideal for residential, commercial, and agricultural projects.
-
