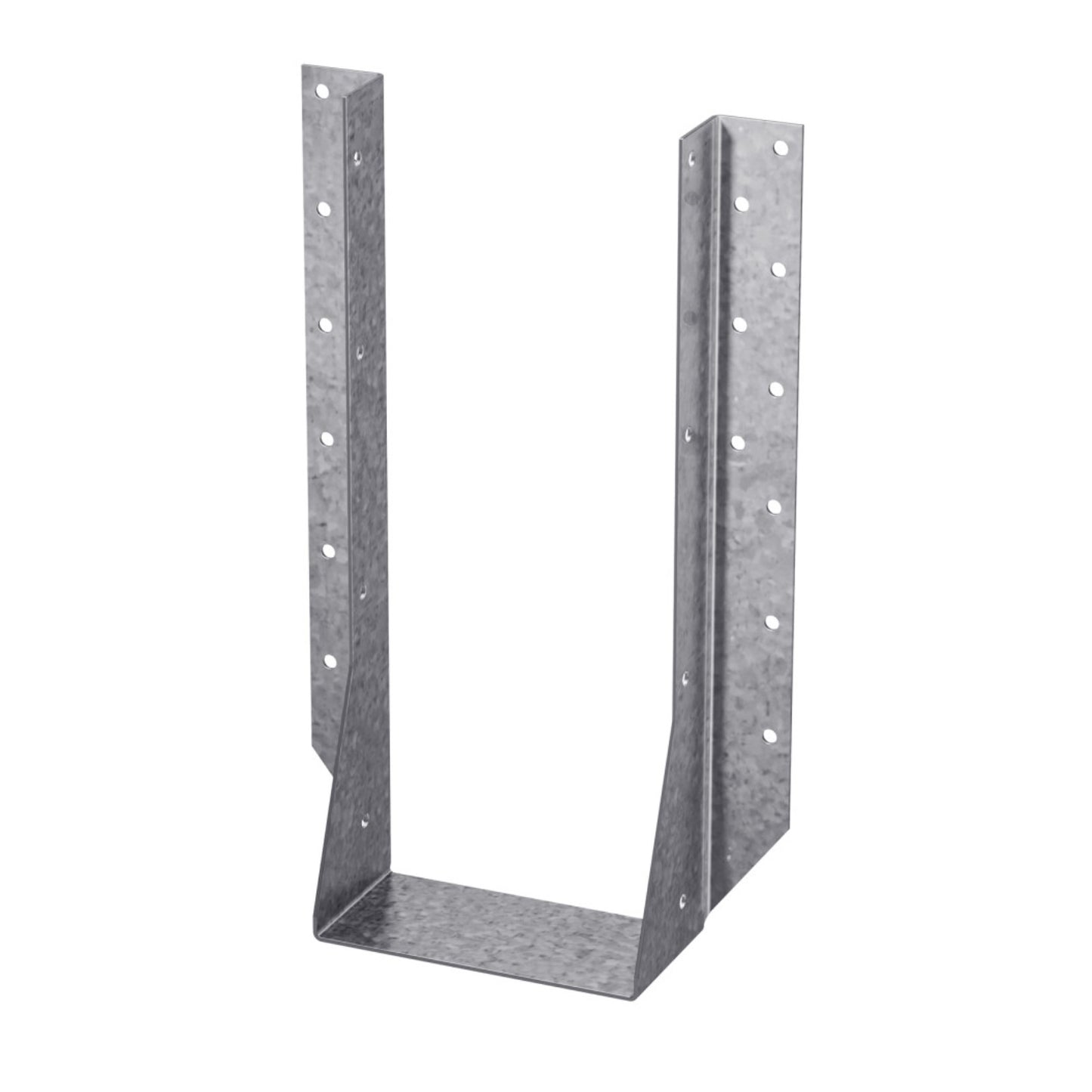

Simpson HU314 3x14 Face Mount Joist Hanger - G90 Galvanized

Simpson HU314 3x14 Face Mount Joist Hanger - G90 Galvanized

Regular price $21.95
Sale price $21.95 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 5 hours 16 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie HU hangers are heavy duty 14 gauge face mount hangers that have been designed for use in commercial applications. These hangers can be installed into masonry and concrete with the correctly specified Titen screws. The Strong-Tie HU314 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153


Installation:
  • Use all specified fasteners.
  • These hangers are attached to grouted CMU walls using 1/4" x 2 3/4" hex head Simpson Strong-Tie® Titen® screws or for concrete walls using 1/4x1 3/4" hex head Titen screws. Titen screws are not provided.
  • Drill the 3/16" diameter hole to the specified embedment depth plus 1/2".
  • Alternatively, drill the 3/16" diameter hole to the specified embedment depth and blow it clean using compressed air.
  • Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
  • The hangers should be installed such that a minimum end and edge distance of 1 1/2" is maintained.
  • Provide moisture barrier between beam and wall per jurisdictional requirements.

California Residents: WARNING

Specifications:


Height: 12-3/8"
Fasteners required: Face - (18) 0.162" x 3-1/2" Nails Joist - (8) 0.148" x 1-1/2" Nails
Width: 2-9/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 3X14
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-These hangers are attached to grouted CMU walls using 1/4" x 2 3/4" hex head Simpson Strong-Tie® Titen® screws or for concrete walls using 1/4x1 3/4" hex head Titen screws. Titen screws are not provided.
-Drill the 3/16" diameter hole to the specified embedment depth plus 1/2".
-Alternatively, drill the 3/16" diameter hole to the specified embedment depth and blow it clean using compressed air.
-Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
-The hangers should be installed such that a minimum end and edge distance of 1 1/2" is maintained.
-Provide moisture barrier between beam and wall per jurisdictional requirements.
