Simpson HUA22.5 Heavy-Duty U-Shaped Architectural Joist Hanger, Black Paint
Simpson HUA22.5 Heavy-Duty U-Shaped Architectural Joist Hanger, Black Paint
Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

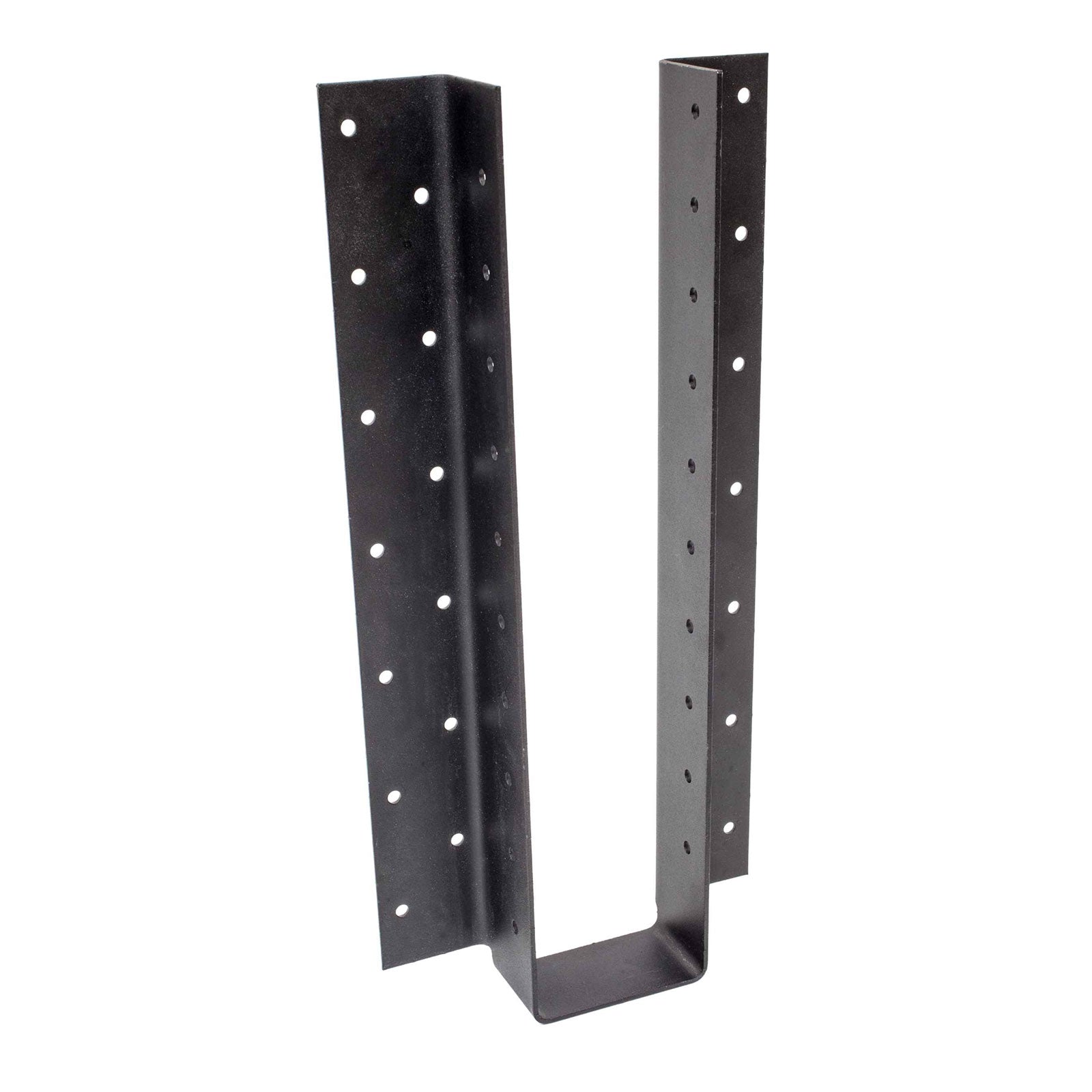

The Simpson HUA Heavy-Duty U-Shaped Architectural Joist Hanger is a heavy-duty U-shaped hanger designed to connect engineered wood members. This load-rated, architectural heavy joist hanger uses Strong-Drive SDS Heavy-Duty Connector screws. To achieve maximum loads, the HUA22.5 features additional round face-nail holes.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 22-1/4"
Fasteners required: Face: (32) 1/4" X 3"; Joist: (18) 1/4" X 3"
Thickness: 7 Gauge
Quantity: 1
Finish: Black Paint
Manufacturer name: Simpson Strong-Tie
Additional information:
Width-Min: 5-1/8"
Width-Max: 7-1/4"
Product Guide: View Spec Sheet
Features
Features
•Hangers can be ordered with black paint or a black powder coat for decorative uses
•Hot-dip galvanized finish available by request for exterior use
•1/4" x 3" SDS screws are supplied with the product

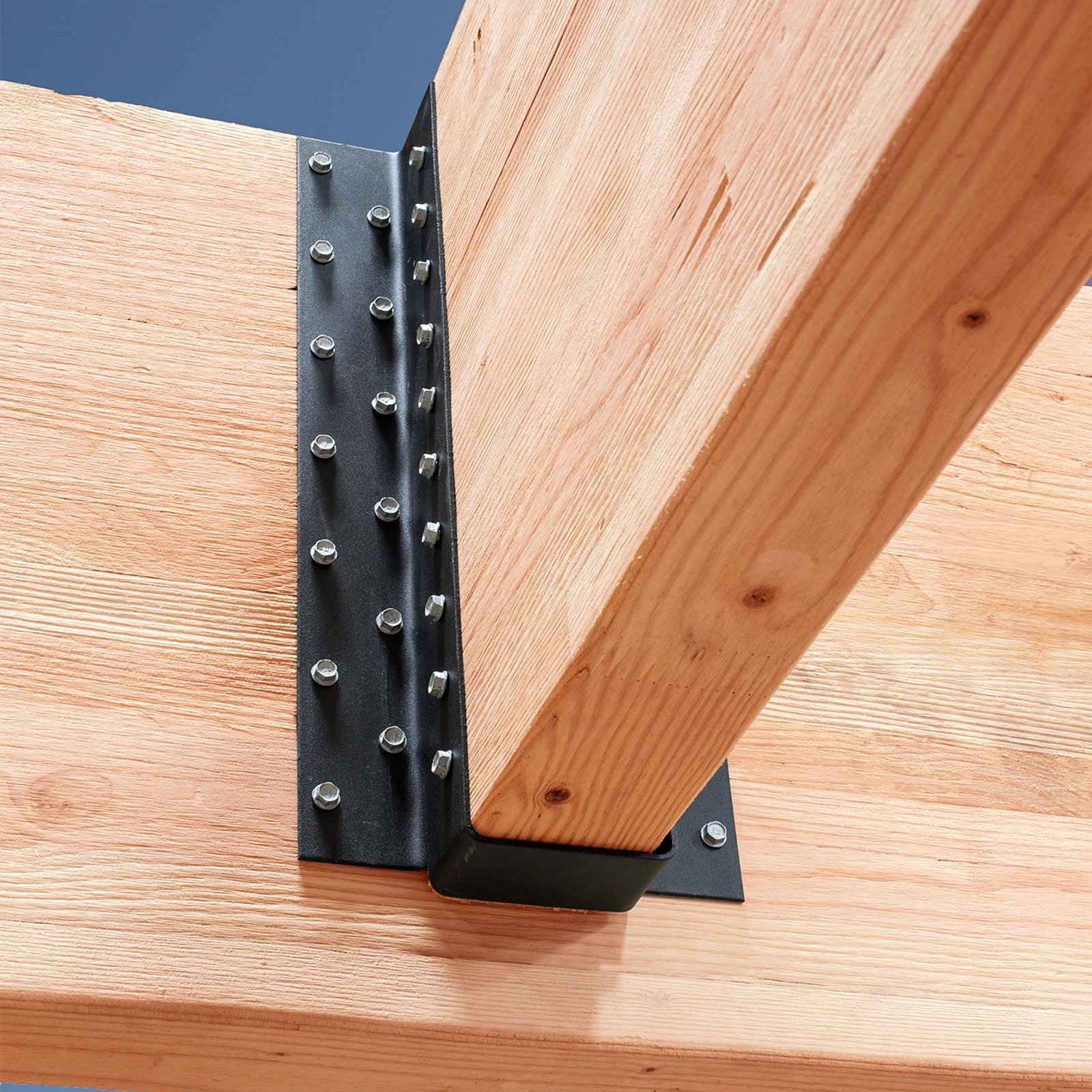

Installation
Installation
• Use all specified fasteners
• Hangers can be ordered with black paint or a black powder coat for decorative uses
• Hot-dip galvanized finish available by request for exterior use
• 1/4" x 3" SDS screws are supplied with the product
• Black paint, black powder coat or hot-dip galvanized
