Simpson HUC210-2SS Double 2x10 Concealed Flange Heavy hanger - Stainless Steel
Simpson HUC210-2SS Double 2x10 Concealed Flange Heavy hanger - Stainless Steel
Ships in 2-3 business days.
Description:
Description:

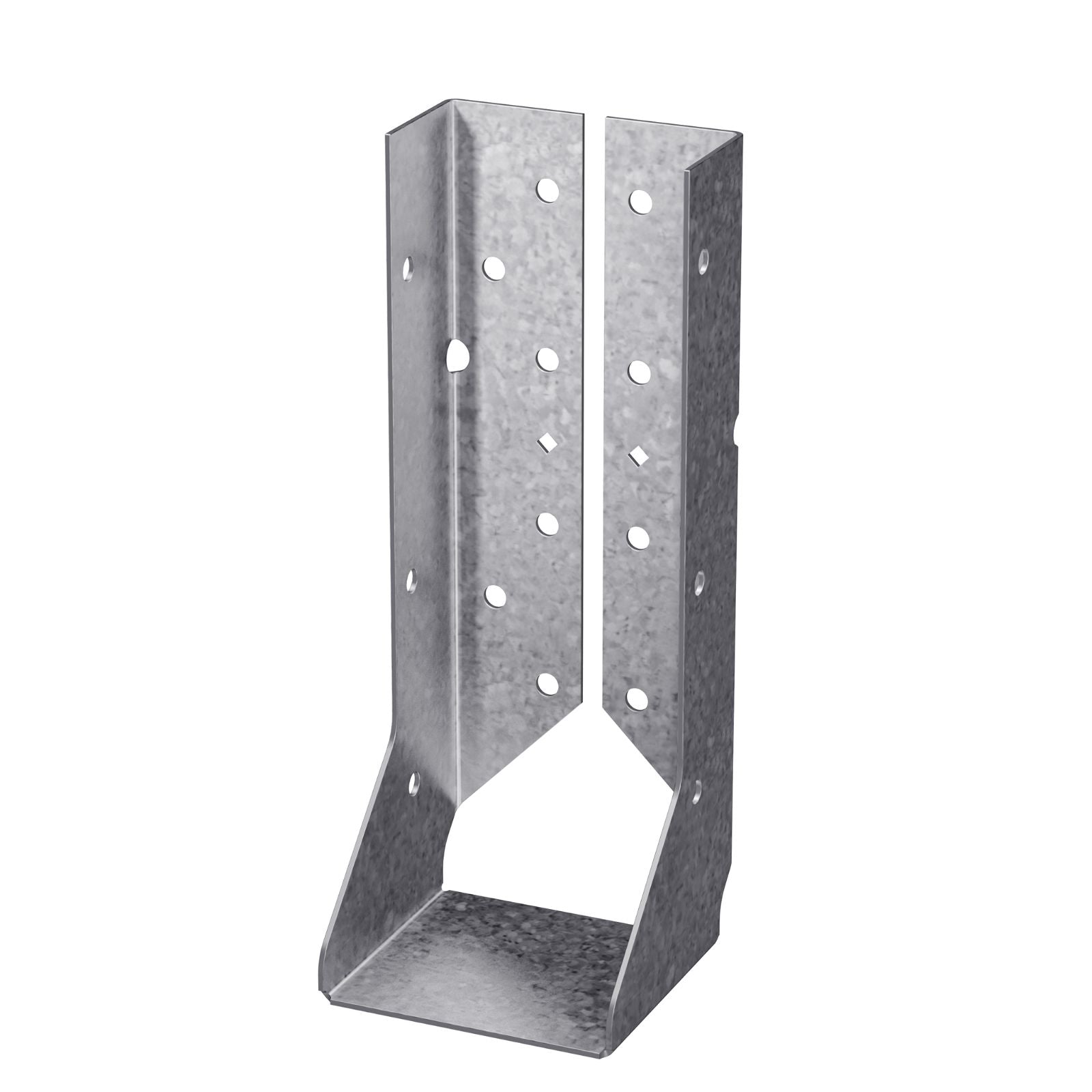

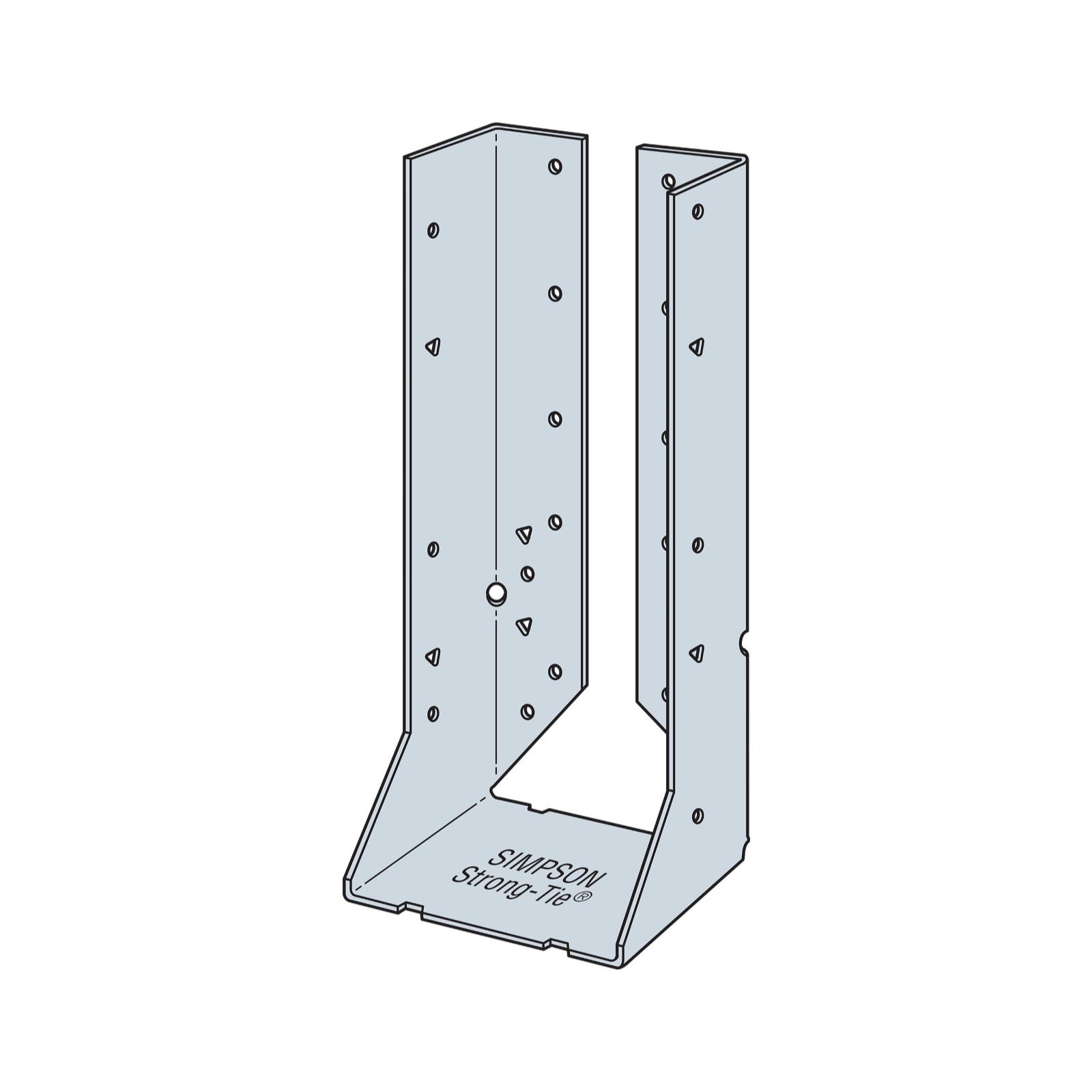

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Designed and tested for installation at the end of a beam or on a post, they provide a strong connection with fewer fasteners than nailed hangers. The Strong-Tie HUC210-2SS concealed flange hangers are made out of 316L stainless steel and offer maximum corrosion resistance in harsh exterior conditions.
Installation:
- Use all specified fasteners.
- HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve load tables.
- HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 8-13/16"
Fasteners required: Face - (18) 0.162" x 3-1/2" Nails Joist - (10) 0.148" x 3" Nails
Width: 3-1/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Joist size: Double 2X10
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
-Joists sloped up to 1/4:12 achieve load tables.
-HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.
