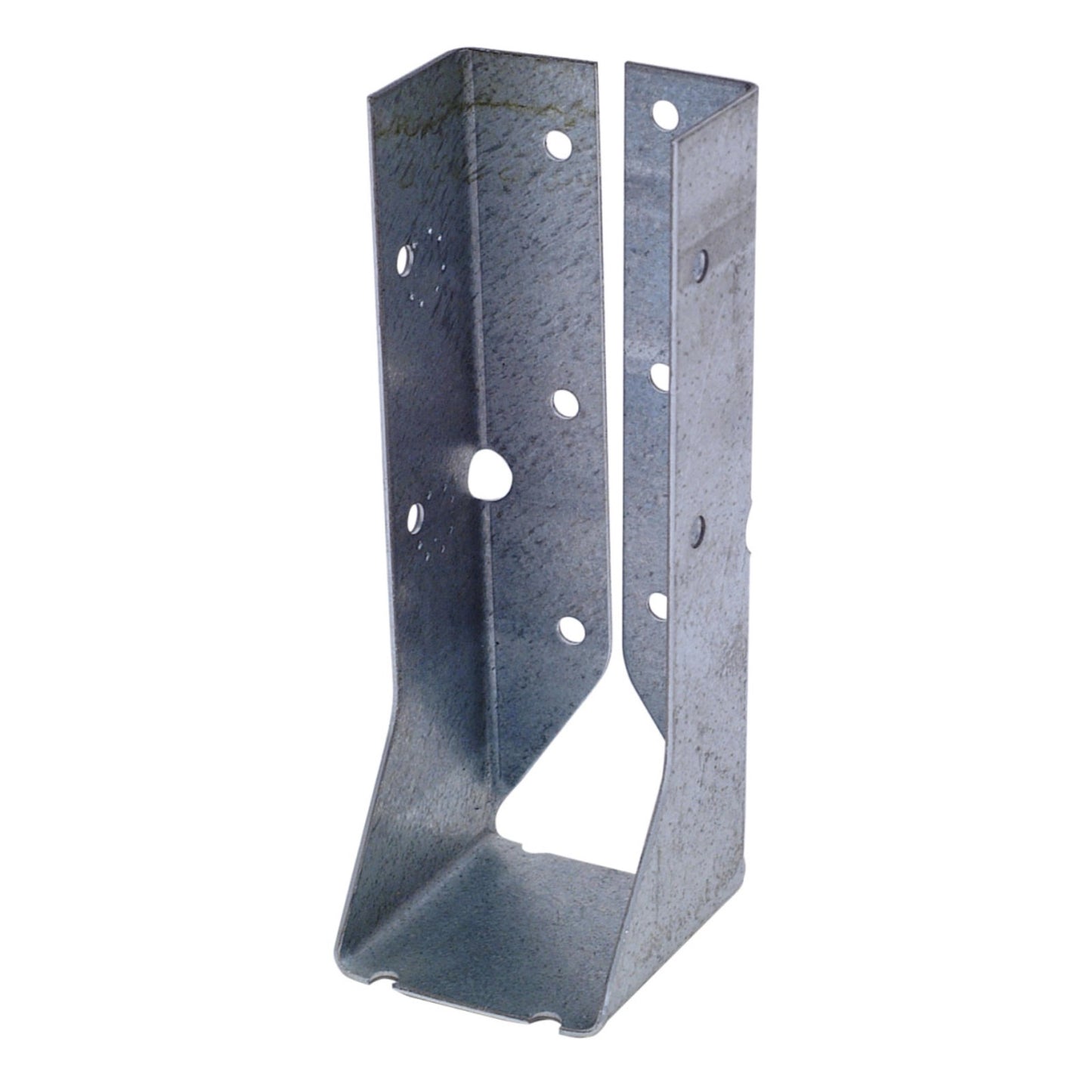

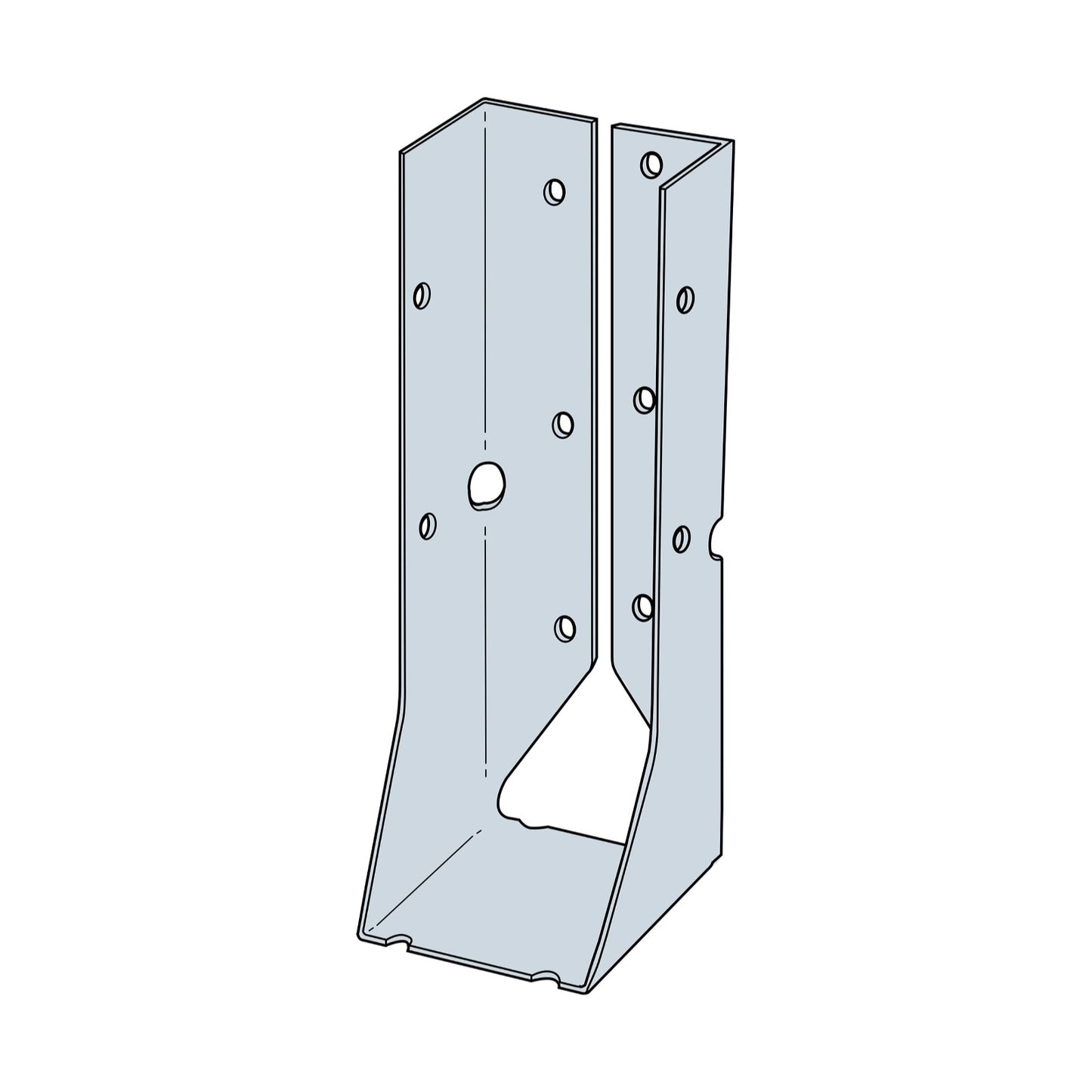

Simpson LUC26SS 2x6 Concealed Face Mount Hanger - Stainless Steel

SKU: LUC26SS

$31.26

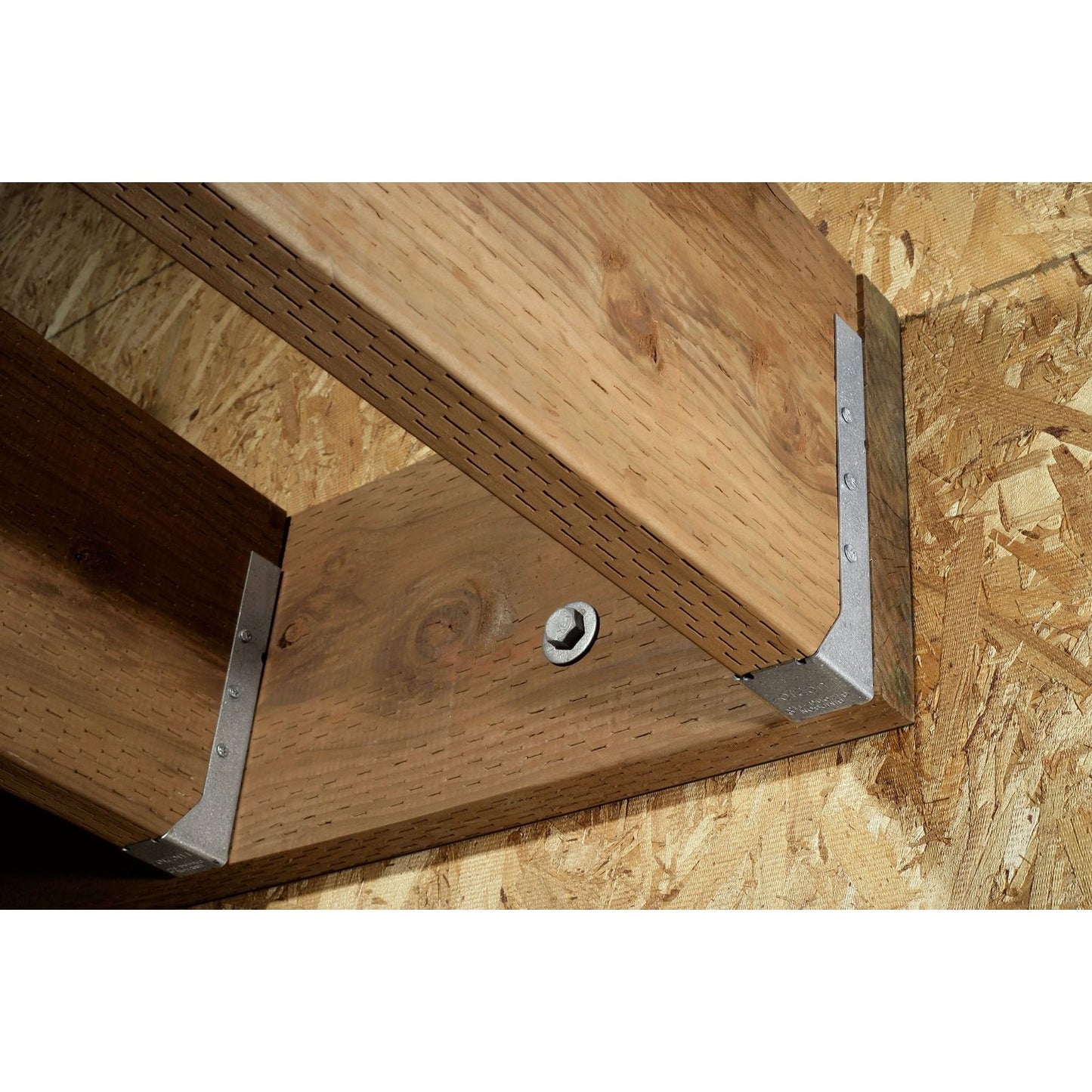

Simpson Strong-Tie LUC hangers are the concealed flange version of the LU joist hanger. Concealed flange hangers have the face flanges turned in for a clean finished look when installed. The Strong-Tie LUC26SS concealed flange hanger are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates. Stainless steel fasteners are required to install this hanger.

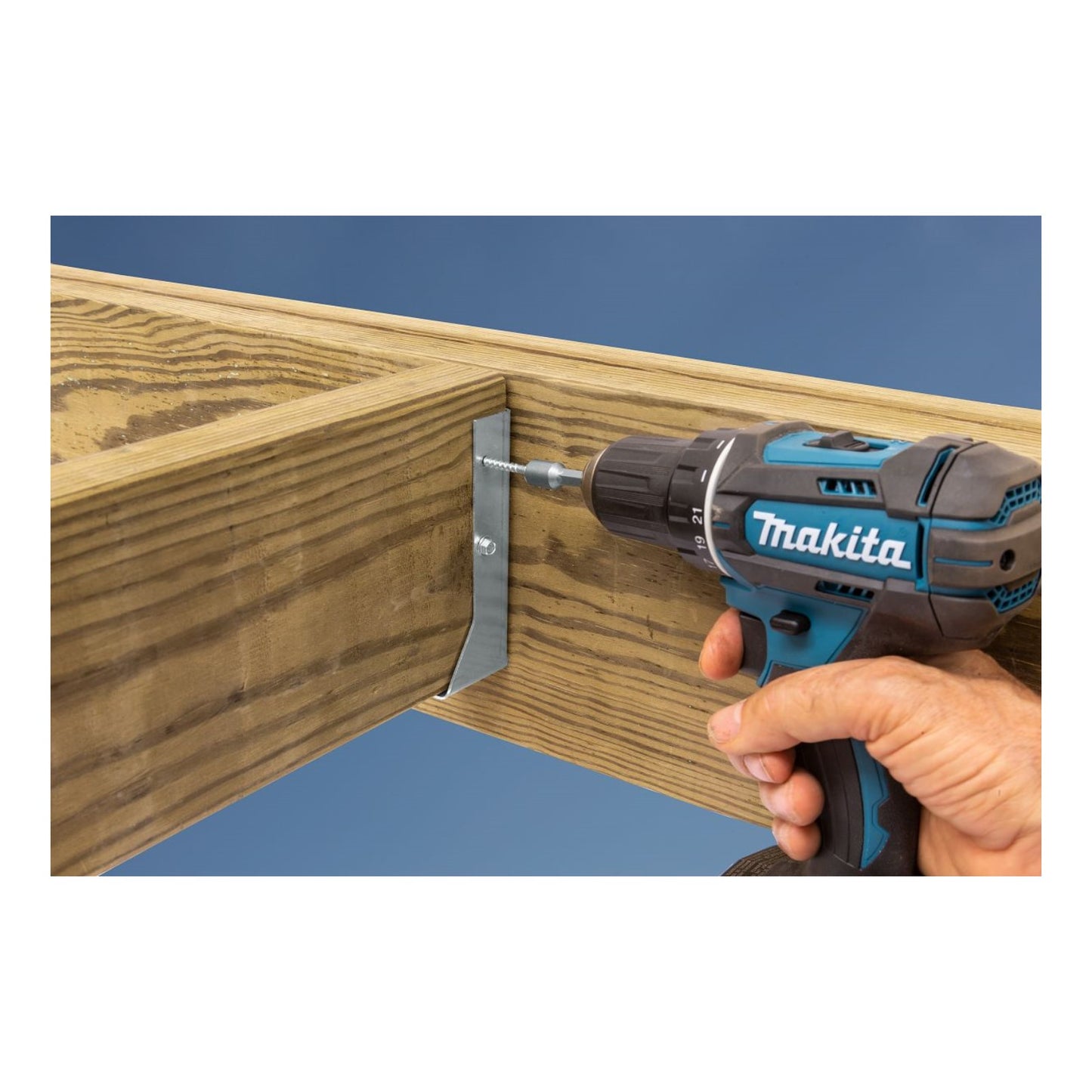

Installation:
  • Use all specified fasteners.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie LUC hangers are the concealed flange version of the LU joist hanger. Concealed flange hangers have the face flanges turned in fo...

Read More

Simpson Strong-Tie LUC hangers are the concealed flange version of the LU joist hanger. Concealed flange hangers have the face flanges turned in for a clean finished look when installed. The Strong-Tie LUC26SS concealed flange hanger are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates. Stainless steel fasteners are required to install this hanger.


Installation:
  • Use all specified fasteners.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Header - (6) 0.162" x 3-1/2" Nails Joist - (4) 0.148" x 1-1/2" Nails

Finish Spec:
316L Stainless Steel

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
yes

Height:
4-3/4"

Joist Size:
2X6

Product Guide Document:
Face_Mount_Hangers_Load_Table_for_Solid-Sawn_Lumber.pdf

Thickness:
18 Gauge

Width Spec:
1-9/16"
