SKU: HUCQ410-SDS

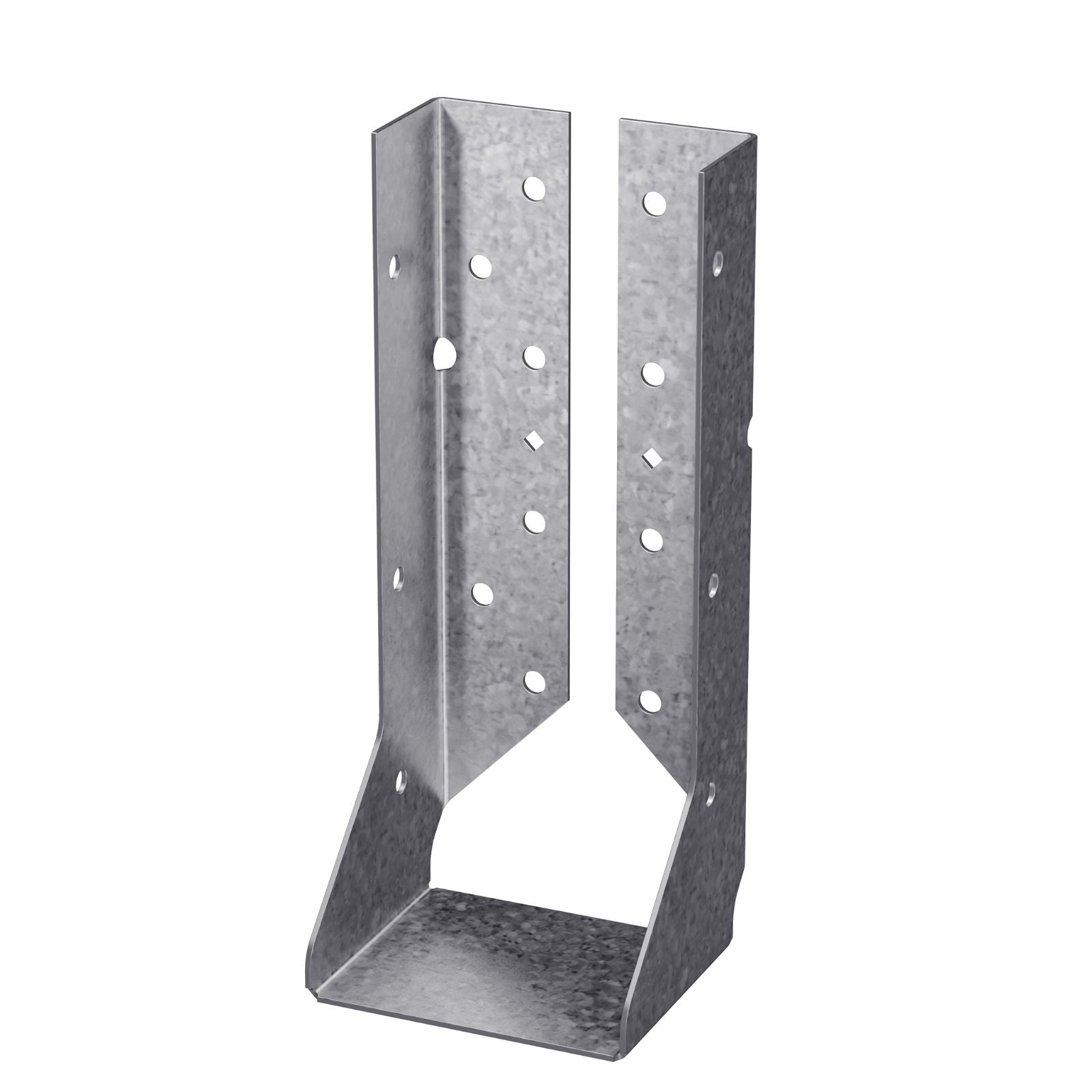

Simpson HUCQ410-SDS 4x10 Concealed Flange Heavy hanger w/SDS Screws - G90 Galvanized

Simpson HUCQ410-SDS 4x10 Concealed Flange Heavy hanger w/SDS Screws - G90 Galvanized!

Skip to product information
1 of 3
$47.81

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 5 and order in the next 7 hours 20 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: All Fasteners Included
For Treated Lumber: No
Height: 9"
Joist size: 4X10
Manufacturer name: Simpson Strong-Tie
Description

Simpson Strong-Tie HUCQ hangers are the concealed flange version of the HU joist hanger. HUCQ heavy duty joist hangers include the necessary SDS screws required to fasten the hanger. Designed and tested for installation at the end of a beam or on a post, they provide a strong connection with fewer fasteners than nailed hangers. The Strong-Tie HUCQ410-SDS concealed flange hanger features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Designed and tested for installation at the end of a beam or on a post, they provide a strong connection with fewer fasteners than nailed hangers.

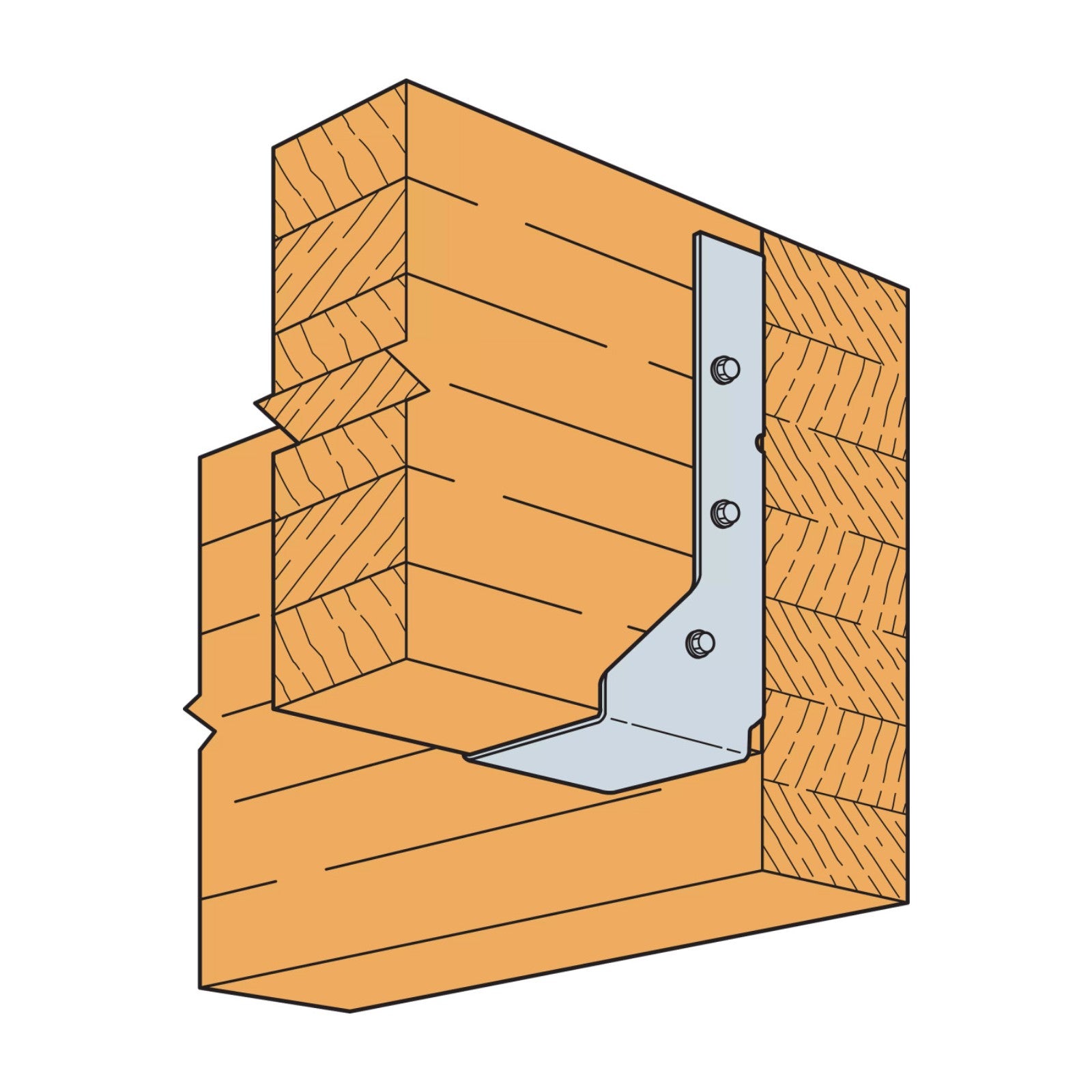

Installation:
  • Use all specified fasteners.
  • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve load tables.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
