Shop more HUC/HUCQ Concealed Face Mount Hangers
SKU: HUCQ612SS-SDS

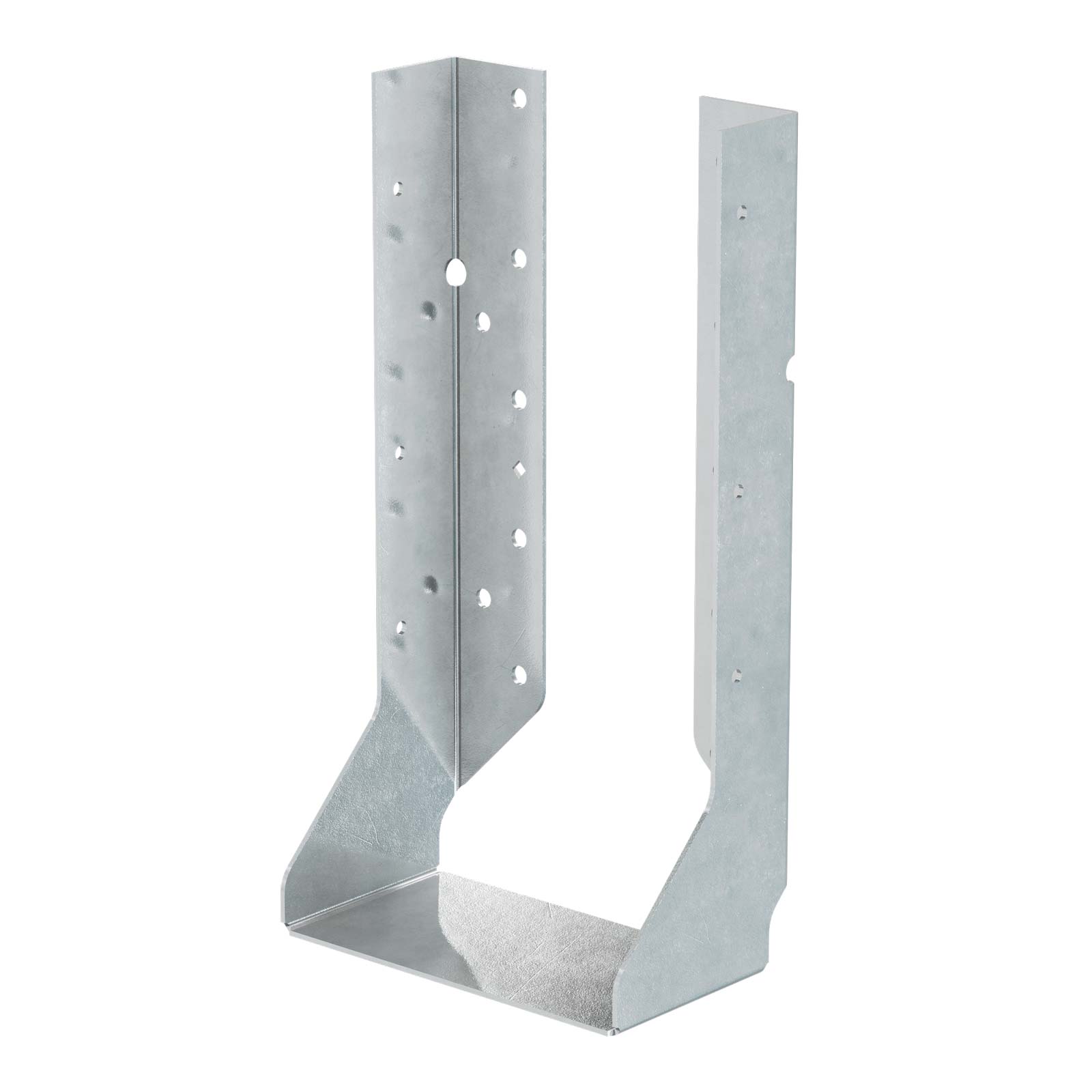

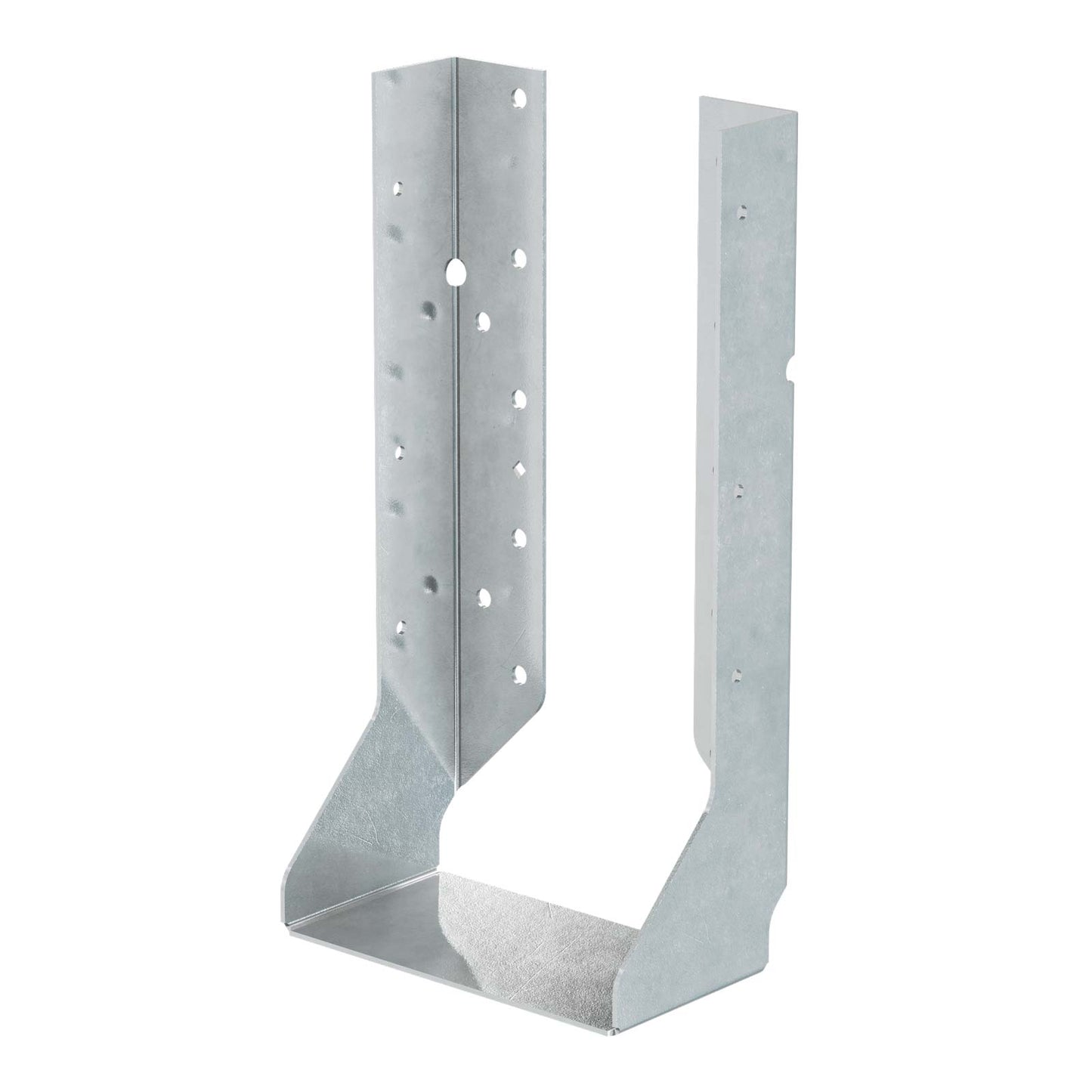

Simpson HUCQ612SS-SDS 6x12 Concealed Flange Heavy hanger w/SDS Screws - Stainless Steel

Simpson HUCQ612SS-SDS 6x12 Concealed Flange Heavy hanger w/SDS Screws - Stainless Steel

Regular price $195.90
Sale price $195.90 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Made to Order
Ships in 3-5 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie HUCQ hangers are the concealed flange version of the HU joist hanger. HUCQ heavy duty joist hangers include the necessary SDS screws required to fasten the hanger. Designed and tested for installation at the end of a beam or on a post, they provide a strong connection with fewer fasteners than nailed hangers. The Strong-Tie HUCQ612SS-SDS concealed flange hangers are made out of 316L stainless steel and offer maximum corrosion resistance in harsh exterior conditions. Designed and tested for installation at the end of a beam or on a post, they provide a strong connection with fewer fasteners than nailed hangers.


    Installation:
    • Use all specified fasteners.
    • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
    • Joists sloped up to 1/4:12 achieve load tables.
    • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

    Specifications:


    Height: 11"
    Fasteners required: All Fasteners Included
    Manufacturer name: Simpson Strong-Tie
    For Treated Lumber: Yes
    Joist size: 6X12
    Product Guide: View Spec Sheet

    Installation

    -Use all specified fasteners.
    -HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
    -Joists sloped up to 1/4:12 achieve load tables.
    -HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.
