Simpson LCC4.5-4 Lally Column Cap - Gray Paint

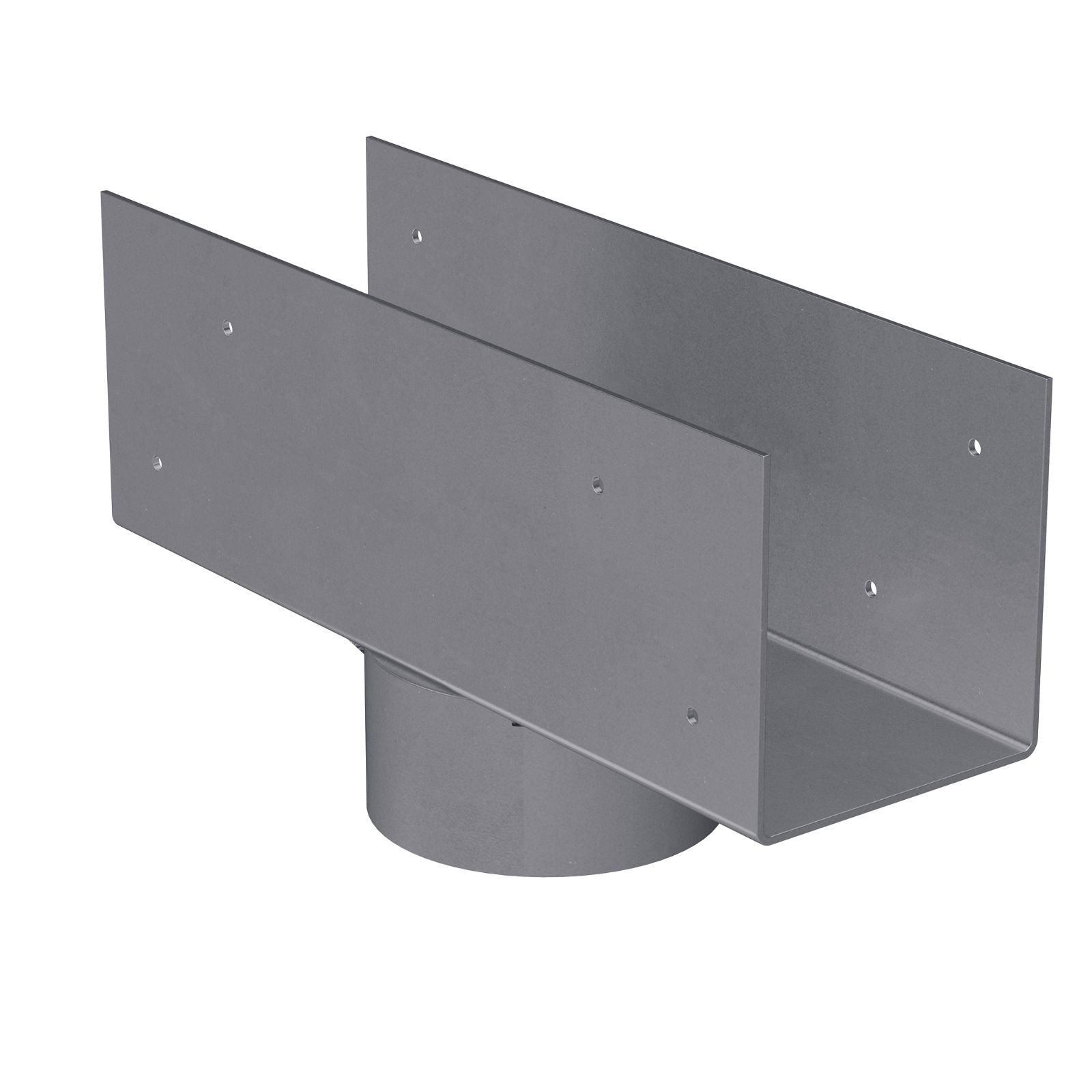

The Simpson LCC4.5-4 Lally Column Cap - Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this lally-column cap is designed to be welded to the lally column and attach to the girder.

The column cap provides a high capacity column-to-beam connection for new or replacement applications while the side plates secure the beam, enabling a safer installation than other caps.

This product is intended for use with 4-inch lally columns and Triple 2x10/12 girders but is also available in a wide range of other sizes.

Features:

• Connection Type: Provides strong column to beam connection while the strapless design is intended for field welding to a steel column.
• Column Size: Intended for use with 4-inch diameter lally columns and Triple 2x10/12 girders.
• Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
• Performance: Extended surface area of the column seat provides additional bearing distrubtion for the load.
• Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.

California Residents: WARNING

-Use all specified fasteners.

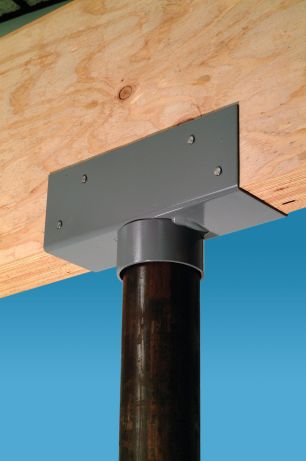

-LCC: Fit the lally column cap over the lally column and attach to the girder.
