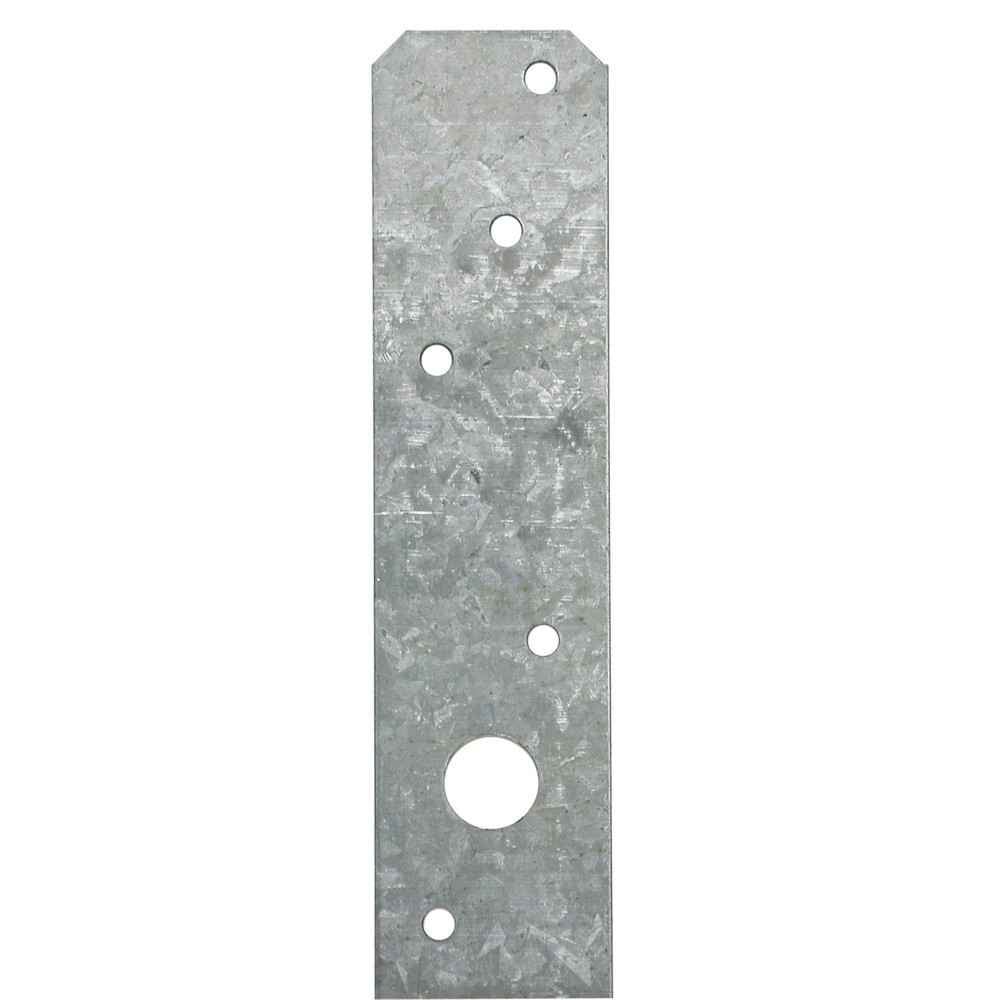

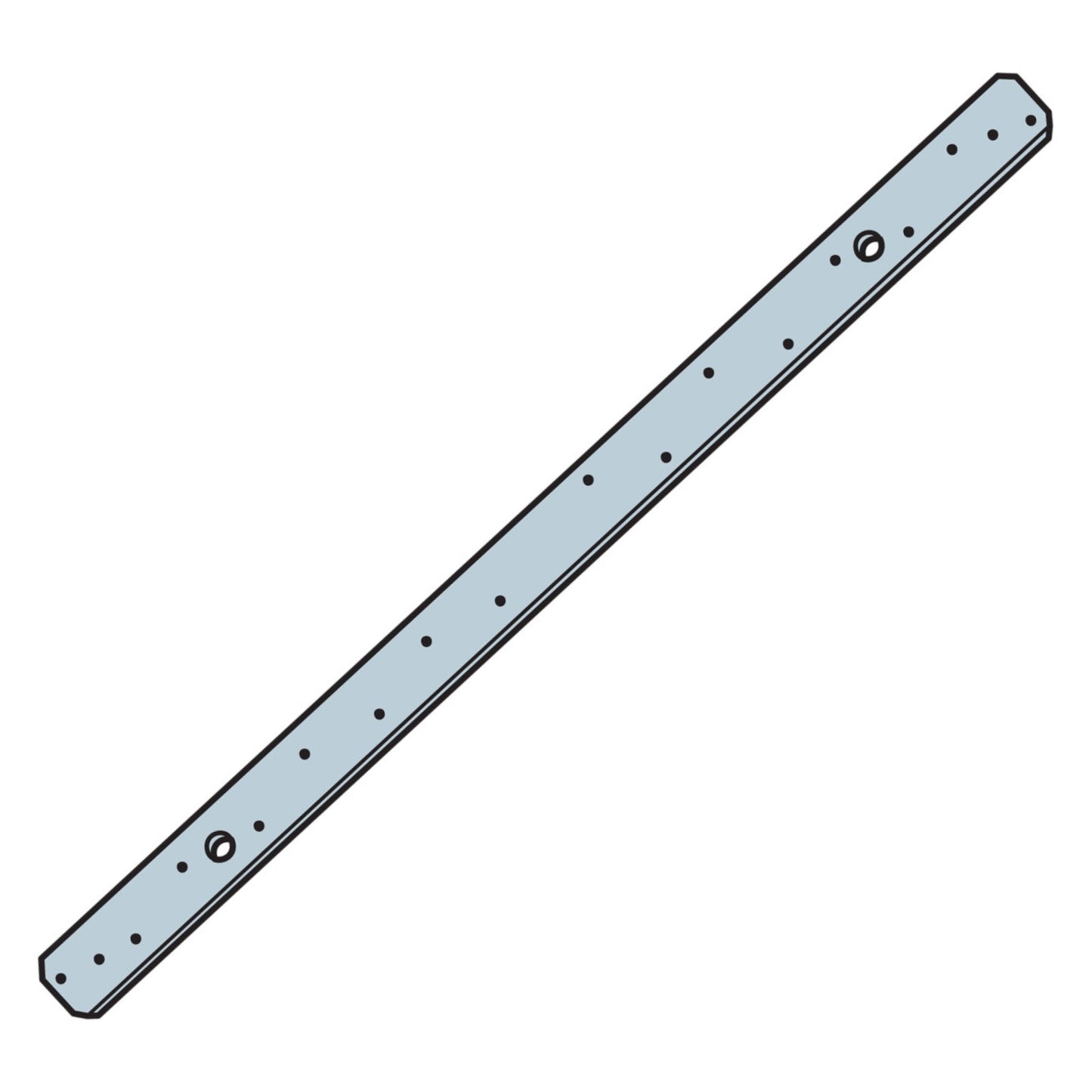

Simpson LSTA24 24" 20 Gauge Strap Tie - G90 Galvanized

SKU: LSTA24
$1.20

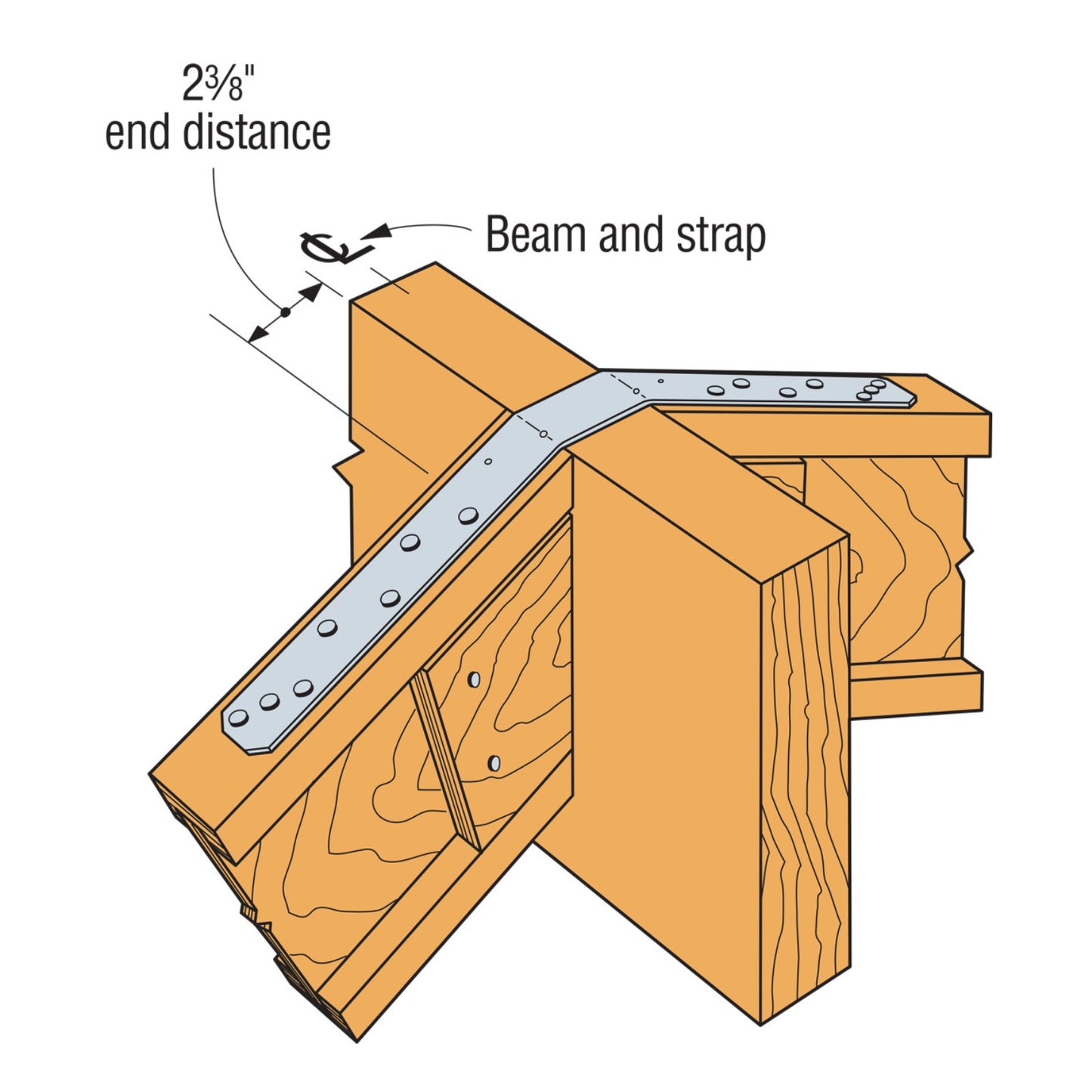

Simpson Strong-Tie LSTA straps are load rated and provide the correct thickness and number of fasteners the specifier is looking for compared with field fabricated straps. Designed for use on the edge of 2x members, with a nailing pattern that reduces the potential for splitting. The Strong-Tie LSTA24 strap tie features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie LSTA straps are load rated and provide the correct thickness and number of fasteners the specifier is looking for compared with ...

Read More

Simpson Strong-Tie LSTA straps are load rated and provide the correct thickness and number of fasteners the specifier is looking for compared with field fabricated straps. Designed for use on the edge of 2x members, with a nailing pattern that reduces the potential for splitting. The Strong-Tie LSTA24 strap tie features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

length spec:
24"

manufacturer name:
Simpson Strong-Tie

fasteners required:
(18) 0.148" x 2-1/2" Nails

for treated lumber:
no

thickness:
20 Gauge

Product Spec Sheet:
