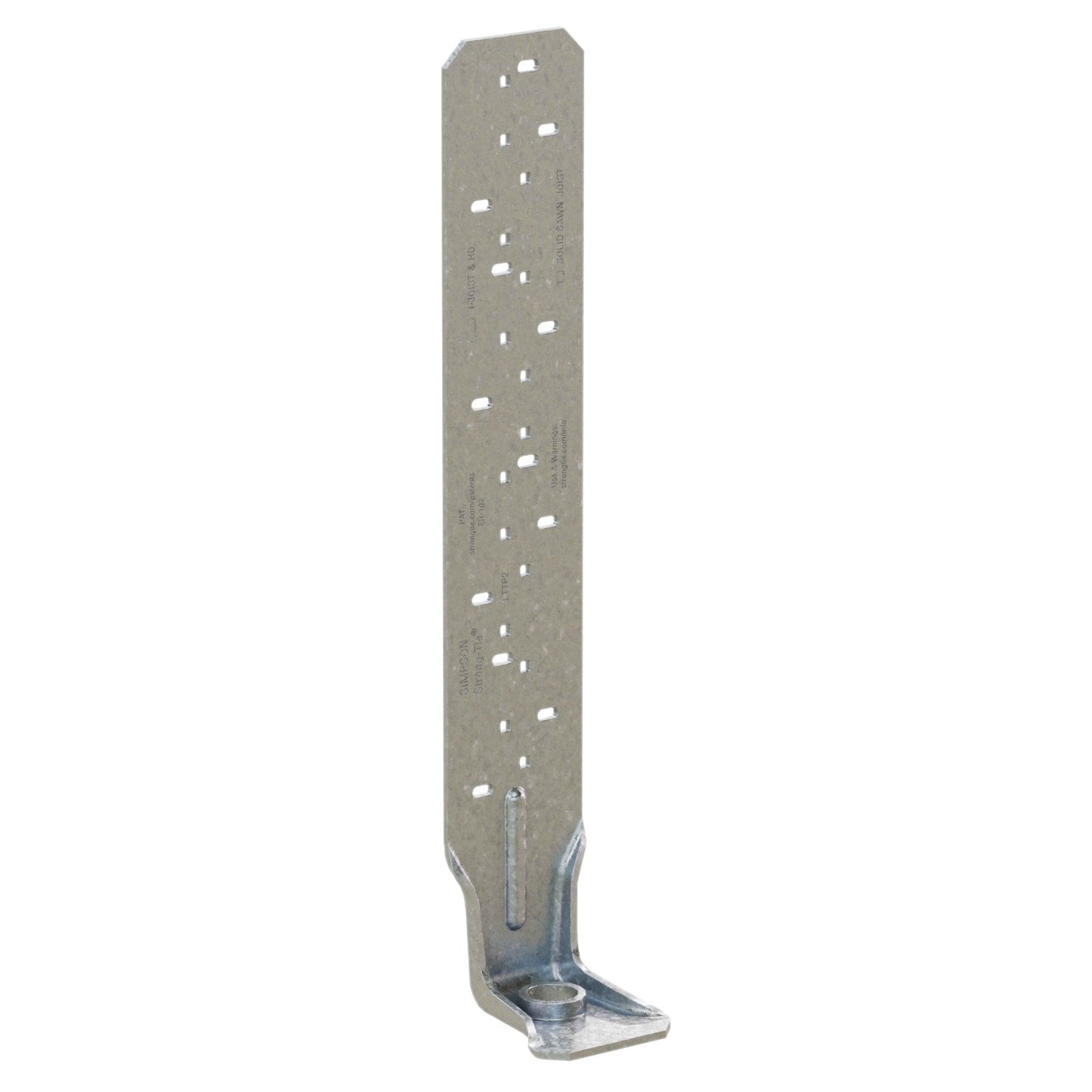

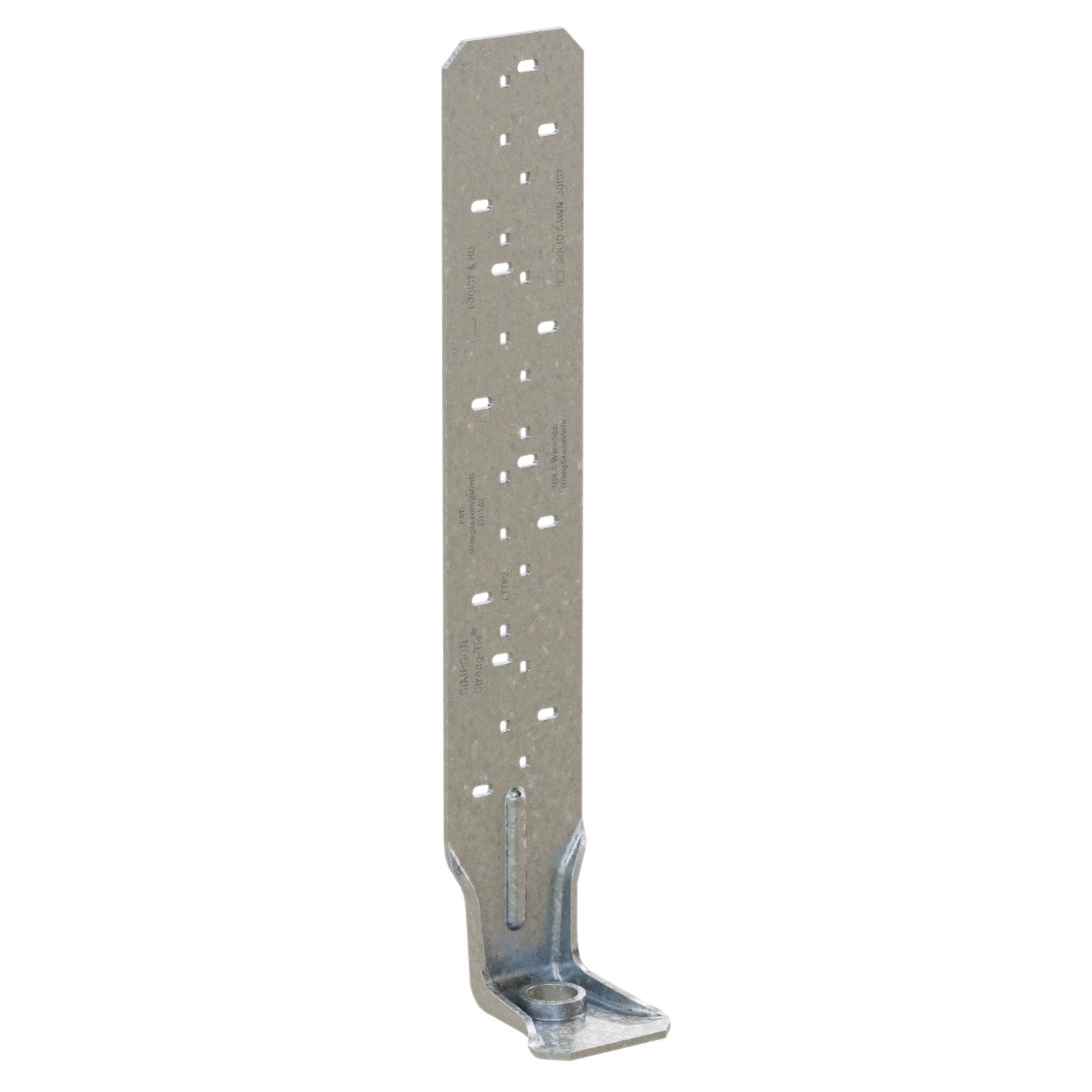

Simpson LTTP2 Tension Tie - G90 Galvanized
Simpson LTTP2 Tension Tie - G90 Galvanized
Description:
Description:

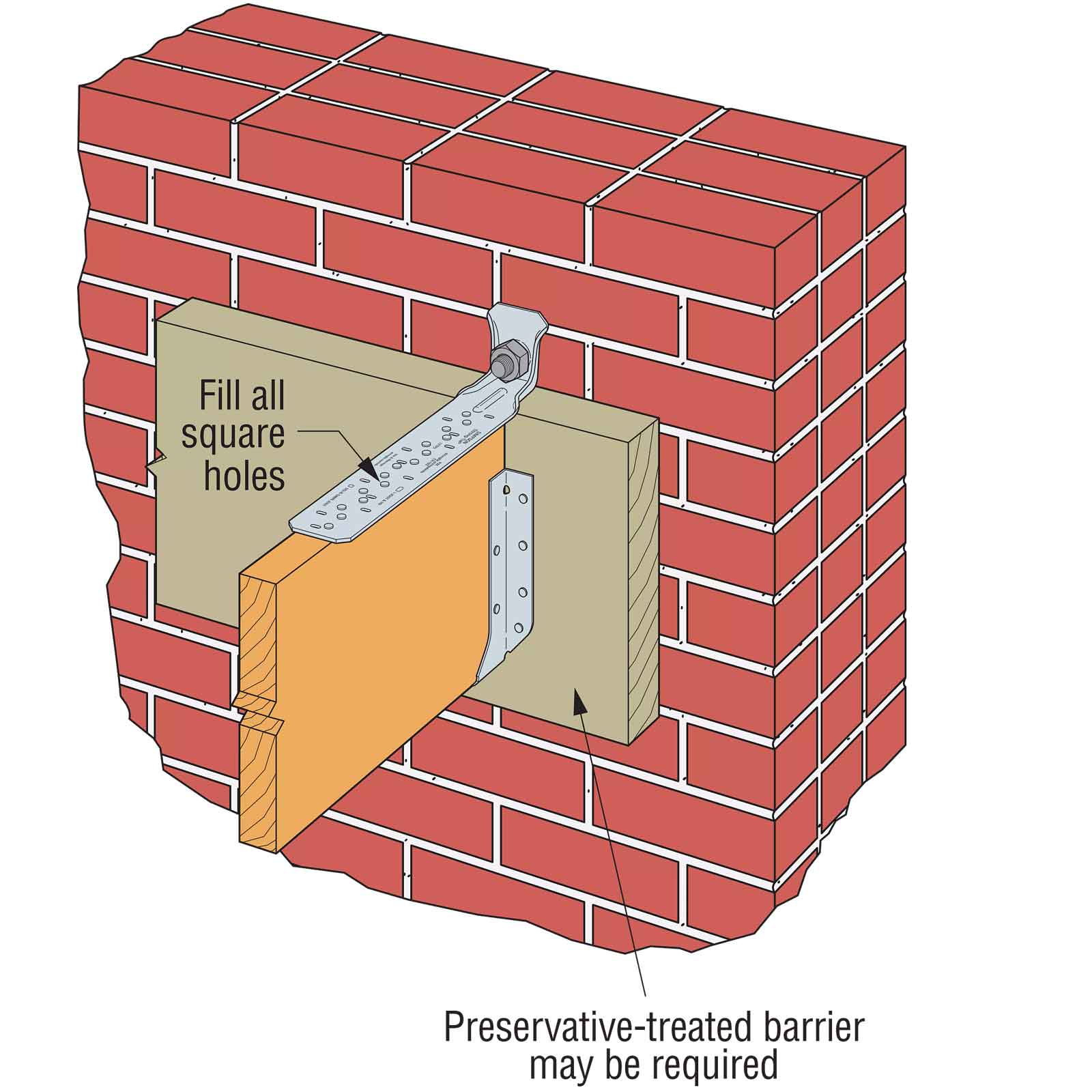

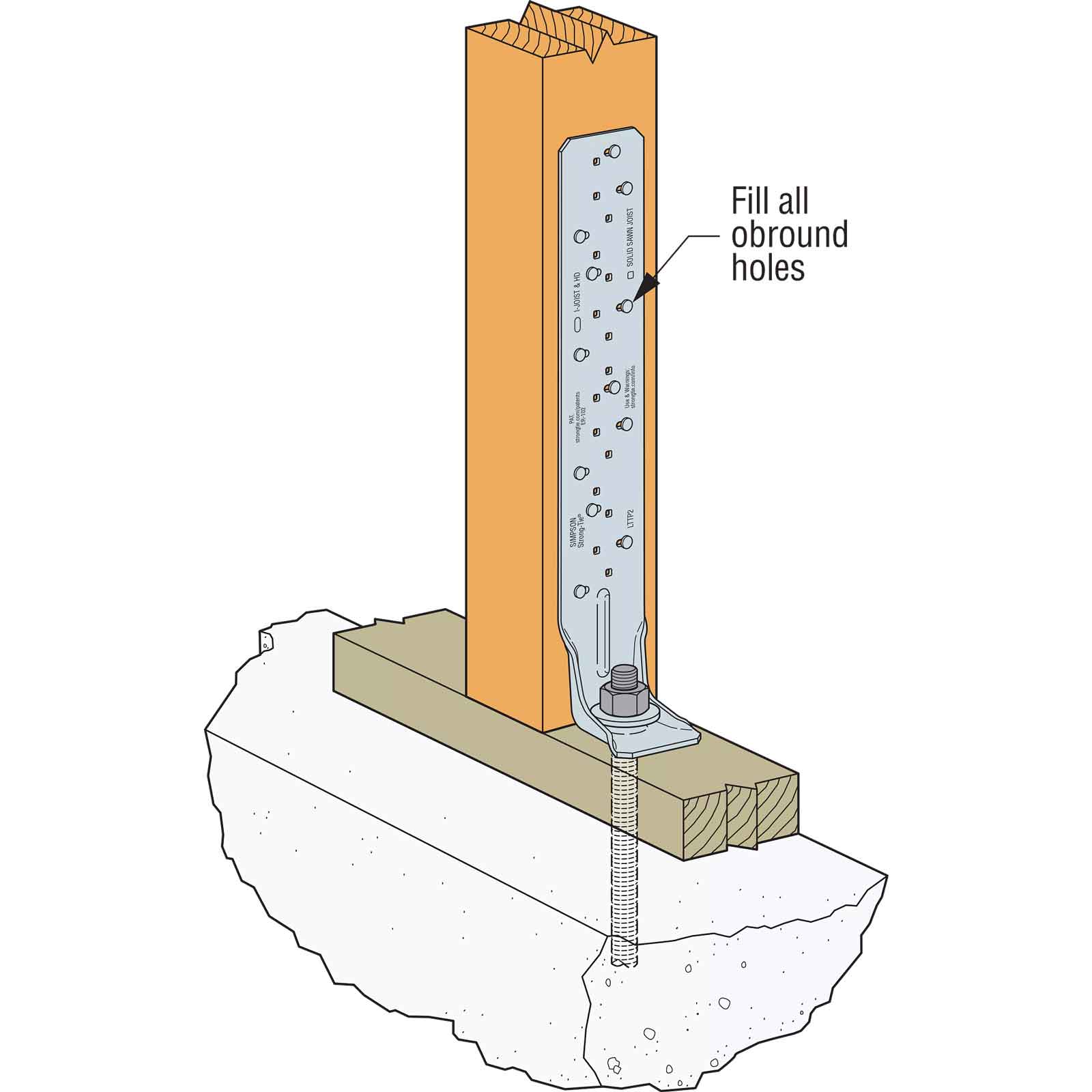

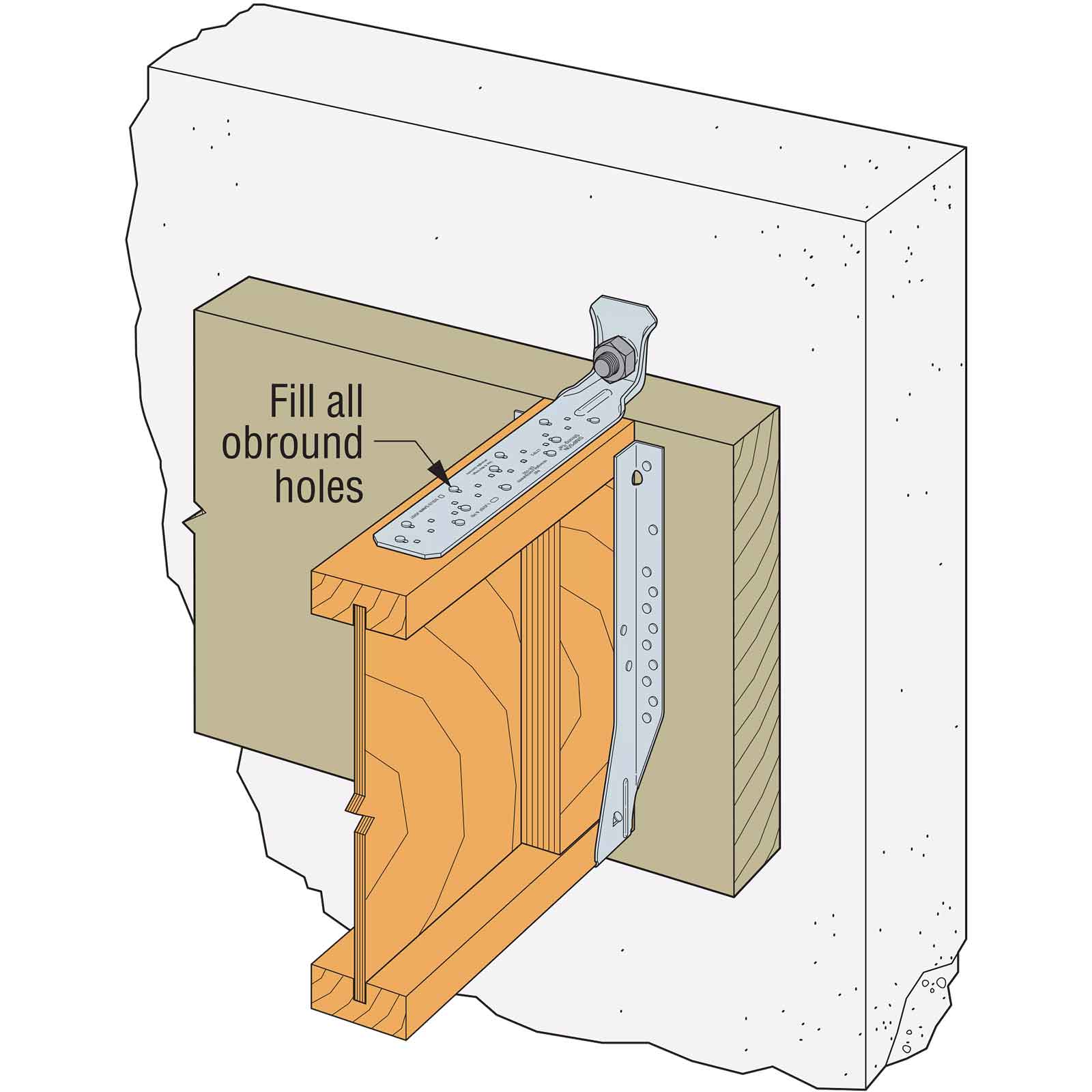

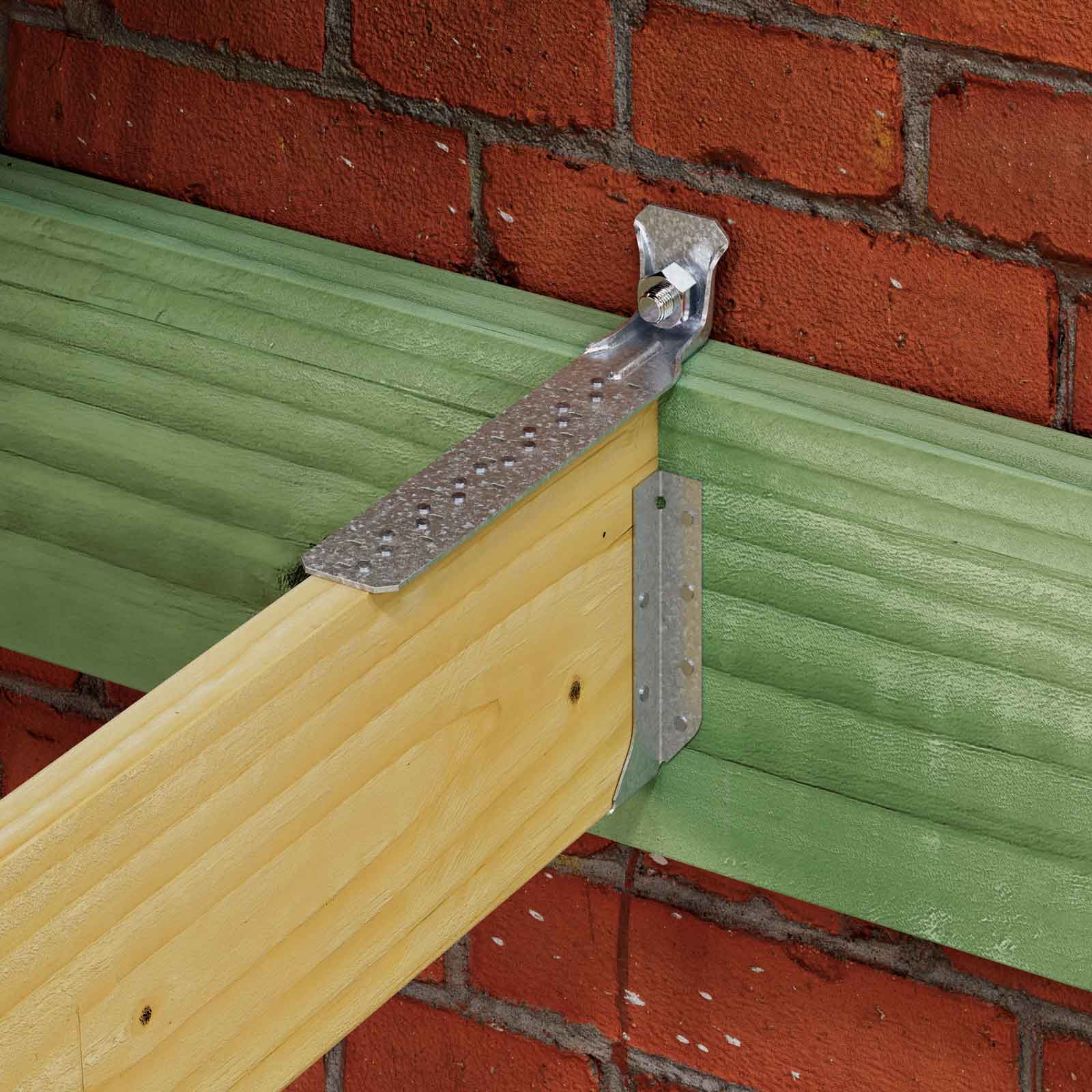

Simpsons Light Tension Ties are the perfect solution for resisting tension loads when attaching wood to masonry or concrete walls. They are skillfully designed for horizontal purlin applications and vertical holdown applications. Simpsons LTTP2 option features an extruded anchor bolt hole to accommodate 1/2", 5/8", and 3/4" bolt diameters. It also includes obround holes spaced 3" apart for I-joist purlins and square holes spaced to accommodate the narrow face of 2x solid-sawn purlins. The LTTP2 model can be installed vertically on the wide face of a 2x4 stud. It can be fastened successfully with nails or Strong Dive SD Connector screws.
Features
- Nailing patterns to accommodate different purlin/rafter/truss types
- Low-profile seat to reduce the visibility of tie
- Tested with different anchor bolt diameters to meet code-required applications based on substrate
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Features
Features
-Nailing patterns to accommodate different purlin/rafter/truss types
-Low-profile seat to reduce the visibility of tie
-Tested with different anchor bolt diameters to meet code-required applications based on substrate
