Simpson MBHA3.12/11.25 Masonry Hanger

SKU: MBHA3.12-11.25
$61.71
Made to Order
Standard Lead Time 2-3 days.

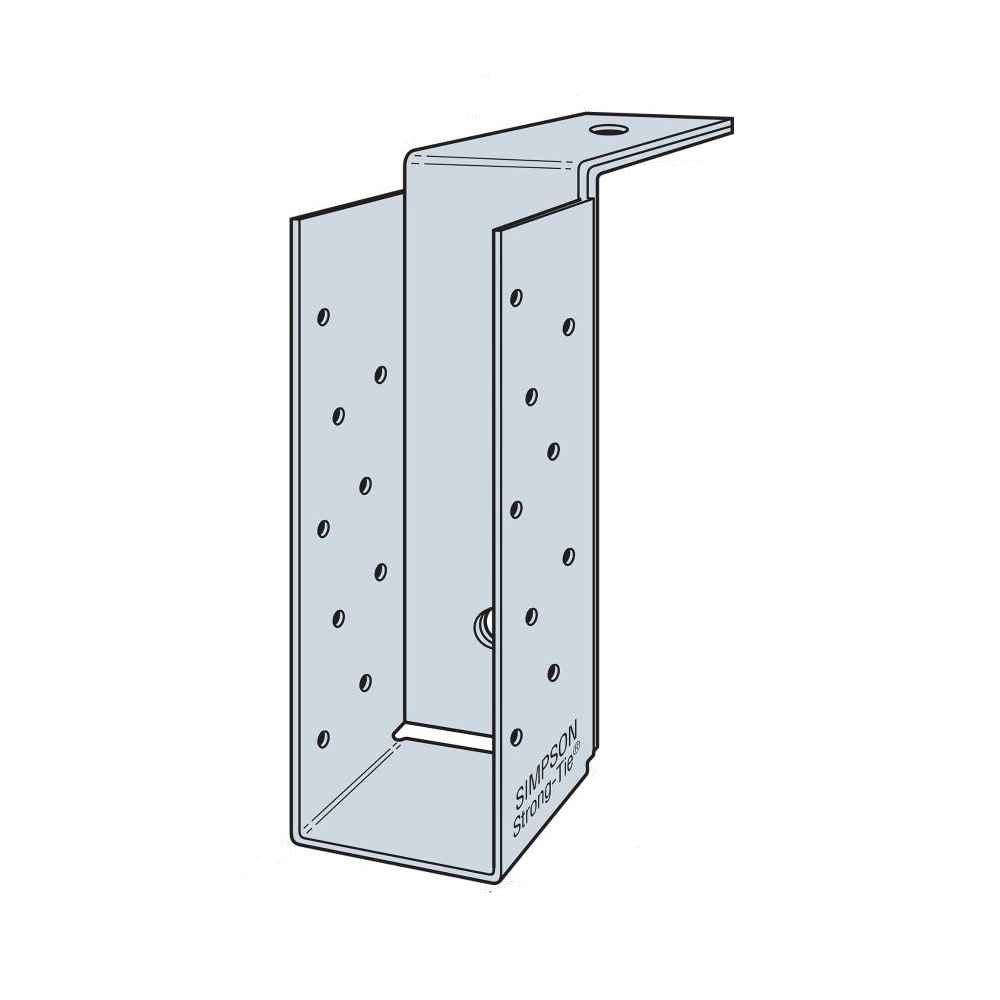

The MBHA is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galvanized coating which is not designed for use with treated lumber and should not be used for exterior applications.


  • Use all specified fasteners (included).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The MBHA is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galva...

Read More

The MBHA is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galvanized coating which is not designed for use with treated lumber and should not be used for exterior applications.


  • Use all specified fasteners (included).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Header - (2) All Thread Rod 3/4"Joist - (18) 0.148" x 3" Nails

for treated lumber:
no

height:
11-1/4"

thickness:
10 Gauge

Product Spec Sheet:
