SKU: MBHAR5.50/18

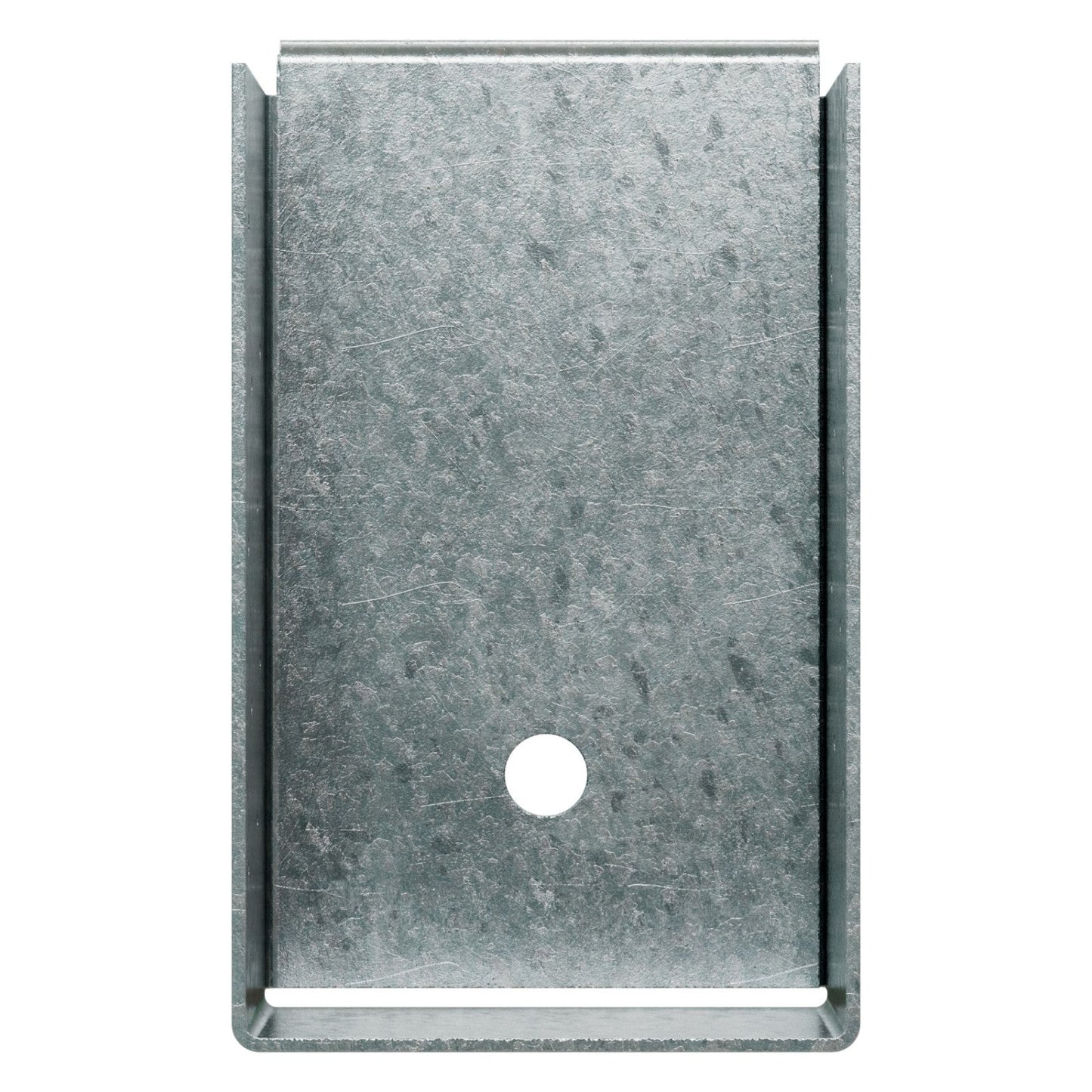

Simpson MBHAR5.50/18 Masonry Hanger - Skewed 45 Degrees Right

Simpson MBHAR5.50/18 Masonry Hanger - Skewed 45 Degrees Right!

Skip to product information
1 of 5

Continue Browsing

MBHA Masonry Hangers

$216.63

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 1 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

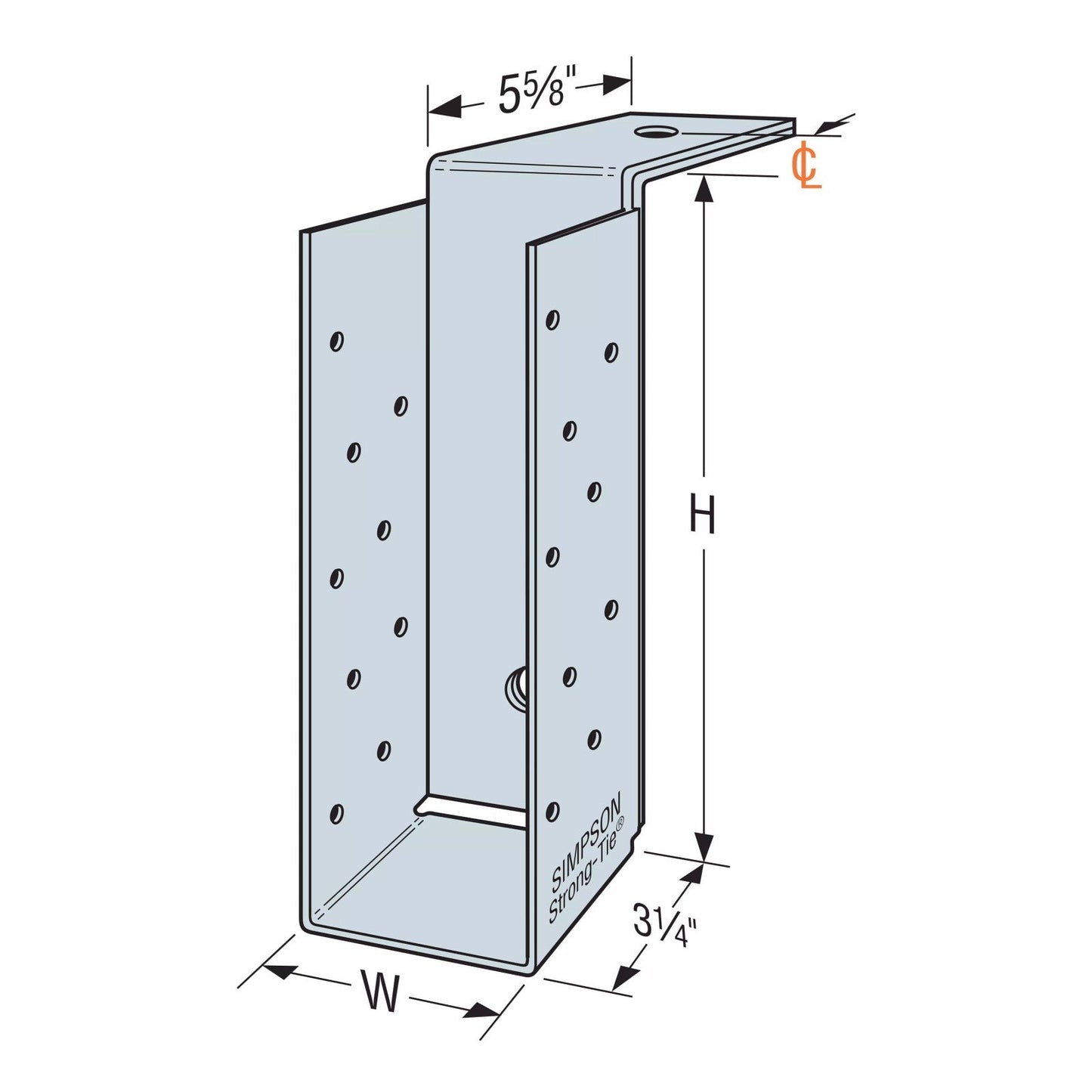

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: Top and Face: (1) ATR3/4 Joist: (18) 0.148 x 8
Height: 18"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 10 Gauge
Width: 5-1/2"
Description

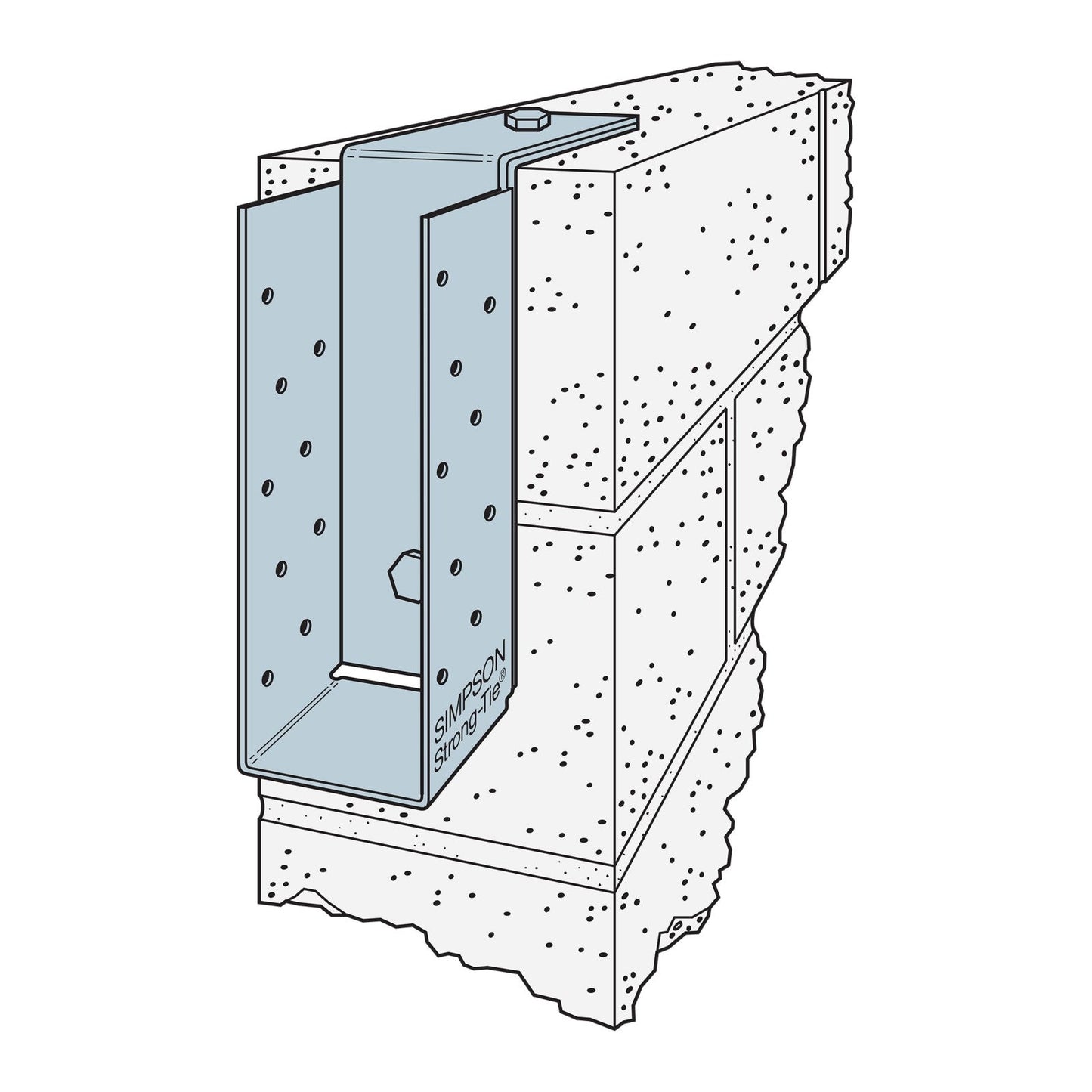

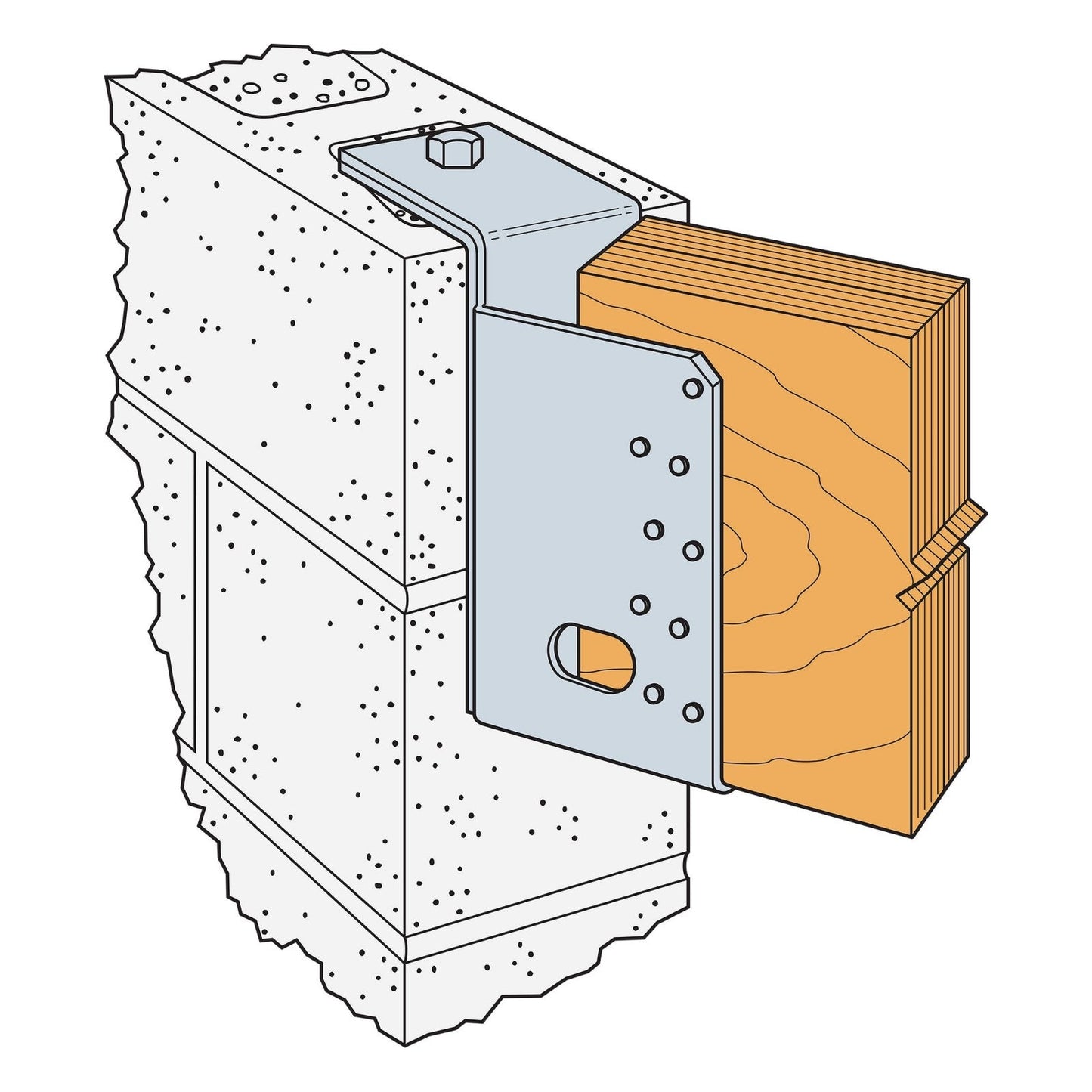

These single-piece, non-welded MBHA Concrete and Masonry Top-Flange Hangers are available for solid sawn, truss, and engineered wood products. The seat can be skewed at 45° only with MBHAR for skew right and MBHAL for skew left. For height 7 1/4, the maximum permitted download is 3,495 lb and uplift 1,585 lb, respectively. Use the download and uplift of 2,390 lb. indicated in the load table for all other models.

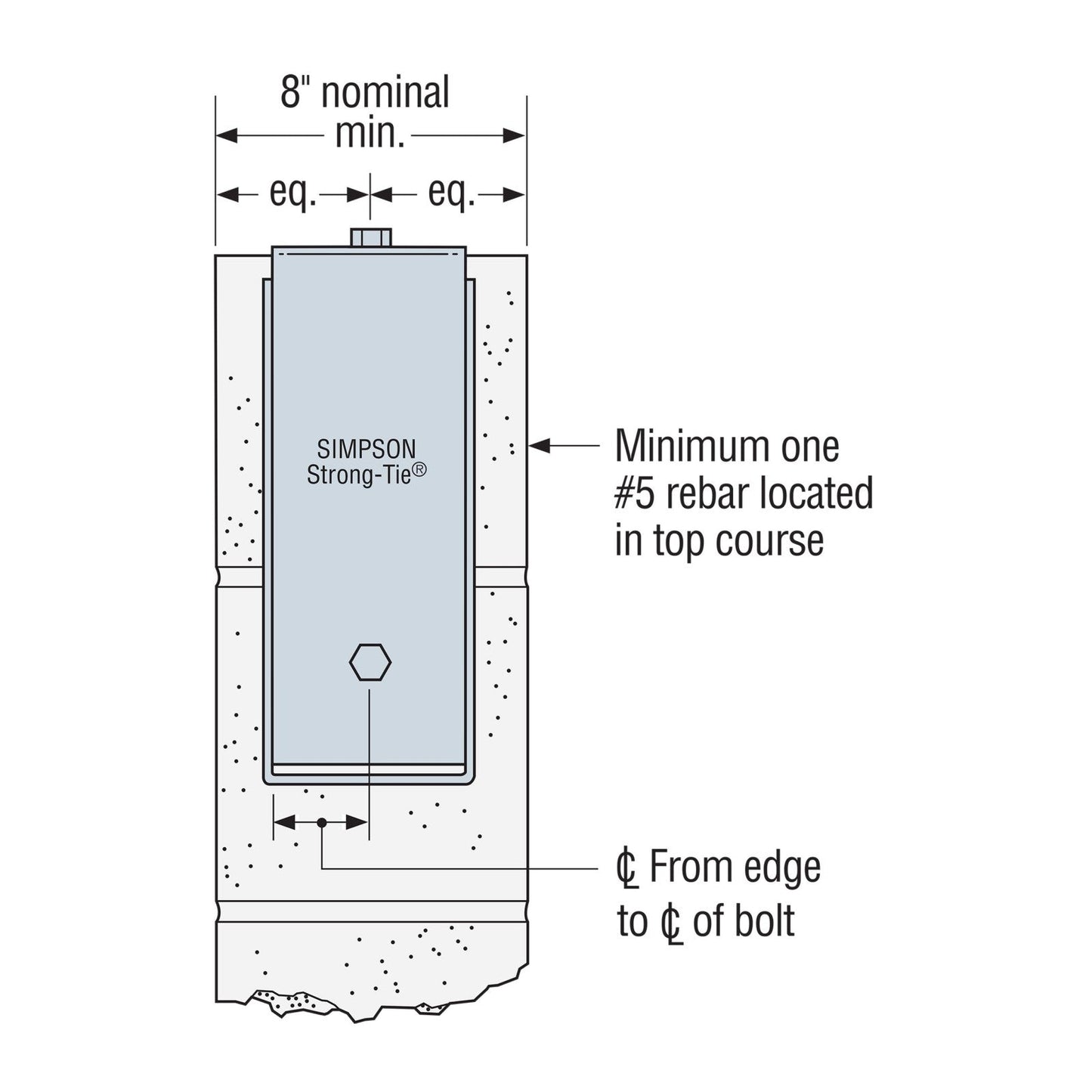

Please note that all-thread rod grade A307 or better is used for the header. There is no longer room for increasing the uplift loads for earthquake or wind loading. Where other loads are govern, reduce.

Use all specified fasteners. Verify that the header can take the fasteners specified in the table.
