Shop more MBHU Masonry Beam Hangers
SKU: MBHU5.50/14KT

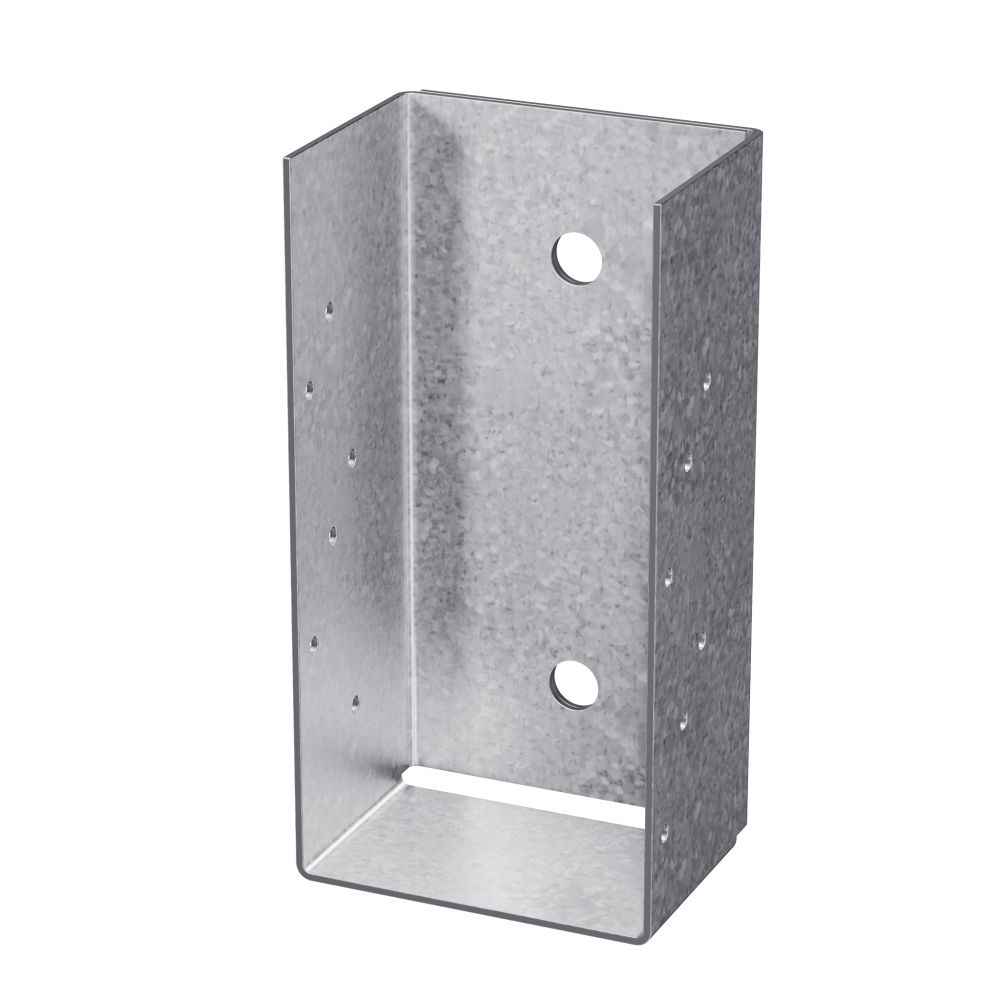

Simpson MBHU5.50/14KT Masonry Beam Hanger W/Screws

Simpson MBHU5.50/14KT Masonry Beam Hanger W/Screws

Regular price $235.06
Sale price $235.06 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Made to Order
Ships in 3-5 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


The new MBHU beam hanger provides a face-mounted solution for connecting beams to masonry or concrete walls. A non-welded, one-piece connector, the MBHU is suitable for solid sawn and engineered wood beams as well as trusses. Installation is simplified because the Titen HD® heavy-duty screw anchor and Strong-Drive® SDS Heavy-Duty Connector screws are included with the hanger. Since the Titen HD anchor is installed after the wall is built, locating the anchor in the right spot is easier than with cast-in-place bolts.

  • Use all specified fasteners (included).
  • Attach hanger to a concrete or grouted CMU wall using Titen HD anchors. Note the following:
    • Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
    • Holes shall be drilled 1/2" deeper than the specified Titen HD length (i.e. 5 1/2" for a 5" long Titen HD anchor)
    • Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
  • Titen HD is not recommended for exposed exterior applications.
  • Provide moisture barrier between beam and wall per jurisdictional requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING


Height: 14"
Fasteners required: All Fasteners Included
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
