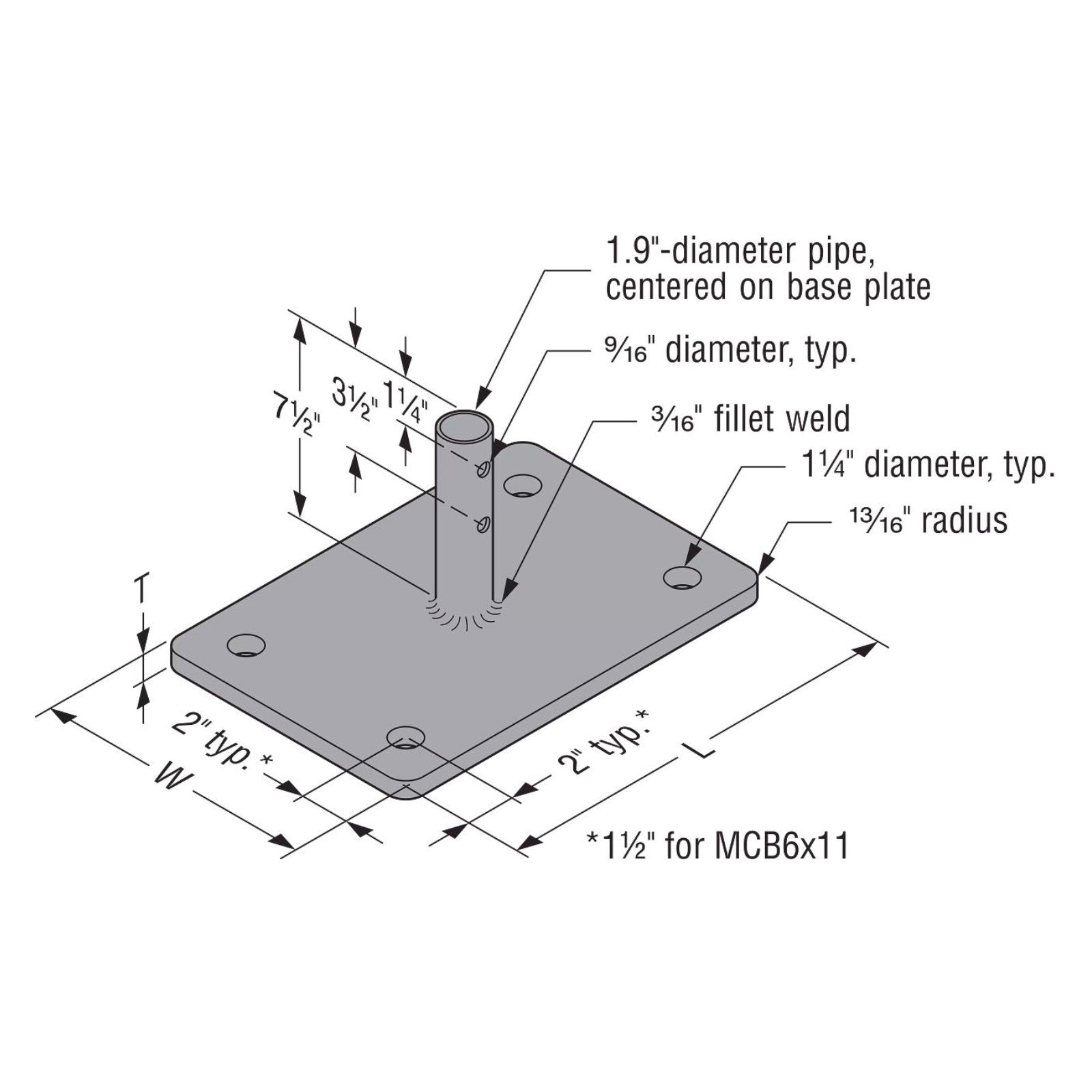

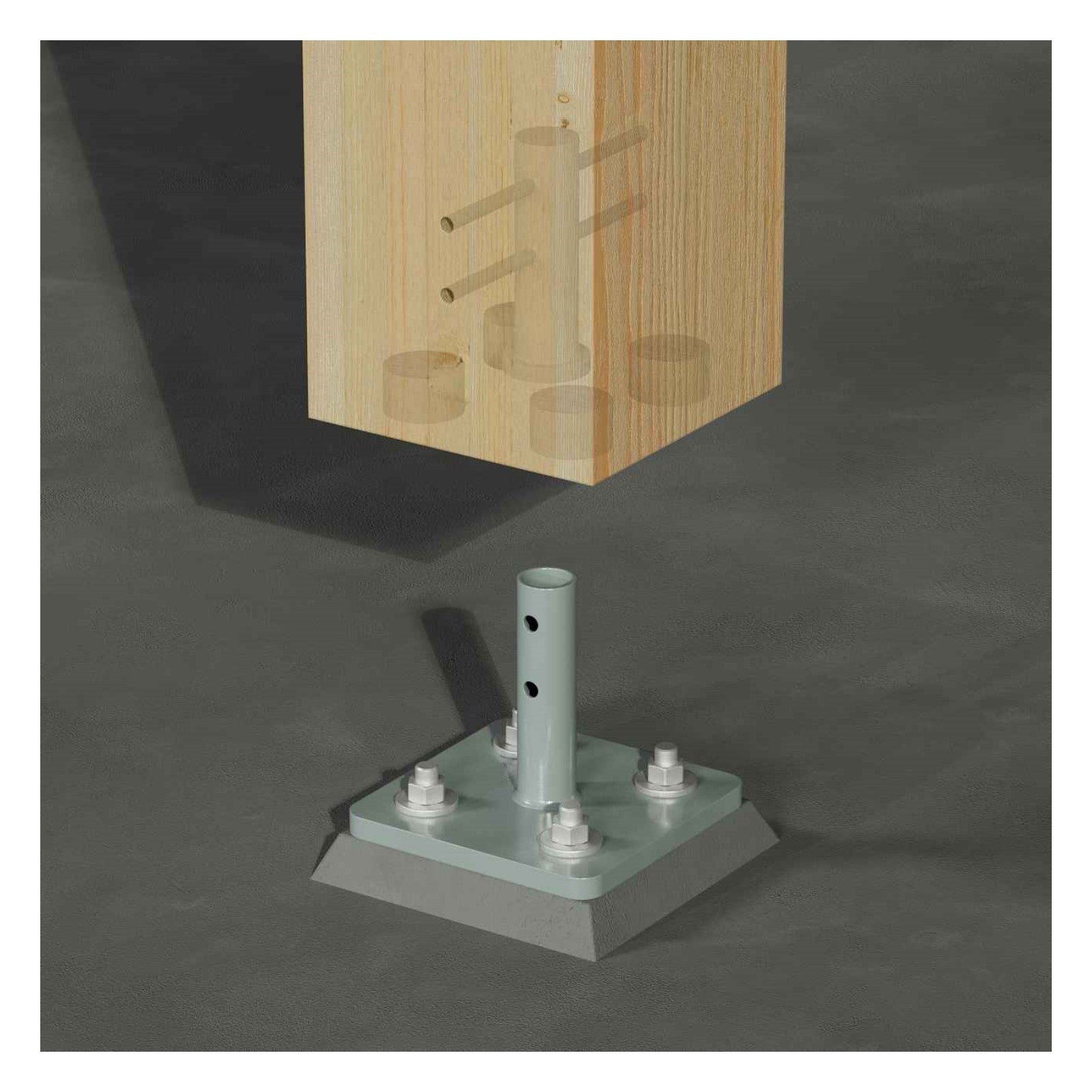

The MCB Mass Timber Column Base provides a standardized concealed connection between glulam columns and concrete foundations or supports, ensuring both structural integrity and aesthetic appeal in mass timber constructions.

Key Features:

• Concealed Connection: Designed for architectural aesthetics and fire protection, offering a seamless appearance.
• Robust Design: Ensures reliable load transfer, making it a dependable solution for various structural applications.
• Versatile Sizing: Available in a range of base sizes and load capacities to suit different project requirements.
• Adjustability: Features oversized holes in the base plate for horizontal adjustment; threaded rods and leveling nuts can be used with a grout pad for vertical adjustability.
• Seismic Compatibility: Recommended for column-to-foundation connections in any Seismic Design Category.

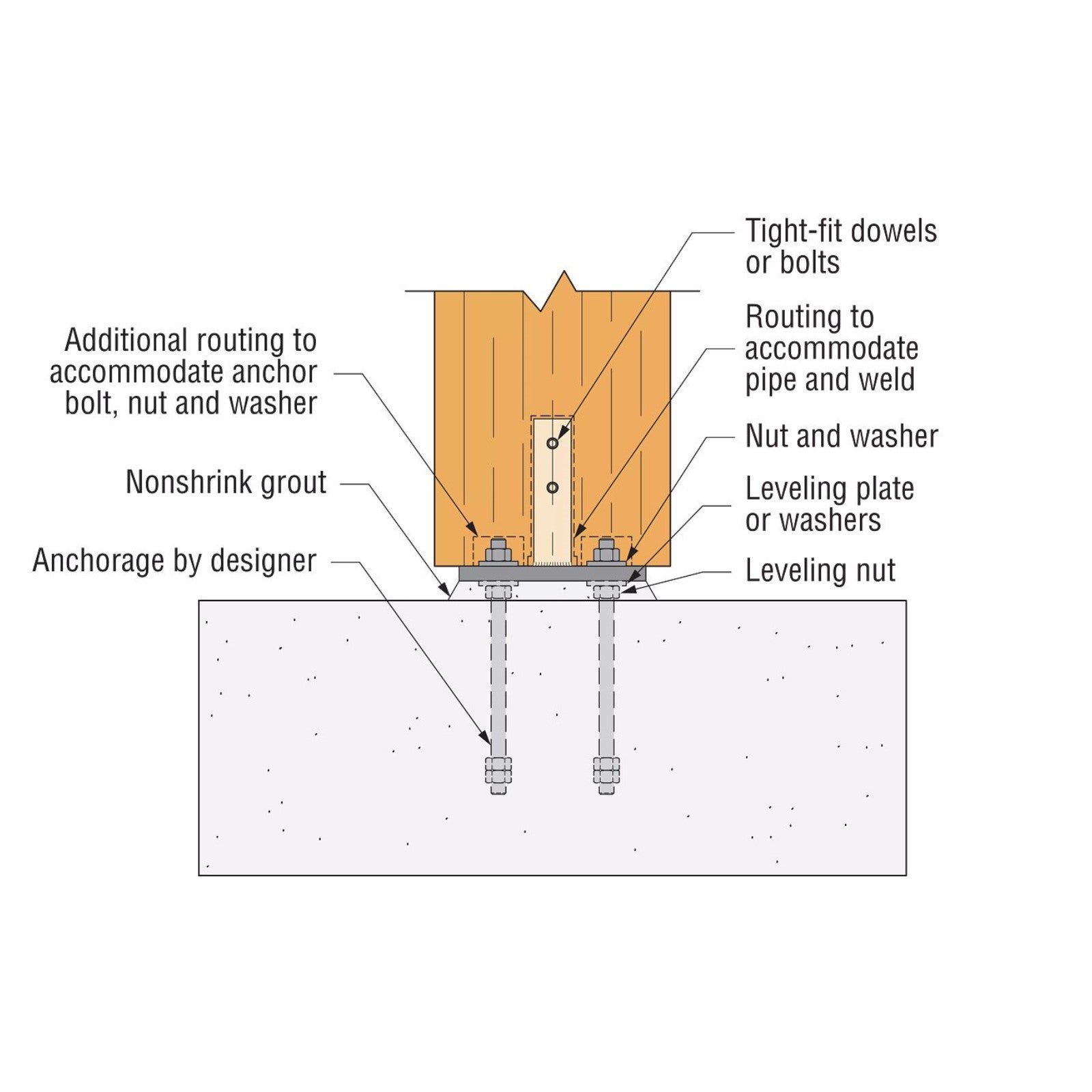

Installation Notes:

• Precision Fabrication: CNC equipment is recommended for cutting and drilling glulam columns to ensure accurate alignment.
• Anchor Placement: Ensure correct positioning of anchors in the foundation; use leveling nuts and grout as needed for proper alignment.
• Fastener Requirements: Designed for use with dowels or bolts meeting specified strength criteria; fasteners are not included with the connector.
