description

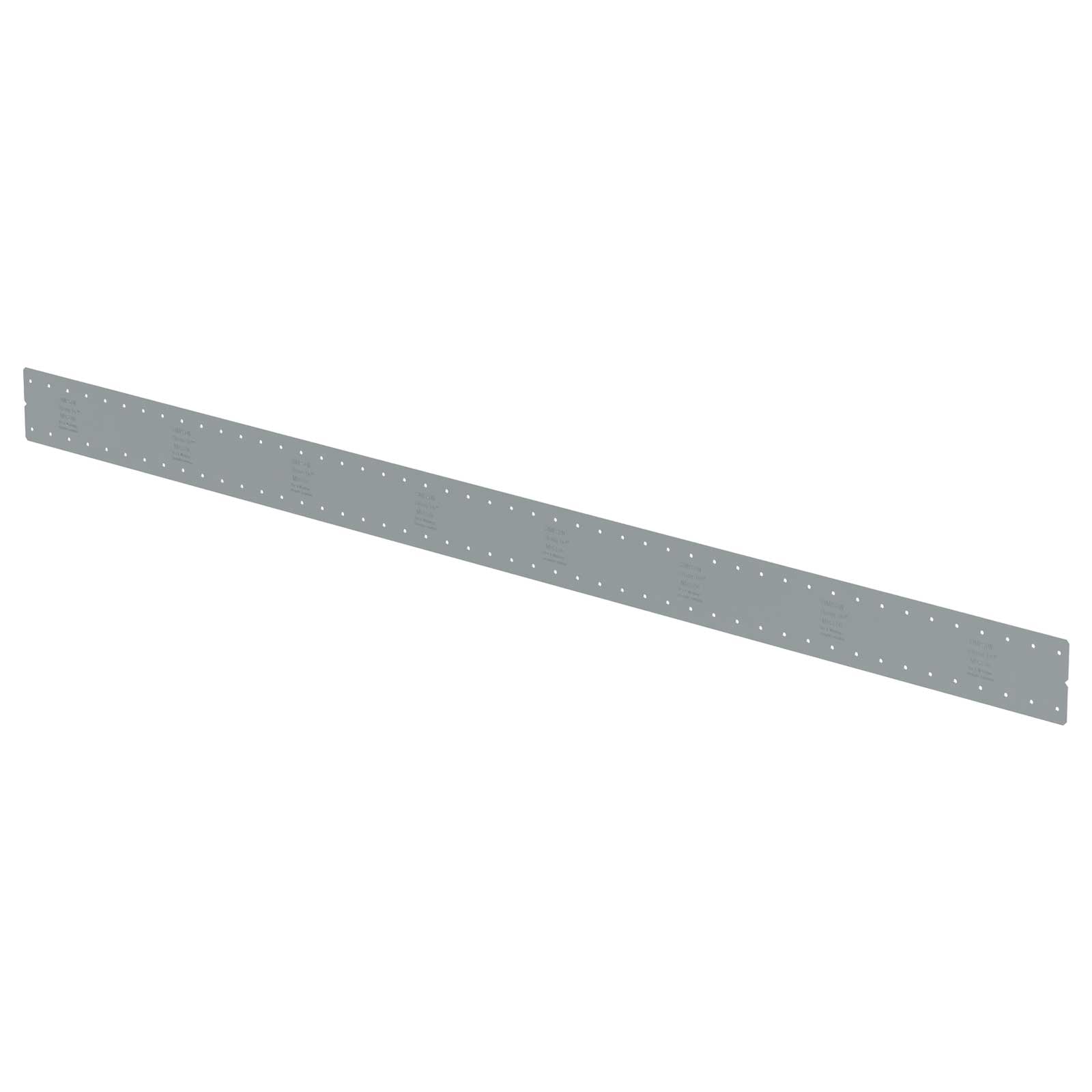

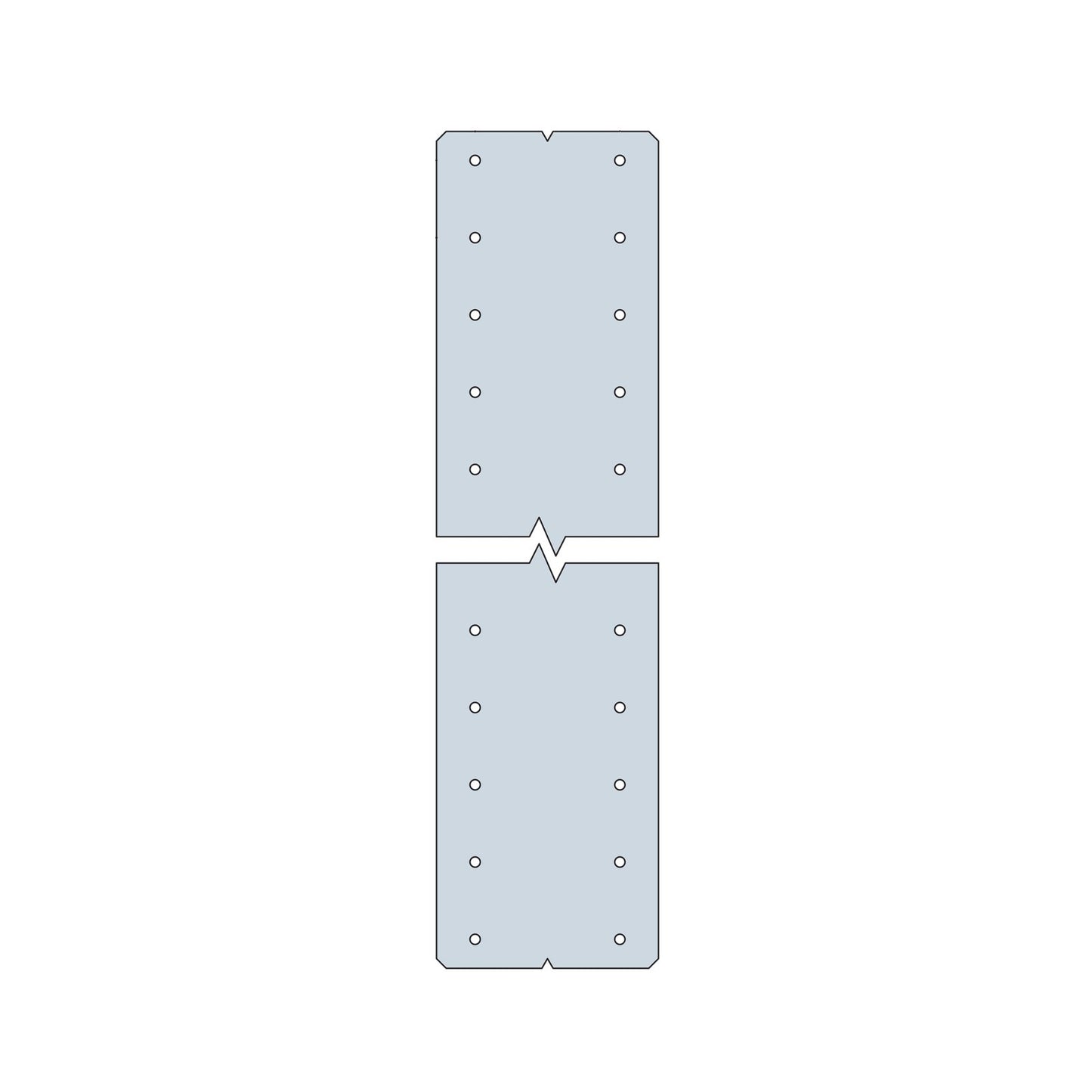

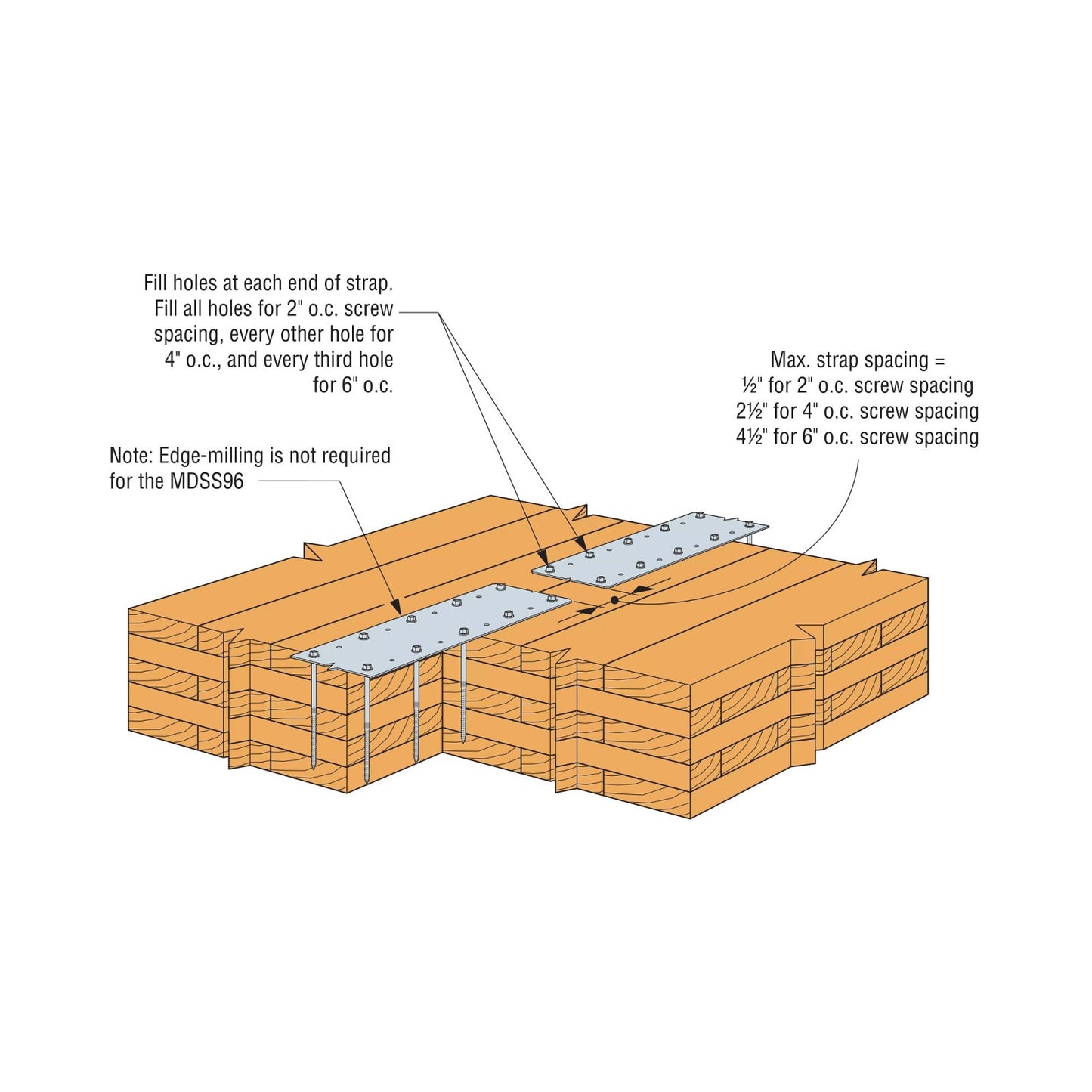

The Simpson Strong-Tie MDSS96 surface spline strap is 95-1/2" long, is attached with Strong-Drive® SDS Heavy-Duty Connector screws (SDS), and is an ideal solution for CLT diaphragms. For CLT manufacturers, it reduces costs by eliminating or reducing time for milling at panel edges. Since our tabulated values are based on tests, not just calculations, designers can value-engineer a solution using fewer screws than calculated solutions would allow. If nails are preferred to screws, we’ve tested our CMSTC16 strap with 0.162" x 2-1/2" nails. This solution has the added benefit of a low profile, which may eliminate the need for milling at panel edges. If plywood surface splines are preferred, we’ve tested with our Strong-Drive SDWS Timber screws for this application.
The Simpson Strong-Tie MDSS96 surface spline strap is 95-1/2" long, is attached with Strong-Drive® SDS Heavy-Duty Connector screws (SDS), and is an id...
The Simpson Strong-Tie MDSS96 surface spline strap is 95-1/2" long, is attached with Strong-Drive® SDS Heavy-Duty Connector screws (SDS), and is an ideal solution for CLT diaphragms. For CLT manufacturers, it reduces costs by eliminating or reducing time for milling at panel edges. Since our tabulated values are based on tests, not just calculations, designers can value-engineer a solution using fewer screws than calculated solutions would allow. If nails are preferred to screws, we’ve tested our CMSTC16 strap with 0.162" x 2-1/2" nails. This solution has the added benefit of a low profile, which may eliminate the need for milling at panel edges. If plywood surface splines are preferred, we’ve tested with our Strong-Drive SDWS Timber screws for this application.

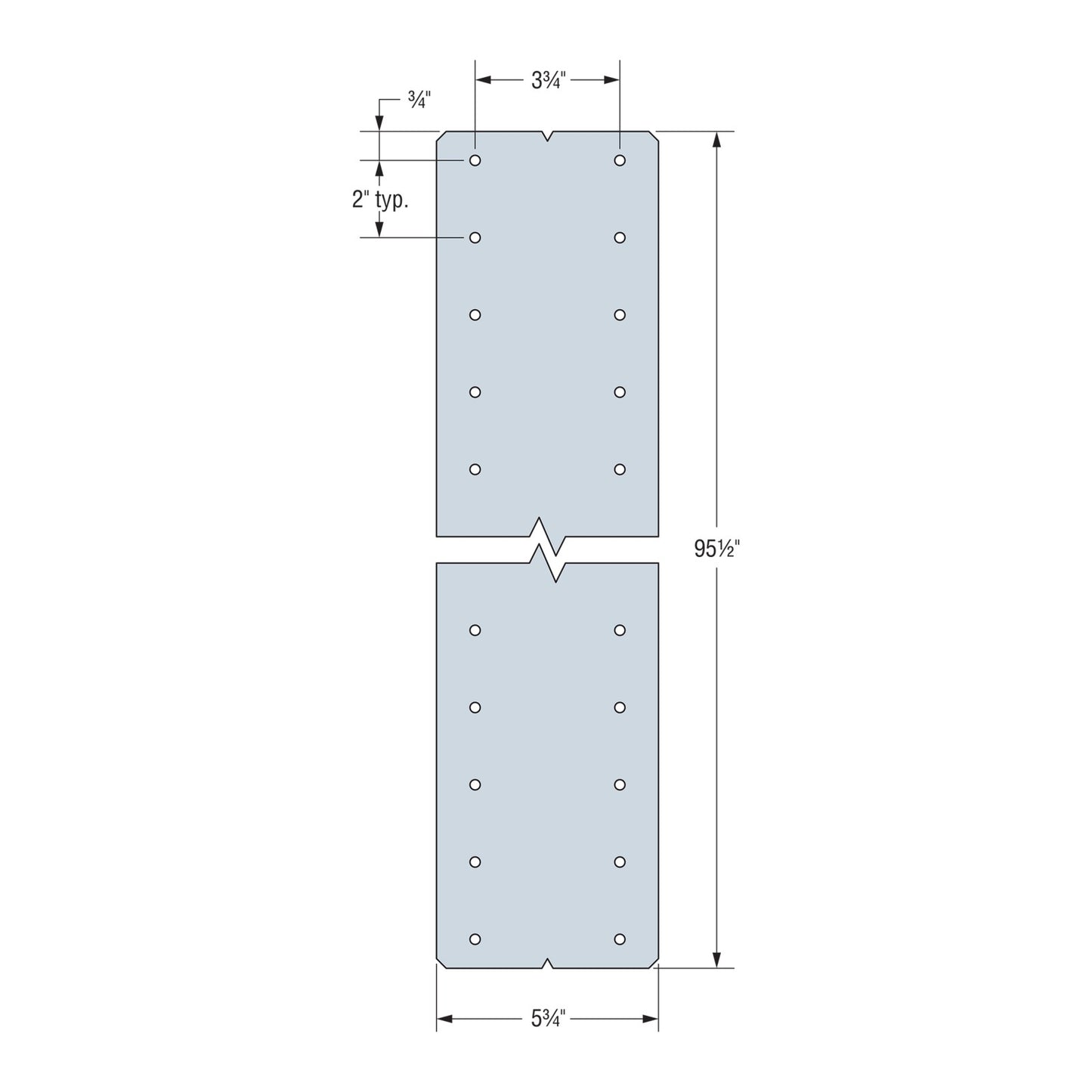

specifications
Fasteners Required:
See Guide Document
For Treated Lumber:
no
Finish Spec:
G90 Galvanized
Length Spec:
95-1/2"
Manufacturer Name:
Simpson Strong-Tie
Material:
Carbon Steel
Thickness:
14 Gauge
Width Spec:
5-3/4"
Product Guide:
