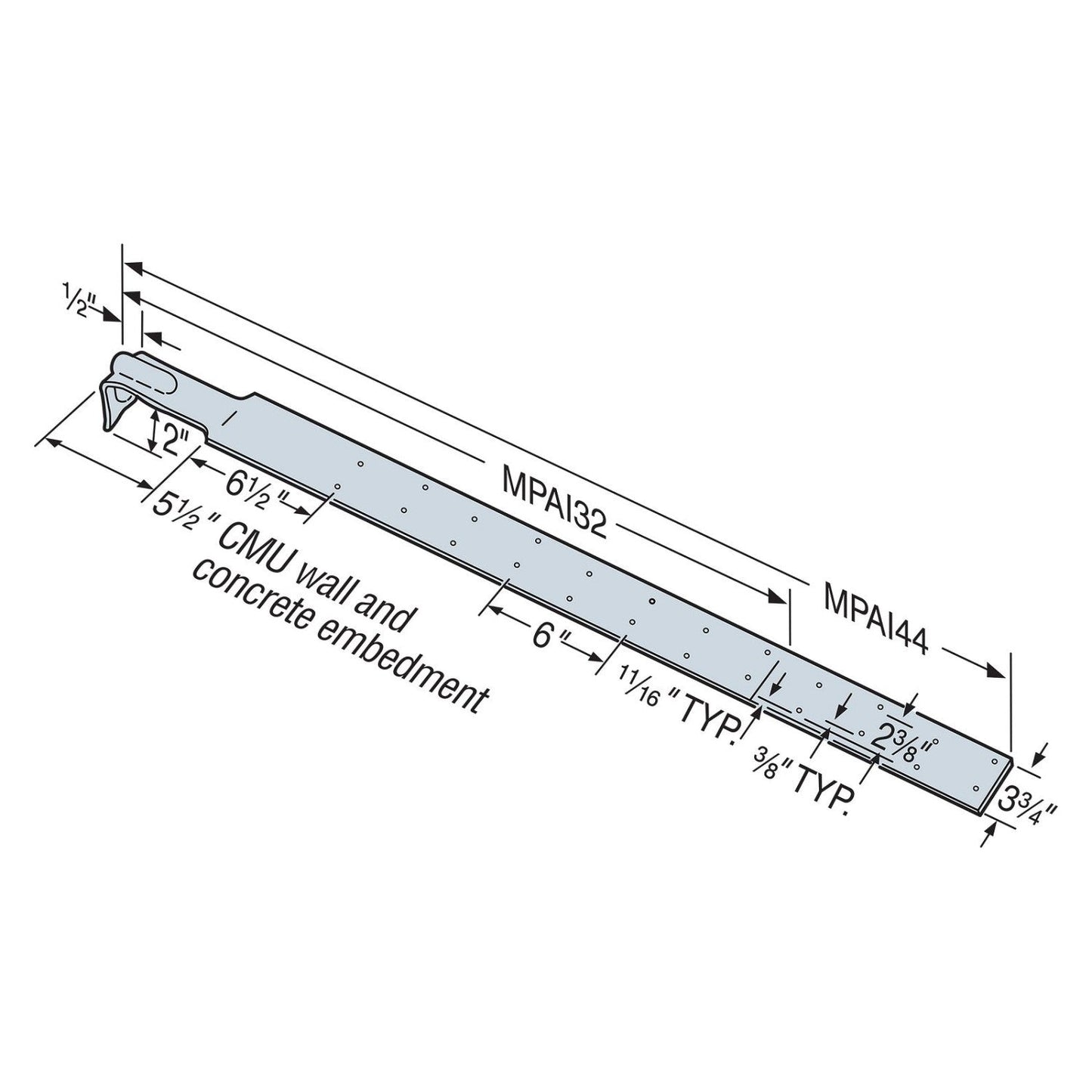

Simpson MPAI44 45-1/2" Masonry Purlin Anchor for I-Joist - Galvanized
Simpson MPAI44 45-1/2" Masonry Purlin Anchor for I-Joist - Galvanized
No reviews
Regular price
$25.97
Sale price
$25.97
Regular price
Unit price
/
per
0% off
Ships Apr 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
The Simpson Strong-Tie MPAI is a solution for wood-to-concrete and wood-to-masonry connections which satisfies code requirements. This purlin anchor is specifically designed for open-web truss joint connections to concrete or masonry walls. The MPAI features minimum embedment line indicator for ease of installation.
Key Features
- Use all specified fasteners; some models have extra fastener holes. See General Notes.
- Minimum embedment line indicators for both concrete and masonry installations
- Nailing pattern optimized for an I-joist wood member
- Low design profile minimizes visibility
- Purlin anchor must hook around rebar.
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
- Strap may be bent one full cycle (bent vertical 90°, then bent horizontal).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Uncracked Concrete, Concrete - (16) 0.148 x 1 1/2 GFCMU Wall - (24) 0.148 x 1 1/2
Thickness: 14 gauge
Width: 3-3/4"
Length: 45-1/2"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
