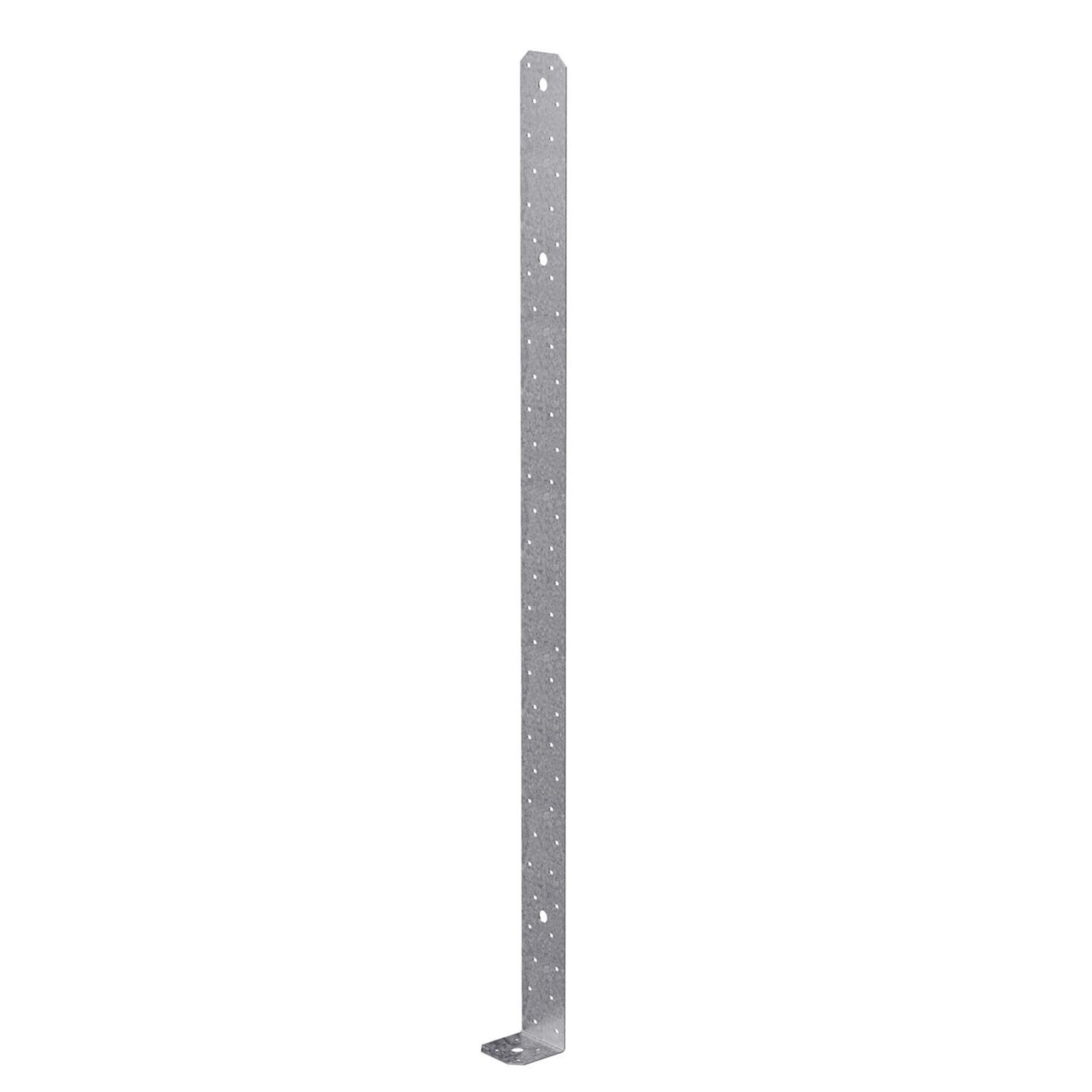

Simpson MSTC48B3 Pre-Bent Strap, 14 gauge - Galvanized
Simpson MSTC48B3 Pre-Bent Strap, 14 gauge - Galvanized
Regular price
$27.75
Sale price
$27.75
Regular price
Unit price
per
0% off
Description:
Description:

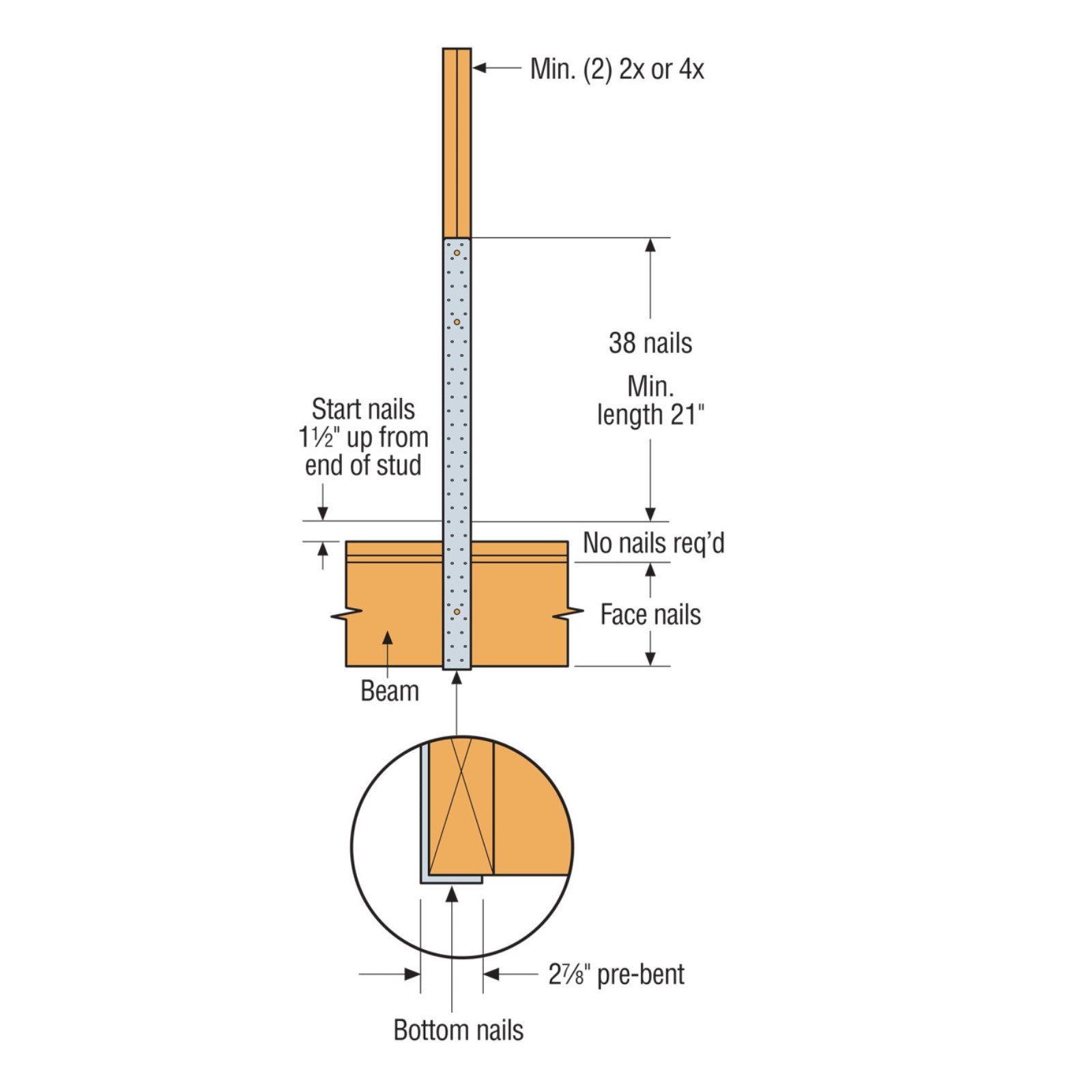

The Simpson MSTCB Pre-Bent Strap is a pre-bent strap designed to transfer tension load from an upper-story shearwall to a beam on the story below.
- Use all specified fasteners.
- PSL beam may be used in lieu of a standard-dimension lumber beam with no load reductions.
- Multiply allowable loads by 1.85 to attain an allowable load for installations where two straps have been installed with a 1 1/2" clear space between straps.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

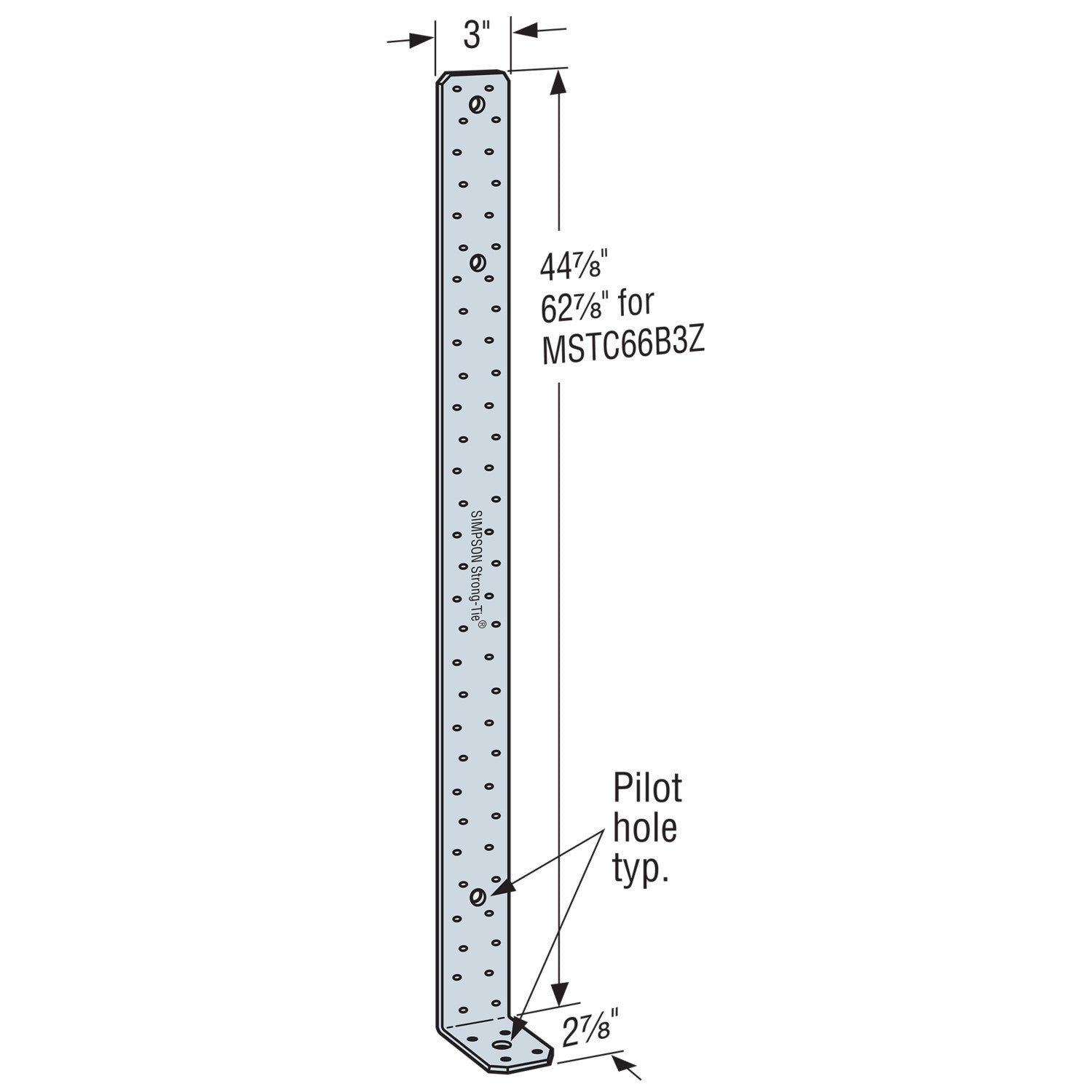

Fasteners required: Face: (12) 0.148 x 3" Stud/Post: (38) 0.148 x 3" Bottom: (4) 0.148 x 3"
Thickness: 14 Gauge
Width: 3"
Length: 44-7/8" Bottom: 2-7/8"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
