SKU: PAB7H-24-HDG

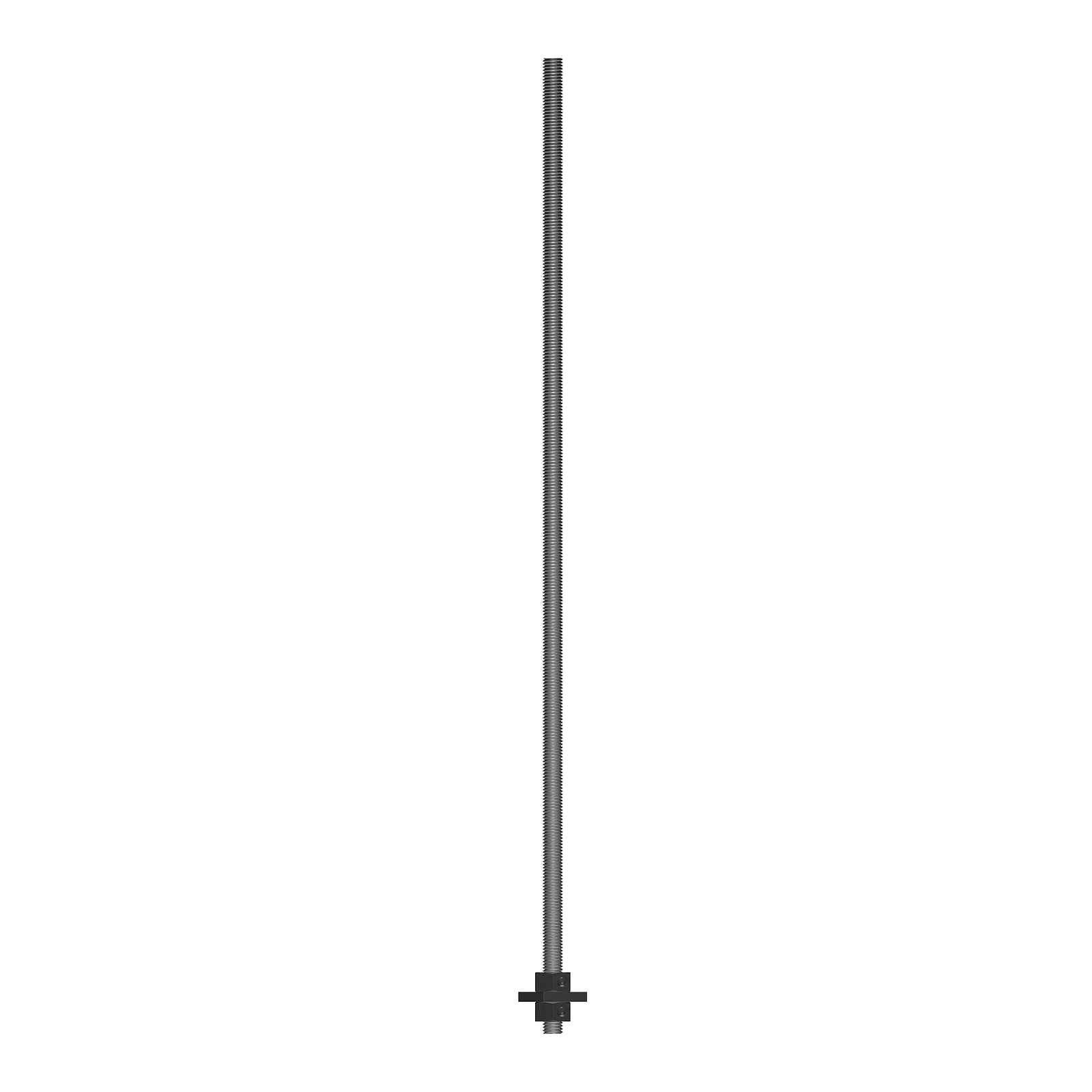

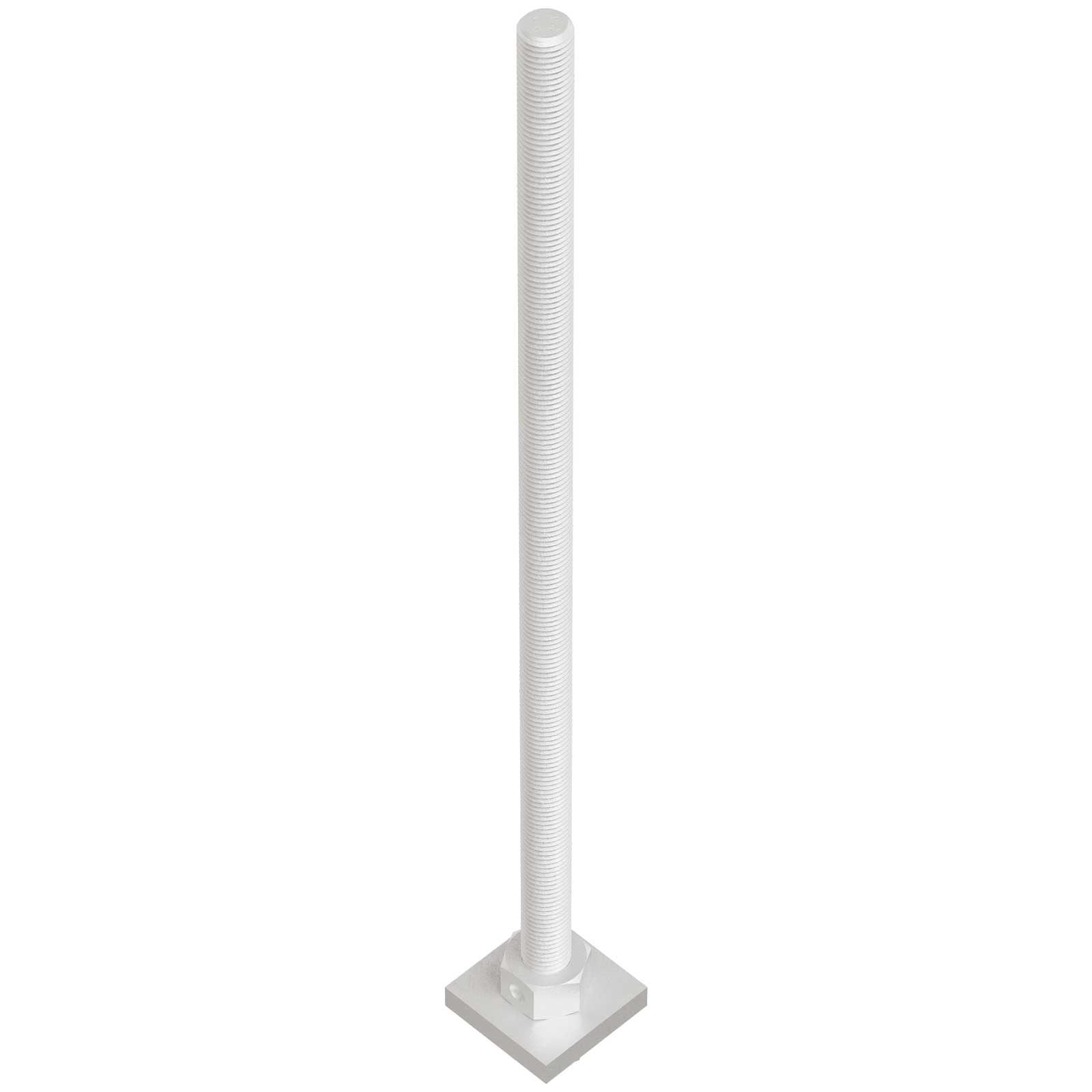

7/8" x 24" High-Strength Pre-Assembled Anchor Bolt - Hot Dip Galvanized

7/8" x 24" High-Strength Pre-Assembled Anchor Bolt - Hot Dip Galvanized

Regular price $69.11
Sale price $69.11 Regular price
0% off
Made to Order
Ships in 28-32 business days.

Description:

The Simpson PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems. The high strength steel version is made from high quality ASTM A449 steel. This pre-assembled anchor bolt has a hot dip galvanized coating that provides enhanced corrosion resistance. It also features a plate washer, at the embedded end, sandwiched between two fixed hex nuts.


California Residents: WARNING

Specifications:

Material: Galvanized Steel
Quantity: 1
Finish: Hot Dip Galvanized
Diameter: 7/8"
Length: 24"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Features

•Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36" (in 6" increments)
•Available in standard and high-strength steel
•Head stamp contains the No Equal sign, diameter designation and an "H" on high-strength rods

Installation

On HDG PABs, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563; for example, Simpson Strong-Tie® NUT5/8-OST, NUT7/8-OST, CNW5/8-OST, CNW7/8-OST. Couplers may be special ordered with both ends oversized. Couplers may be oversized on both ends. Contact Simpson Strong-Tie.
