SKU: PAI23

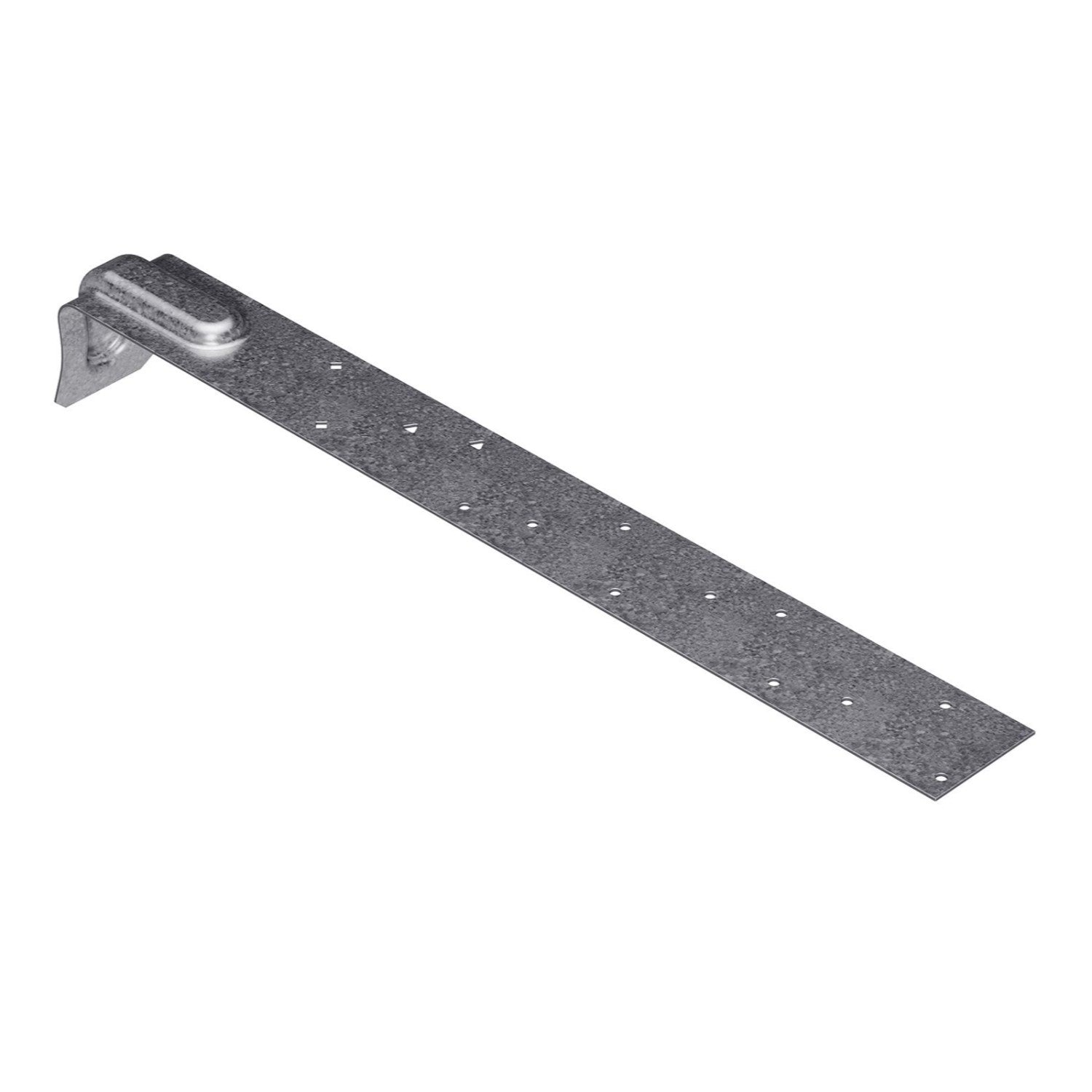

Simpson PAI23 Purlin Anchor for I-Joist, 12 Gauge - G90 Galvanized

Simpson PAI23 Purlin Anchor for I-Joist, 12 Gauge - G90 Galvanized!

Skip to product information
1 of 4

Continue Browsing

PA Purlin Anchors

$16.82

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 18 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 23-3/4"
Fasteners required: Use all specified fasteners; some models have extra fastener holes. See spec sheet.
Manufacturer name: Simpson Strong-Tie Company Inc
Thickness: 12 Gauge
Width: 2-1/16"
Description

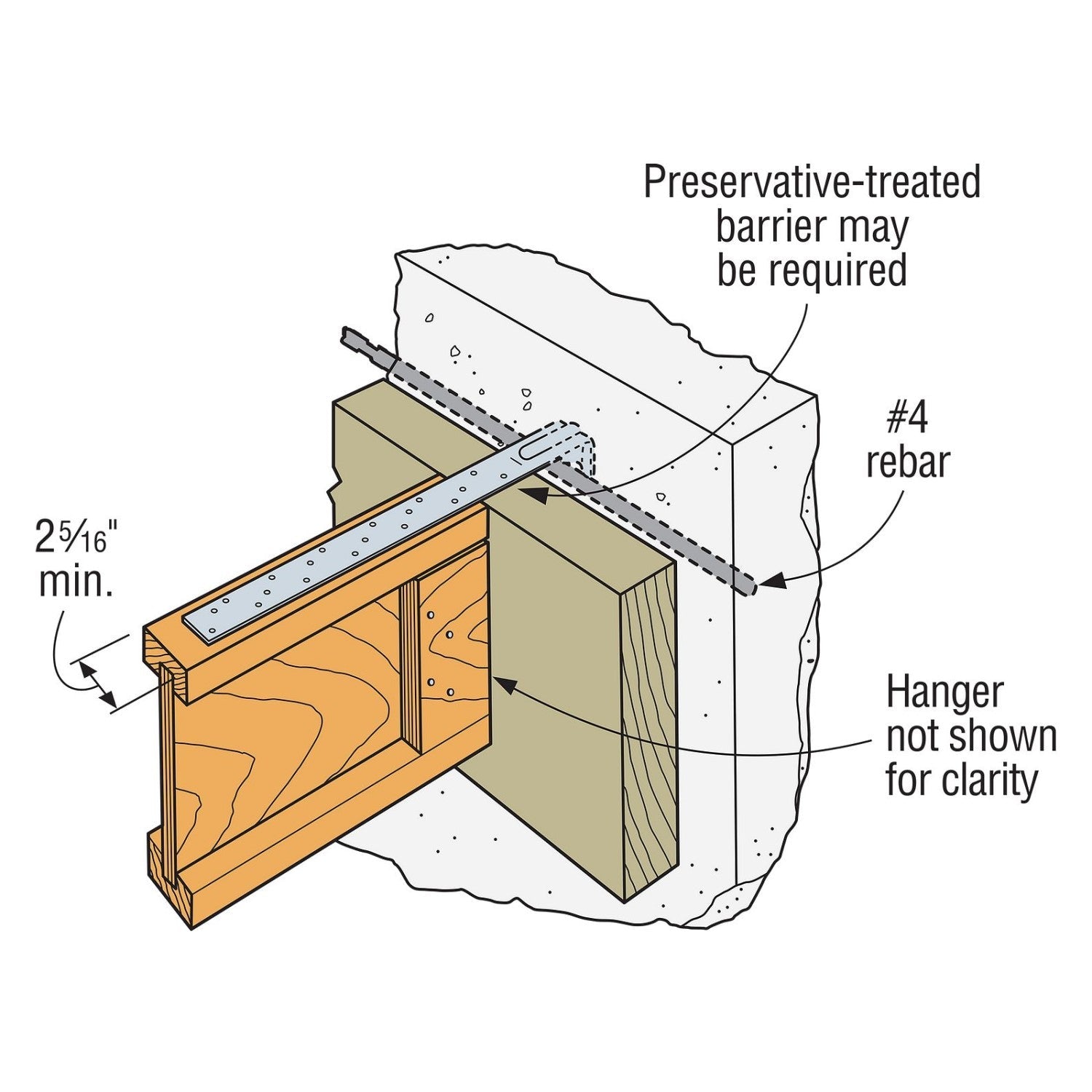

The Simpson PAI Purlin Anchor for I-Joist is a solution for wood-to-concrete and wood-to-masonry connections which satisfies code requirements. This purlin anchor is specifically designed for I-joist connections to concrete or masonry walls. The PAI features a dual-embedment line for ease of installation.

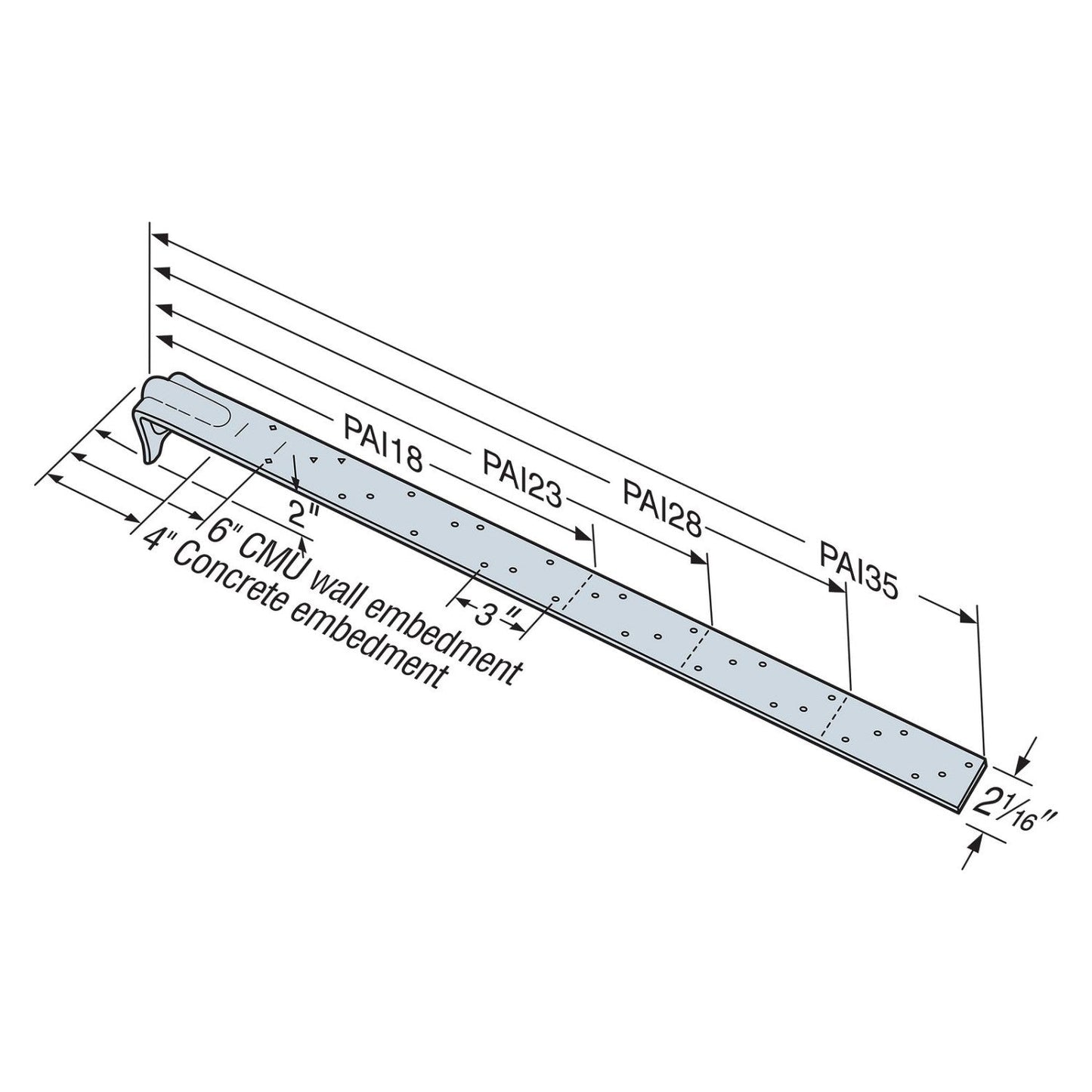

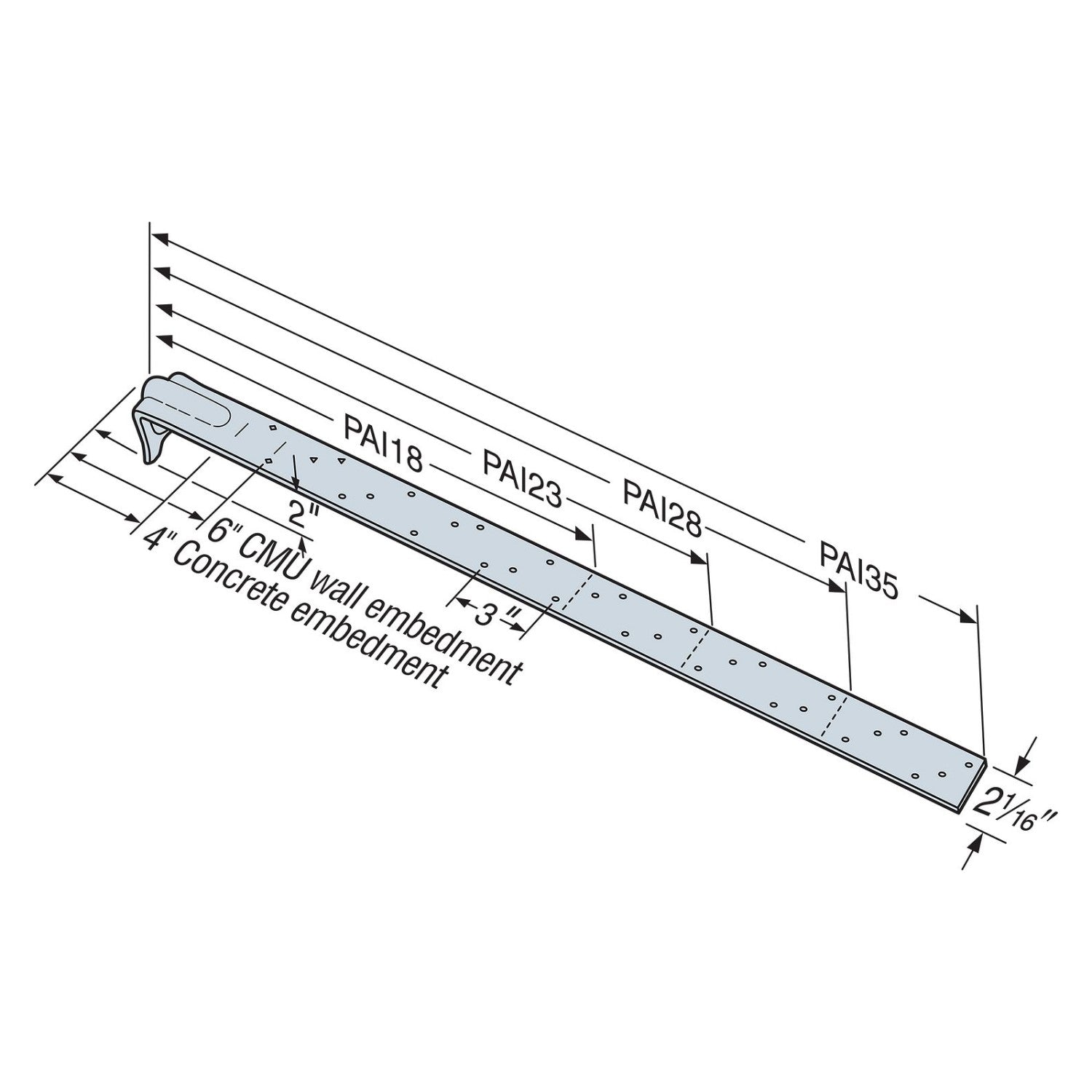

  • Minimum embedment line indicators for both concrete and masonry installations
  • Nailing pattern optimized for I-joist wood member
  • Low design profile minimizes visibility
  • Purlin anchor must hook around rebar.

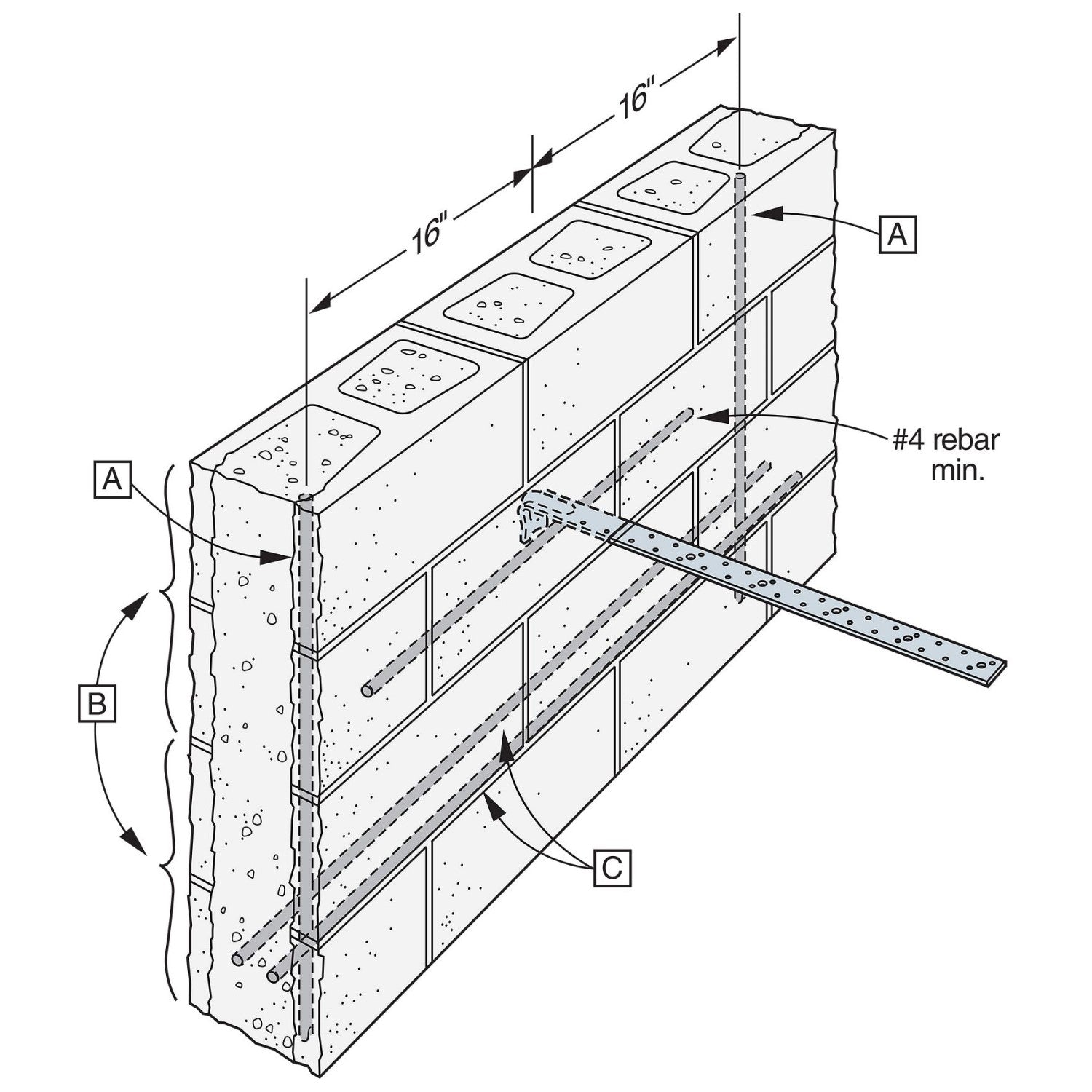

  • Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
  • Strap may be bent one full cycle (bent vertical 90°, then bent horizontal).
  • Use all specified fasteners; some models have extra fastener holes.
