Simpson PDPAS-62K 5/8" Knurled Powder-Driven Collated Pins - Mechanically Galvanized, Pkg 100
Simpson PDPAS-62K 5/8" Knurled Powder-Driven Collated Pins - Mechanically Galvanized, Pkg 100!
Continue Browsing
PDPA/PDPAS Powder Actuated Drive Pins
Specifications

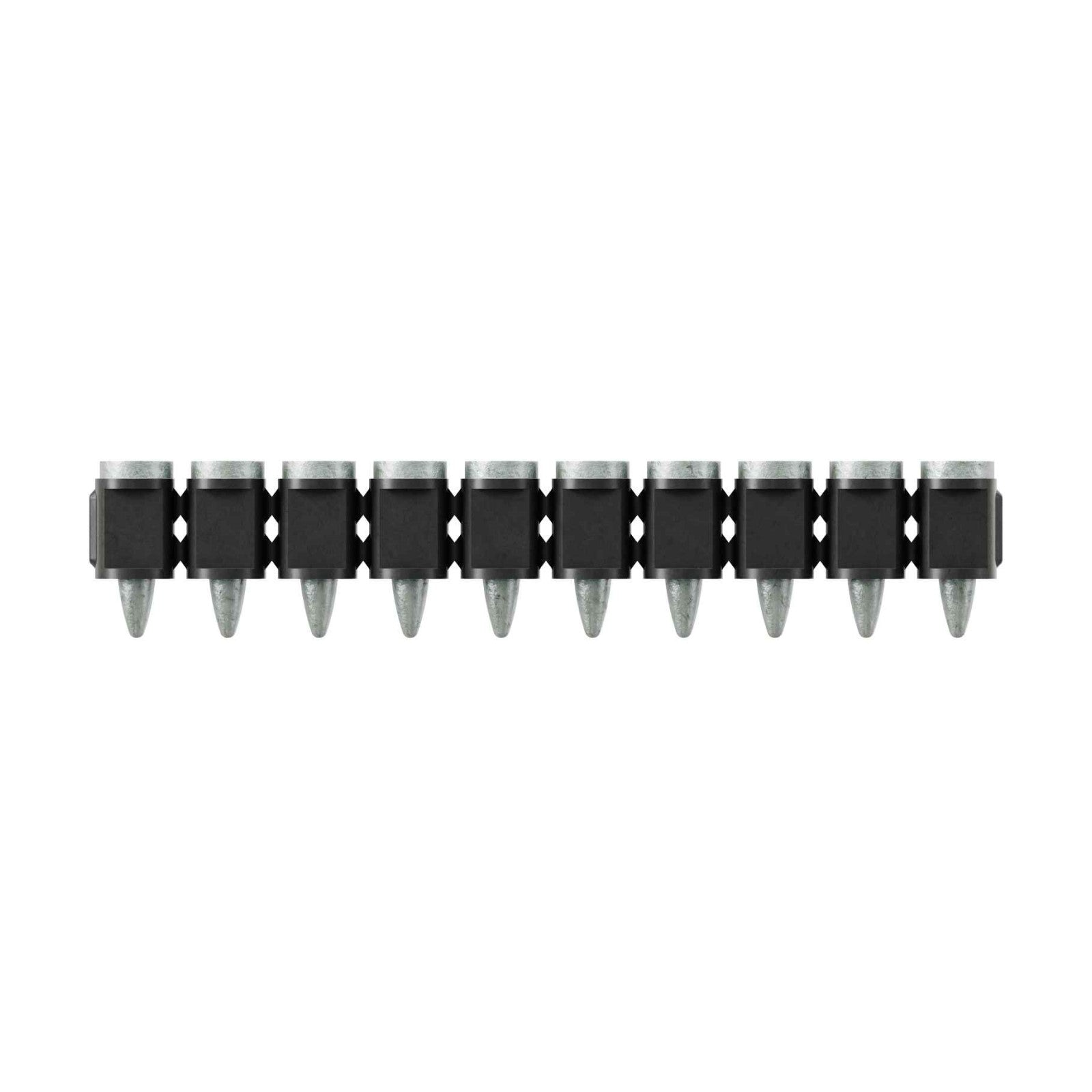

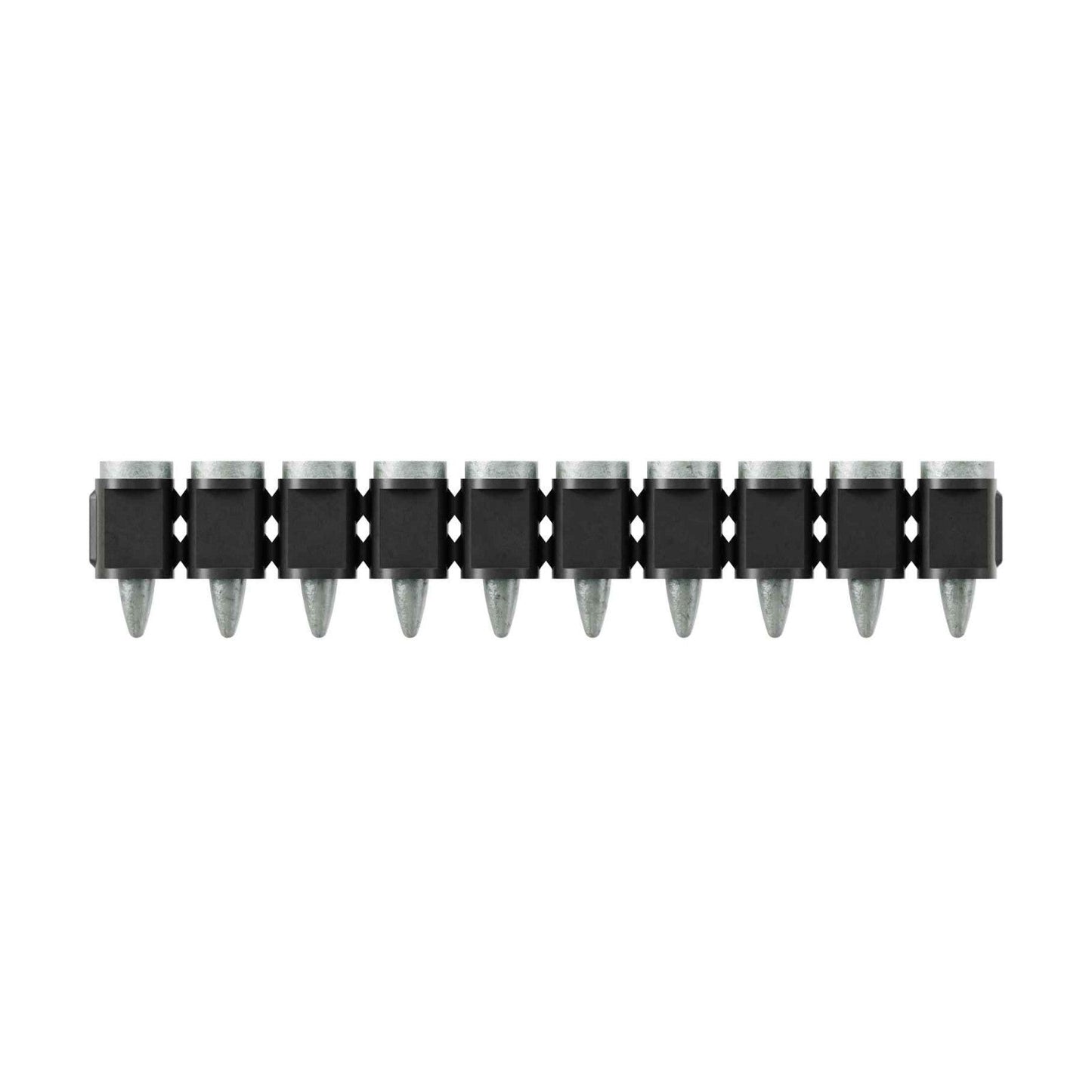

The Simpson PDPAS-62K is a 10-pin collation of hardened-steel PDPA pin designed to fasten building components to concrete, steel and CMU. The PDPAS series are manufactured with a strip of hardened-steel pins that have 0.300"-diameter head and 0.157"-diameter shank. The PDPAS eliminate the need for reloading and provides maximum efficiency on the jobsite with quick installation.
Key Features:
- The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
- Designed for use with many low-velocity magazine tools
