SKU: RWH25100

Simpson RWH25100 1/4" Horizontal Wood Rod Hanger - Zinc, Pkg 25

Simpson RWH25100 1/4" Horizontal Wood Rod Hanger - Zinc, Pkg 25!

Skip to product information

Continue Browsing

Threaded Rod Hangers

$19.70

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 5
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 1/4"
Length: 1"
Material: Carbon Steel
Accepts rod size: 1/4"
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Point type: Type 17
Quantity: 25
Type: Horizontal
Description

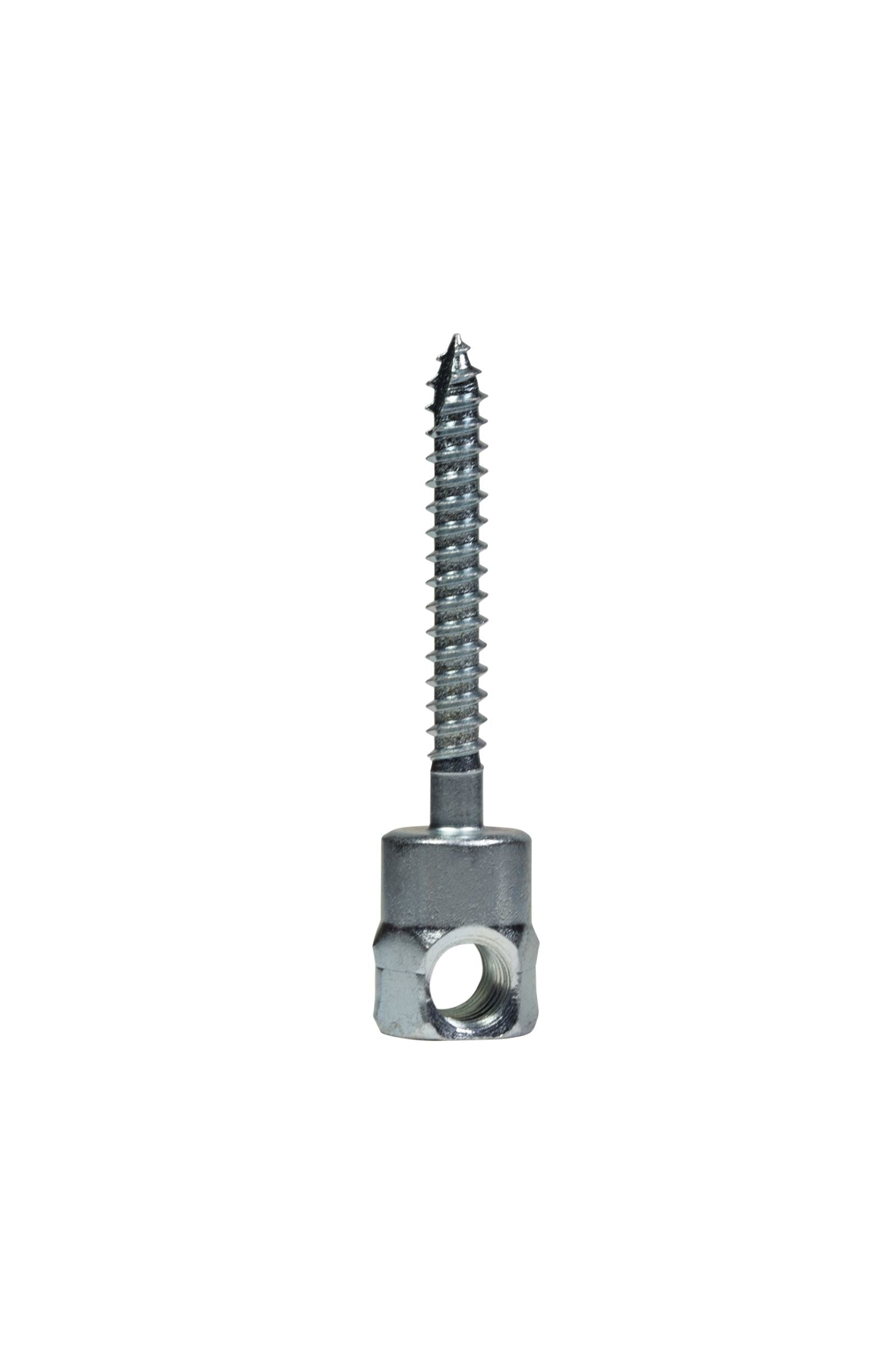

The wood rod hanger from Simpson Strong-Tie is a one-piece fastening system for suspending 1/4" or 3/8" threaded rod. Horizontal rod hangers are available for applications requiring installation into the side of joists, columns and overhead members. The rod hanger provides attachment points for use in pipe hanging, fire protection, electrical conduit and cable-tray applications. The Type-17 point style allows for easy installation with a drill or screw gun and requires no predrilling. Recommended for use in dry, interior, non-corrosive environments only.
Installation:
  • Attach RND62 nut driver to a drill.
  • Insert rod hanger into the RND62 nut driver.
  • Using rotation-only mode, drive rod hanger until it contacts the surface. Do not over-tighten. RND62 nut driver will disengage the rod hanger at the appropriate depth to prevent over-driving.
  • Insert threaded rod. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.

  • California Residents: WARNING
