Simpson S/B3.38/10 3-3/8" x 10" Light Gauge Hanger - G90 Galvanized, Made to Order Non-Returnable
Simpson S/B3.38/10 3-3/8" x 10" Light Gauge Hanger - G90 Galvanized, Made to Order Non-Returnable!
Simpson S/B3.38/10 3-3/8" x 10" Light Gauge Hanger - G90 Galvanized, Made to Order Non-Returnable
Specifications
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

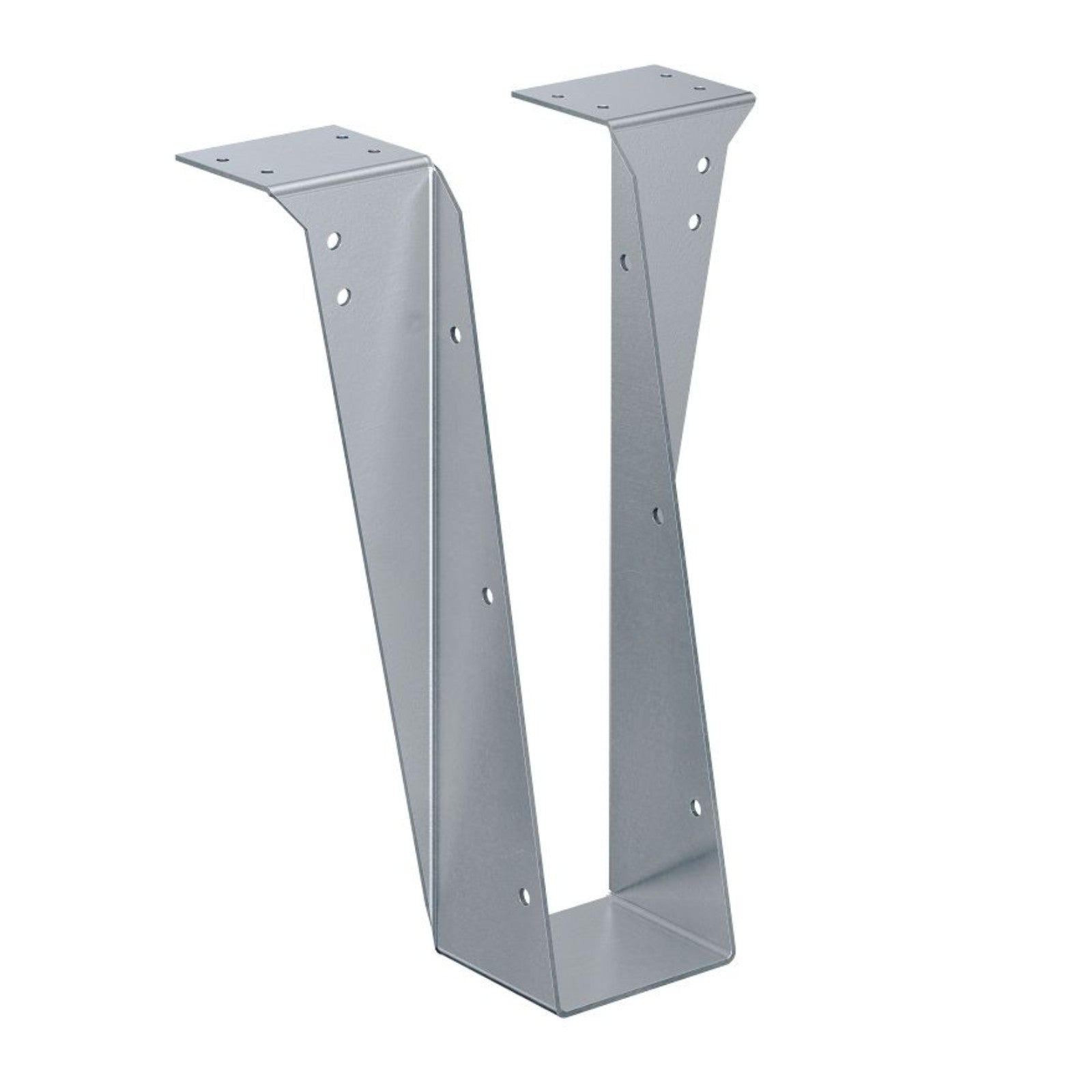

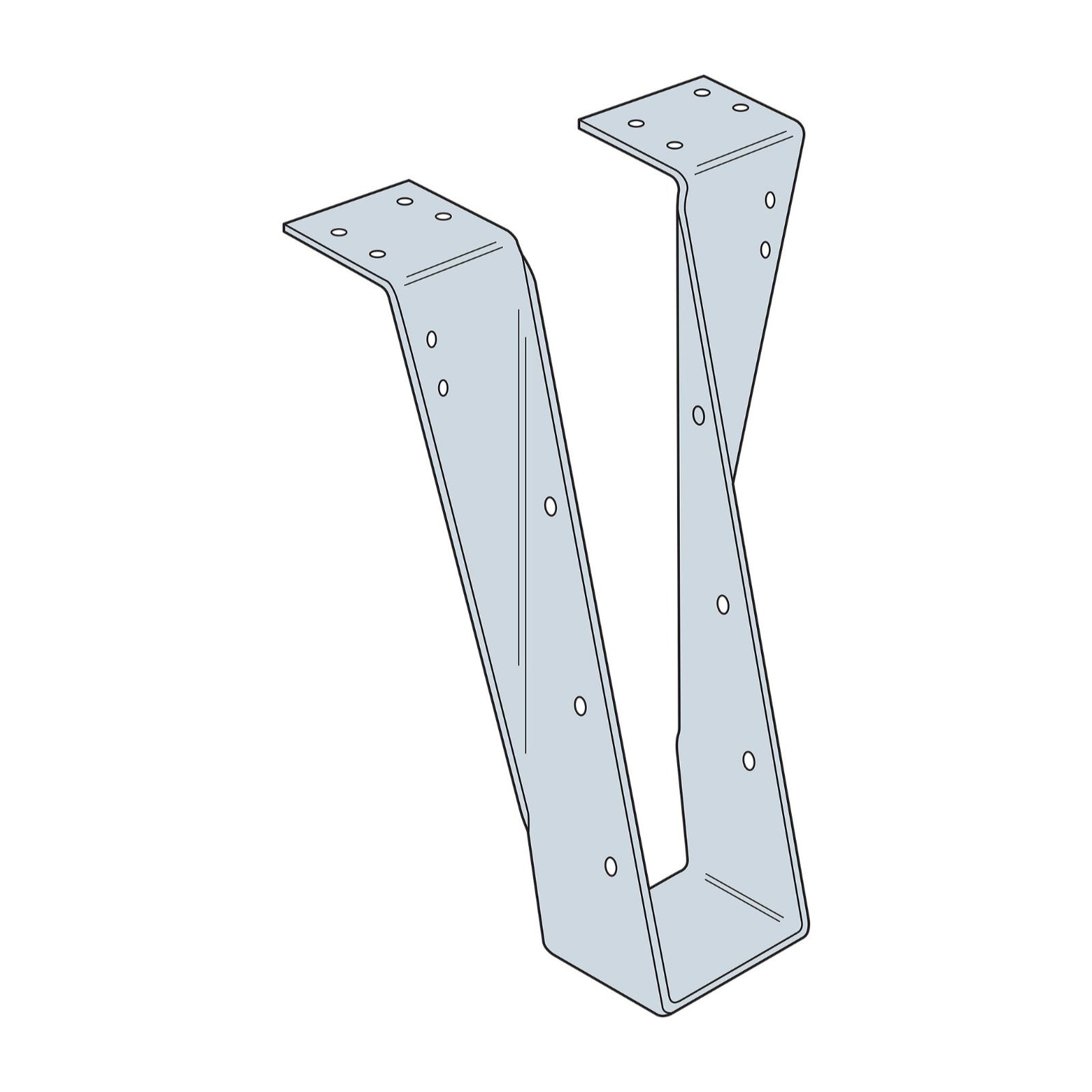

The Simpson Strong-Tie S/B High-Capacity Hanger is a field-adjustable, high-performance solution for connecting cold-formed steel joists and headers in demanding applications. Designed to carry large gravity loads, the S/B hanger provides reliable support for 43 mil (18 ga.) to 97 mil (12 ga.) steel framing members, making it ideal for multifamily, commercial, and mid-rise construction.
Available in multiple sizes and configurations, this hanger features a versatile design that adapts to jobsite conditions with easy field-skewing and height adjustment options. Its bolted or welded installation ensures high load values while maintaining a clean, professional connection.
Key Features:
- High Load Capacity: Engineered for heavy-duty gravity load transfer in cold-formed steel-to-steel connections.
- Adjustable Design: Field-modifiable skew and height accommodate complex framing geometries.
- Multiple Seat Options: Available in standard and long-seat variants for deeper bearing surfaces.
- Versatile Installation: Can be welded or bolted to structural members depending on project needs.
- ICC-ES Certified: Meets IBC/IRC design standards when installed per Simpson Strong-Tie specifications.
Applications:
- Cold-formed steel joist-to-header connections
- Multifamily floor framing
- Corridor or stair framing in commercial buildings
- Cantilevered balcony framing
- Load-bearing wall systems in steel construction
Installation Notes:
- Compatible with joists ranging from 43 mil (18 ga.) to 97 mil (12 ga.) thickness.
- Hangers may be welded or attached using specified mechanical fasteners per load tables.

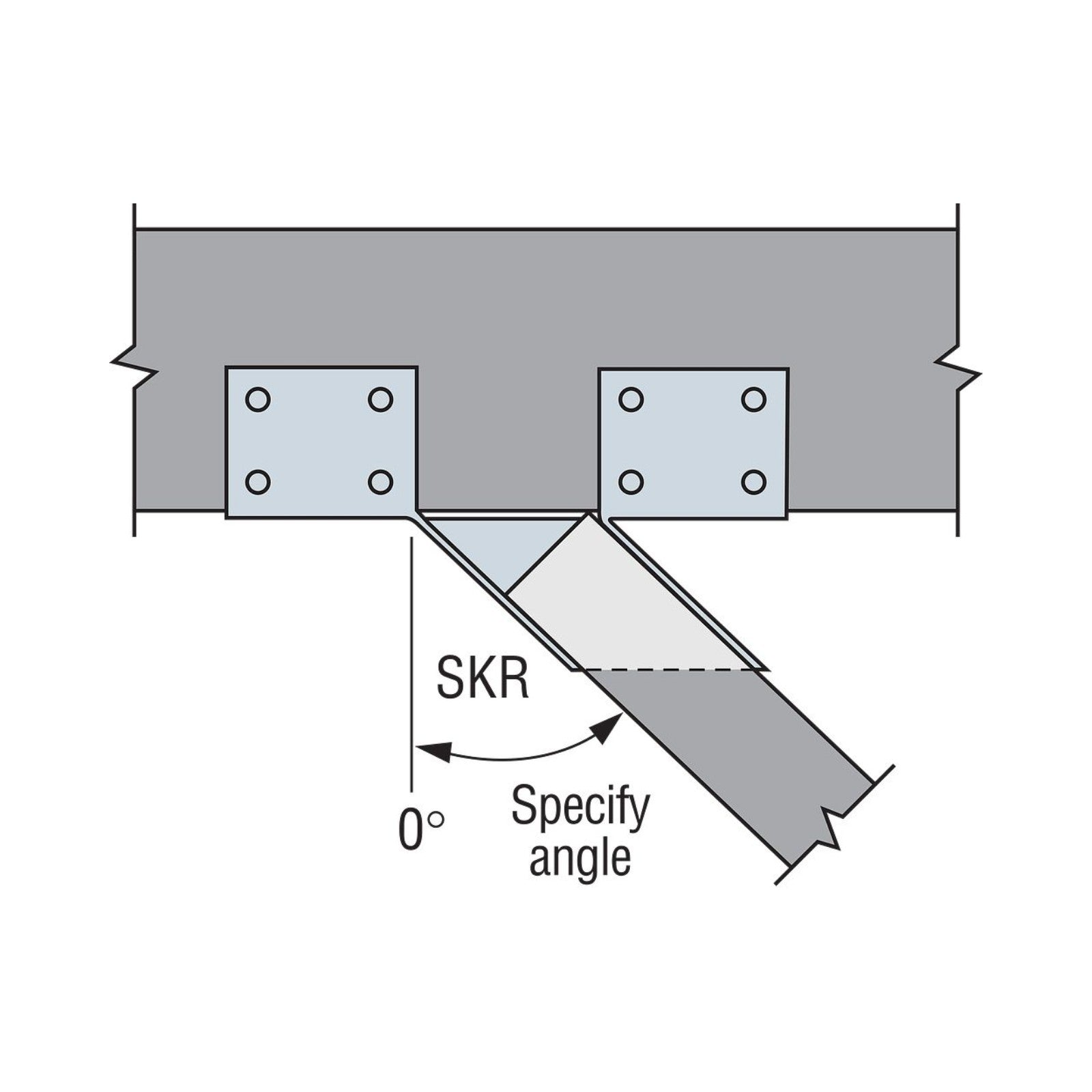

- Field skewing and seat height adjustments must conform to model-specific guidelines.
- Reference Simpson Strong-Tie submittals and load tables to ensure code-compliant installation.
