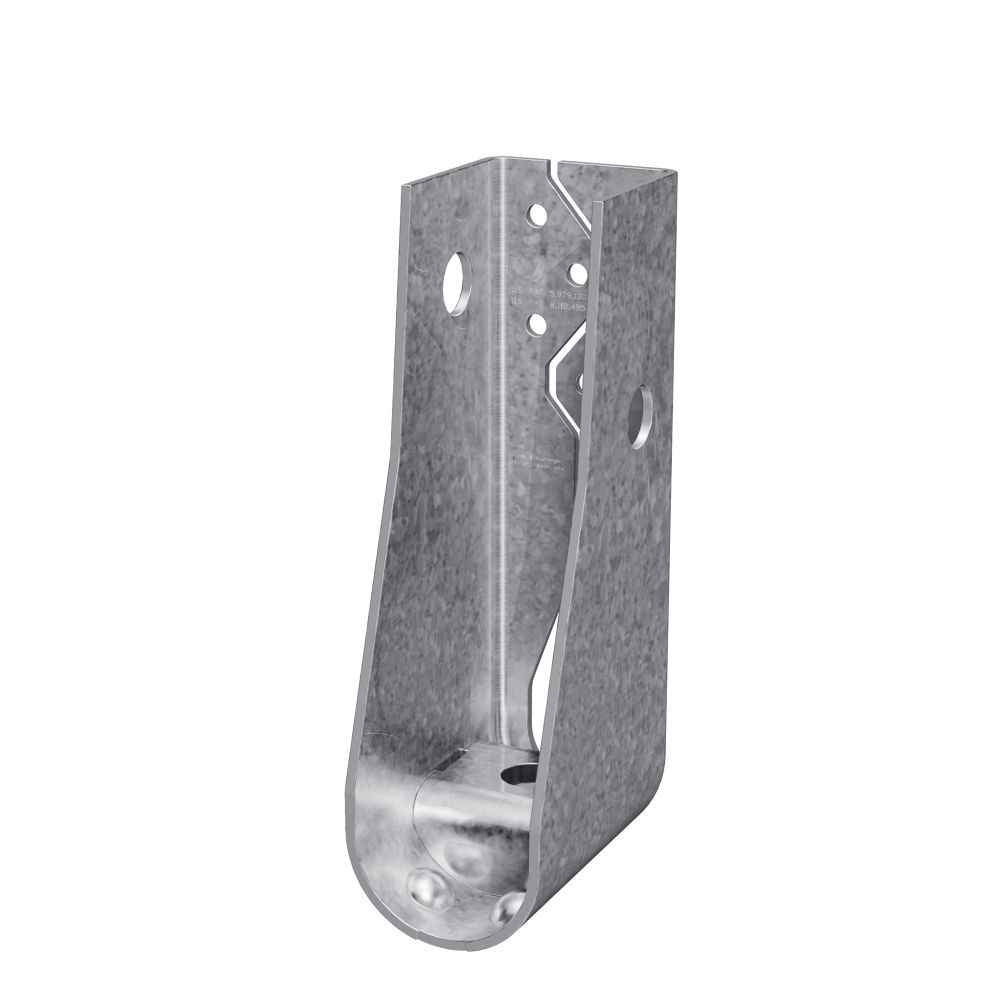

Simpson S/HDU4 Light Gauge Holdown For Steel - G90 Galvanized

SKU: S-HDU4

$33.67

The Strong-Tie S/HDU series of holdowns combines performance with ease of installation. The pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load. Installation using self-drilling tapping screws into the studs reduces installation time and saves labor cost.

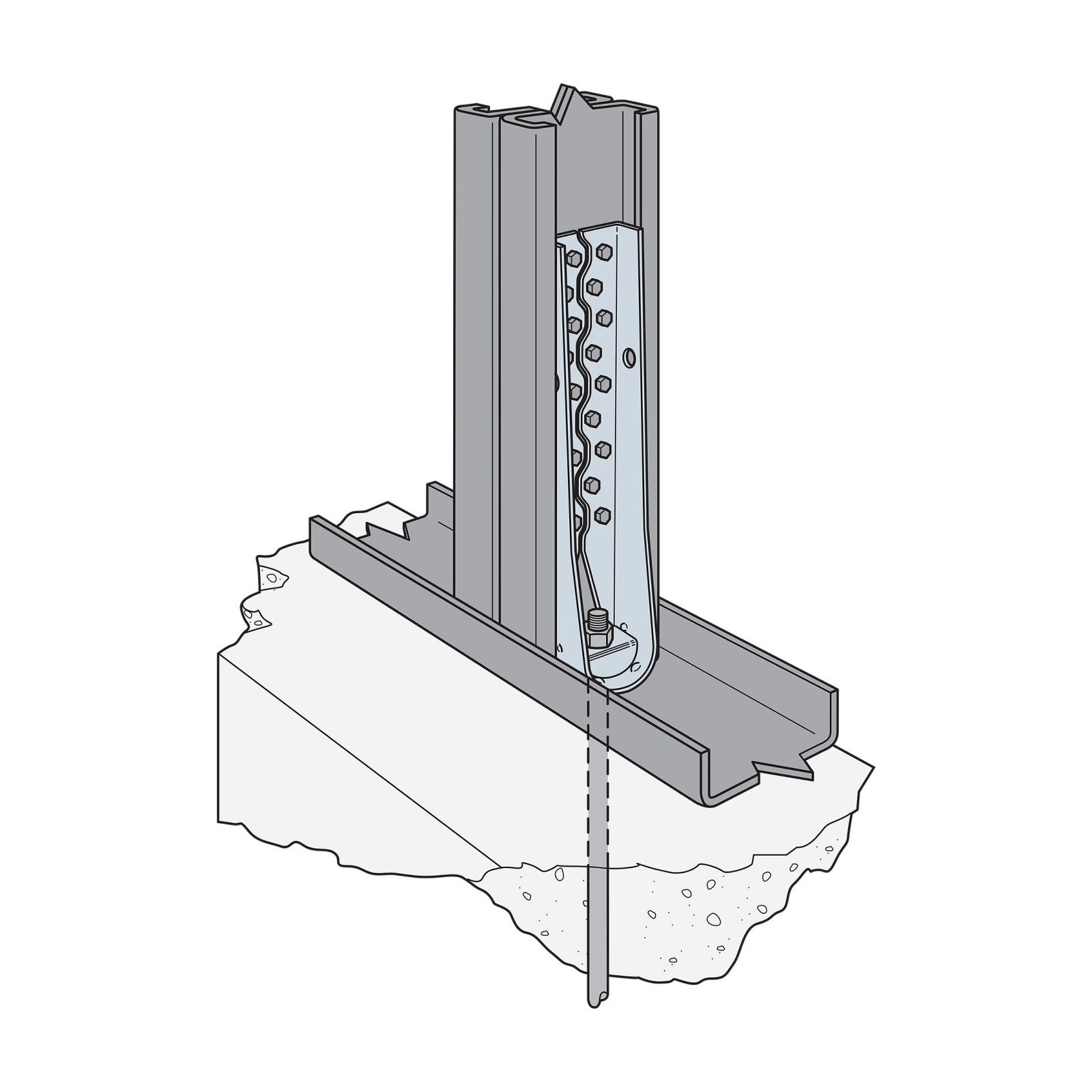

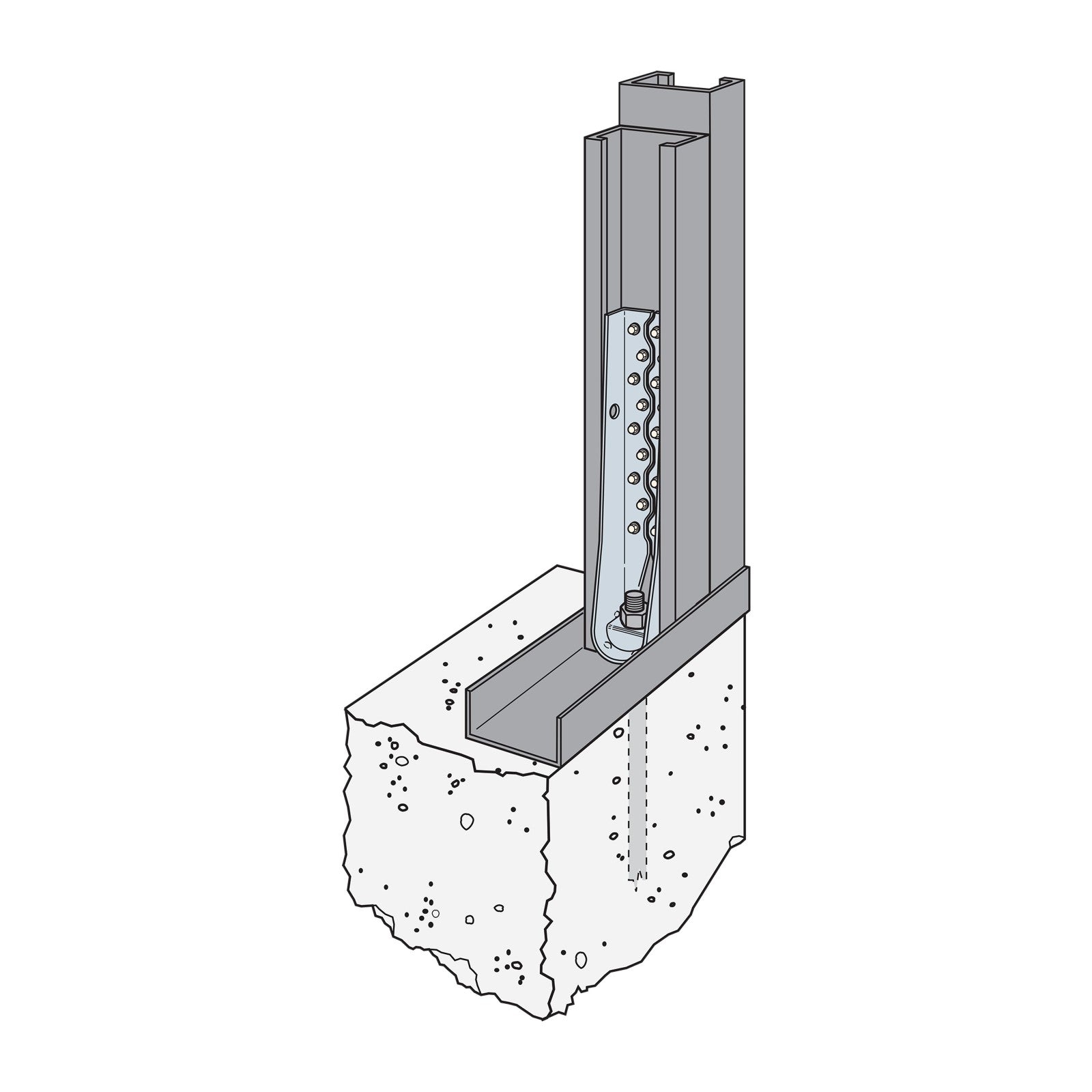

Installation:
  • Use all specified fasteners.

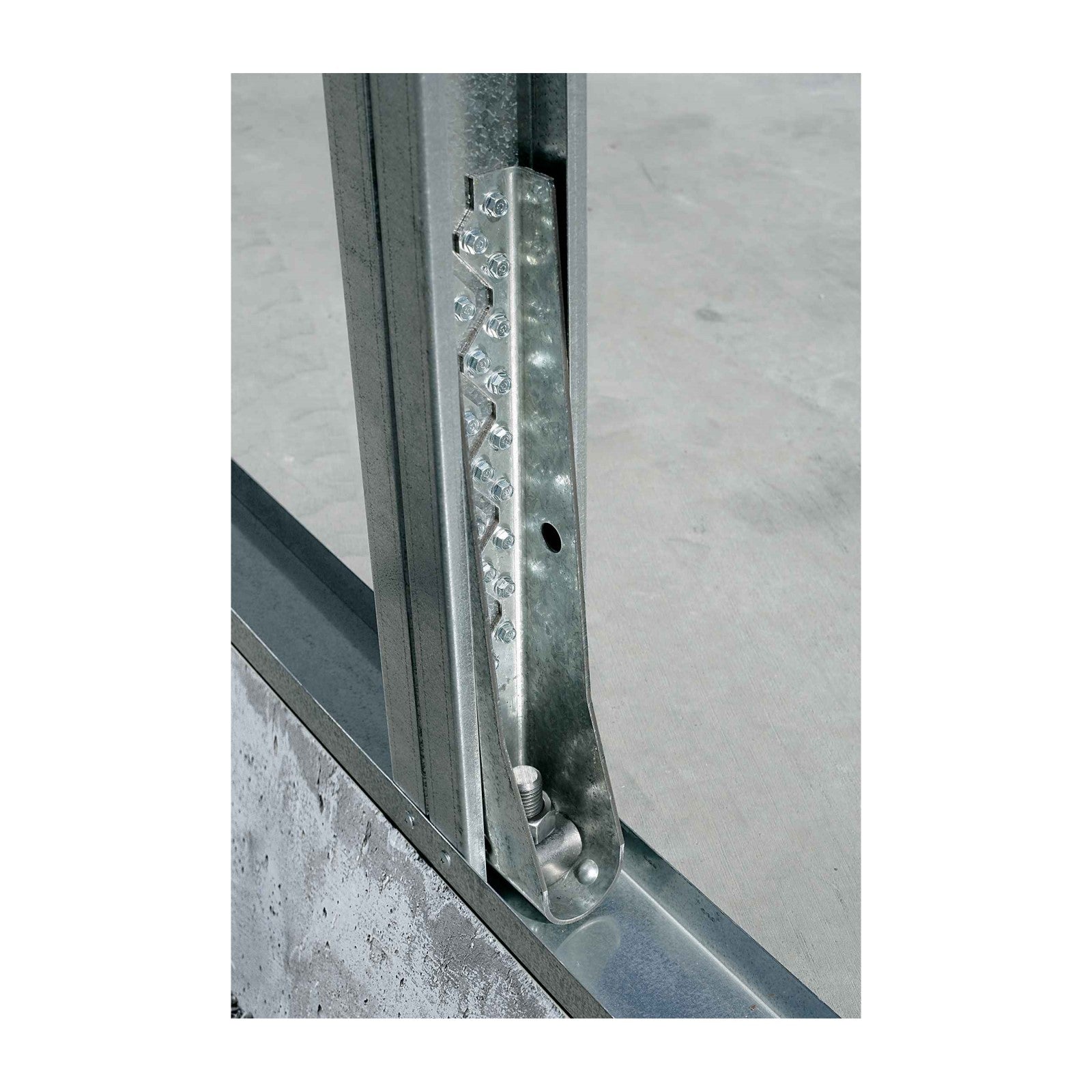

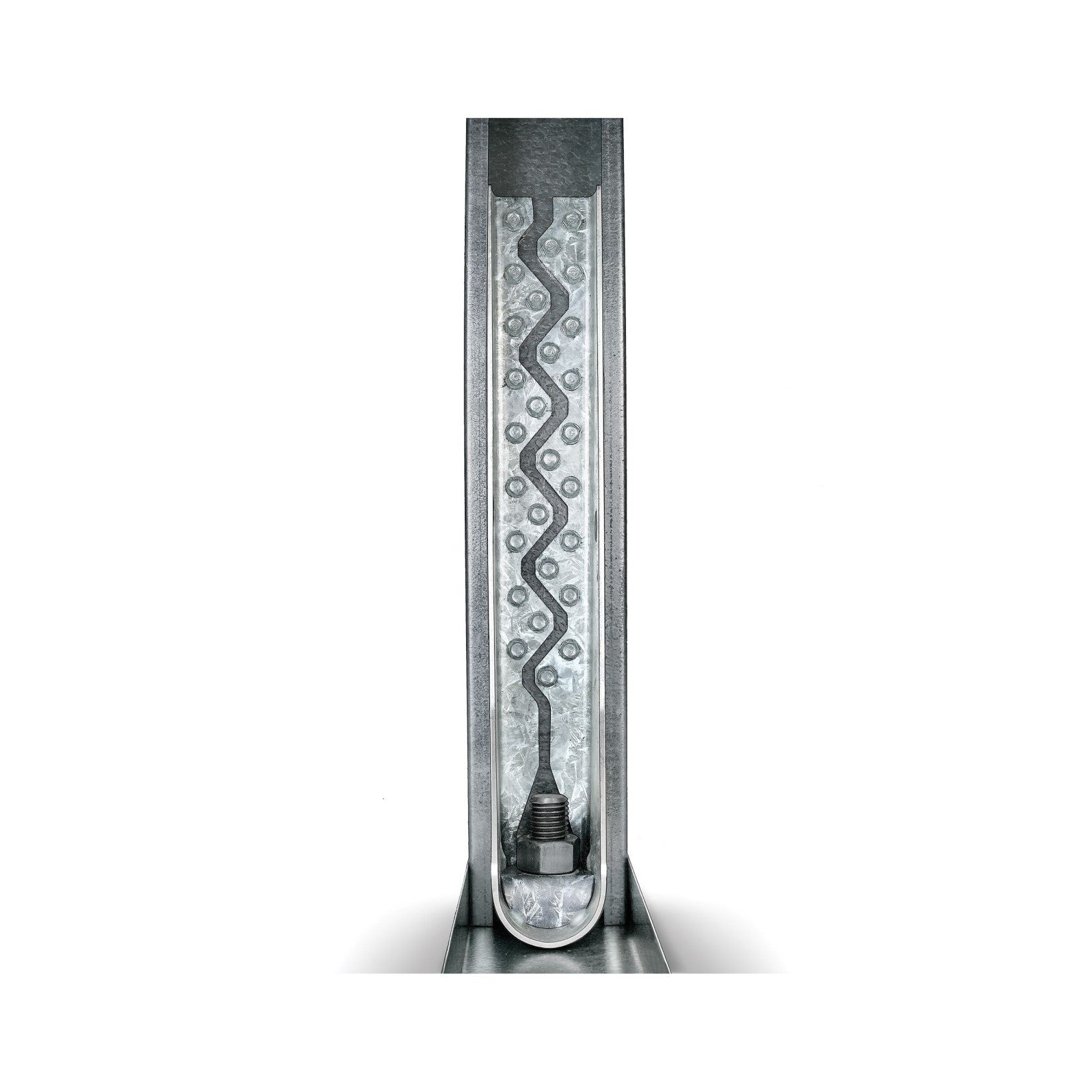

  • Use standard #14 self-drilling screws to fasten to studs.
  • Anchor bolt washer is not required.
  • See SET-XP® and AT-XP® adhesive products for anchor bolt retrofit options.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Strong-Tie S/HDU series of holdowns combines performance with ease of installation. The pre-deflected geometry virtually eliminates material st...

Read More

The Strong-Tie S/HDU series of holdowns combines performance with ease of installation. The pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load. Installation using self-drilling tapping screws into the studs reduces installation time and saves labor cost.


Installation:
  • Use all specified fasteners.
  • Use standard #14 self-drilling screws to fasten to studs.
  • Anchor bolt washer is not required.
  • See SET-XP® and AT-XP® adhesive products for anchor bolt retrofit options.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Finish Spec:
G90 Galvanized

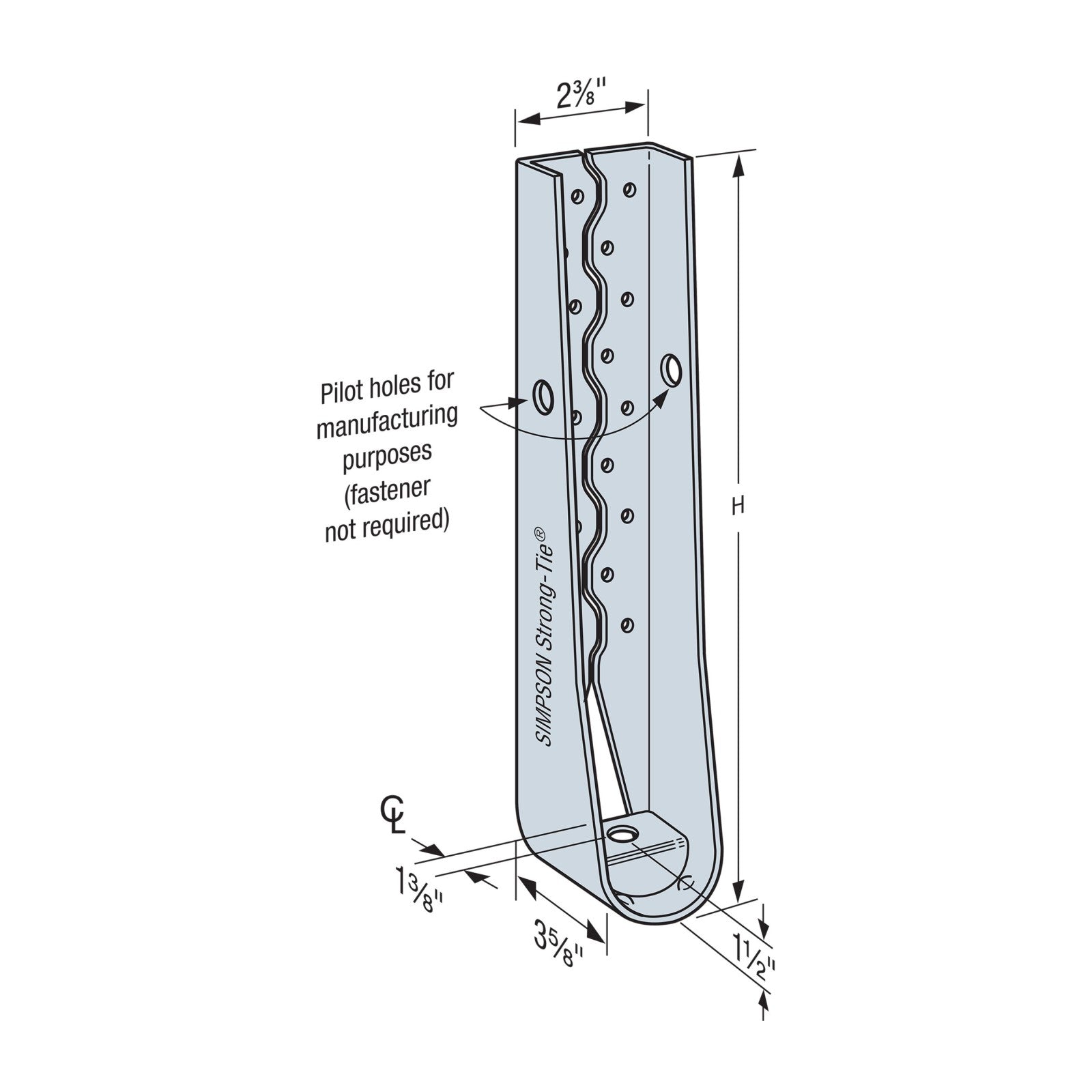

Height:
7-7/8"

Manufacturer Name:
Simpson Strong-Tie

Thickness:
118 mil (10 ga.)
