Simpson S/LBV4.18/6 4-3/16" x 6" Light Gauge Hanger - G90 Galvanized, Made to Order Non-Returnable
Simpson S/LBV4.18/6 4-3/16" x 6" Light Gauge Hanger - G90 Galvanized, Made to Order Non-Returnable!
Simpson S/LBV4.18/6 4-3/16" x 6" Light Gauge Hanger - G90 Galvanized, Made to Order Non-Returnable
Specifications
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

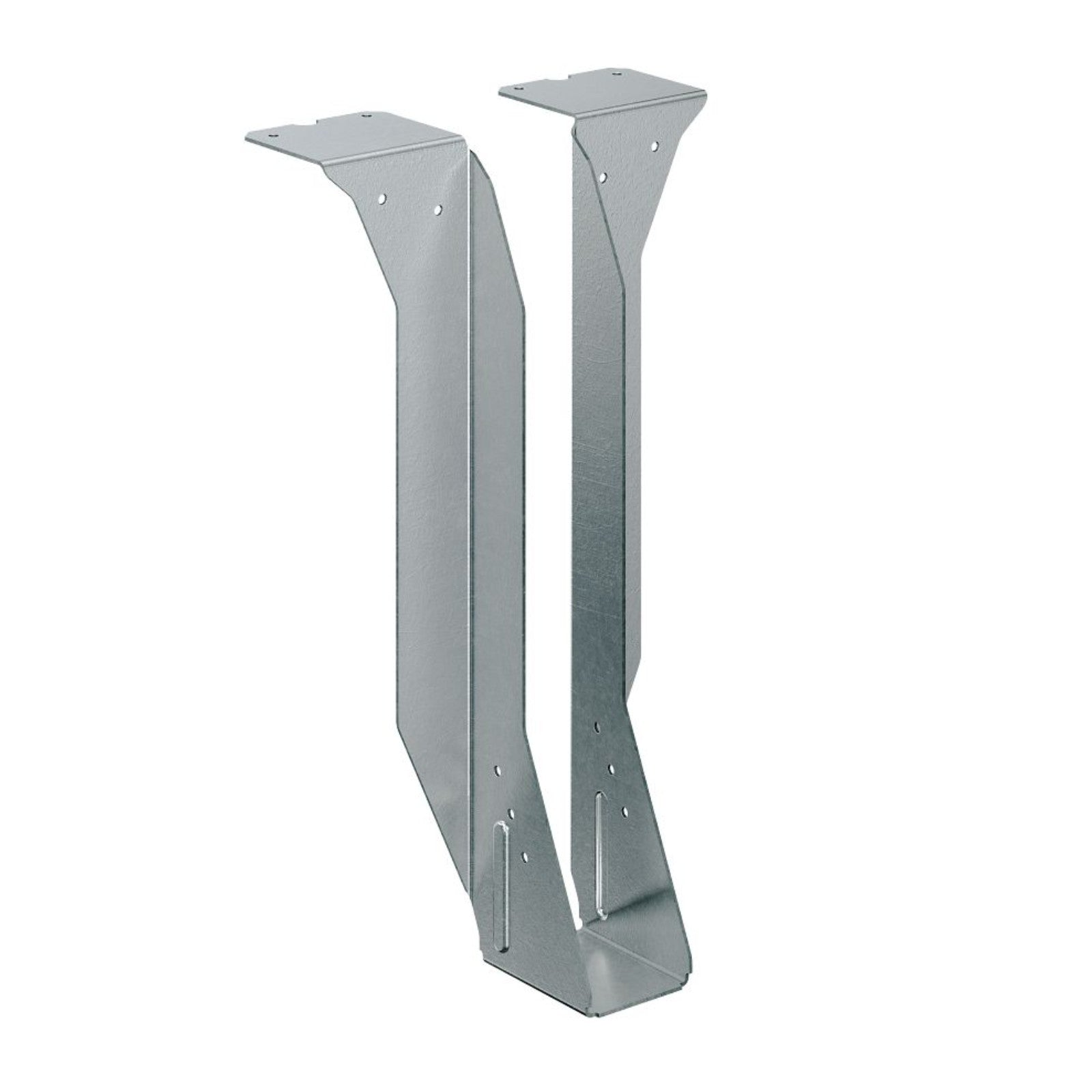

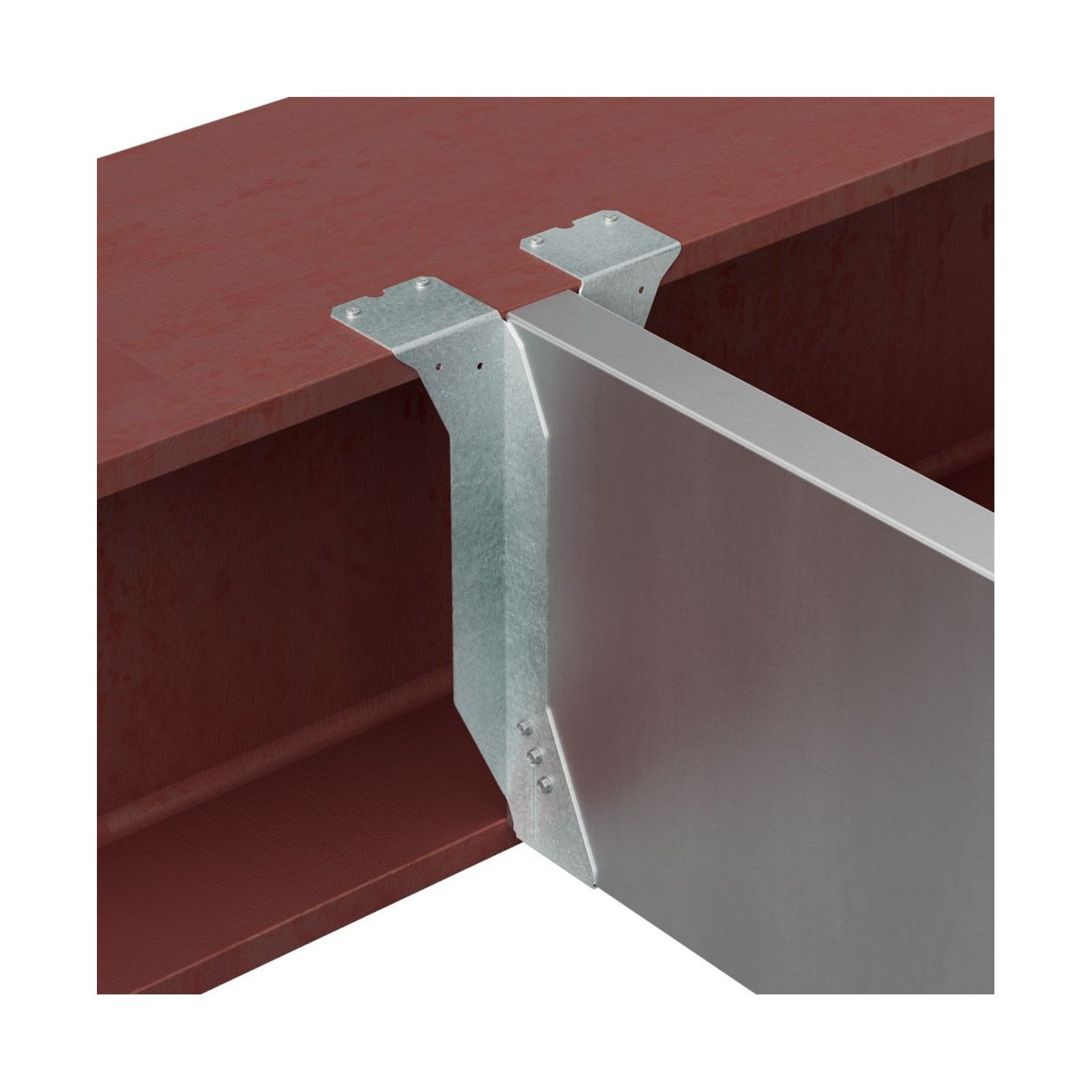

The Simpson Strong-Tie S/LBV High-Capacity Hanger is engineered for strong, reliable joist-to-structure connections in cold-formed steel (CFS) construction. Designed for flexibility, the S/LBV series includes skewable (S/L) and non-skewable (LBV) options to suit a wide range of framing layouts and load conditions.
Built from 97 mil (12 gauge) galvanized steel, these hangers offer superior strength and corrosion resistance in both interior and protected exterior environments. With multiple fastener hole options and flange configurations, the S/LBV delivers the load capacity and adaptability required in modern commercial, multifamily, and institutional builds.
Key Features:
- High-Capacity Performance: Engineered to handle demanding gravity and uplift loads in CFS framing systems.
- Flexible Installation Options: S/L variants offer skewed configurations; LBV versions provide vertical flange mounting.
- Galvanized Steel Construction: Fabricated from 97 mil (12 gauge) G90 steel for strength and corrosion resistance.

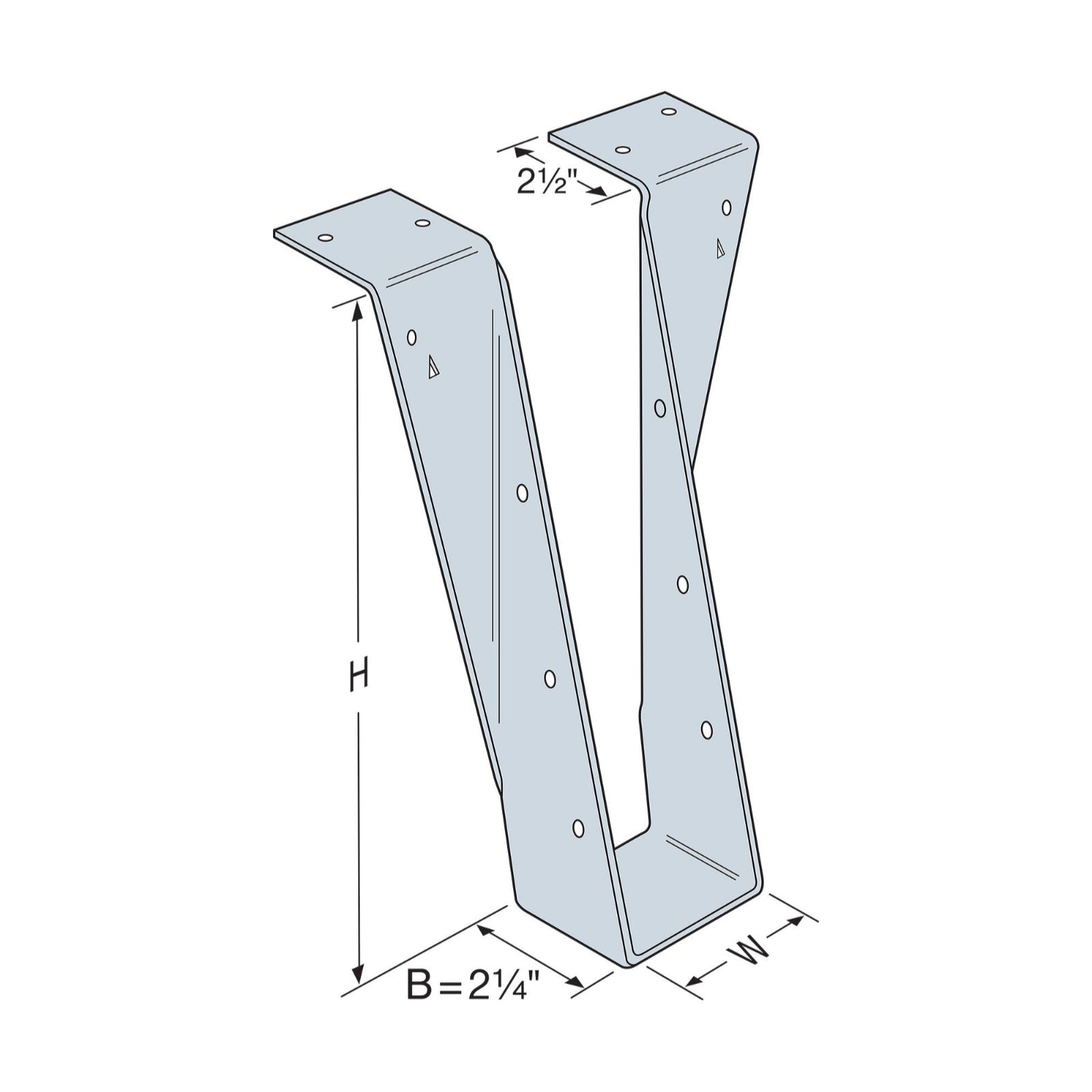

- Multiple Sizes Available: Compatible with a variety of joist depths and flange widths for custom framing layouts.
- ICC-ES Approved: Evaluated for code compliance in structural steel framing applications.
Applications:
- Floor and roof framing in cold-formed steel structures
- Institutional, multifamily, and commercial construction
- Cantilever and ledger framing
- Curtain wall connections
- Projects requiring skewed or offset hanger configurations

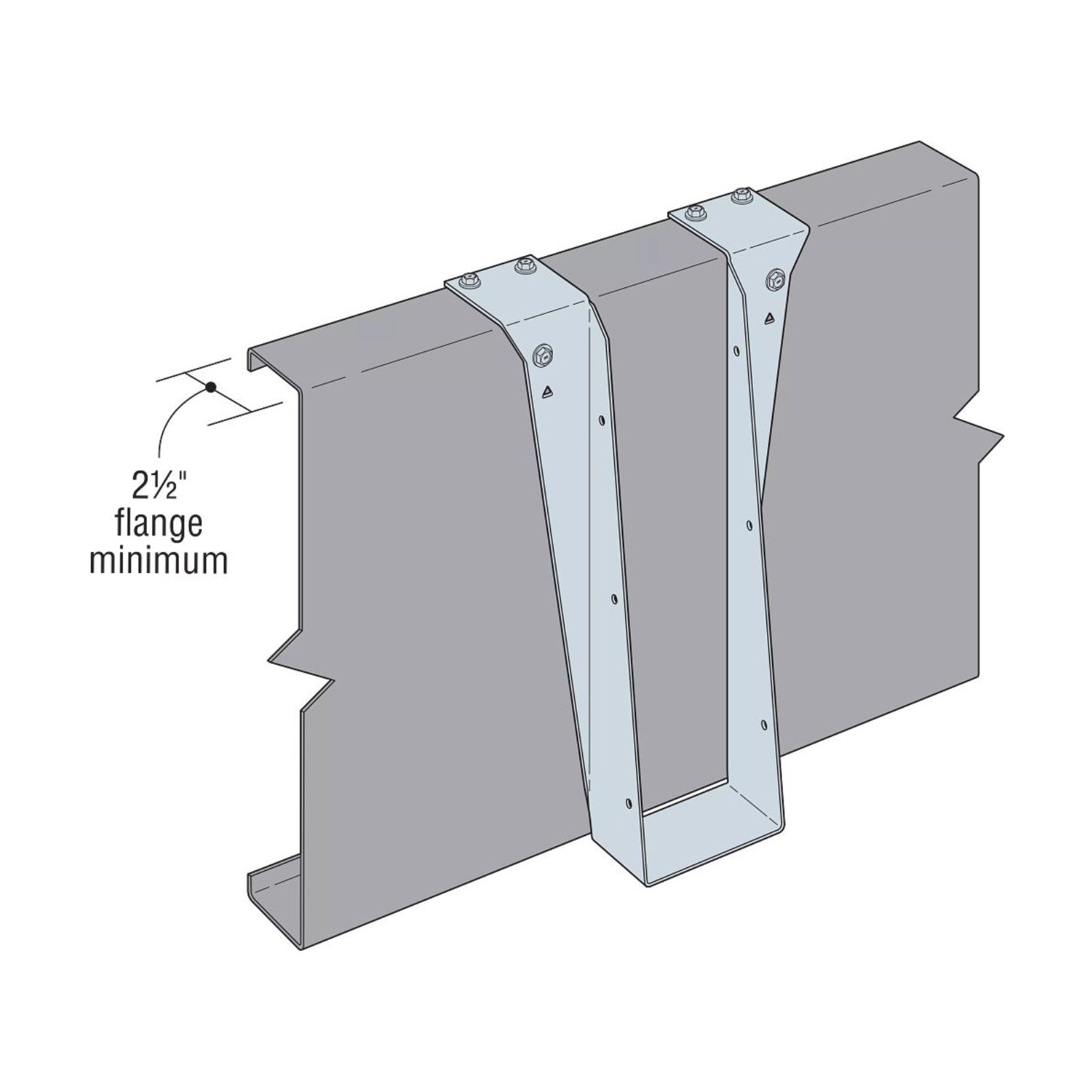

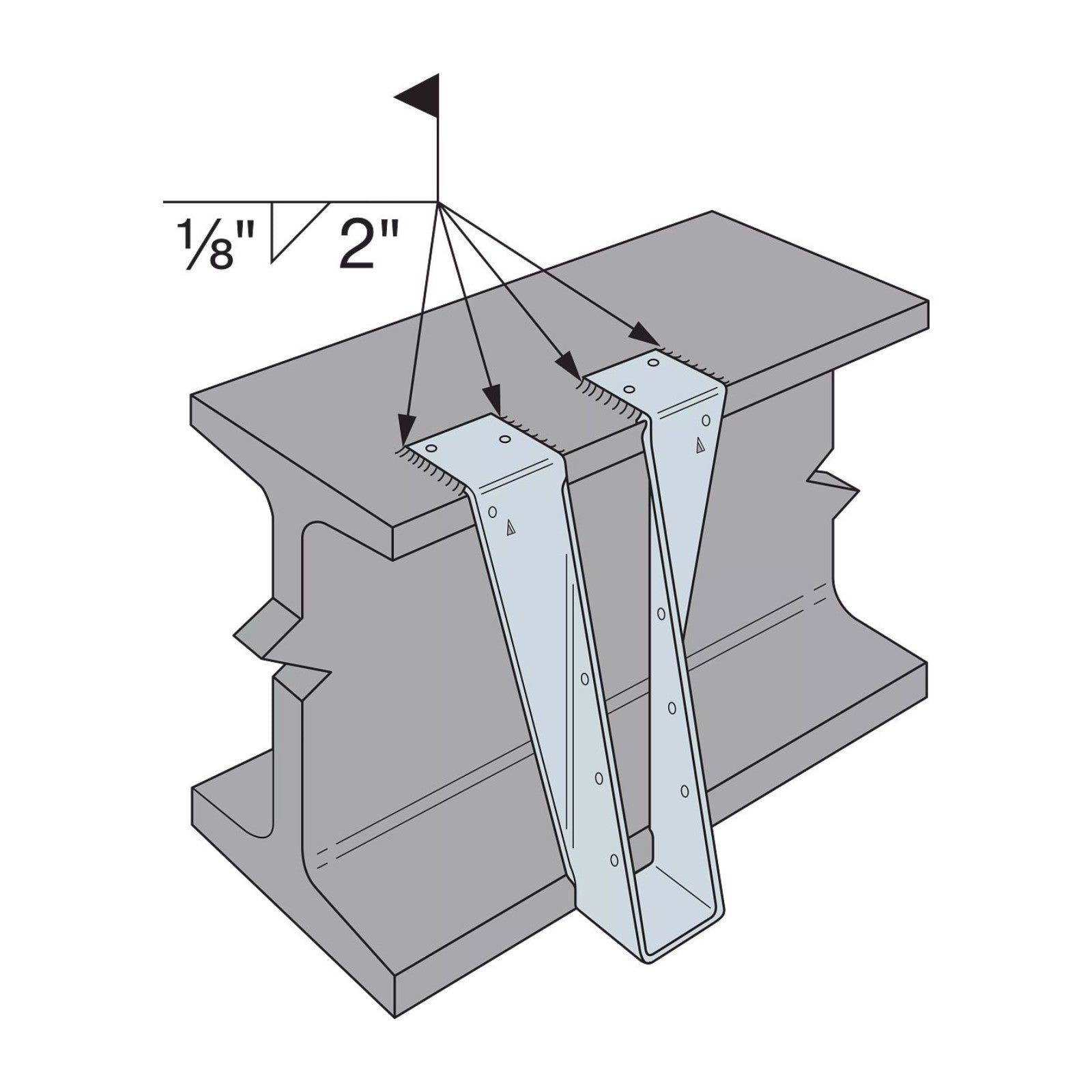

Installation Notes:
- Use #14 screws or approved fasteners per the load table and model specifications.
- S/L models accommodate up to 45° skews for angled connections.
- Ensure proper alignment to avoid eccentric loading and maintain load capacity.
- Review Simpson Strong-Tie® technical literature for specific load values and installation guidelines.
