SKU: SC62-5/118-KT25

Simpson SC62-5/118-KT25 Bypass Framing Slide-Clip Connector, Pkg 25

Simpson SC62-5/118-KT25 Bypass Framing Slide-Clip Connector, Pkg 25

Regular price $194.40
Sale price $194.40 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 1 hour 56 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

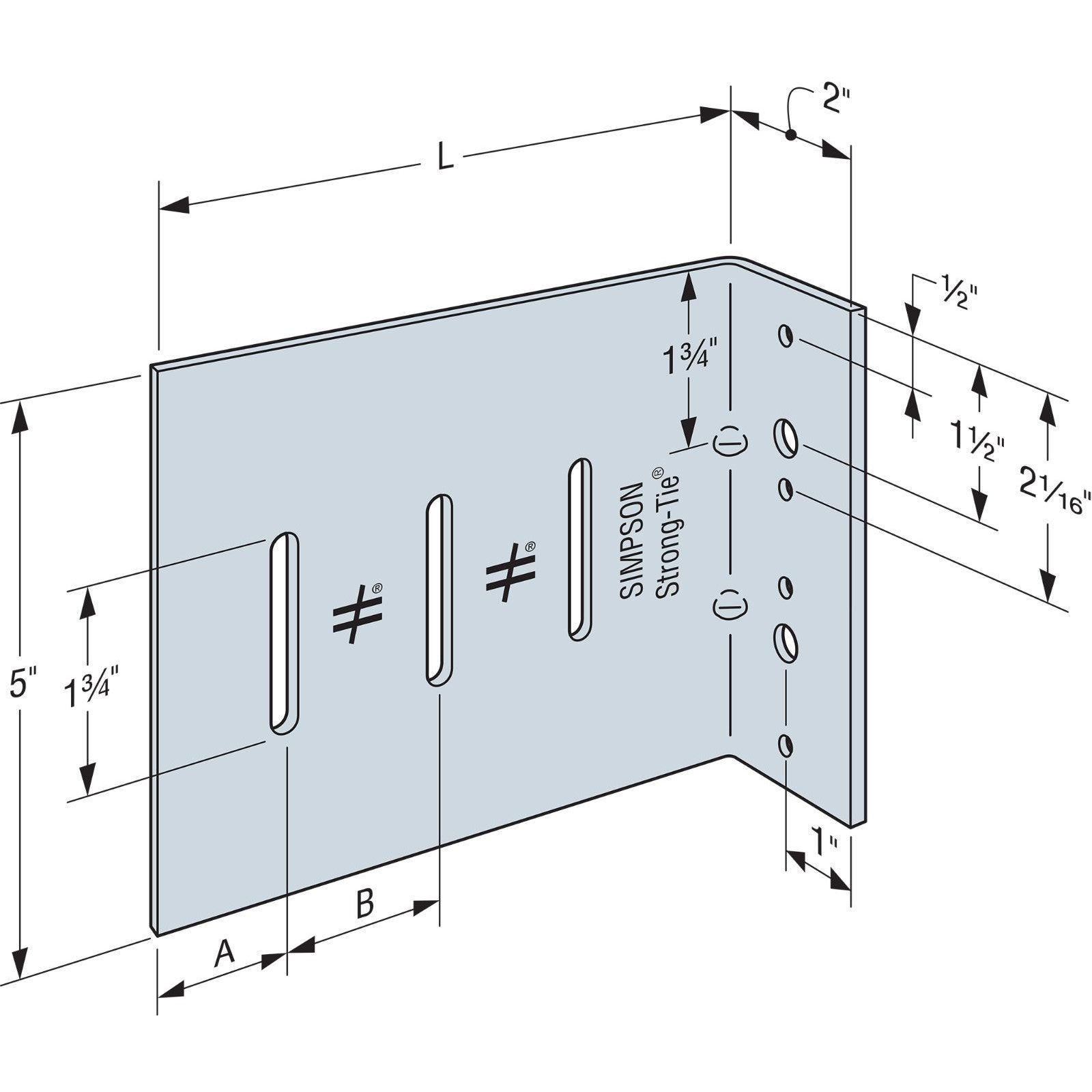

Ideal for high-seismic areas, Simpson Strong-Tie® SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. Precision-manufactured shouldered screws are included with SC connectors that are designed to prevent overdriving and to ensure the clip functions properly. In addition to anchorage versatility, the SC clips include "No-Equal" stamps at the center of the slots to ensure proper shouldered screw placement. This SC connector is manufactured using heavy-duty 12-gauge steel to provide optimal resistance to in-plane seismic load.
Installation:
  • Use the specified type and number of anchors.
  • Use the specified number of XLSH78B1414 #14 shouldered screws (included). Install the screws in the slots adjacent to the "No-Equal" stamps.
  • Use one shouldered screw per slot (maximum).

California Residents: WARNING

Specifications:

Material: Carbon Steel
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Use the specified type and number of anchors.
-Use the specified number of XLSH78B1414 #14 shouldered screws (included). Install the screws in the slots adjacent to the "No-Equal" stamps.
-Use one shouldered screw per slot (maximum).
