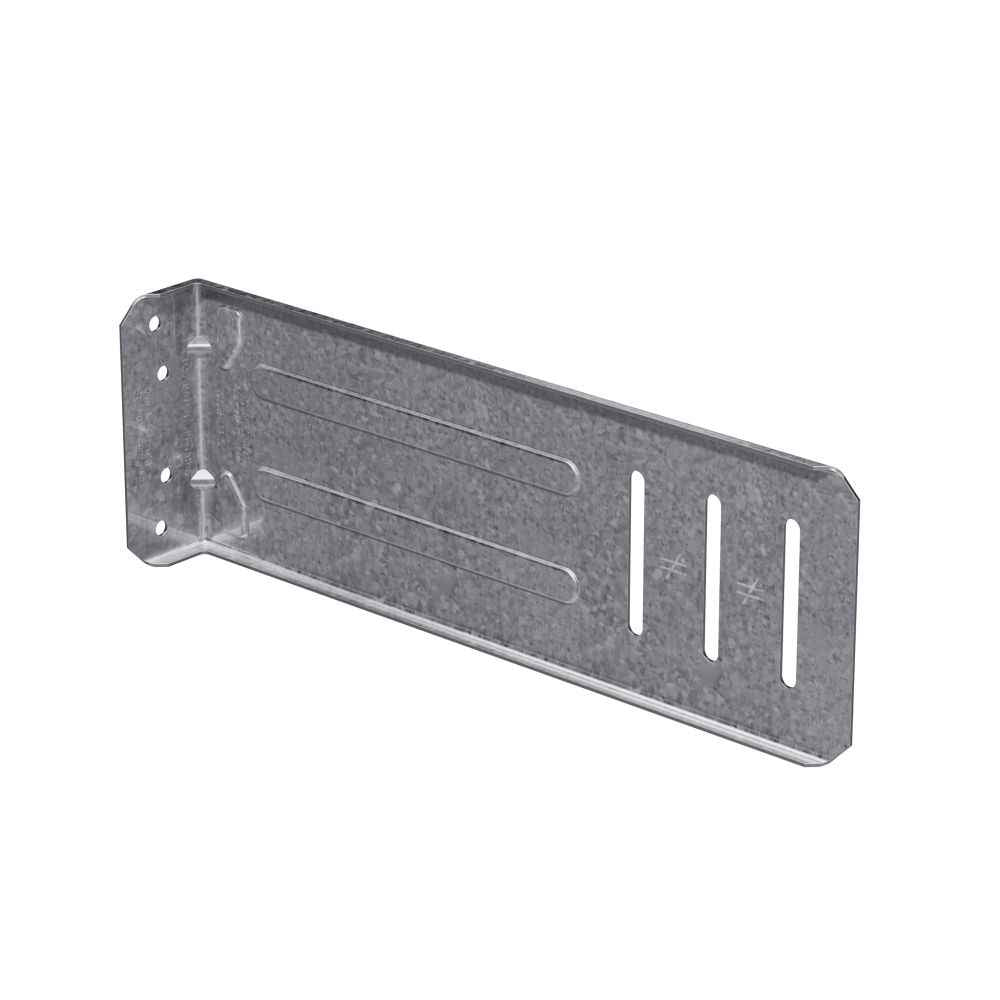

The SCB/MSCB slide-clip connectors are high-performance connectors for bypass framing applications designed to reduce design time and overall installed cost. Various anchorage methods have been tested, and the resulting allowable loads eliminate the need to design connector anchorage. The SCB/MSCB can accommodate applications that typically require two parts with a single connector, reducing material and labor cost. These connectors are manufactured in five different lengths to accommodate a variety of stand-off conditions and steel-stud sizes. The SCB411.5-KTbypass framing side-clip features a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

• Use the specified number of #14 shouldered screws (included). Install shouldered screws in the slots adjacent to the “No-Equal” stamp.
• Use a maximum of 1 screw per slot.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

-Use the specified number of #14 shouldered screws (included). Install shouldered screws in the slots adjacent to the “No-Equal” stamp.
-Use a maximum of 1 screw per slot.
