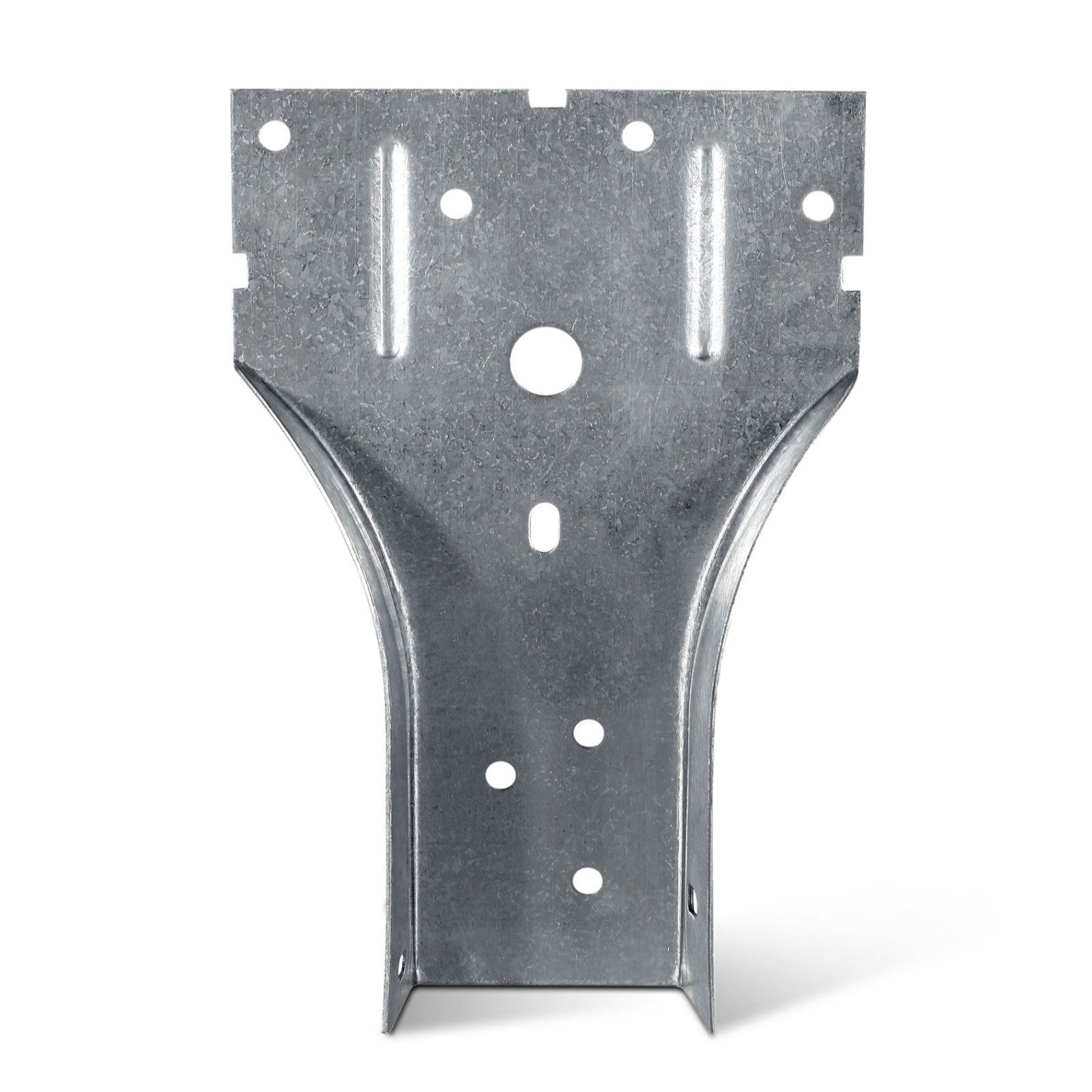

Simpson SP1Z 3-1/2" X 5-1/16" Stud Plate Tie - ZMAX Finish
Simpson SP1Z 3-1/2" X 5-1/16" Stud Plate Tie - ZMAX Finish
Regular price
$2.35
Sale price
$2.35
Regular price
Unit price
per
0% off
Description:
Description:
The SP stud plate tie is a plate-to-stud connection providing uplift resistance. Ideal for connecting studs plates at a ninety degree angle to provide additional support and strength. Stud plate ties are suitable for windy environments as the reinforced stud plates are protected from being pulled apart by high winds from hurricanes, tornados, etc. This unit attaches the stud to double top or double bottom plates stud for a low profile finish.

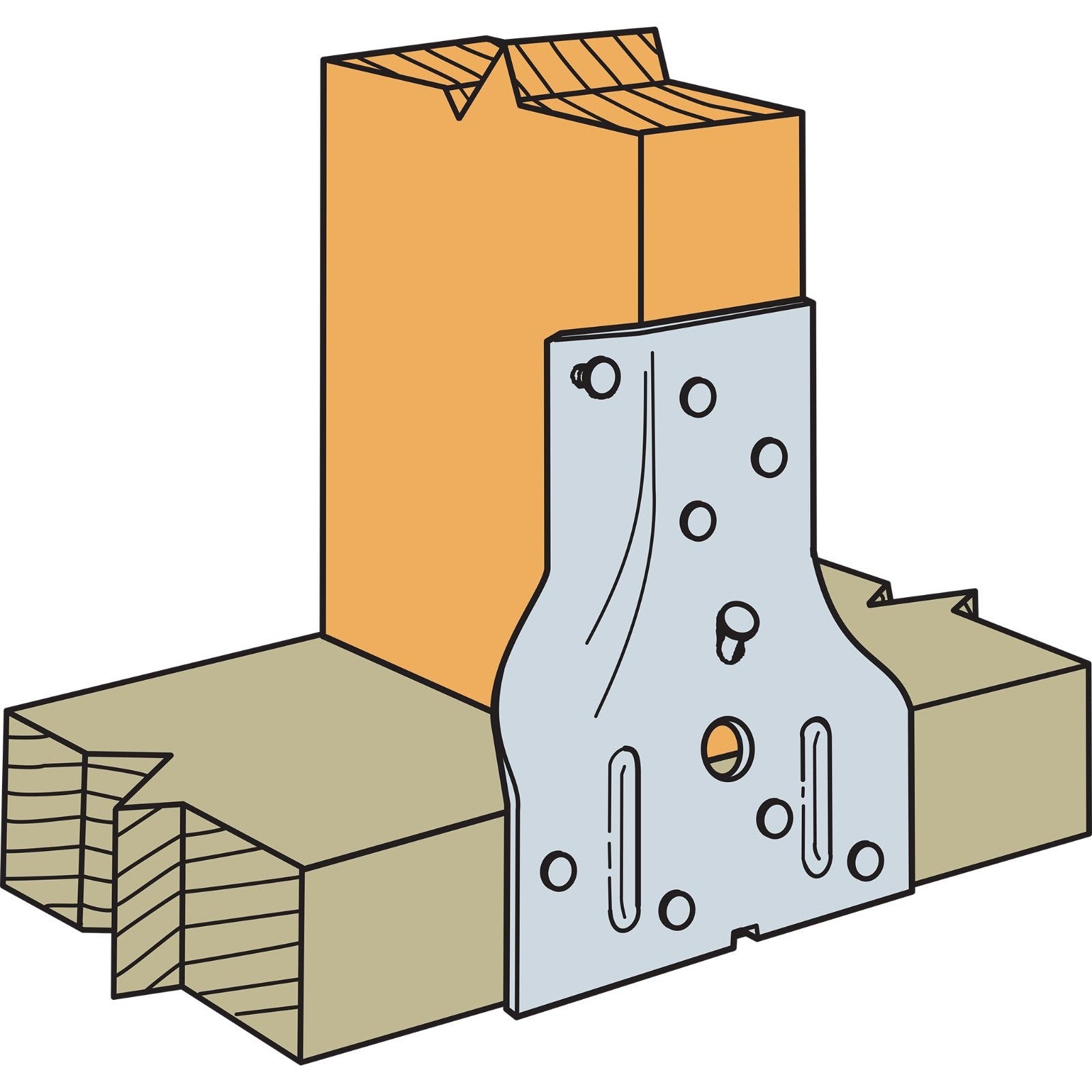

Installation:
Installation:
- Use all specified fasteners; see General Notes
- SP1/SP2 — one of the 0.148" x 3" stud nails is driven at a 45° angle through the stud into the plate
California Residents: WARNING
Specifications:
Specifications:
Material: Carbon Steel
Fasteners required: Stud - (6) 0.148" x 3" Nails Plate - (4) 0.148" x 3" Nails
Width: 3-1/2"
Length: 5-1/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Fasteners required: Stud - (6) 0.148" x 3" Nails Plate - (4) 0.148" x 3" Nails
Width: 3-1/2"
Length: 5-1/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
