Simpson SPS25344-KT Storm-Panel Screw 25 Pack - 302 Stainless Steel
Simpson SPS25344-KT Storm-Panel Screw 25 Pack - 302 Stainless Steel
Description:
Description:

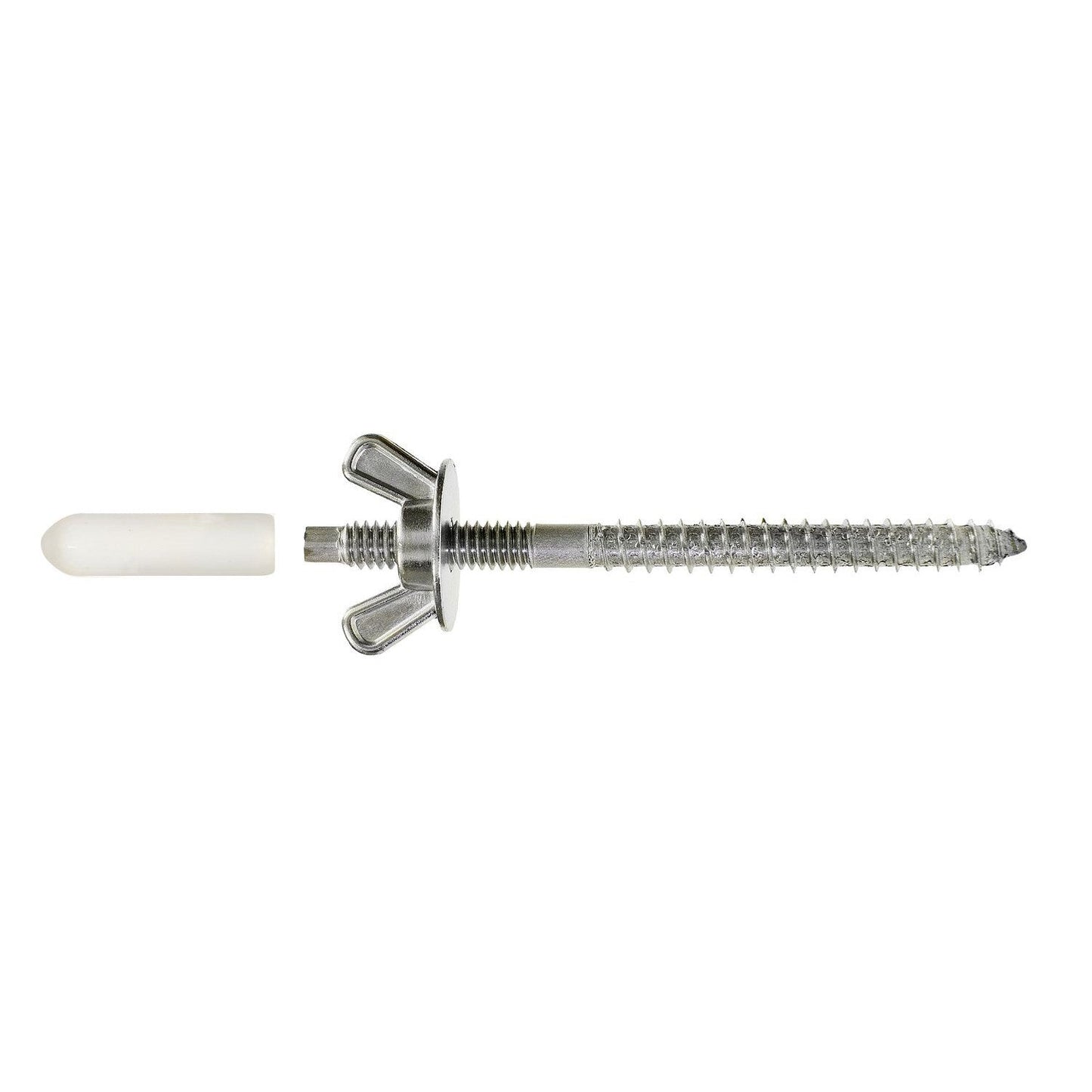

The Simpson Storm Panel Screw is ideal for attaching storm panels to wood, concrete and masonry saving time and money with its single installation. Whether you’re securing wood, drywall, concrete, steel or other materials, screws and nails are an integral part of every project. Each pack includes stainless-steel screws, zinc die-cast washered wing nuts, a hex driver bit, a 0.234" drill bit and white plastic caps for thread protection.
Specifications:
Specifications:
Drill bit size: 0.234" x 4-1/2"
Drive type: Hex-driver bit included
Quantity: 25
Diameter: 1/4"
Length: 3-7/16"
Manufacturer name: Simpson Strong-Tie

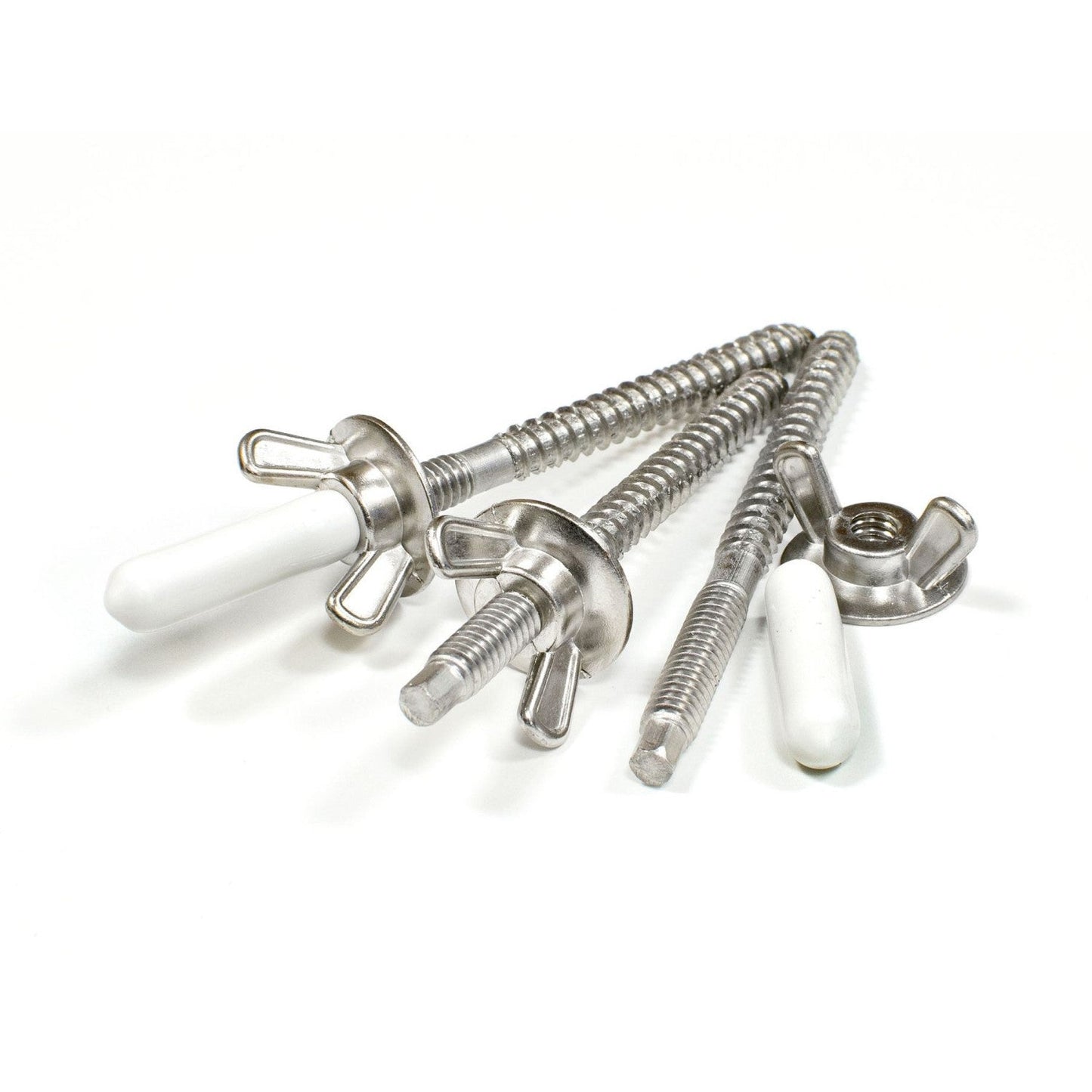

Additional information: Each Pack Contains: • (25) Stainless-steel storm-panel screws 1/4" x 3 7/16" • (25) 1/4" zinc die-cast washered wing nuts • (25) White plastic caps to protect threads after panels are removed • (1) Hex-driver bit for panel screw • (1) 0.234" x 4 1/2" carbide-tipped drill bit
Product Guide: View Spec Sheet
Installation
Installation
1. Drill a hole in the concrete or masonry base material using the drill bit provided. To predrill into wood, use a 3/16" bit (not included).
2. Drive the screw using the hex-driver bit (included). Drive the screw to fully embed the coarse-threaded shank such that the threaded stud for the wing nut is fully exposed.

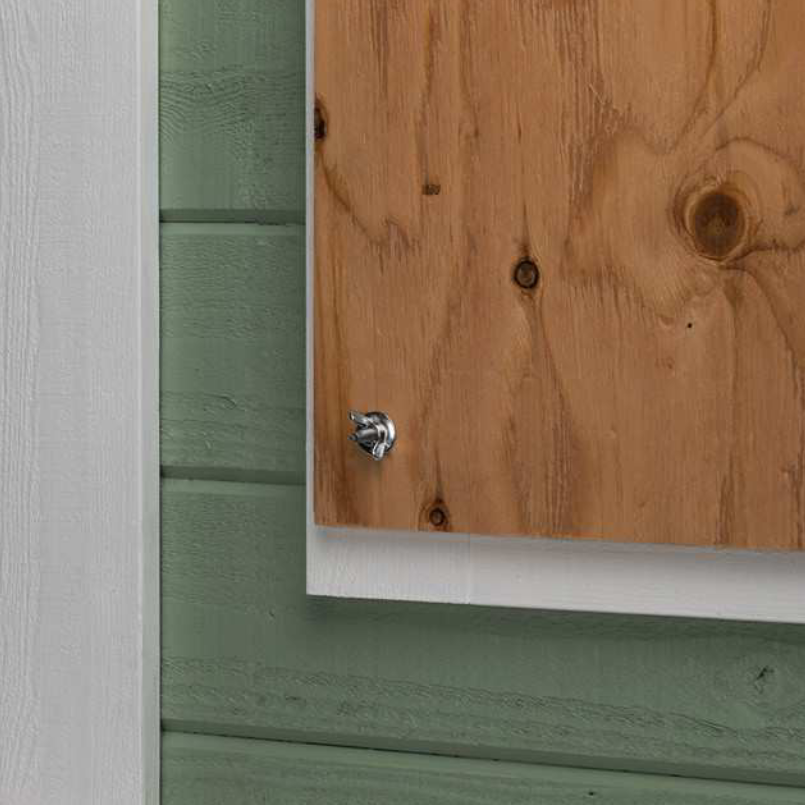

3. To secure panels: install the panel on the threaded stud and secure with the wing nut.
4. To remove panels: remove the wing nut, remove the panel, then cover the threaded stud with the plastic cap.
