Simpson Strong-Tie 3 1/2" x 6" Zinc Galvanized Steel Ledger Connector
Simpson Strong-Tie 3 1/2" x 6" Zinc Galvanized Steel Ledger Connector
Description:
Description:

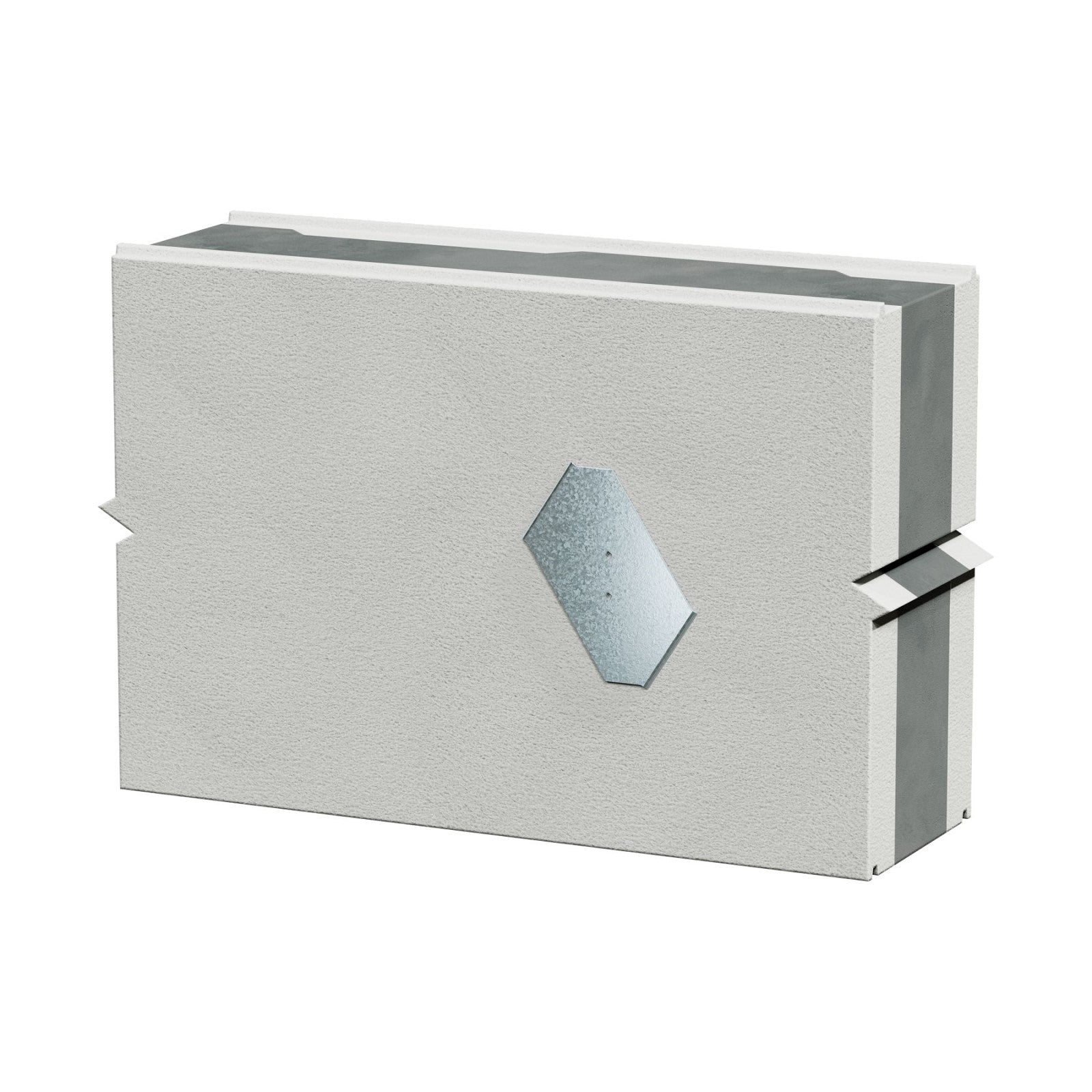

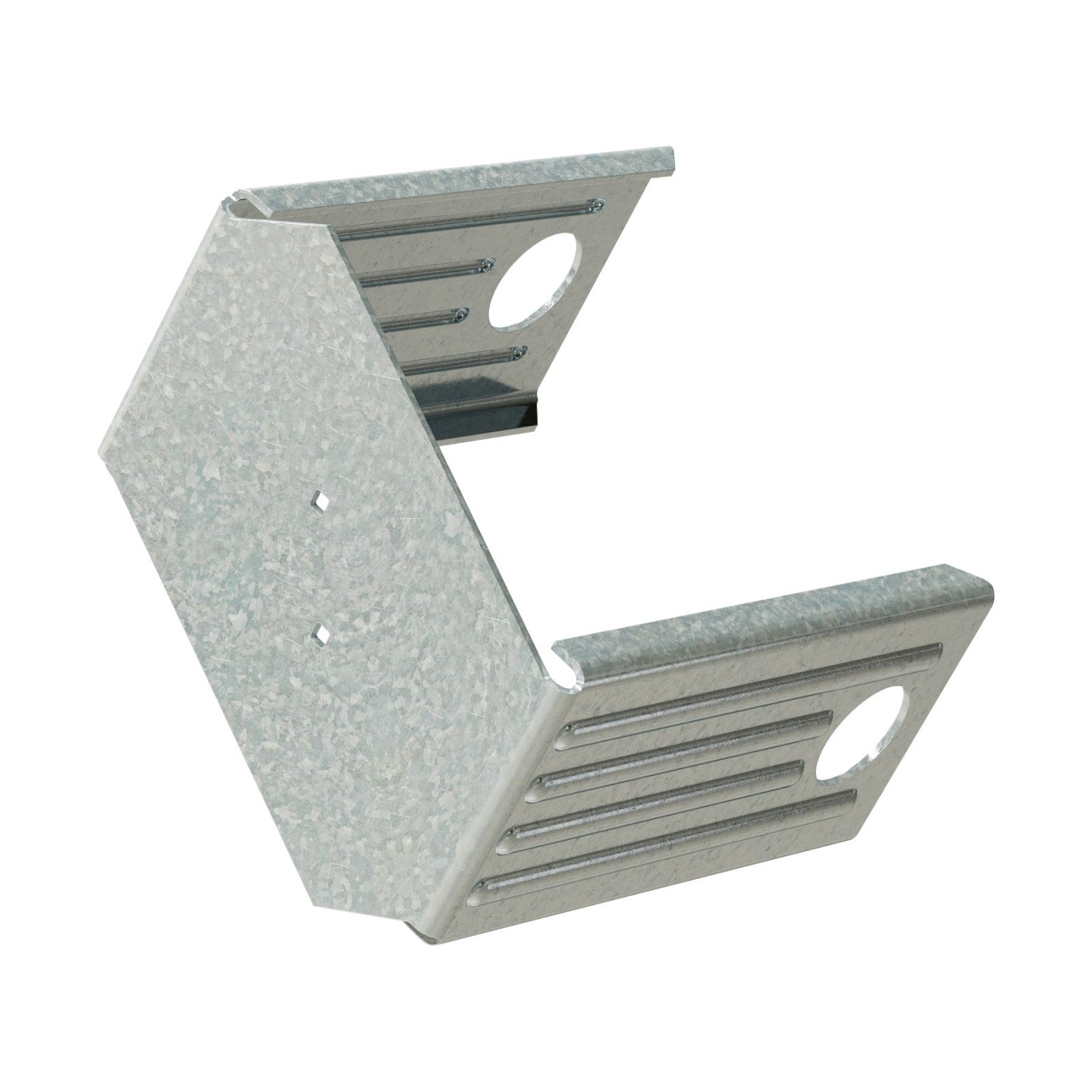

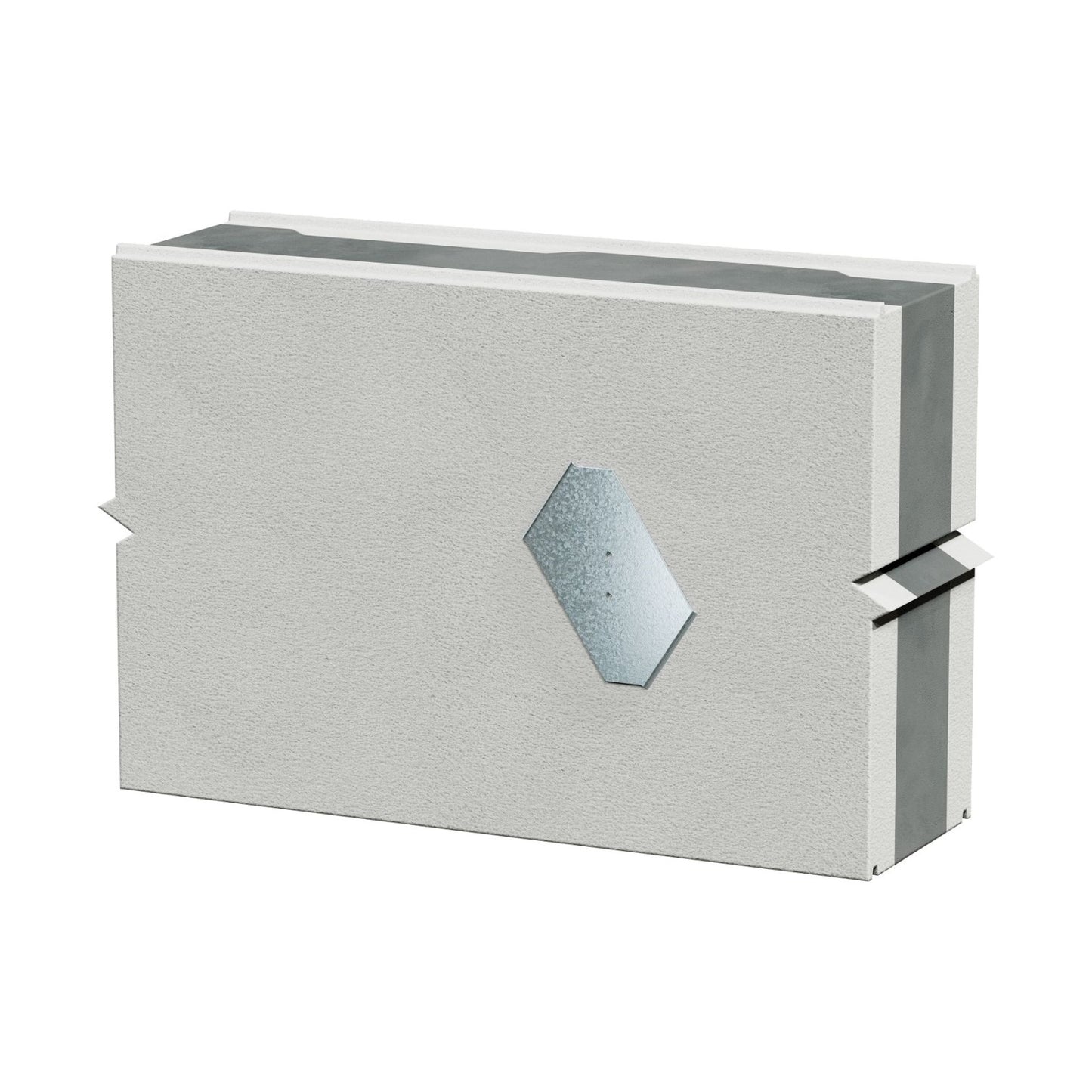

The ICFVL6 ledger connector system is engineered to address the challenges associated with attaching wood or steel ledgers to insulated concrete form (ICF) walls. The ICFVL6 supports a maximum ICF wall thickness of 3 1/4". This system is designed to deliver both vertical and lateral in-plane performance. The embedded legs of the ICFVL6 feature embossing for enhanced stiffness, and the strategically positioned hole facilitates the flow of concrete through and around the connector. Its advantages over traditional anchor bolting include improved on-center spacing in most instances, expedited installation, and a lack of protrusions. Also available in 8-inch, ICFVL8. For wood ledger applications, use ICFVL-W or ICFVL-CW.
Specifications:
Specifications:
Quantity: 1

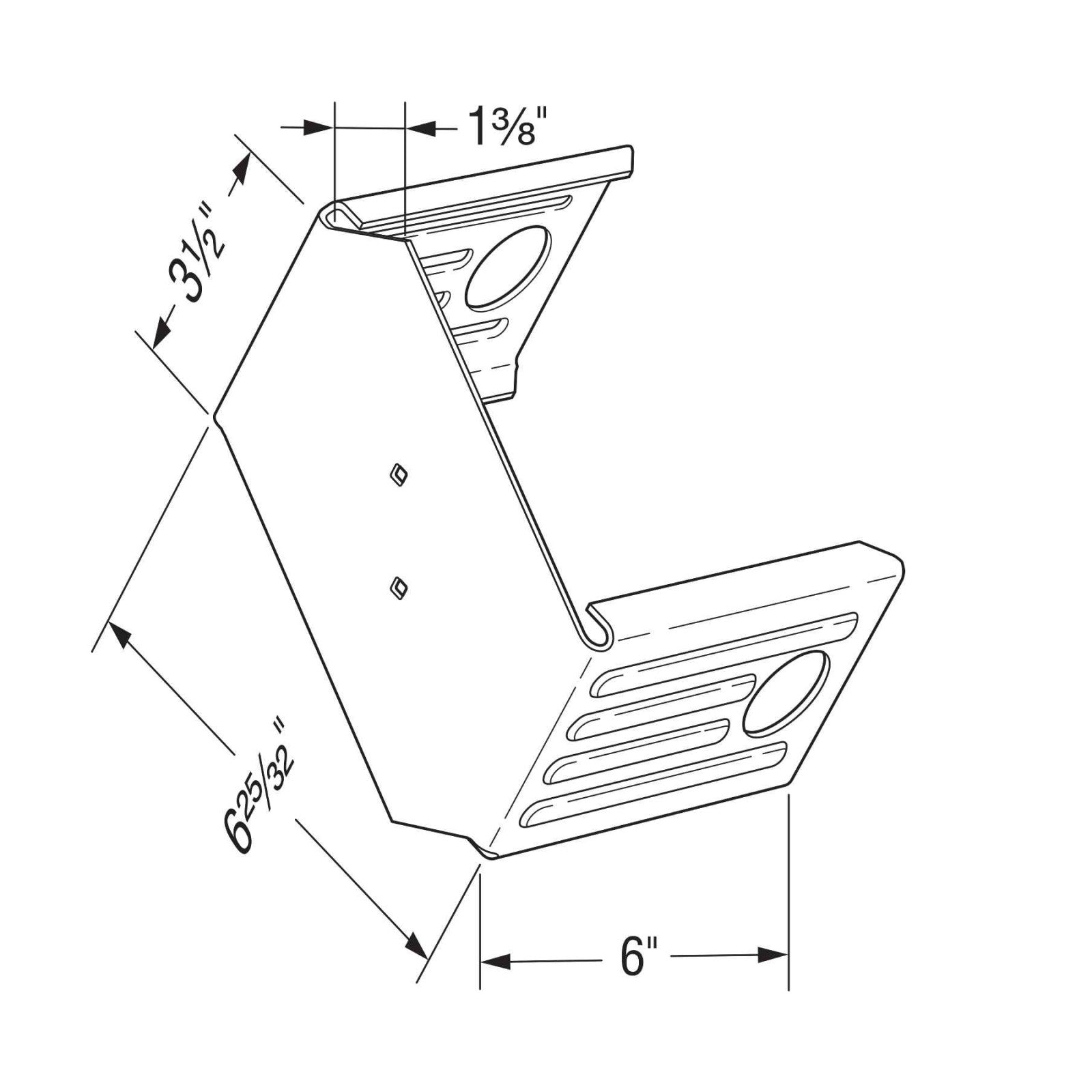

Width: 3-1/2"
Finish: G90 Galvanized
Length: 6"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
• For use with a minimum 4" thick core

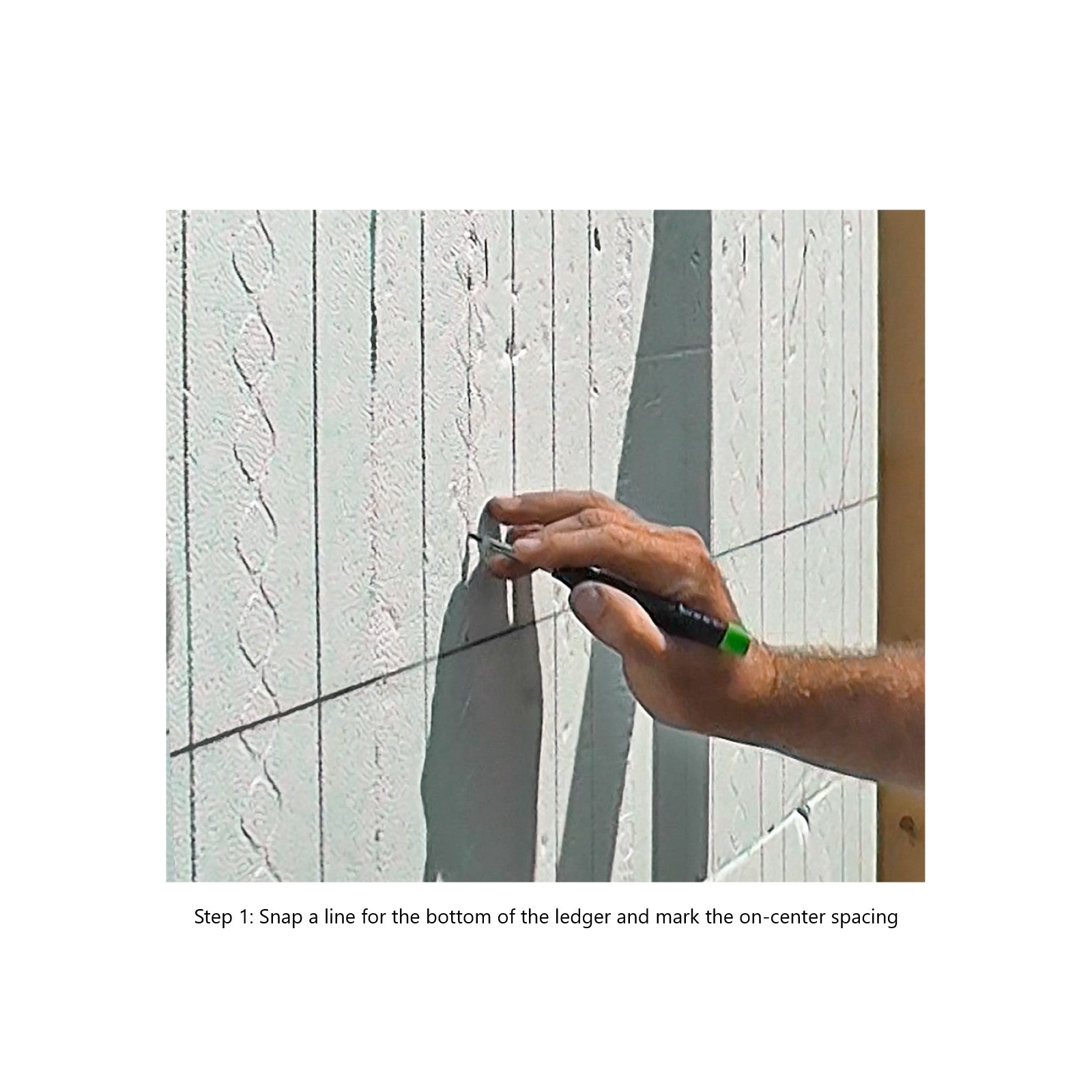

1. Snap a chalk line for the bottom of the ledger
2. Mark required on-center spacing

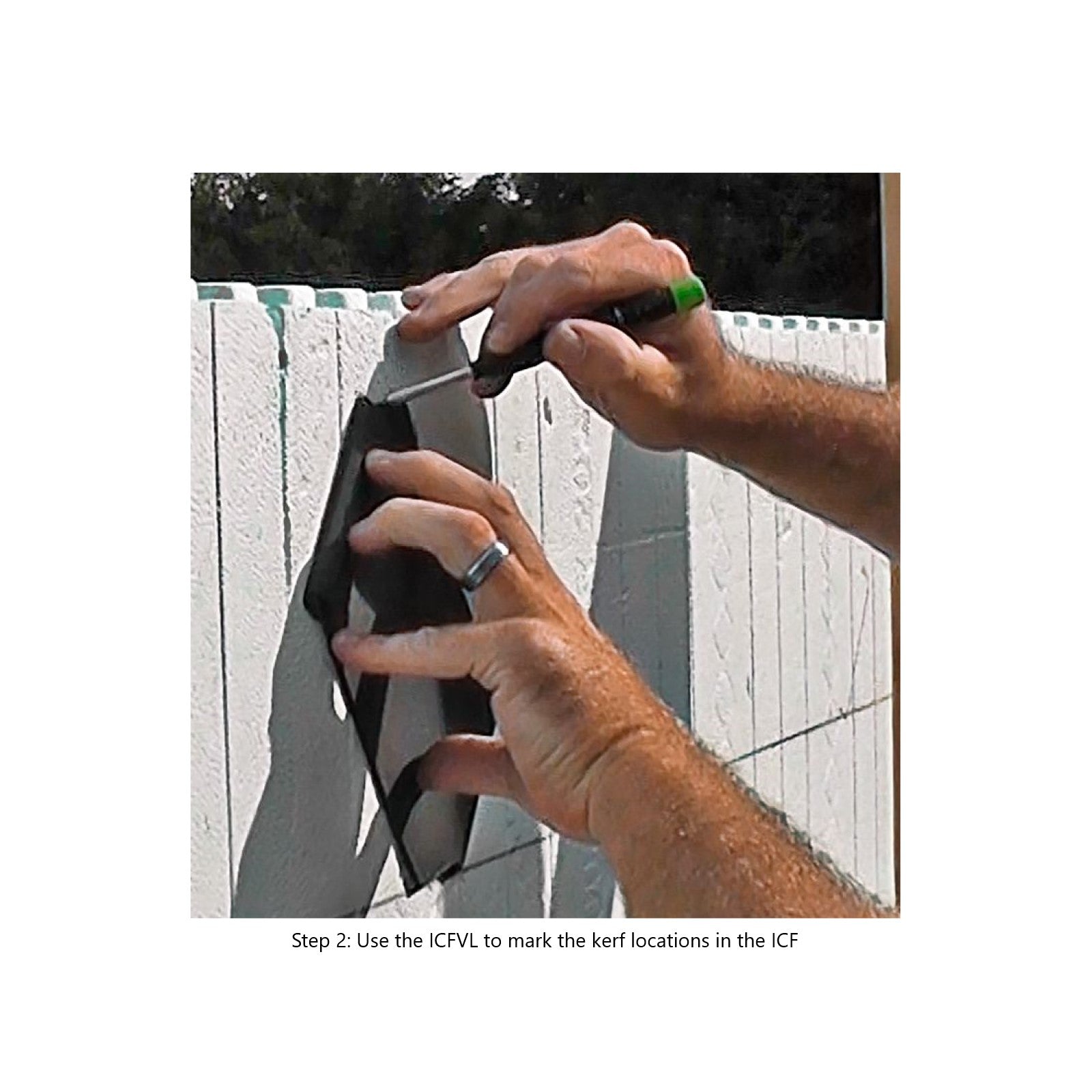

3. Use ICFVL to mark kerfs locations

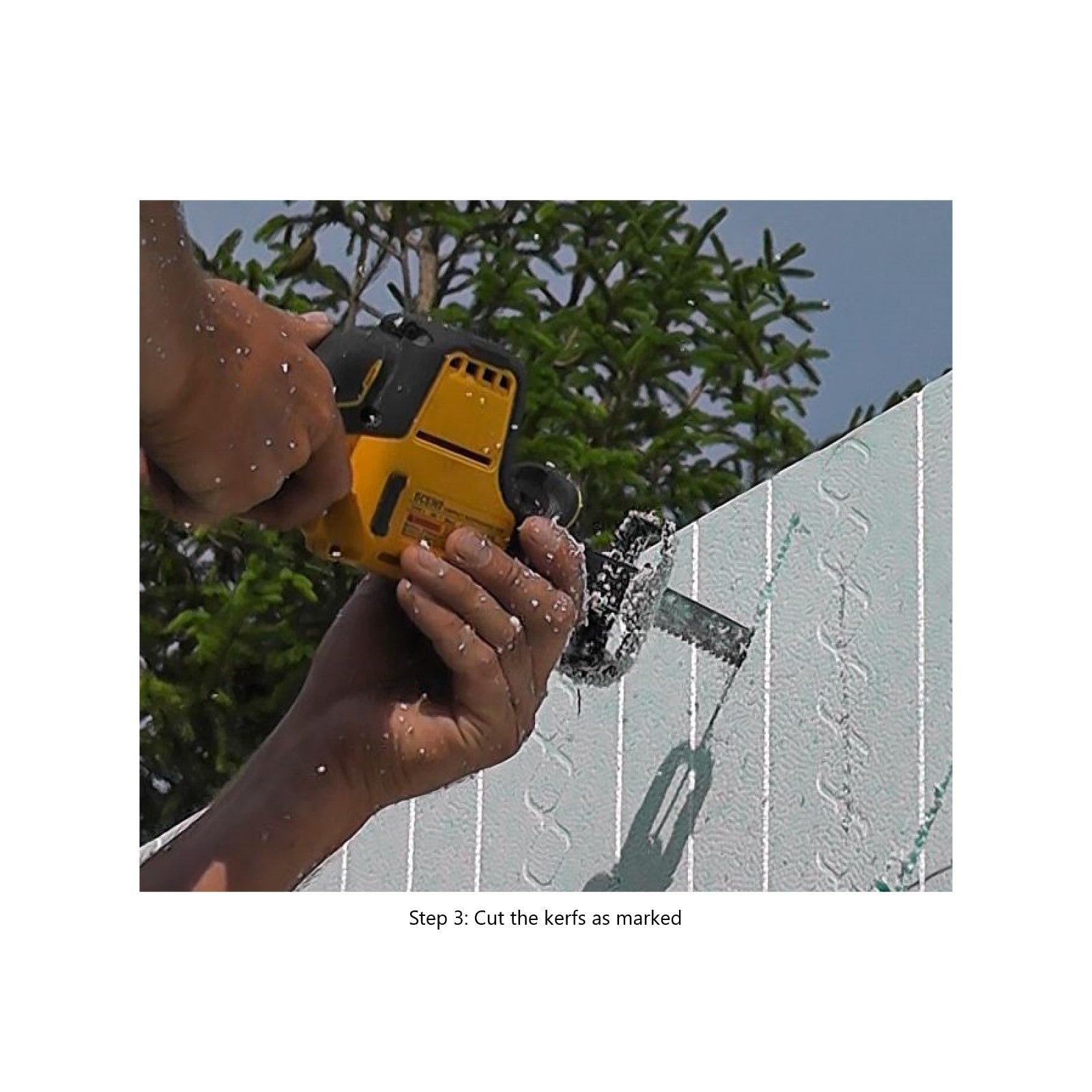

4. Cut kerfs as marked

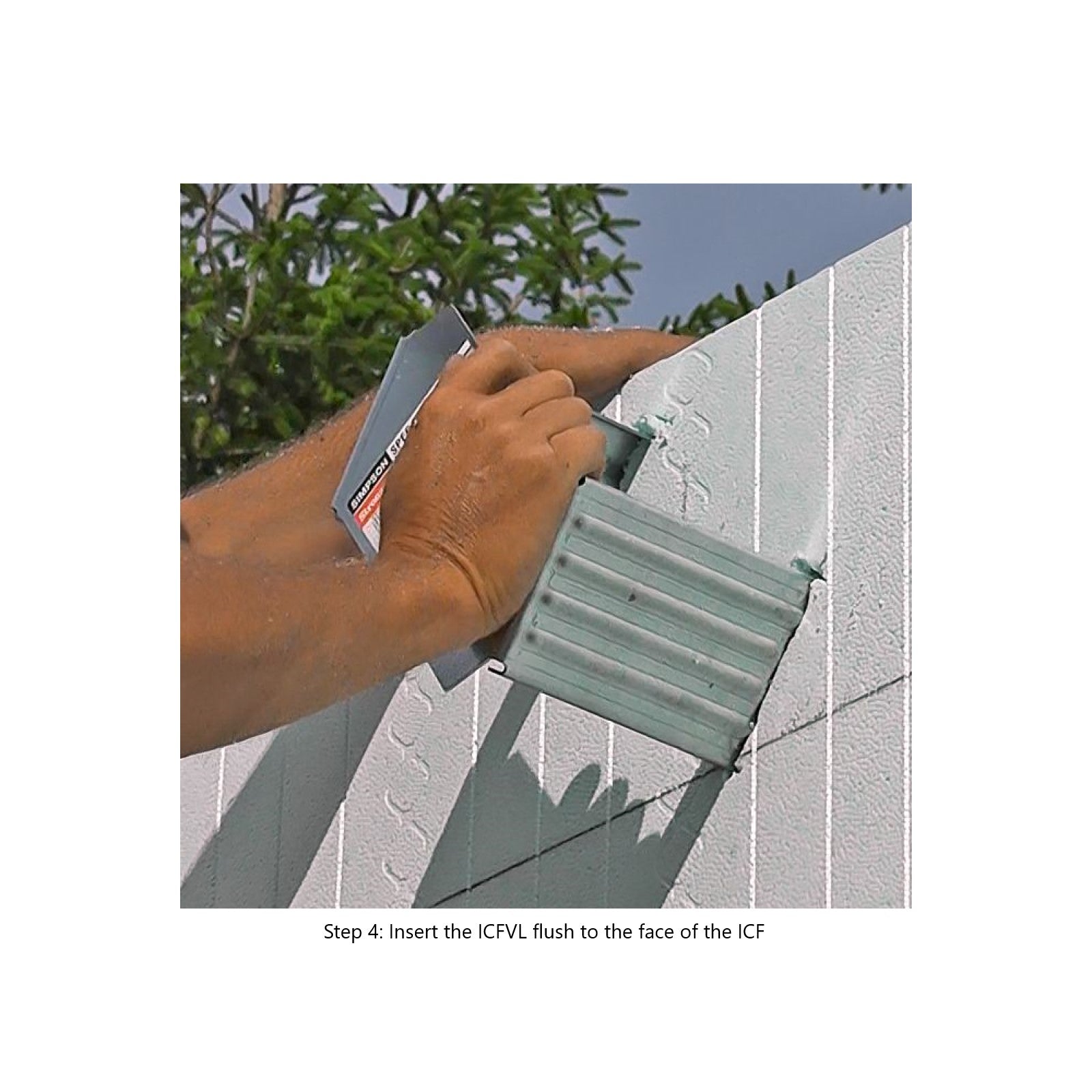

5. Insert ICFVL flush to the face of the ICF
6. Pour concrete
