SKU: CBSQ86-SDS2

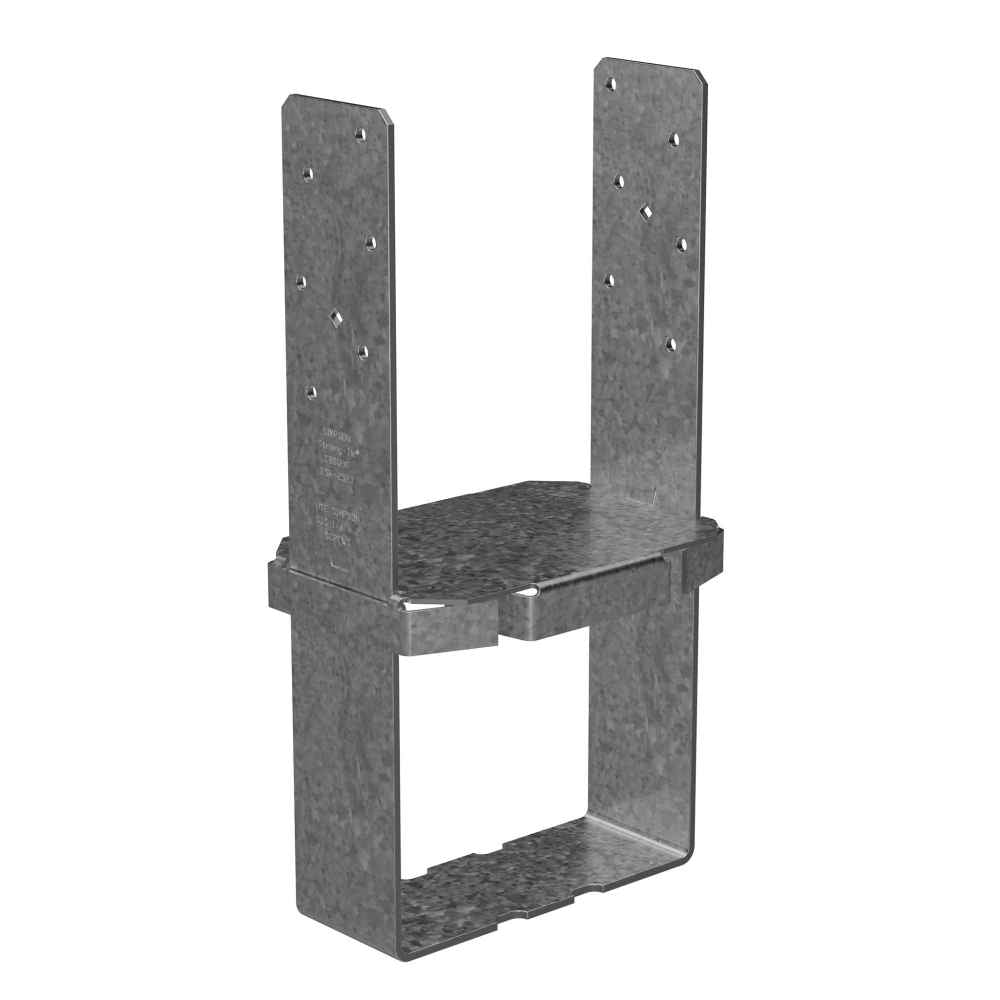

Simpson Strong-Tie CBSQ86-SDS2 Column Bases - Galvanized

Simpson Strong-Tie CBSQ86-SDS2 Column Bases - Galvanized!

Skip to product information
1 of 5

Continue Browsing

CBS/CBSQ Column Bases

$118.91

Request Bulk Pricing
Ships FREE today when you add 2 and order in the next 10 hours 29 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Heavy Gauge Steel
Column size: 8X6
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Post size: 6x8
Description

The Simpson Strong-Tie CBSQ86-SDS2 Column Bases - Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column base is designed to connect columns or posts to concrete foundations and distribute the structure's stresses to the foundation.

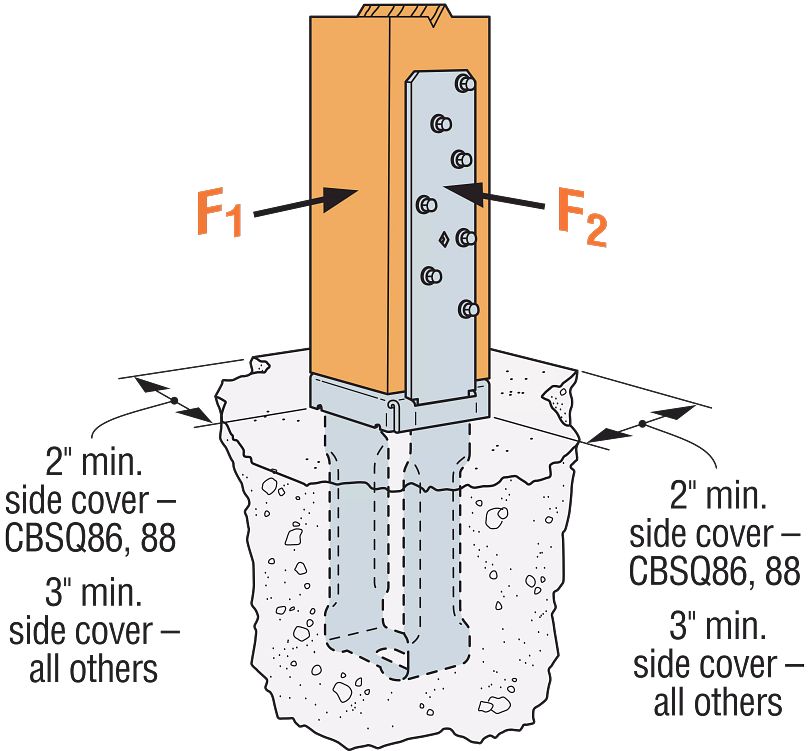

These connectors are cast-in-place or wet-set in concrete and feautre a 1" standoff to meet code requirements for structural posts installed in basements or outdoors.

This product is intended for use with 6x8 posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.

Features:

  • Connection Type: Designed to be cast-in-place or wet-set into concrete in order to connect columns to concrete foundations and provides a 1" standoff to meet building codes.
  • Lumber Size: Intended for use with 8x6 posts/columns.
  • Material and Finish: Made from Heavy Gauge Steel for durability and finished with G90 Galvanized coating.
  • Performance: This bases functions to transmit the structure's stresses to the foundation.
  • Quick Install: Includes Simpson Strong-Drive SDS screws for quick and easy installation while meating capacity requirements.

California Residents: WARNING

View full details

Continue Browsing

CBS/CBSQ Column Bases

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 3 reviews
33%
(1)
0%
(0)
33%
(1)
0%
(0)
33%
(1)
W
Weber
Heavy Duty Column Base

I got these because it was the about the only 6x8 column base I could find. I would have preferred a black Simpson Outdoor Accents base that would have looked a whole lot nicer but a black 6x8 base did not seem to exist. Fasteners Plus had (by far) the best price for what I did get but they were still very expensive. They seem to be very strong but I do have one big issue with them though. The standoff plates are not solidly attached to the rest of the base. Simpson simply put bends in the metal to hold them in place but they can, and do, easily slide around on the base. I would have welded them in place in a jig so each one was exactly like the other. I haven't installed them yet but it is going to make it that much more difficult to precisely set them in the concrete columns since I can't use the standoff plate as a reference. It's also not the only issue I've had with Simpson Strong-Tie. I also purchased Simpson Outdoor Accents T straps (from another vendor) and the holes drilled in them are not symmetrical about the strap. They are all offset in one direction. For example. if you take 2 of them and lie them on top of each other, the holes will only line up in on orientation. Flip one over and they are like a 1/4 inch off. Either this was intentional so opposing T strap screws would not contact each other or it was just poor quality control. I don't know which. In any case, the sloppy standoff connection doesn't allow me to give this column base more than 3 stars.

M
Michael Whiteside
5x8 Column Base

Fast delivery. Simpson products are unbeatable

D
Douglas Johnson
shipped late

I was told that these would ship same day and arrive the next day. The didn't ship for three days, I received them on the 4th day. No explanation was given.

Thank you for taking the time to provide us feedback and we are sorry to hear about your experience. Customer service is very important to us and we strive to provide all customers with a great experience. Please email your order number to our customer service team at customerservice@fastnersplus.com and we would be happy to look into this for you.
