Specifications

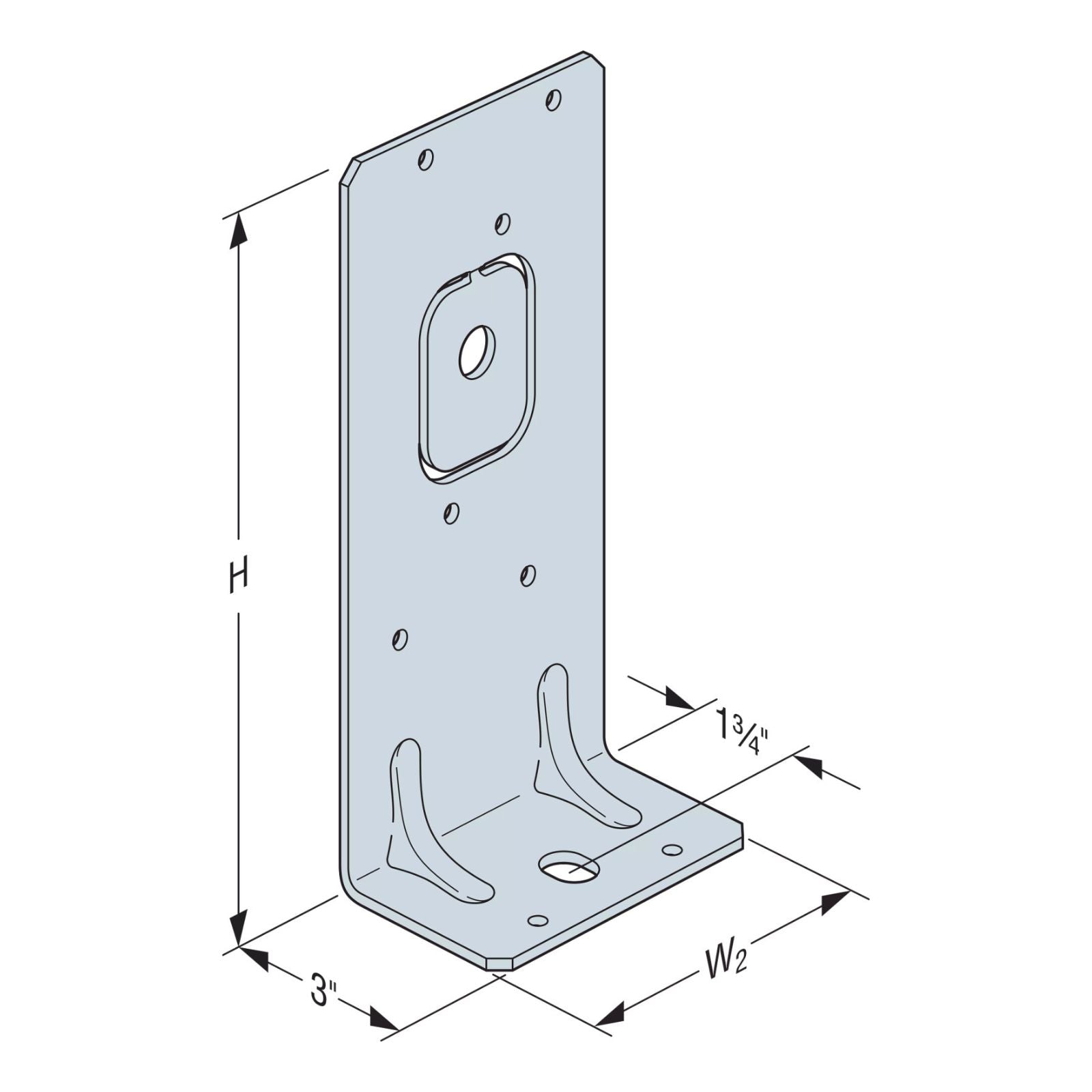

The Simpson Strong-Tie PFC Post Frame Column Angle delivers a strong, efficient connection between wood columns and concrete foundations in post-frame construction. Available with hot-dip galvanized or black powder-coated finish options, these heavy-duty post frame column brackets provide solutions for projects that require enhanced corrosion protection or a finished architectural appearance. The individual angle design eliminates the need for through-bolting and provides placement flexibility for standard, corner and retrofit installations, making the PFC a practical choice for pole barn anchor brackets, metal post holders and post-and-beam steel brackets.
Key Features
- Heavy-Duty Steel Design: Large corner embossments and edge stiffeners provide strength for tested uplift and lateral loads.
- Finish Options: Available with hot-dip galvanized or black powder-coated finishes to meet different environmental and appearance requirements.
- Faster Column Installation: Supplied Strong-Drive SDS Heavy-Duty Connector screws eliminate wood through-bolting.
- Code-Listed Performance: Tested for use in engineered post-frame foundation connections.
- Broad Column Compatibility: Offered in sizes for glulam, nail-laminated, planed nail-laminated and solid-sawn posts.
- Flexible Bracket Placement: Individual angles can support standard and approved corner configurations.
- Integrated Installation Details: Select models include removable built-in washers for more efficient anchor installation.
Applications
- Pole barn post bases and foundation connections
- Agricultural, equestrian and equipment-storage buildings
- Post-frame garages, workshops and commercial structures
- Metal brackets for post-and-beam construction
- Wooden post bases installed on concrete stem walls, slab edges or piers
- Post-frame concrete brackets for new construction and retrofit projects
- Visible connections where a black finished appearance is preferred
- Exterior or demanding environments requiring an appropriate corrosion-resistant finish
Installation

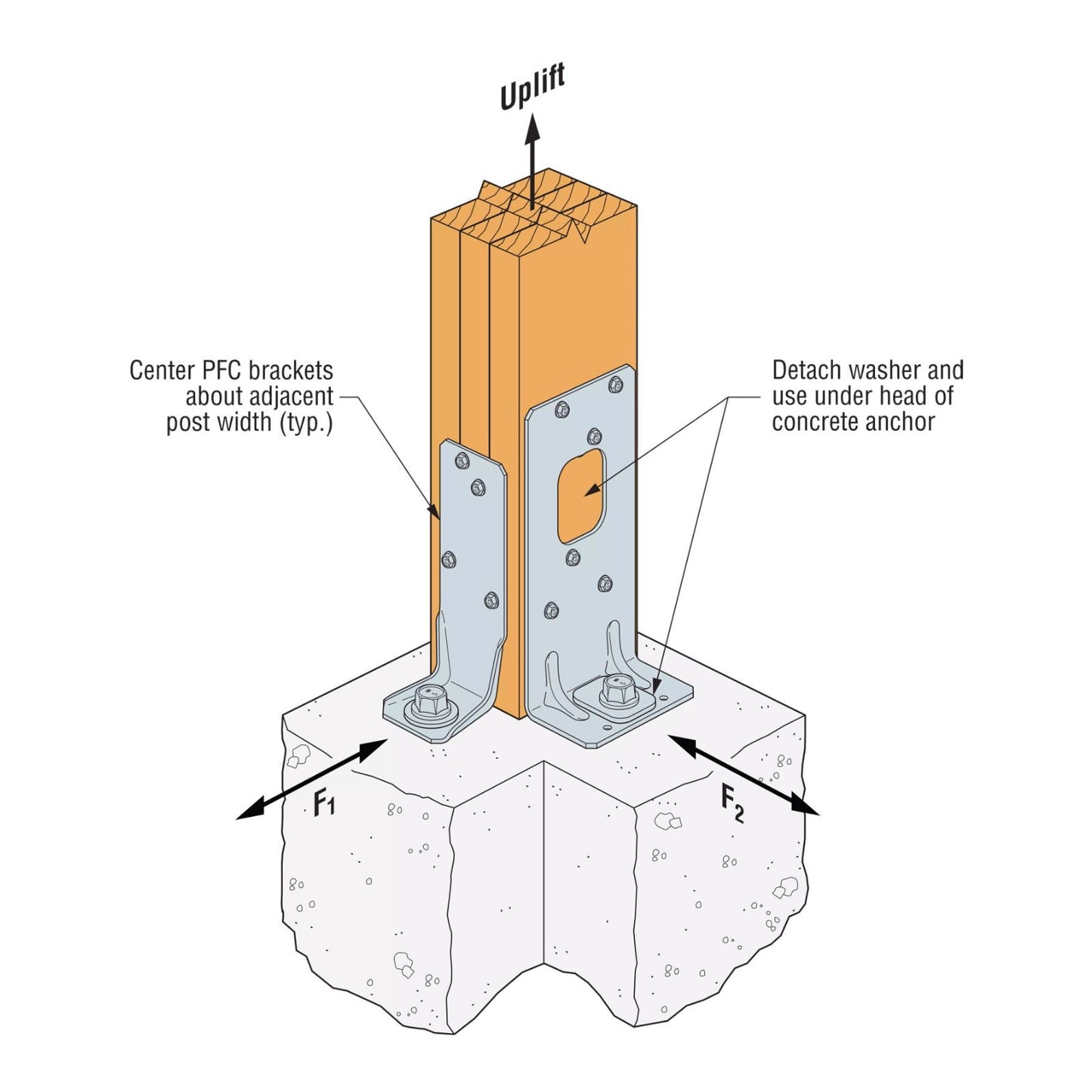

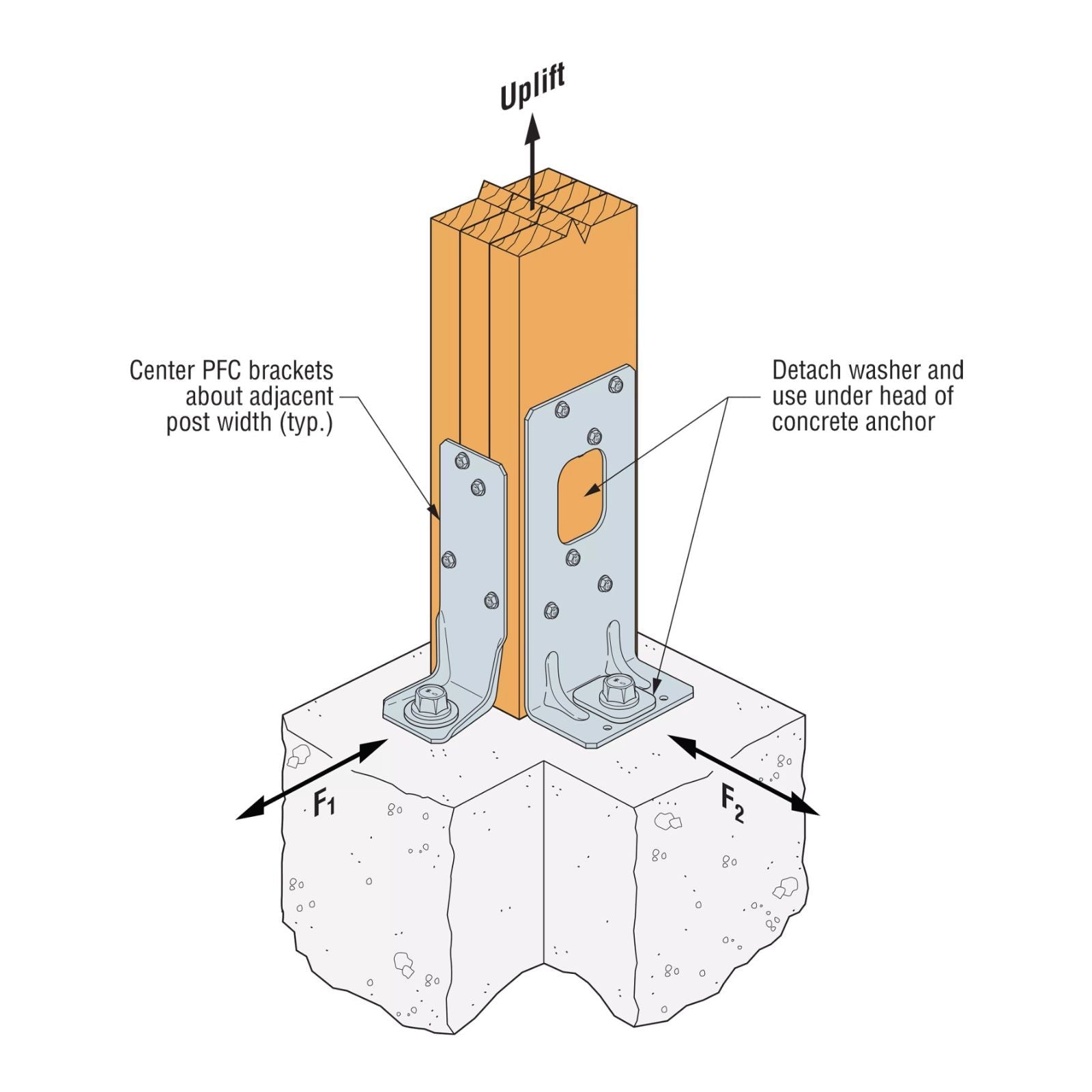

Use two PFC angles per column connection unless the project design and Simpson Strong-Tie documentation specify otherwise. Position the angles on opposite faces for a standard installation or follow the published corner-condition table when placing them on adjacent faces. Secure the angles to the wood column with all supplied Strong-Drive SDS Heavy-Duty Connector screws. Install the specified concrete anchors with the required washers, removing built-in washers where provided. Do not substitute fasteners, anchors or installation patterns without approval from the project designer. Select the finish based on the service environment, wood treatment, exposure conditions and desired appearance.
Consider internally linking this product to related pole barn hardware, concrete brackets for posts, post-and-beam connector plates and compatible concrete anchoring systems.
California Residents: WARNING
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie PFC5-SDS-X Post Frame Column Angle For 4x6/Multi-Ply 2x6 - Hot Dip Galvanized Or Black Powder Coat | Made To Order, Non-Returnable
My Cart:
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie PFC5-SDS-X Post Frame Column Angle For 4x6/Multi-Ply 2x6 - Hot Dip Galvanized Or Black Powder Coat | Made To Order, Non-Returnable
My Cart:
-
Faster Dry-Set Installation
Simpson Strong-Tie post frame connectors create a secure connection between wood columns and concrete foundations without requiring wet-set installation or through-bolting. Their jobsite-friendly design helps streamline column placement and provides convenient access for installing the specified concrete anchors.
-
Built for a Range of Post Frame Applications
Available in multiple configurations and sizes, PFC and PFCB connectors accommodate glulam, nail-laminated, planed nail-laminated, and solid-sawn wood columns. Heavy-gauge steel construction and reinforced corners provide dependable performance for demanding post frame connections.
-
Tested Strength You Can Build On
These connectors are tested and code listed for uplift and lateral load resistance, helping create a reliable connection at the base of the structure. They are well suited for pole barns, agricultural buildings, workshops, garages, storage buildings, and other engineered post frame projects.
-
