SKU: STB2-502346SSR25

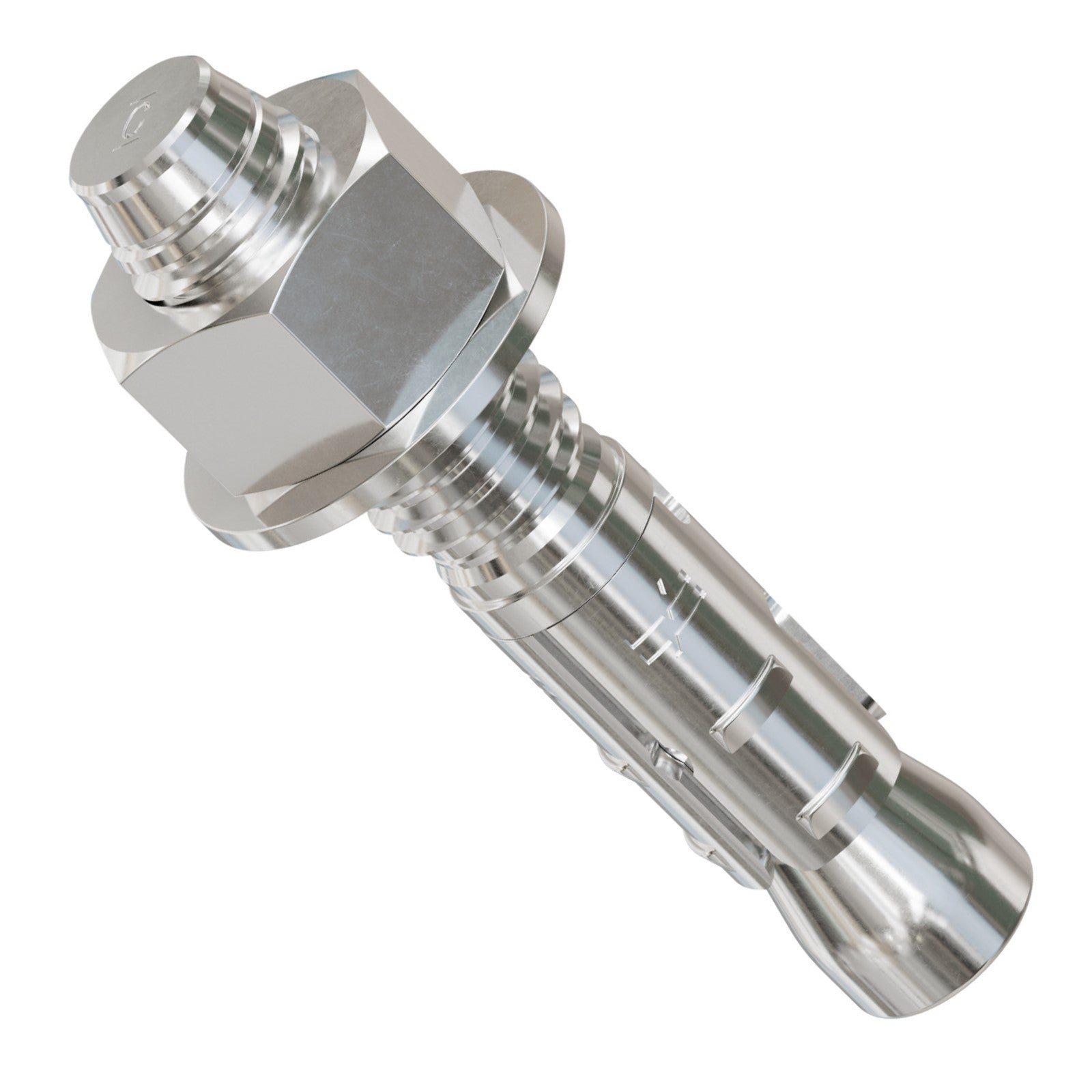

Simpson Strong-Tie Strong-Bolt 2 - 1/2" x 2-3/4" Type 316 Stainless Steel Wedge Anchor - Pkg 25

Name: Simpson Strong-Tie Strong-Bolt 2 - 1/2" x 2-3/4" Type 316 Stainless Steel Wedge Anchor - Pkg 25
Brand: Simpson Strong-Tie
SKU: STB2-502346SSR25
Price: 187.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Diameters

1/2" 5/8" 3/4"

Lengths

2-3/4" 3-1/2" 4-3/4"

$187⁹⁹

Ships today when you order in the next 34 minutes

Description

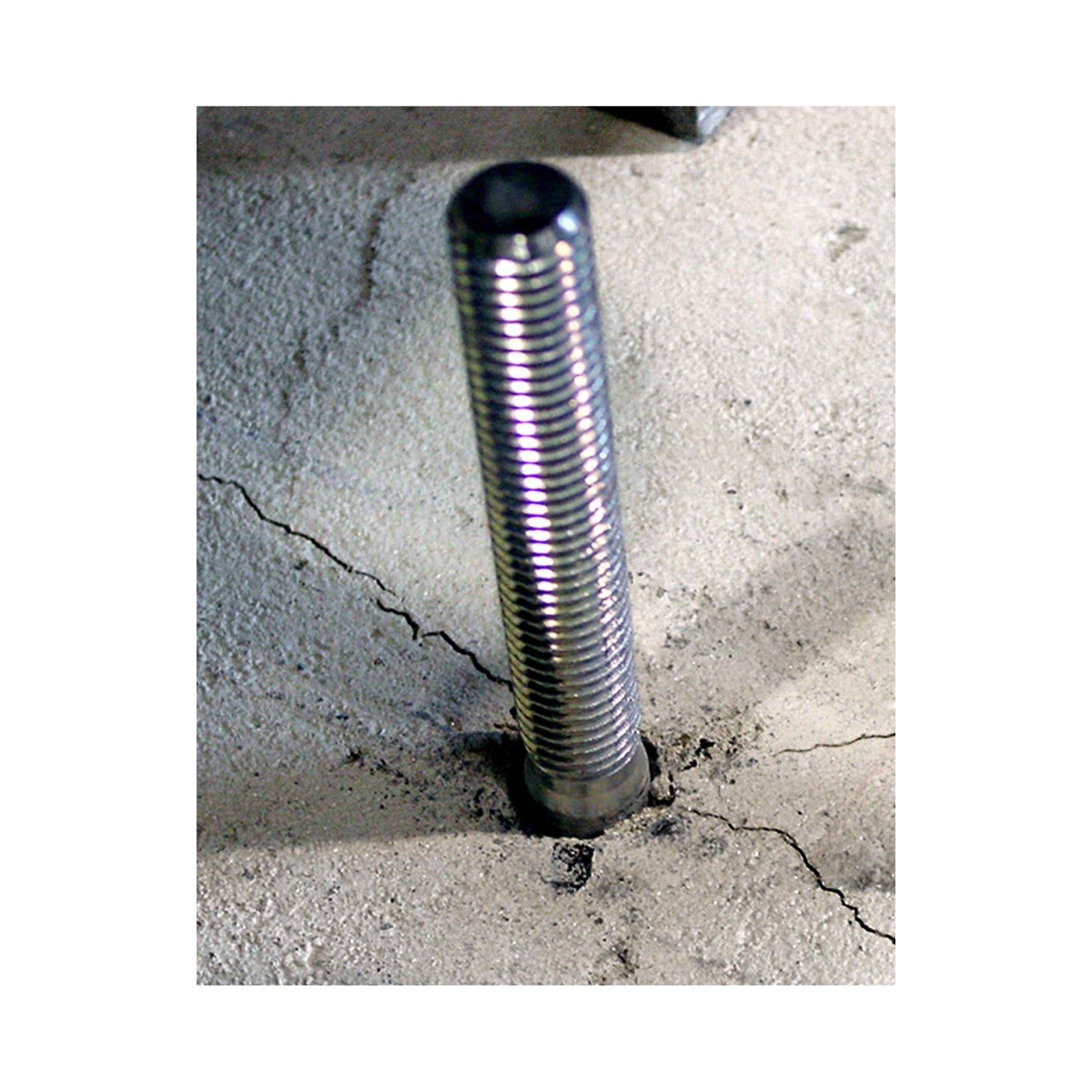

Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. Strong-Bolt 2 Wedge anchors are qualified for both static and seismic loading and suitable for horizontal, vertical and overhead applications.

California Residents: WARNING

Caution:

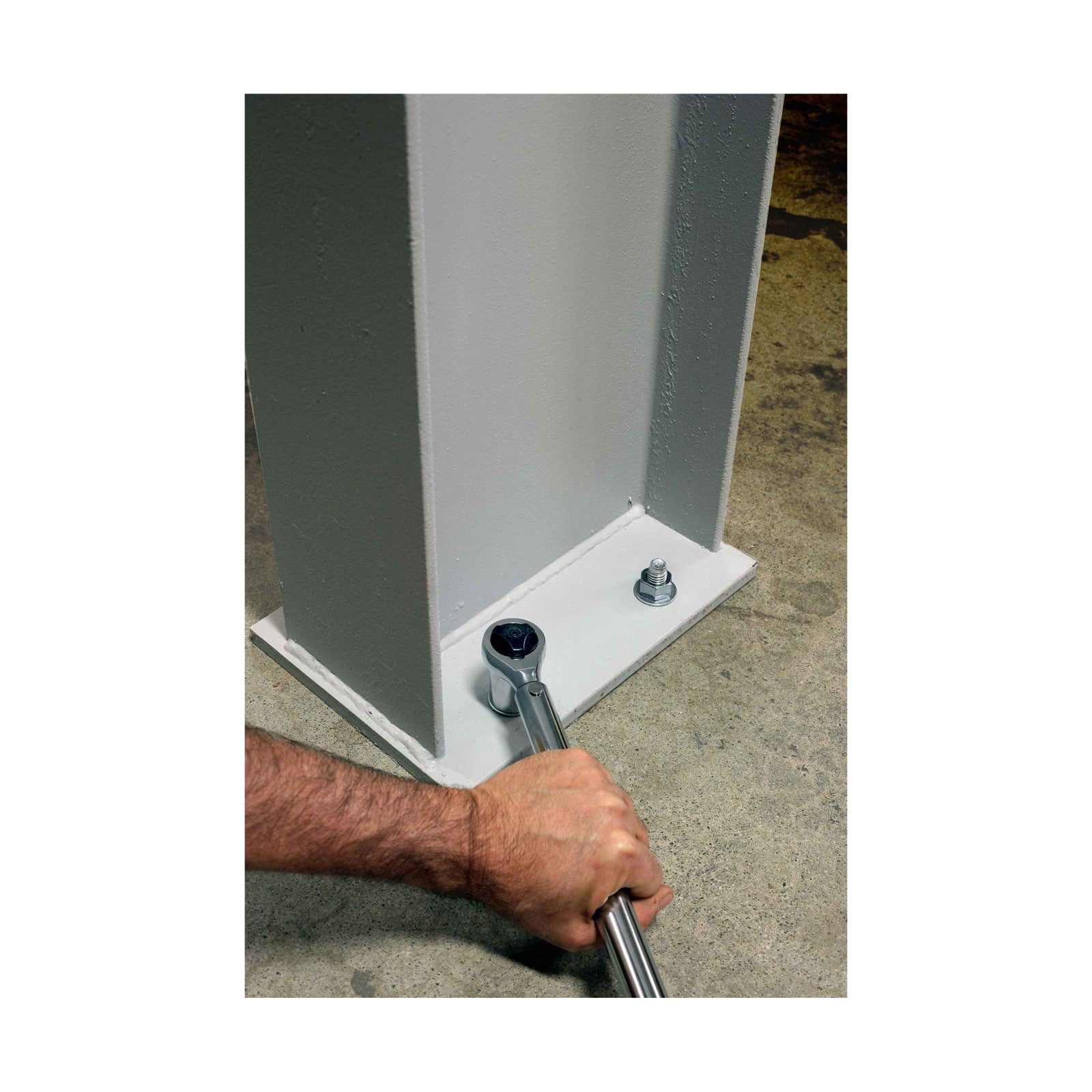

Do not use an impact wrench to set or tighten anchors

Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity

Mechanical Anchors from Simpson Strong-Tie — Innovative and Trusted

Specifications

Diameter: 1/2"

Length: 2-3/4"

Thread Length: 1-1/4"

Fixture Hole Size: 9/16"

Drill Bit Size: 1/2"

Material: Type 316 Stainless Steel

Installation Torque: 65 ft. lbf.

Manufacturer Name: Simpson Strong-Tie

Quantity: 25

Additional Info: Component Material Anchor Body: Type 316 Stainless Steel Nut: Type 316 Stainless Steel Washer: Type 316 Stainless Steel Clip: Type 316 Stainless Steel

View Spec Sheet

Technical Engineering Bulletin

Simpson Strong Bolt 2 ICC Certification - ESR 3037

Simpson Strong-Tie Limited Warranty

Reviews

(1)

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Continue browsing

Stainless Steel Wedge Anchors

Wedge Anchors - For Your Concrete Anchor Needs

Because they provide strong, permanent holds once installed, wedge anchors are a go-to choice in both commercial construction and industrial settings. Once seated properly in the concrete wedge anchors provide a strong and permanent hold.
Versatile Applications, Endless Possibilities

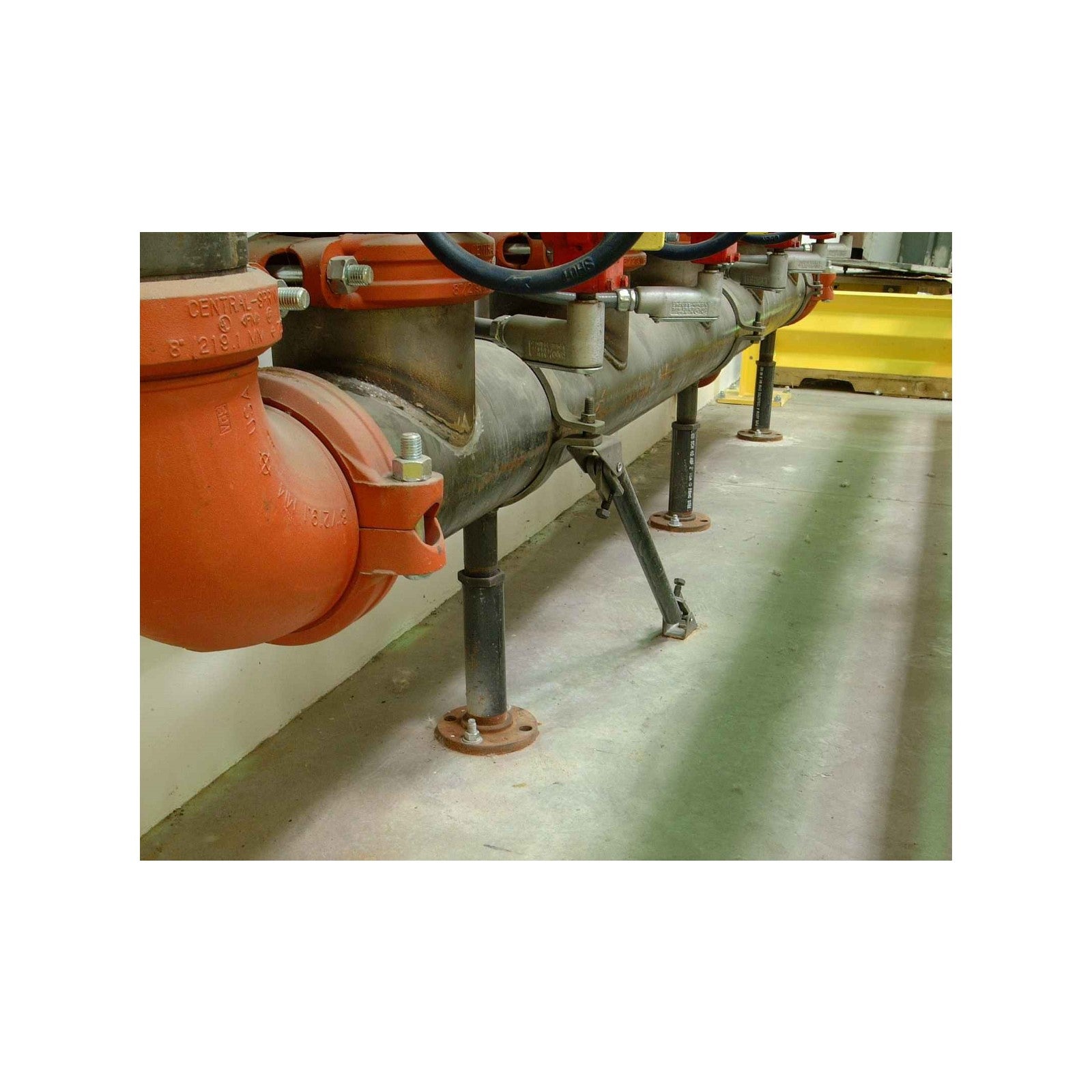

Offering a reliable design - featuring a threaded stud, expansion clip, and nut - making them suitable for a wide range of applications, from structural steel connections and machinery anchoring to shelving, racking and safety barriers.
Made of High Quality and Durable Materials

Concrete wedge anchors come in various materials, such as zinc-plated steel, stainless steel, hot-dip galvanized and mechanically galvanized versions, allowing for use in different environments, including those with moisture or corrosive exposure.
