Shop more Stainless Steel Wedge Anchors
SKU: STB2-754346SSR10

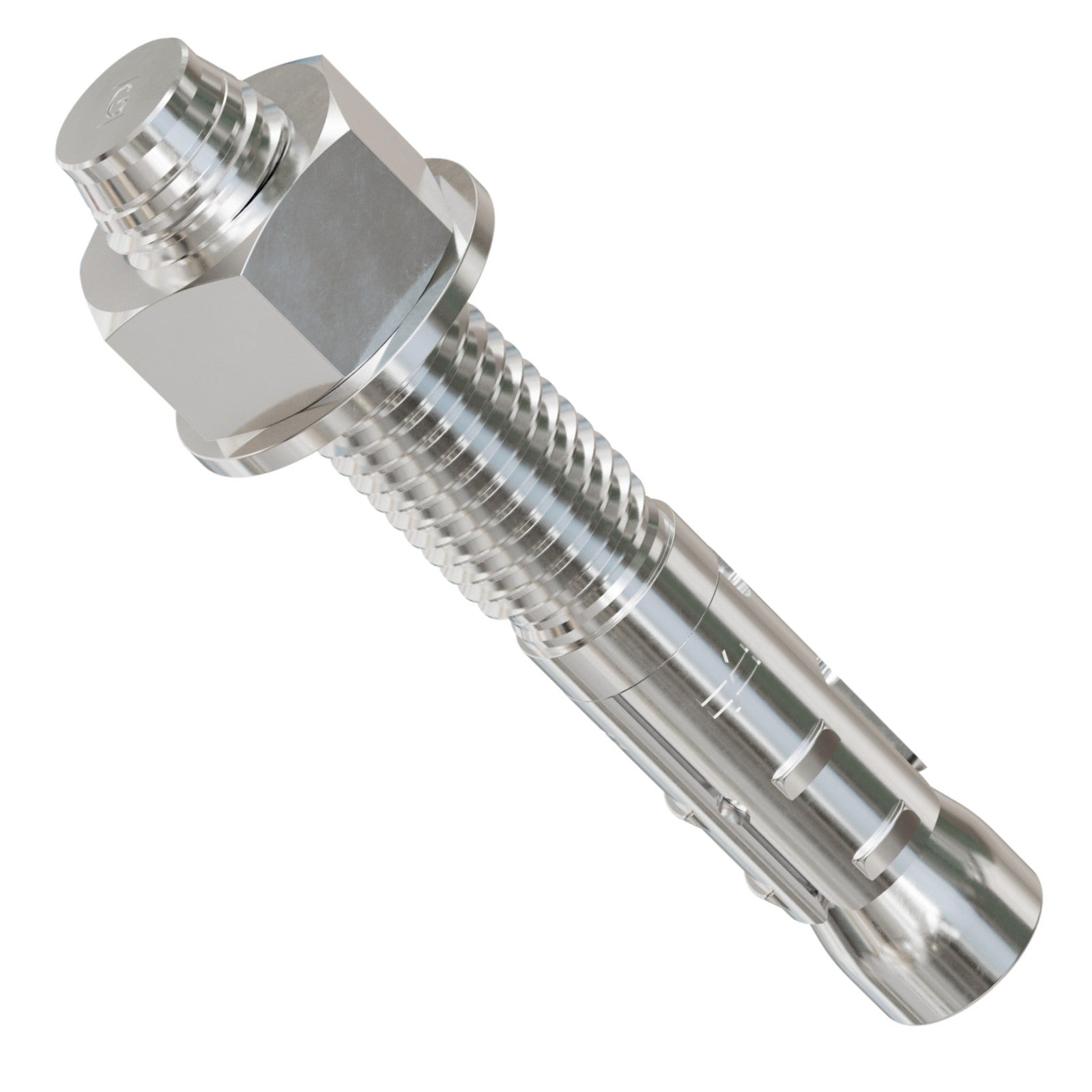

Simpson Strong-Tie Strong-Bolt 2 - 3/4" x 4-3/4" Type 316 Stainless Steel Wedge Anchor - Pkg 10

Simpson Strong-Tie Strong-Bolt 2 - 3/4" x 4-3/4" Type 316 Stainless Steel Wedge Anchor - Pkg 10

Regular price $169.85
Sale price $169.85 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships Jul 15 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. Strong-Bolt 2 Wedge anchors are qualified for both static and seismic loading and suitable for horizontal, vertical and overhead applications.

California Residents: WARNING


Do not use an impact wrench to set or tighten anchors

Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity


Material: Type 316 Stainless Steel
Installation torque: 150 ft. lbf.
Thread length: 2-1/2"
Fixture hole size: 7/8"
Drill bit size: 3/4"
Quantity: 10
Length: 4-3/4"
Manufacturer name: Simpson Strong-Tie
Additional information: Component Material • Anchor Body: Type 316 Stainless Steel • Nut: Type 316 Stainless Steel • Washer: Type 316 Stainless Steel • Clip: Type 316 Stainless Steel
Product Guide: View Spec Sheet


1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.

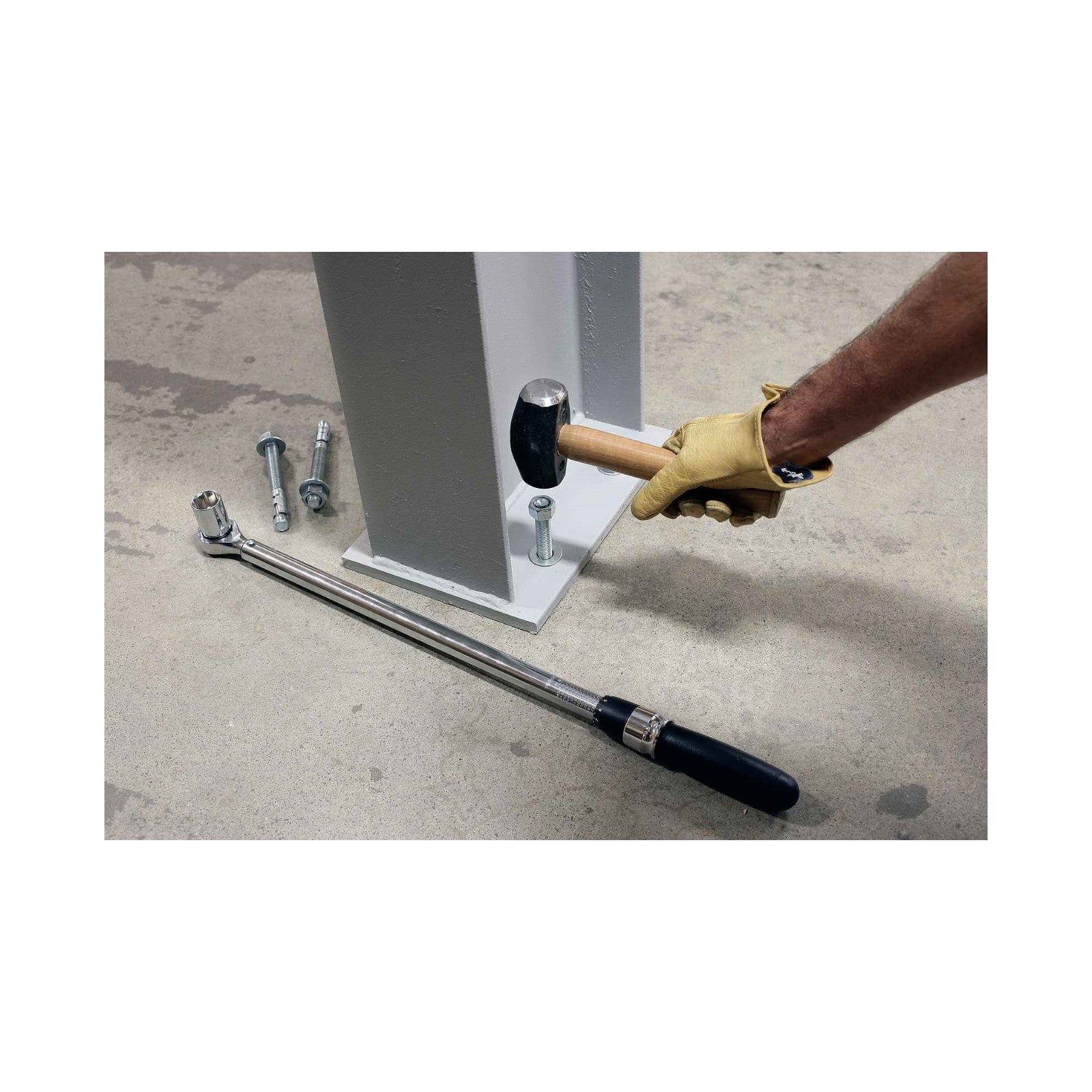

2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

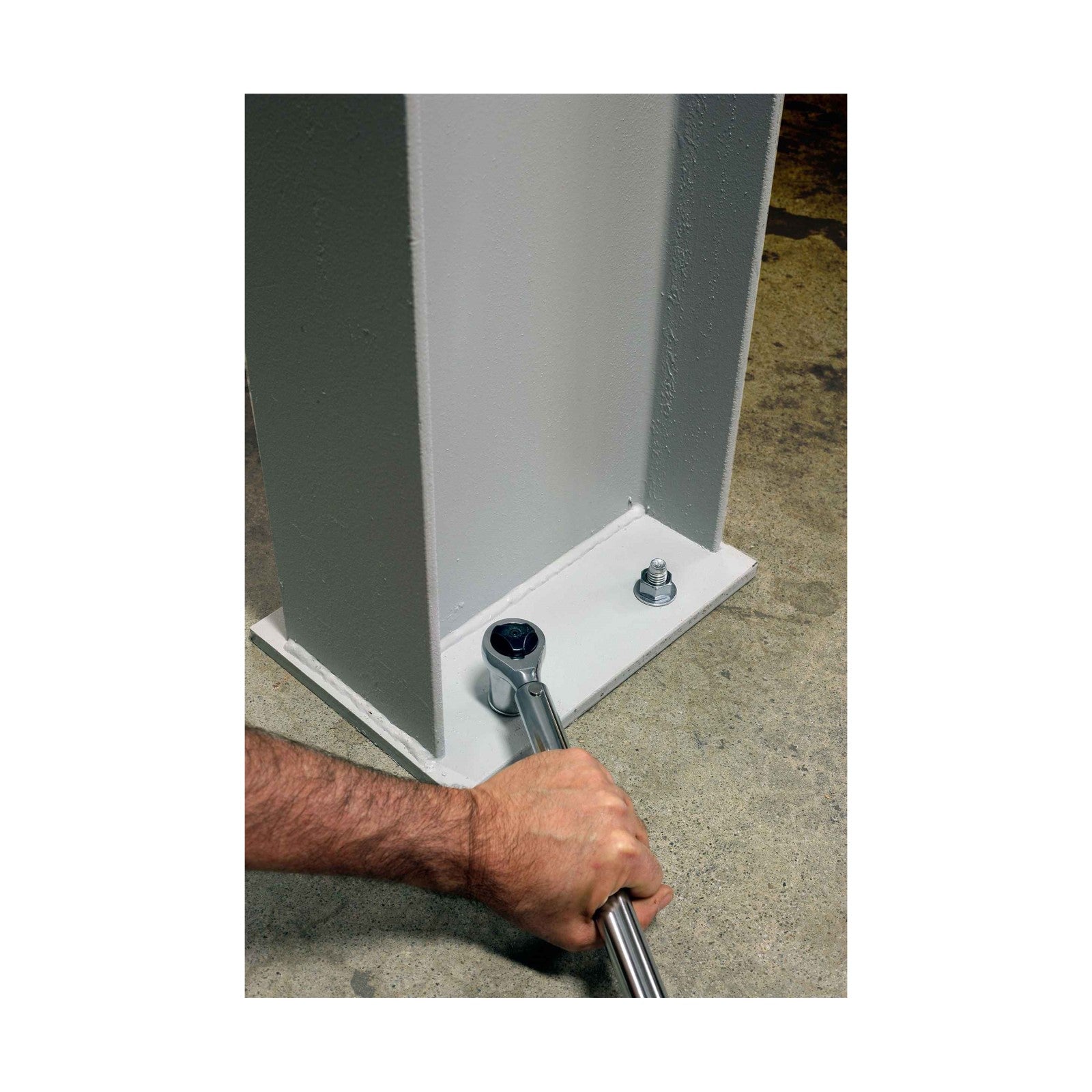

3. Tighten to the required installation torque.
