Shop more THGQ/THGQH/HTHGQ Truss Girder Hangers
SKU: THGQH7.25-SDS

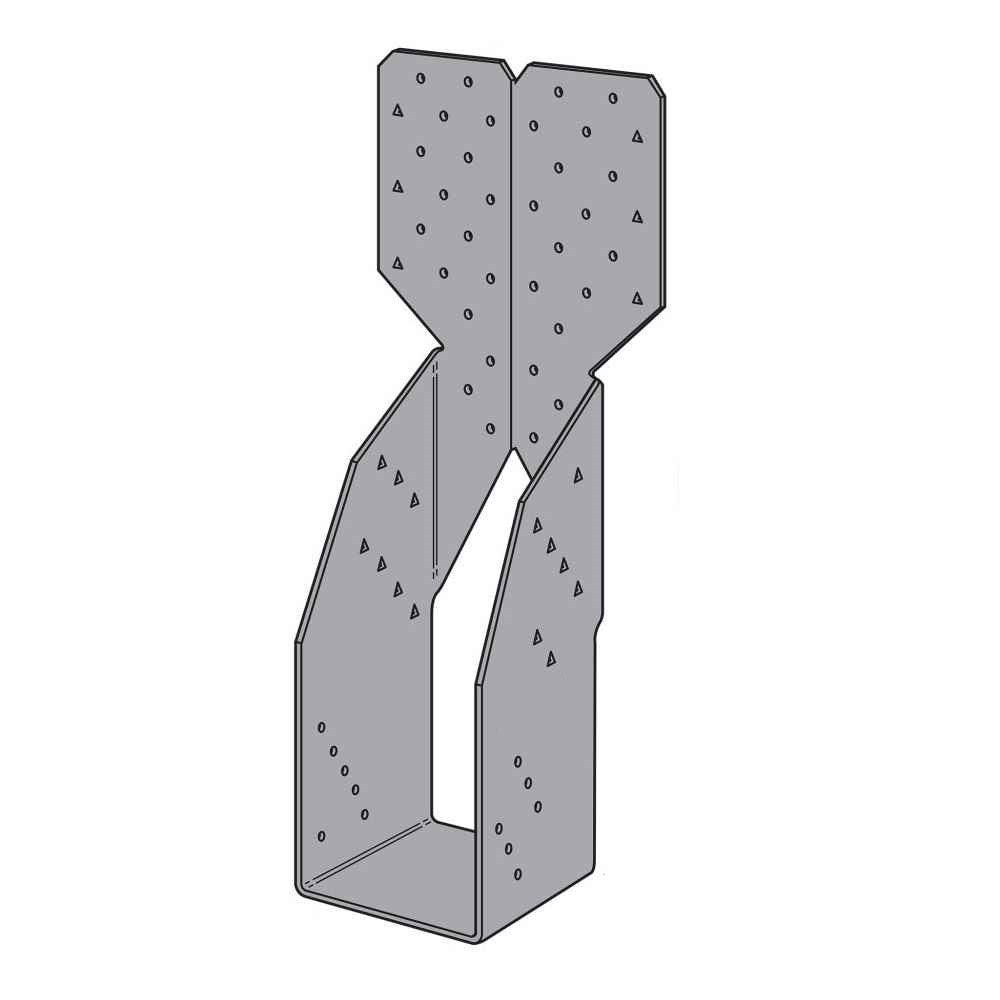

Simpson THGQH7.25-SDS Truss Girder Hanger W/SDS Screws - Gray Painted

Simpson THGQH7.25-SDS Truss Girder Hanger W/SDS Screws - Gray Painted

Regular price $321.07
Sale price $321.07 Regular price
0% off
shipping truck, lead time icon
Ships Mar 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Simpson THGQ truss girder hangers are a lower cost alternative to bolted hangers, the THGQ and THGQH hangers for multi-ply girder trusses use Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities and easier installation compared to bolts. The Strong-Drive SDS Heavy-Duty Connector screws help transfer the load between the plies of the supporting girder when they penetrate all plies. THGQ and THGQH models offer minimum and optional maximum fastener quantities to accommodate varying design needs. Allowable loads for various girder web member sizes provide additional installation options.


Installation:
  • Use all specified fasteners.
  • Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Strong-Drive SDS Heavy-Duty Connector screws supplied for all round and triangle holes. Installation may not require use of all Strong-Drive SDS Heavy-Duty Connector screws.
  • All multiple members must be fastened together to act as a single unit.
  • The thickness of the supporting girder must be equal to or greater than the screw length. For applications where the length of the supplied screws exceeds the thickness of the supporting girder, 3" or 4 1/2" screws may be substituted for the longer length screws with no load reduction, or a shim block may be used as approved by the Designer.
  • Girders must be adequately laterally braced to prevent excessive displacement due to secondary torsional stresses (Ref ANSI/TPI 1-2007 Section 7.5.3.5).

California Residents: WARNING

Specifications:


Height: 24-1/2"
Fasteners required: All Fasteners Included
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Can be installed filling round holes only, or filling round and triangle holes for maximum values.
-Strong-Drive SDS Heavy-Duty Connector screws supplied for all round and triangle holes. Installation may not require use of all Strong-Drive SDS Heavy-Duty Connector screws.
-All multiple members must be fastened together to act as a single unit.
-The thickness of the supporting girder must be equal to or greater than the screw length. For applications where the length of the supplied screws exceeds the thickness of the supporting girder, 3" or 4 1/2" screws may be substituted for the longer length screws with no load reduction, or a shim block may be used as approved by the Designer.
-Girders must be adequately laterally braced to prevent excessive displacement due to secondary torsional stresses (Ref ANSI/TPI 1-2007 Section 7.5.3.5).

View full details
