Simpson THJM2-4-SDS3 Multiple-Truss Hip/Jack Hanger 12 Gauge - Galvanized
Simpson THJM2-4-SDS3 Multiple-Truss Hip/Jack Hanger 12 Gauge - Galvanized!
Continue Browsing
LTH/THJ Multiple-Truss Hip/Jack Hanger
Specifications

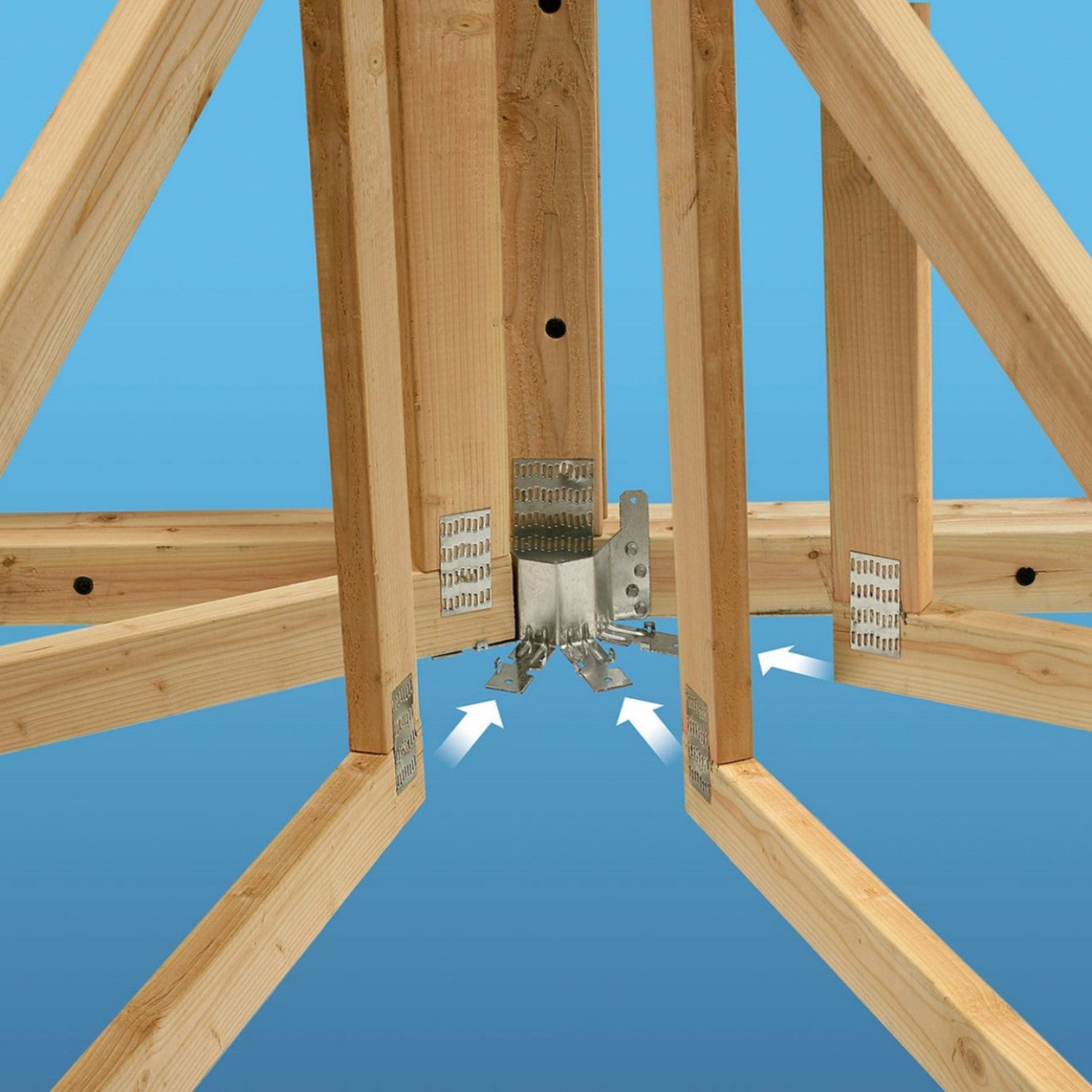

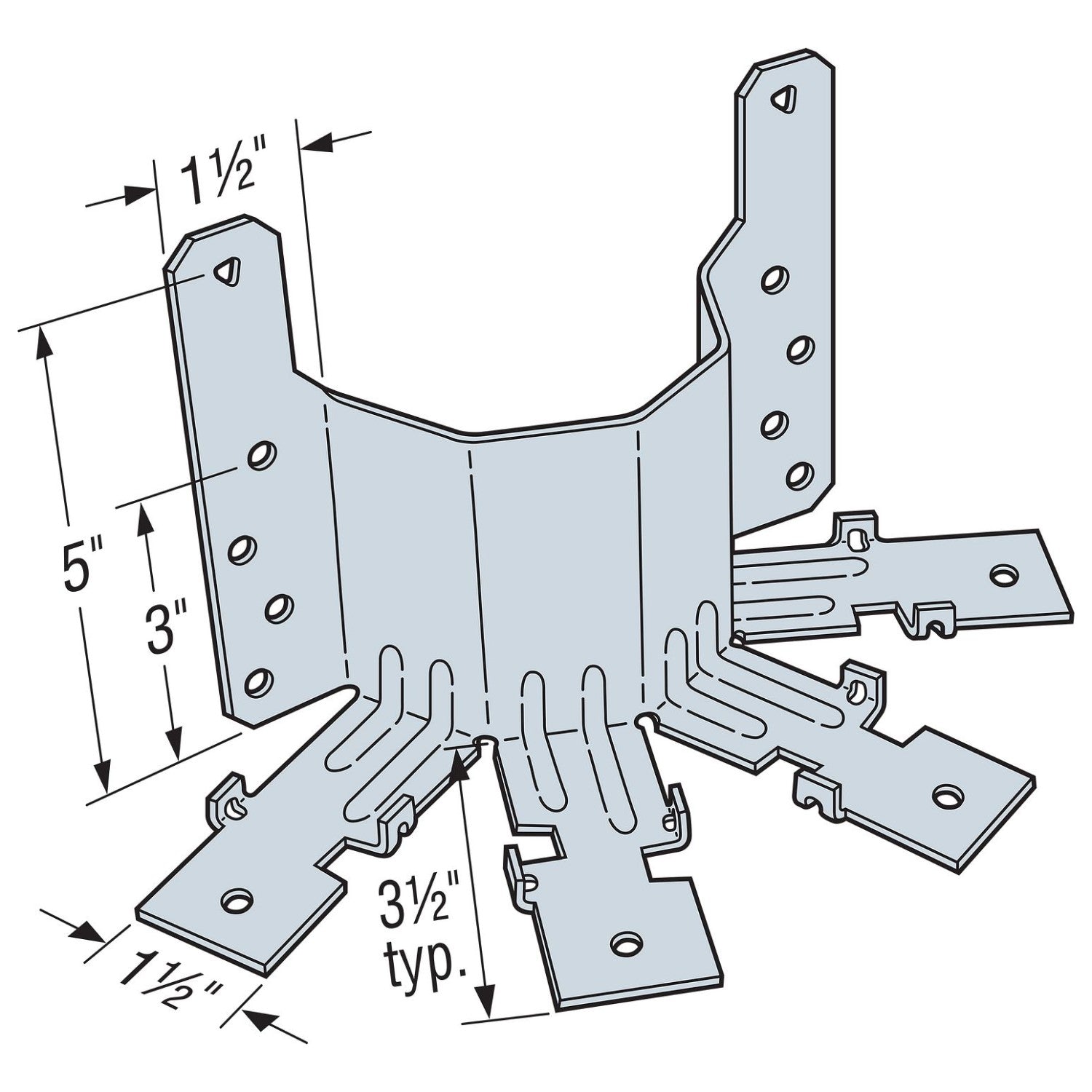

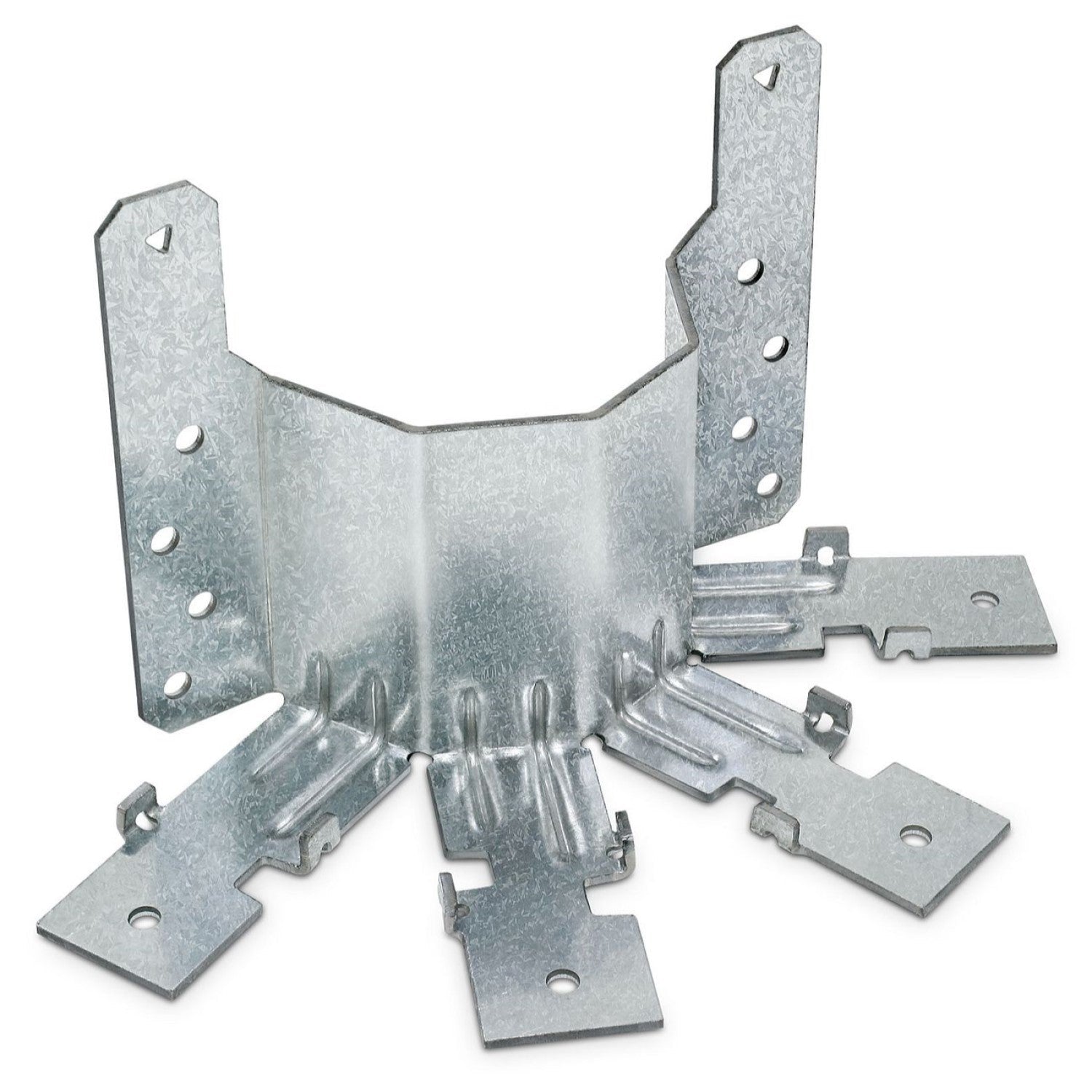

The Simpson Strong-Tie THJM is a non-welded hanger designed to carry radial-end jack framing and provide optimal efficiency for those multi-plane, angled bay roofs over breakfast, study and library alcoves. The unique patented design of the THJM accommodates 2x4 girder bottom chords and uses our Strong-Drive® SDS Heavy-Duty Connector screws for easy installation with minimal fasteners.
- Use all specified fasteners; see General Notes
- US Patent 8,443,569
- The THJM hangers are designed for installation with 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws that are included with the parts.

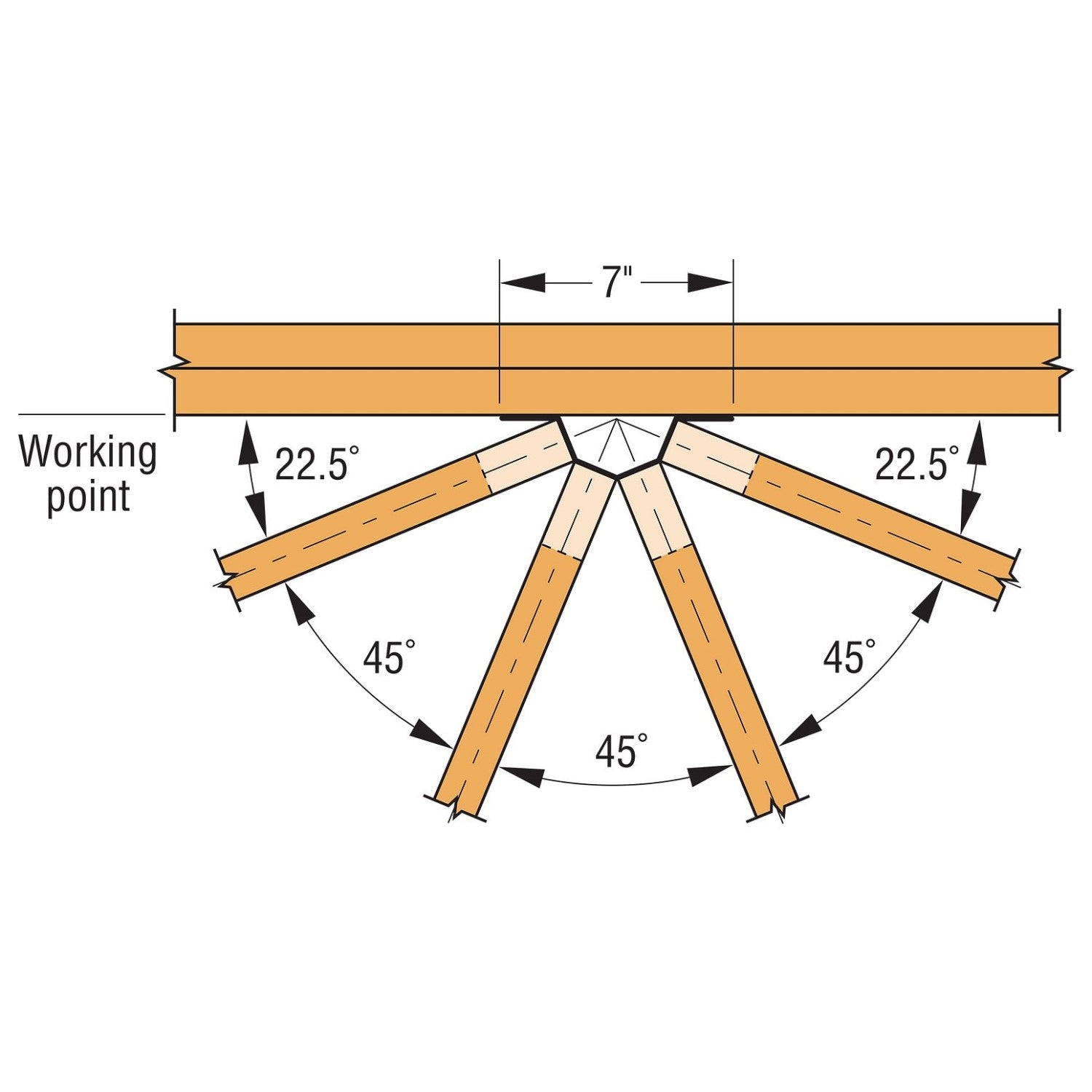

- The THJM2-4-SDS3 is designed for four incoming jack trusses with the outer jacks being 22 1/2° from the face of the girder and the inner jacks being 45° from each other and the outer jacks.
- The THJM2-5-SDS3 is designed for five jacks coming into the hanger at 30° from the girder and each other.
- Tabs on the seats of the THJM assist in the placement of the jacks and also include obround holes for optional slant nails (0.148" x 1 1/2") when increased uplift is required.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
