SKU: THJU26

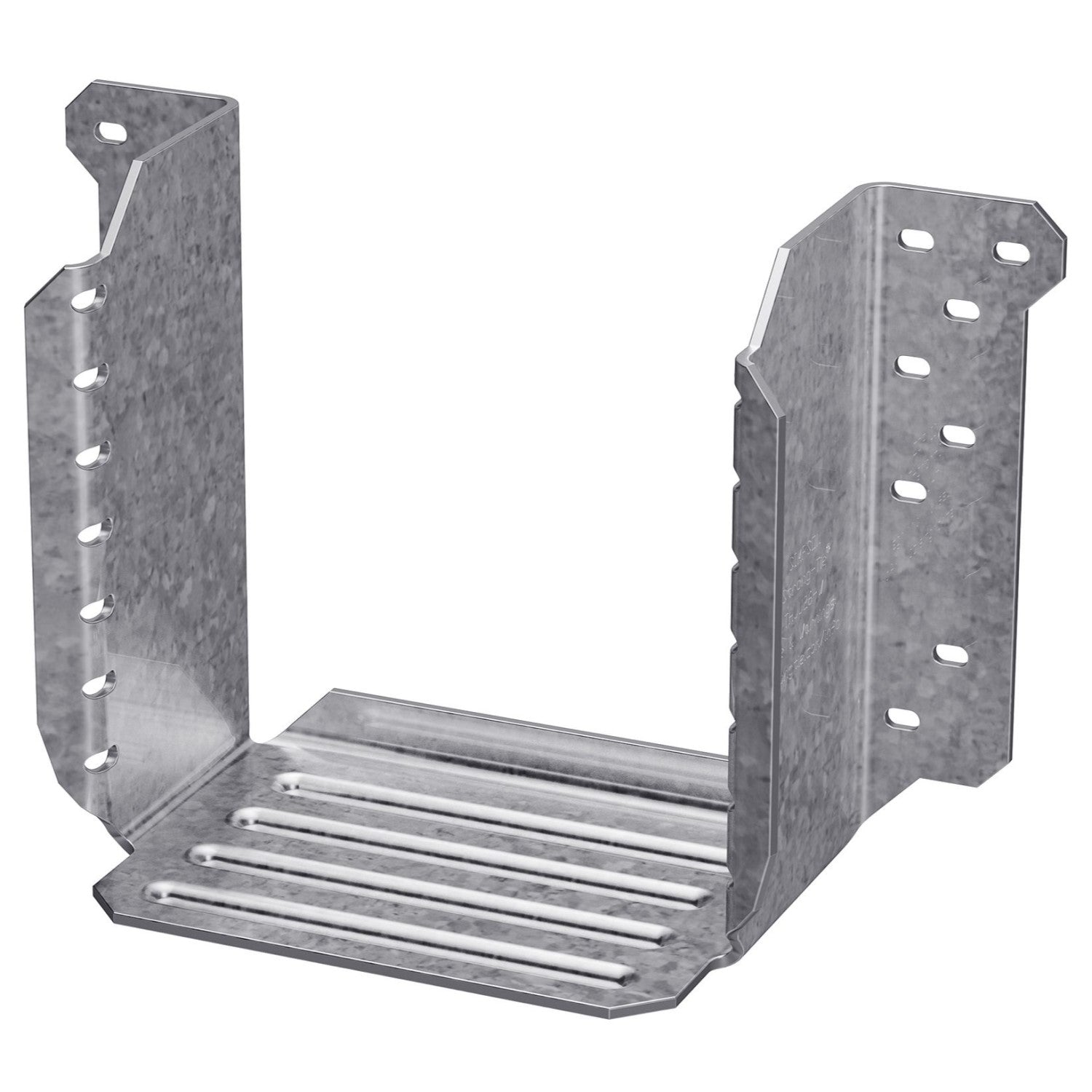

Simpson THJU26 Multiple-Truss Hip/Jack Hanger 12 Gauge - Galvanized

Simpson THJU26 Multiple-Truss Hip/Jack Hanger 12 Gauge - Galvanized!

Skip to product information
1 of 2
$16.70

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 2 hours 14 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: See Product Spec Sheet
Height: 5-3/8"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 12 Gauge
Width: 5-1/8"
Description

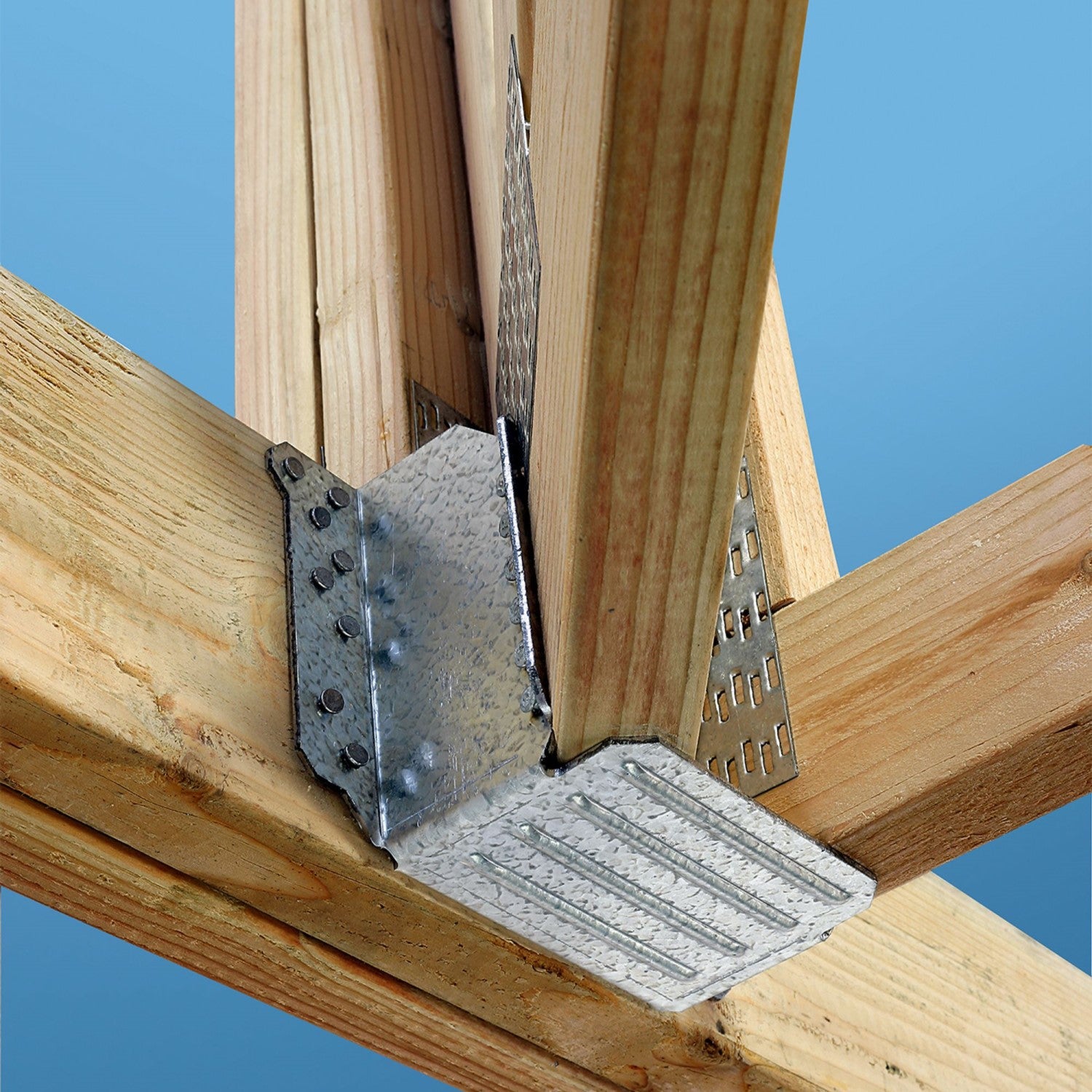

The Simpson Strong-Tie THJU26 hip/jack hanger offers the most flexibility and ease of installation without sacrificing performance. The U-shaped hanger works for right- and left-hand hips and can be ordered to fit a range of hip skews (up to 67 1/2°) as well as various single and 2-ply hip/jack combinations. Also can be installed before or after the hip and jack.

THJU26 is sized for the standard hip/jack combination with a 45° left- or right-hand hip. The wide seat of THJU26-W accommodates a 2-ply hip and 2-ply jack combination with a 45° maximum hip skew, or a standard single-ply hip/jack configuration with a maximum 67 1/2° hip skew. Intermediate seat widths are available for other hip/jack or hip/hip combinations.

For custom options, please give us a call at (888) 794-1590 and we would be happy to assist you with a custom hanger!

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
