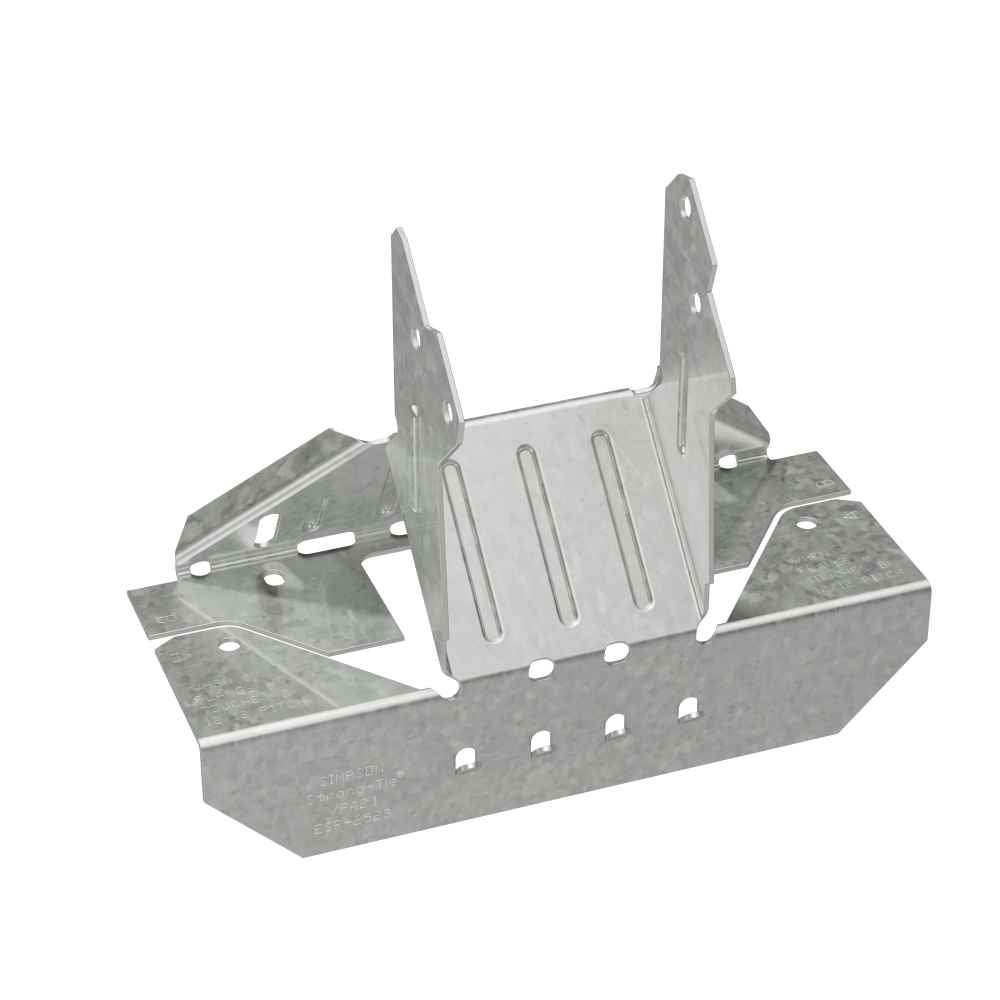

Simpson VPA2.1 2-1/16" Joist Variable Pitch Connector - G90 Galvanized
Simpson VPA2.1 2-1/16" Joist Variable Pitch Connector - G90 Galvanized
Regular price
$9.29
Sale price
$9.29
Regular price
Unit price
per
0% off
Couldn't load pickup availability
Description:
Description:
The VPA may be sloped in the field, offering a versatile solution for attaching rafters to the top plate. It will adjust to accommodate slopes between 3:12 and 12:12, making it a complement to the versatile LSSR and LSSJ rafter hangers. This connector eliminates the need for notched rafters, beveled top plates and toe nailing. The Strong-Tie VPA2.1 Adjustable U Hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- View step-by-step installation instructions in the Installer's Pocket Guide (S-C-INSTALL)
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Carrying Member - (9) 0.148" x 3" Nails Carried Member - (2) 0.148" x 1-1/2" Nails
Width: 2-1/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 2-1/16"
Product Guide: View Spec Sheet
